Bently Nevada 130944-01 128275-01F Service-Ready Spare Part

Bently Nevada 130944-01 128275-01F Service-Ready Spare Part for Industrial Maintenance

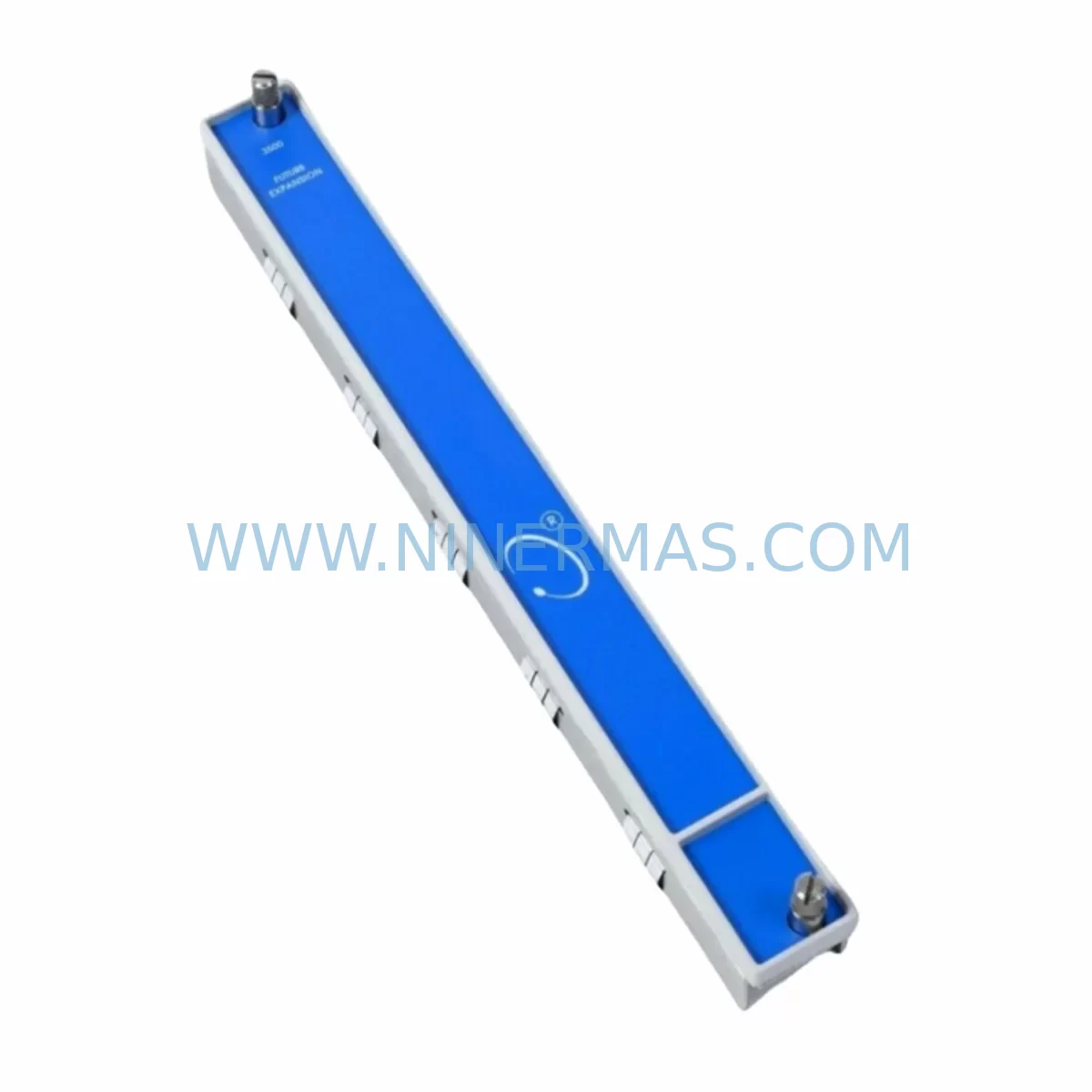

The Bently Nevada 130944-01 (firmware/option card reference 128275-01F) is a critical spare component within the Bently Nevada 3500 Series Machinery Protection System — one of the most widely deployed continuous vibration monitoring platforms in rotating equipment applications worldwide. Sourced as an original spare, this module is maintained in service-ready condition and is available for immediate dispatch to support emergency replacement, planned annual overhaul, or long-term spare parts inventory programs.

For maintenance engineers managing turbines, compressors, pumps, motors, and other rotating machinery, the 3500 Series rack-based monitor system is the backbone of condition-based maintenance (CBM) programs. When a module such as the 130944-01 fails or degrades, the consequences extend beyond a single measurement channel — they can compromise the entire machinery protection loop, triggering nuisance trips or, worse, masking genuine fault conditions. Holding a verified spare on-site or through a trusted supplier like NINERMAS eliminates the procurement lead-time risk that often extends unplanned downtime from hours into days.

Procurement engineers sourcing this part should note that the 128275-01F suffix designates a specific firmware or hardware revision. Confirming the exact revision compatibility with your installed 3500 rack configuration is essential before installation. NINERMAS performs pre-shipment functional verification and documents the revision level on each unit’s test certificate, reducing the risk of receiving an incompatible build.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the Bently Nevada 130944-01 128275-01F in a live 3500 Series rack is rarely an isolated task. Experienced maintenance engineers treat a module swap as an opportunity to audit the surrounding system health and reduce the probability of a follow-on failure. The following components and subsystems should be inspected or verified concurrently:

Rack Power Supply (e.g., Bently Nevada 3500/15 Power Supply Module): The 3500 rack relies on a dedicated internal power supply to deliver regulated DC rails to all installed modules. A degraded power supply can cause intermittent module faults that mimic a failed monitor card. Verify output voltages and inspect for capacitor aging or thermal discoloration before concluding the monitor module itself is at fault.

I/O Terminal Blocks and Field Wiring: Vibration transducer signals (typically Bently Nevada 3300 XL or 7200 Series proximity probes) arrive at the rack via dedicated I/O modules and terminal blocks. Inspect terminal torque, check for oxidation on screw terminals, and verify cable shield grounding continuity. A loose or corroded connection at the 3500/20 I/O Module or its associated terminal block can produce false high-vibration readings that are incorrectly attributed to the monitor card.

Keyphasor Module (e.g., Bently Nevada 3500/25 Keyphasor Module): Phase reference signals are essential for vector-based vibration analysis. If the Keyphasor module is degraded, 1X and 2X amplitude and phase readings from the replaced monitor card will be unreliable. Confirm Keyphasor signal quality and gap voltage during the maintenance window.

Communication Gateway / System 1 Interface: The 3500 rack communicates with plant DCS or historian systems via a 3500/92 Communication Gateway Module or equivalent Ethernet/Modbus interface. After replacing the monitor module, verify that the rack re-establishes communication with the System 1 software and that all channel tags are correctly mapped. A firmware mismatch between the new module and the gateway can cause silent data loss.

Relay Output Module (e.g., Bently Nevada 3500/32 Relay Module): Trip and alarm relay outputs are routed through dedicated relay modules in the 3500 rack. After a monitor card replacement, test all associated relay outputs against the trip setpoints defined in the rack configuration to confirm the protection logic is intact. Do not assume relay wiring survived the module swap without verification.

Proximitor / Transducer Power: Eddy-current proximity probes require a stable −24 VDC excitation supply, typically sourced from the rack or a dedicated Proximitor enclosure. Verify Proximitor gap voltage (typically −10 VDC ± 1 VDC at the probe tip for standard 5 mm probes) and confirm the transducer is within its linear range before returning the channel to service.

Rack Backplane and Chassis: The 3500 rack backplane carries both power and communication signals between modules. Inspect the backplane connector on the replacement module and the corresponding rack slot for bent pins, contamination, or corrosion. A damaged backplane slot will cause repeated module failures regardless of the quality of the replacement card.

For sites operating legacy 3300 Series or 7200 Series Bently Nevada systems alongside a 3500 rack, this maintenance window is also an appropriate time to audit the condition of any 3300/16 Dual Velocity Monitor or 7200 Series transducer cables that share the same machinery skid, as these older components are increasingly difficult to source and benefit from proactive spare inventory planning.

Site Replacement Workflow

The following workflow is recommended for maintenance teams replacing the Bently Nevada 130944-01 128275-01F in a 3500 Series rack to minimize downtime and ensure system integrity:

Step 1 — Pre-Replacement Documentation: Export the current rack configuration using Bently Nevada Rack Configuration Software (RCS) or System 1. Record all channel setpoints, trip multipliers, time delays, and relay assignments. This configuration file is your recovery baseline if the replacement module requires re-programming.

Step 2 — Bypass and Inhibit: Coordinate with the control room to inhibit the affected channels in the DCS/SIS before removing the module. This prevents a nuisance trip during the swap. Confirm inhibit status is logged in the permit-to-work system.

Step 3 — Module Removal and Inspection: Remove the failed module and inspect the rack slot backplane connector. Clean with appropriate contact cleaner if contamination is present. Record the firmware revision of the removed module for comparison with the replacement unit.

Step 4 — Revision Verification: Confirm that the replacement 130944-01 128275-01F matches the required firmware revision for your rack configuration. NINERMAS provides a test certificate and revision label with each unit. If a revision mismatch is identified, contact NINERMAS before installation.

Step 5 — Installation and Configuration Restore: Install the replacement module and restore the rack configuration from the saved RCS file. Verify all channel parameters match the pre-replacement baseline. Do not rely on default factory settings — 3500 modules do not retain site-specific configuration after a card swap unless explicitly programmed.

Step 6 — Channel Verification and Return to Service: With the machinery running (or using a signal simulator), verify that all vibration channels on the replacement module are reading within expected ranges. Confirm alarm and trip setpoints are active. Remove channel inhibits in the DCS and document the completed replacement in the maintenance management system (CMMS).

This structured approach reduces the average time-to-restore for a 3500 Series monitor module replacement to under four hours for a prepared maintenance team, compared to eight or more hours for teams working without a pre-staged spare and documented procedure.

Spare Parts Support FAQ

Q1: What is the warranty coverage for the Bently Nevada 130944-01 128275-01F supplied by NINERMAS?
All spare parts supplied by NINERMAS carry a 12-month warranty from the date of shipment. This covers functional failure under normal operating conditions. Each unit is pre-shipment tested and accompanied by a test certificate. If a unit fails within the warranty period, NINERMAS will arrange replacement or repair at no additional cost to the customer.

Q2: How do I confirm that the 128275-01F revision is compatible with my installed 3500 rack?
Revision compatibility depends on the firmware version of your 3500 rack’s communication gateway and the version of Rack Configuration Software (RCS) in use at your site. Before ordering, provide NINERMAS with the full part number of the module being replaced (including any suffix or dash number visible on the module label) and the RCS version. Our technical team will confirm compatibility or identify the correct revision for your configuration.

Q3: Can NINERMAS support long-term or blanket purchase orders for this part?
Yes. NINERMAS supports long-term supply agreements and blanket PO arrangements for critical spare parts including the Bently Nevada 130944-01. For sites with multiple 3500 racks or multi-unit machinery trains, we recommend establishing a standing inventory commitment to ensure availability during peak maintenance seasons or unplanned outage events. Contact our sales team at sale@ninermas.com to discuss volume pricing and lead-time guarantees.

Q4: What pre-shipment testing does NINERMAS perform on this module?
Each 130944-01 128275-01F unit undergoes functional verification prior to shipment, including power-on self-test, channel output verification, and revision label confirmation. Units that do not pass testing are not shipped. A test certificate documenting the pass result and the technician’s sign-off is included in every shipment. This process is designed to eliminate the risk of receiving a non-functional spare during a critical maintenance window.
