Baldor NXE100-1616S Retrofit-Compatible Motion Controller

Baldor NXE100-1616S Retrofit-Compatible Motion Controller for Legacy Systems

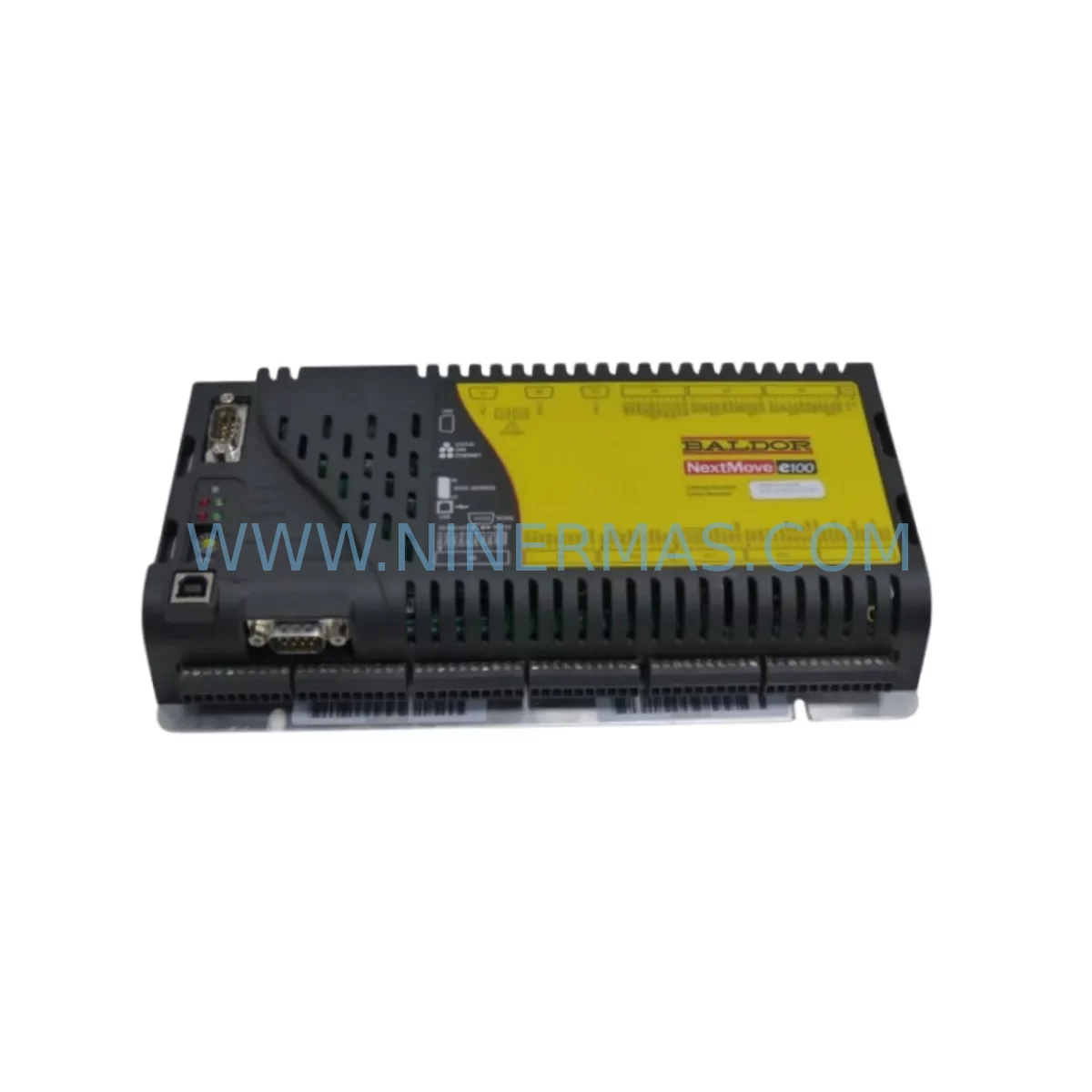

The Baldor NXE100-1616S is a ruggedized, high-performance motion control module engineered for demanding industrial environments. As legacy Baldor NexDrive and NextMove motion platforms reach end-of-life, maintenance engineers and system integrators increasingly rely on the NXE100-1616S as a proven retrofit solution that preserves existing wiring infrastructure, encoder feedback loops, and motion program logic without requiring a full control architecture redesign.

NINERMAS maintains verified stock of the NXE100-1616S with pre-shipment functional testing and a 12-month warranty, ensuring your production line can be restored or upgraded with minimal risk and controlled downtime.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing a legacy Baldor motion controller in an active production environment requires careful pre-migration planning. Engineers typically begin by auditing the existing control cabinet layout — confirming available DIN rail space, verifying that the 24 VDC power supply rail can support the NXE100-1616S alongside co-located I/O modules such as the Baldor NXE-IO16 digital expansion block or any third-party signal isolator modules already installed in the rack.

On the communication side, the NXE100-1616S supports CANopen, RS-232, and RS-485 — making it compatible with a wide range of host controllers and HMI panels. If the existing system uses a Baldor NextMove BX or NextMove ES as the master controller, the NXE100-1616S can be integrated as a slave axis node with minimal changes to the CANopen network configuration. Engineers should document the existing node address assignments and update the NXE100-1616S node ID via the Mint WorkBench programming environment before going live.

For systems that include a Baldor MicroFlex or FlexDrive servo drive on the same motion bus, the NXE100-1616S retrofit should be coordinated with a review of the drive’s parameter set — particularly the velocity loop gain, position window, and fault response settings — to ensure the new controller’s command profile matches the drive’s tuned response. In multi-axis applications, the Baldor NXE-AXIS expansion module may also need to be re-addressed after the controller swap.

Wiring adaptation is another critical checkpoint. The NXE100-1616S uses a standard 24-pin terminal block layout. Technicians should compare the existing wiring harness against the NXE100-1616S terminal assignment diagram, paying particular attention to the digital input commons, output sink/source configuration, and encoder differential pair shielding. Where the legacy unit used a proprietary connector, a breakout adapter or re-termination to Phoenix Contact or Weidmüller terminal blocks may be required.

If the production line includes a third-party HMI panel — such as a Weintek or Pro-face touchscreen — communicating with the legacy Baldor controller over RS-232, the NXE100-1616S serial port parameters (baud rate, parity, stop bits) must be matched exactly to avoid communication faults after the swap. HMI screen logic referencing legacy register addresses should be reviewed and updated in the HMI project file before commissioning.

Finally, for systems where the Baldor controller interfaces with a Siemens S7-300 or Omron CJ-series PLC via a fieldbus gateway, the gateway’s node table and I/O mapping should be re-validated post-installation to confirm that all motion status bits and command words are correctly routed to the new NXE100-1616S.

Downtime Control During System Migration

Minimizing production downtime during a Baldor NXE100-1616S retrofit begins with thorough pre-work. Before the scheduled maintenance window, engineers should export and archive the complete Mint motion program from the legacy controller using Mint WorkBench, saving all axis parameters, cam tables, and sequence logic to a secure backup location. This ensures that if the new unit requires firmware alignment or parameter re-entry, the original logic is immediately available for reference.

During the physical swap, the recommended sequence is: power down the control cabinet, label and photograph all wiring connections, remove the legacy controller, install the NXE100-1616S on the DIN rail, re-terminate all signal and power wiring, and restore 24 VDC control power before enabling the main drive bus. This staged power-up sequence protects the drive and motor from uncontrolled motion during initialization.

For multi-axis systems, it is advisable to bring up one axis at a time, verifying encoder feedback, limit switch response, and jog motion before enabling the full motion sequence. CANopen network health should be confirmed via the Mint WorkBench diagnostic screen, checking that all slave nodes — including any co-located NXE-IO or MicroFlex units — are online and responding before executing the first production cycle.

NINERMAS ships the NXE100-1616S with a pre-shipment functional test report, reducing on-site commissioning risk. Units are verified for I/O continuity, communication port integrity, and encoder interface response prior to dispatch. The 12-month warranty covers all hardware defects identified during installation and initial operation, providing a safety net for the retrofit team throughout the commissioning phase.

Retrofit Support FAQ

Q: Is the NXE100-1616S a direct drop-in replacement for the legacy Baldor NexDrive controller?
A: The NXE100-1616S is functionally compatible with NexDrive-based motion systems and uses the same Mint programming environment. However, terminal wiring, node addressing, and firmware version should be verified before installation. NINERMAS can provide the datasheet and wiring diagram to support pre-installation planning.

Q: What communication protocols does the NXE100-1616S support?
A: The NXE100-1616S supports CANopen, RS-232, and RS-485. For systems currently using RS-232 to a host PLC or HMI, the serial parameters must be matched. For CANopen networks, the node ID must be configured via Mint WorkBench prior to commissioning.

Q: Does NINERMAS test the NXE100-1616S before shipment?
A: Yes. All units undergo pre-shipment functional testing covering I/O continuity, communication port integrity, and encoder interface verification. A test report is included with each shipment. The unit is covered by a 12-month warranty from the date of delivery.

Q: What is the typical lead time and stock availability?
A: NINERMAS maintains ready stock of the NXE100-1616S for immediate dispatch. Standard lead time is 3–7 business days for international shipments. Contact our team for urgent requirements or reserved inventory arrangements for long-term maintenance contracts.
