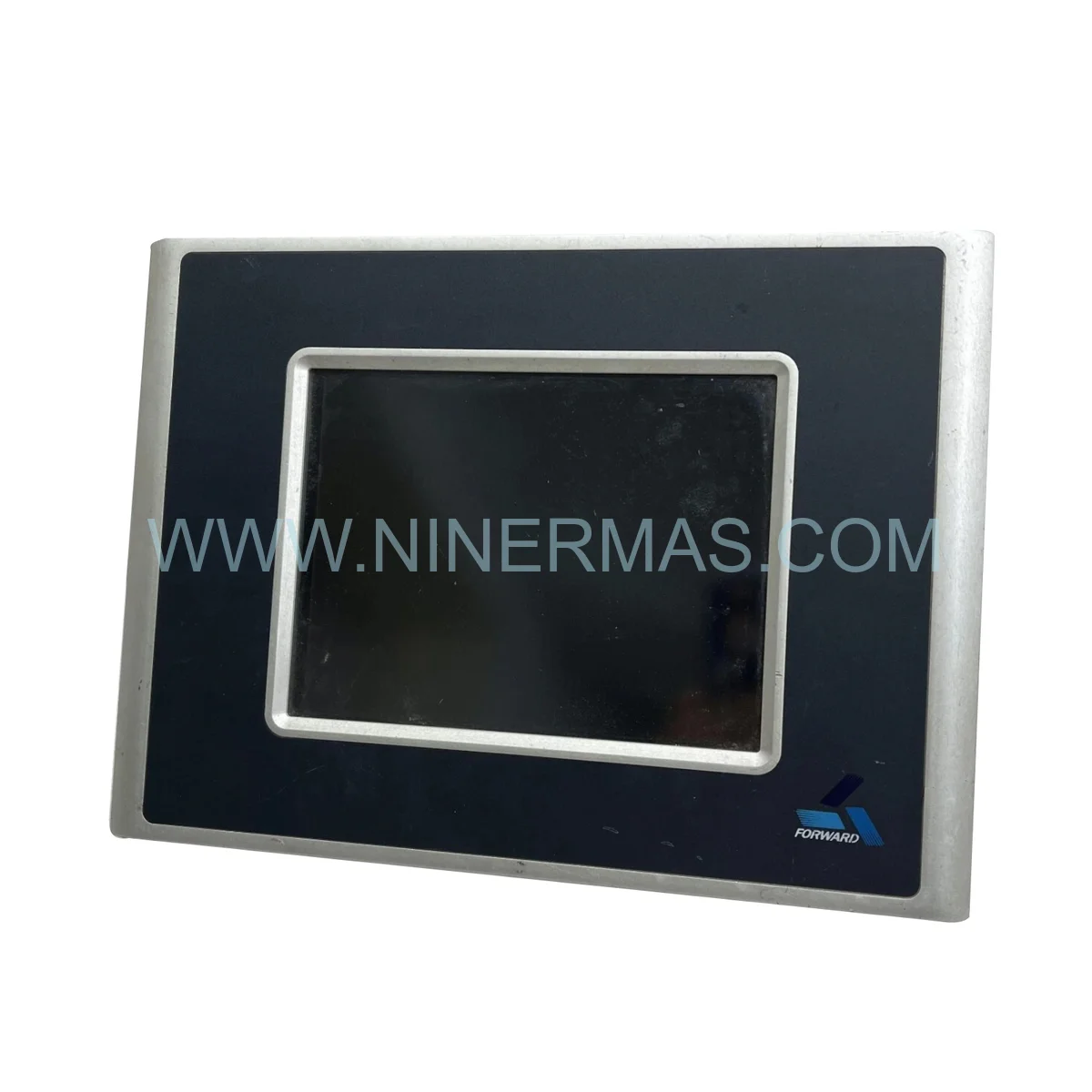

Bachmann WT205 LX700/DD256/CF512 — Professional Retrofit & System Upgrade Component

System Modernization & Migration Analysis

As a Retrofit Project Lead overseeing industrial control infrastructure upgrades, the Bachmann WT205 LX700/DD256/CF512 stands out as a cornerstone component in any system modernization initiative. Its 700MHz LX700 processor architecture, paired with 256MB DDR RAM and 512MB CompactFlash storage, delivers the computational headroom required to breathe new life into aging DCS and TSI platforms — extending equipment service life while dramatically improving throughput and response latency. For facilities operating legacy Bachmann M1 infrastructure, this module represents a low-risk, high-return upgrade path that avoids the capital expenditure of full system replacement.

The Bachmann WT205 LX700/DD256/CF512 is engineered with full backward compatibility across the Bachmann M1 backplane ecosystem, making it an ideal drop-in retrofit candidate for systems previously running on MPC240 or earlier processor generations. Its native support for IEC 61131-3 programming standards ensures that existing control logic can be migrated with minimal rework, preserving decades of validated process knowledge while unlocking modern performance benchmarks. This seamless integration capability is precisely what makes it the preferred choice for retrofit engineers managing multi-phase migration projects.

From a migration risk and cost perspective, deploying the WT205 LX700/DD256/CF512 within an existing M1 chassis eliminates the need for new panel engineering, rewiring, or operator retraining. The result is a measurable reduction in project downtime, migration budget overruns, and commissioning complexity — three of the most critical pain points in industrial control system modernization programs.

Upgrade Highlights & Compatibility

✅ Drop-In Legacy Compatibility: Fully compatible with Bachmann M1 backplane slots (BS203 through BS212 series) — no chassis modification required for retrofit deployments.

Performance Enhancement: 700MHz LX700 processor delivers up to 3 the processing throughput of legacy MPC240-series controllers, enabling faster scan cycles and real-time data handling.

✅ Expanded Memory Architecture: 256MB DDR RAM + 512MB CompactFlash supports complex multi-axis control programs, historian data buffering, and advanced alarm management simultaneously.

Future-Proofing via Open Standards: IEC 61131-3 compliance and multi-protocol communication (Ethernet, Serial, CAN) ensure the module remains integration-ready for next-generation SCADA and IoT overlay architectures.

✅ Operational Temperature Range: Rated -40°C to +70°C, sustaining reliable performance in harsh industrial environments including offshore platforms, steel mills, and chemical processing facilities.

Reduced Migration Risk: Factory-sealed, original hardware with 12-month warranty eliminates the uncertainty associated with refurbished or third-party replacement components during critical upgrade windows.

Modernization Use Cases & Success Stories

Wind Turbine Control System Overhaul (TSI Modernization): Turbine operators running legacy Bachmann MPC240-based TSI platforms face increasing obsolescence risk as spare parts become scarce. Replacing the CPU module with the WT205 LX700/DD256/CF512 within the existing M1 chassis delivers a performance leap — faster pitch control response, enhanced condition monitoring data throughput, and compatibility with modern SCADA supervisory layers — all without replacing field wiring or turbine-side I/O modules.

Water Treatment DCS Upgrade: Municipal water authorities managing distributed control systems built on aging Bachmann M1 infrastructure have successfully deployed the WT205 LX700/DD256/CF512 as a phased modernization strategy. The module’s expanded CompactFlash storage enables on-board data logging for regulatory compliance reporting, while the increased RAM supports simultaneous execution of PID control loops, alarm management, and OPC-UA communication stacks.

Manufacturing Line Automation Retrofit: Automotive and discrete manufacturing facilities integrating new robotic cells into legacy Bachmann-controlled production lines leverage the WT205 LX700/DD256/CF512 as the central coordination controller. Its multi-protocol communication interfaces (Ethernet, CAN, Serial) allow seamless integration between legacy field devices and modern robot controllers, eliminating the need for costly protocol conversion gateways.

Energy & Power Generation Control Modernization: Power plant operators requiring enhanced computational performance for load balancing algorithms and grid synchronization logic have adopted the WT205 LX700/DD256/CF512 as a direct upgrade within existing M1 control panels. The result: reduced control cycle times, improved fault detection sensitivity, and a clear migration pathway toward future IIoT-enabled monitoring architectures.

Migration Technical Data Sheet

Supply Chain & Deployment Support

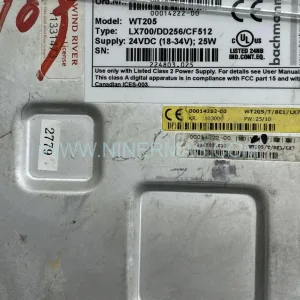

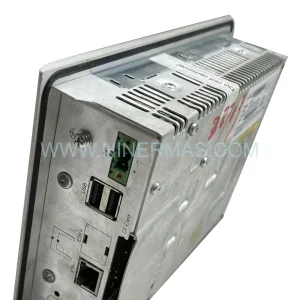

Original & Factory Sealed: Every Bachmann WT205 LX700/DD256/CF512 unit is sourced as genuine, factory-sealed hardware — not refurbished or third-party remanufactured. This guarantees full firmware compatibility, uncompromised reliability, and eligibility for Bachmann’s official technical support channels during your retrofit project.

Expedited Global Logistics: We maintain strategic inventory reserves to support time-critical retrofit and emergency replacement scenarios. Express shipping to North America, Europe, Southeast Asia, and the Middle East is available with typical lead times of 3-7 business days. DDP (Delivered Duty Paid) shipping options are available to simplify customs clearance for international retrofit projects.

Technical Support for Obsolete & Legacy Hardware: Our engineering team specializes in Bachmann M1 platform migration support. Whether you need assistance validating backward compatibility, configuring communication parameters for legacy field devices, or planning a phased migration from MPC240 to WT205-series controllers, our retrofit specialists are available to provide pre-sales consultation and post-installation technical guidance.

Retrofit FAQ — Upgrade Guide

Q: Will the WT205 LX700/DD256/CF512 physically fit in my existing M1 chassis without modification?
A: Yes. The Bachmann WT205 LX700/DD256/CF512 is designed to the standard M1 module form factor and mounts directly into any compatible M1 backplane slot (BS203 through BS212 series). No chassis cutting, bracket modification, or panel re-engineering is required, making it an ideal drop-in retrofit solution for space-constrained control cabinets.

Q: How does the WT205 LX700/DD256/CF512 communicate with legacy field devices and older I/O modules already installed in my system?
A: The module supports Ethernet, Serial (RS-232/RS-485), and CAN communication interfaces natively. This multi-protocol capability ensures backward compatibility with legacy Bachmann I/O modules and third-party field devices, eliminating the need for protocol conversion gateways in most retrofit scenarios. For specialized fieldbus requirements (DeviceNet, PROFIBUS), dedicated communication modules can be added to the same M1 backplane.

Q: Can I migrate my existing control programs from an MPC240 controller to the WT205 LX700/DD256/CF512 without rewriting the logic?
A: In most cases, yes. Both platforms support IEC 61131-3 programming via Bachmann SolutionCenter, and control programs developed for MPC240-series controllers are generally portable to the WT205 with minimal adaptation. Our technical team recommends a compatibility audit of any hardware-specific function blocks or timing-critical routines prior to migration to ensure seamless transition.

Q: What is the recommended spare parts strategy when upgrading from legacy MPC240 to WT205 LX700/DD256/CF512 in a multi-controller DCS environment?
A: For phased DCS modernization projects, we recommend maintaining a minimum 1:5 spare ratio of WT205 LX700/DD256/CF512 units relative to installed controllers during the transition period. This ensures rapid swap capability in the event of unexpected failures during the migration window, minimizing unplanned downtime risk across the facility.

Q: Is the WT205 LX700/DD256/CF512 suitable as a long-term replacement for systems where the original controller model is now EOL (End of Life)?
A: Absolutely. The WT205 LX700/DD256/CF512 carries Active lifecycle status and is currently in full production support by Bachmann. It represents the recommended upgrade path for facilities operating EOL MPC240 or earlier M1 CPU modules, providing a minimum 10-year forward support horizon and access to current firmware updates, security patches, and Bachmann technical documentation.

Q: What documentation and technical resources are available to support our retrofit engineering team during deployment?
A: We provide access to the official Bachmann WT205 hardware manual, SolutionCenter configuration guides, and M1 system integration documentation upon purchase. Our retrofit support team is available via email and phone for pre-commissioning consultation, on-site technical assistance coordination, and post-installation troubleshooting throughout the warranty period.
