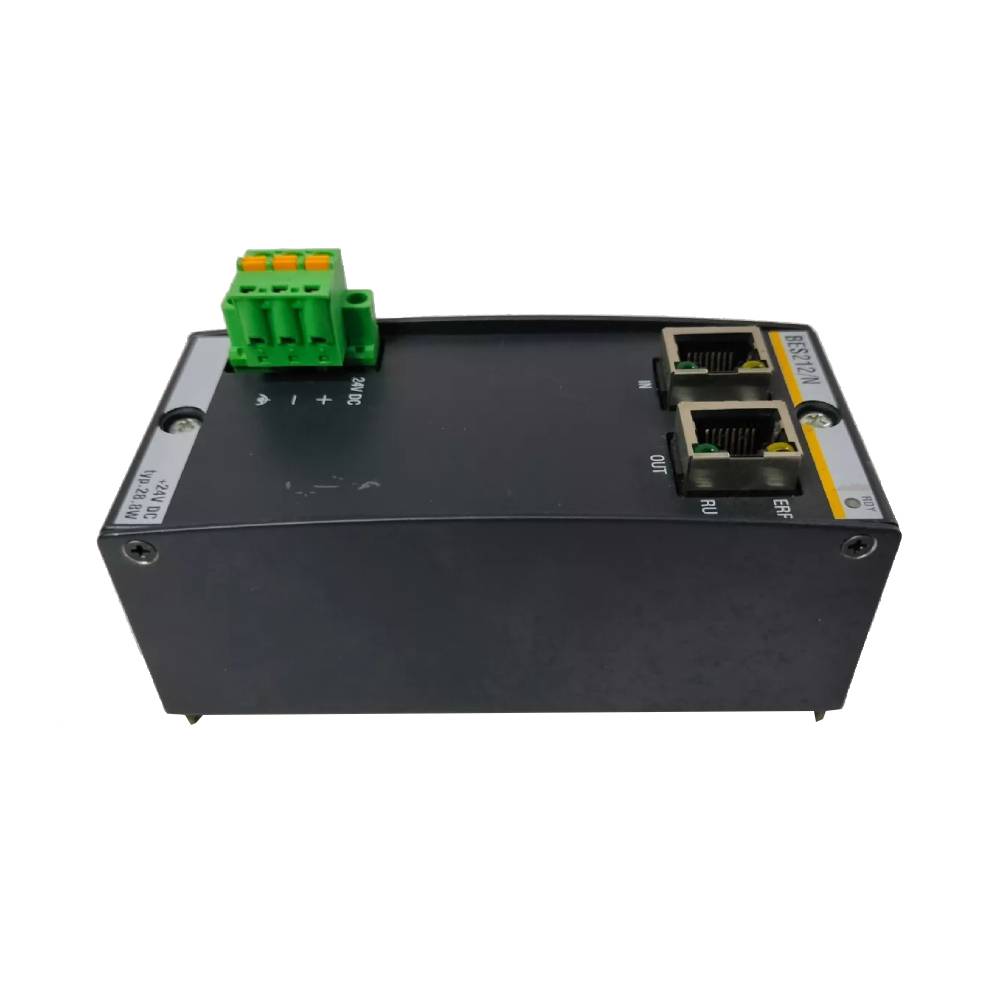

Bachmann BES212/N – Professional Retrofit & System Upgrade Component

System Modernization & Migration Analysis

As a Retrofit Project Lead overseeing industrial control infrastructure upgrades, the Bachmann BES212/N stands out as a cornerstone component in any M1 system modernization initiative. Aging distributed control architectures frequently suffer from I/O bottlenecks, limited scalability, and mounting maintenance costs — challenges that the Bachmann BES212/N directly resolves by extending the M1 backplane to support up to six independent substations, each accommodating 15 M1 modules, for a total expansion capacity of 90 modules. This capability transforms constrained legacy panels into high-density, future-ready control nodes without requiring a full platform replacement.

A critical advantage in retrofit scenarios is the BES212/N’s inherent backward compatibility with all generations of the Bachmann M1 automation family — including MX200, MP200, and MPC series controllers. Whether the objective is a phased hardware upgrade that preserves existing software logic or a full system migration to a modern distributed architecture, the BES212/N serves as the structural bridge between legacy frameworks and contemporary industrial network standards. Its deterministic high-speed M1 backplane communication ensures that real-time control performance is maintained — or improved — throughout the transition.

From a total cost of ownership perspective, deploying the BES212/N as part of a retrofit strategy significantly reduces migration risk and capital expenditure. Rather than commissioning an entirely new control platform, engineers can incrementally expand capacity, reuse validated I/O modules, and maintain operational continuity during the upgrade cycle. This approach compresses project timelines, minimizes production downtime, and delivers measurable performance enhancement with a lower risk profile than greenfield deployments.

Upgrade Highlights & Compatibility

✅ Seamless Integration — Drop-in compatible with all Bachmann M1 controllers; no firmware changes or software rewrites required for legacy system expansion.
Maximum Scalability — Supports 6 substations — 15 M1 modules = 90-module total expansion in a single BES212/N deployment.
? Legacy Compatibility — Full backward compatibility with MX200, MP200, MPC series; protects existing automation investment.
Performance Enhancement — High-speed deterministic M1 backplane eliminates communication latency common in aging bus architectures.
? Future-Proofing — Modular architecture supports incremental hardware upgrade without system-wide reconfiguration.
Industrial Resilience — Rated for -25°C to +60°C operating range; IP20 protection; CE, UL, cUL certified for global deployment.

Modernization Use Cases & Success Stories

DCS Modernization in Chemical Processing Plants: A multi-zone chemical facility operating on a decade-old distributed control system faced escalating spare parts costs and communication instability. By integrating the BES212/N into the existing M1 backbone, the engineering team expanded I/O capacity across three new substations without interrupting continuous process operations. The result: a 40% reduction in unplanned downtime and a clear hardware upgrade path toward full IIoT connectivity.

Turbine Supervisory Instrumentation (TSI) Retrofit: In power generation environments, TSI systems demand microsecond-level response times and zero-tolerance for communication gaps. The BES212/N’s deterministic backplane protocol made it the preferred retrofit component for expanding vibration monitoring and protection I/O in gas turbine control panels. Engineers achieved seamless integration with existing Bachmann MX213 processors while adding new analog input channels for enhanced turbine health diagnostics.

Automotive Manufacturing Line Upgrade: A body-in-white assembly line required additional motion control and digital I/O capacity mid-production cycle. The BES212/N enabled a live system migration — adding two new substations with ISI222/8 positioning modules and DIO216/4 digital I/O — without halting the production line. The retrofit solution delivered a performance upgrade equivalent to a new controller installation at approximately 30% of the cost.

Migration Technical Data Sheet

Supply Chain & Deployment Support

Original & Factory Sealed: Every Bachmann BES212/N unit is sourced directly from authorized distribution channels and shipped in original manufacturer packaging with full traceability documentation. No refurbished, remanufactured, or grey-market inventory.

Expedited Global Logistics: We maintain ready stock of the BES212/N to support urgent retrofit and system migration timelines. Express air freight to North America, Europe, Southeast Asia, and the Middle East is available with typical lead times of 3-7 business days. Emergency same-day dispatch is available for critical plant shutdown scenarios.

Technical Support for Obsolete & Legacy Hardware: Our engineering support team specializes in legacy compatibility assessments, retrofit planning, and migration technical data review. Whether you are replacing an end-of-life bus module or expanding an active M1 system, we provide pre-sales configuration guidance and post-delivery commissioning support at no additional charge.

Retrofit FAQ (Upgrade Guide)

Q: Can the BES212/N be installed in an existing M1 rack without modifying the controller configuration?
A: Yes. The BES212/N is designed for non-disruptive installation within existing M1 racks. Substation addresses are set via onboard DIP switches, and the M1 controller automatically recognizes the expanded bus topology during the next initialization cycle — no software reconfiguration required for standard expansion scenarios.

Q: How does the BES212/N handle communication between new and legacy M1 substations?
A: The BES212/N uses the native M1 high-speed backplane protocol, which is fully consistent across all M1 system generations. New substations added via the BES212/N communicate with the same deterministic timing and data integrity as the original rack, ensuring zero degradation in real-time control performance during or after the system migration.

Q: What are the physical space requirements for a BES212/N retrofit installation?
A: The BES212/N mounts on standard DIN rail and requires clearance for the M1 bus cable connections to each substation. For panel retrofit projects, a minimum of 35mm DIN rail space plus cable routing allowance per substation is recommended. Detailed dimensional drawings are available upon request.

Q: Is the BES212/N a viable substitute for discontinued Bachmann bus expansion modules?
A: The BES212/N is the current-generation bus expansion module for the M1 platform and serves as the recommended hardware upgrade path for systems running older or discontinued expansion hardware. Its full backward compatibility ensures that existing I/O modules, wiring, and software logic remain fully operational after the retrofit.

Q: What is the recommended approach for a phased system migration using the BES212/N?
A: The optimal phased migration strategy involves: (1) installing the BES212/N alongside the existing bus structure, (2) commissioning new substations one at a time while validating I/O performance, and (3) progressively migrating I/O from legacy racks to the new substations. This approach maintains full production continuity and allows engineering teams to validate each migration step before proceeding.

Q: Does the BES212/N support integration with industrial communication networks such as PROFIBUS or EtherNet/IP?
A: The BES212/N itself operates on the M1 internal backplane bus. Integration with fieldbus networks (PROFIBUS, EtherNet/IP, Modbus TCP) is achieved through dedicated Bachmann communication modules installed in the expanded substations, making the BES212/N a key enabler for legacy-to-modern network migration strategies.
