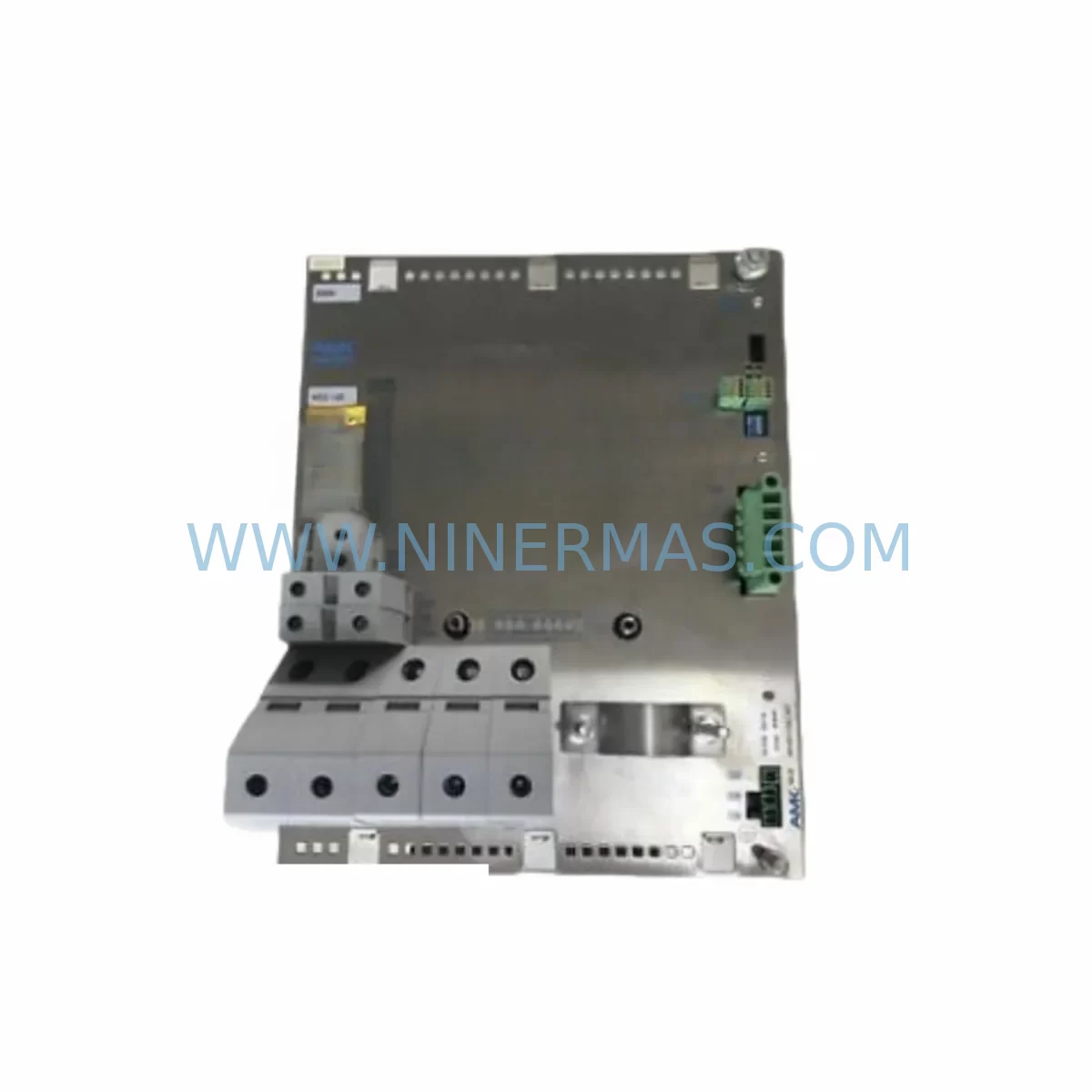

AMK D-73230 KES120 Retrofit-Compatible Servo Drive

AMK D-73230 KES120 Retrofit-Compatible Servo Drive for Legacy Automation Systems

The AMK D-73230 KES120 is a ruggedized servo drive module from AMK’s AMKASYN KES series, engineered for demanding industrial environments where vibration, temperature extremes, and continuous-duty cycles place exceptional stress on motion control hardware. As legacy AMK AMKASYN platforms approach end-of-life and original spare parts become increasingly scarce, the D-73230 KES120 remains one of the most sought-after retrofit-compatible replacements for plant engineers managing aging servo axes on production lines, packaging machinery, printing presses, and textile equipment.

NINERMAS maintains verified stock of the AMK D-73230 KES120 with full functional testing prior to shipment and a 12-month warranty covering all hardware defects. Each unit is inspected against AMK’s original performance specifications before dispatch, giving maintenance teams confidence that the replacement module will perform identically to the original installation.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing an AMK D-73230 KES120 in an operational plant requires careful pre-engineering to avoid extended downtime. The KES120 axis module operates within the AMK AMKASYN multi-axis architecture, sharing a common DC bus with the AMK KE supply module or KW regenerative supply module. Before removing the failed drive, engineers must confirm that the DC bus capacitance and peak current capacity of the existing supply module are sufficient to support the replacement axis without triggering overcurrent faults during acceleration ramps.

Terminal wiring on the KES120 follows AMK’s standard resolver and encoder feedback pinout. When migrating from an older KES-series variant, technicians should cross-reference the motor feedback cable pinout — particularly if the servo motor uses a Hiperface or EnDat encoder rather than a traditional resolver. In some retrofit scenarios, an AMK encoder adapter or signal converter may be required to bridge the feedback interface between the legacy motor and the replacement drive module.

The backplane interface on the AMK AMKASYN rack must be inspected for contact wear before inserting the replacement KES120. Corroded or deformed backplane connectors are a common cause of intermittent axis faults after module replacement and should be cleaned or replaced as part of the retrofit procedure. If the existing rack is an older AMK AMKASYN-D or AMKASYN-S chassis, confirm that the slot addressing and module ID configuration match the parameter set stored in the AMK controller — typically an AMK AW or DD series controller — to avoid axis address conflicts during startup.

For systems using SERCOS fiber-optic communication rings, the KES120 must be assigned the correct SERCOS address and phase sequence before the ring is closed. If the plant uses a third-party CNC or motion controller interfacing to the AMK drives via SERCOS, the drive parameters must be re-imported from the original project backup using AMK AIPEX Pro. Where the original parameter file is unavailable, NINERMAS technical support can assist in reconstructing baseline parameters from the motor nameplate data and application specifications.

I/O expansion requirements should also be reviewed during retrofit planning. If the original installation used an AMK DI/DO expansion module or an AMK KE-based I/O extension for safety interlocks, these modules must remain in their original rack positions to preserve the I/O address mapping in the PLC program. Altering the rack layout without updating the PLC I/O configuration will cause address mismatches and may trigger safety shutdowns. Similarly, if the system includes an AMK HMI panel or a third-party operator interface communicating with the AMK controller over Ethernet or serial link, the HMI screen assignments and variable bindings should be verified against the replacement drive’s parameter set before resuming production.

Signal isolation is another consideration in older installations where the KES120 interfaces with legacy analog command signals from a non-AMK master controller. In these cases, a DIN-rail signal isolator or analog signal conditioner may be required to eliminate ground loop interference that can cause velocity ripple or position drift on the servo axis.

Downtime Control During System Migration

Minimizing unplanned downtime during an AMK D-73230 KES120 replacement begins with advance preparation. NINERMAS recommends that maintenance teams obtain the replacement module before the existing drive shows critical failure symptoms — particularly in applications where the KES120 controls a critical production axis with no redundant path. Having a tested spare on the shelf reduces mean time to repair from days to hours.

Before powering down the axis for module replacement, the original program logic should be backed up from the AMK controller using AMK AIPEX Pro or WinDrive. This backup preserves all axis parameters, cam profiles, electronic gear ratios, and safety function configurations. If the controller memory contains the only copy of the program, losing it during a power interruption can extend downtime significantly beyond the physical replacement time.

During the physical swap, the DC bus must be fully discharged before the KES120 is removed from the rack. AMK AMKASYN supply modules retain bus voltage for several minutes after mains power is removed, and failure to wait for full discharge creates a serious electrical hazard. After installing the replacement KES120, the module address and firmware version should be confirmed before the bus is re-energized. A controlled test cycle at reduced speed and load should be performed before returning the axis to full production speed, allowing the maintenance team to verify encoder feedback, current loop response, and safety function operation without risking a high-speed fault on the first production run.

For multi-axis systems where the KES120 shares a DC bus with other AMK axis modules such as the KES60, KES90, or KES180, the bus pre-charge sequence must be managed carefully to avoid inrush current spikes that could trip the supply module’s overcurrent protection. Coordinating the startup sequence with the PLC program’s axis enable logic is essential to maintaining control continuity across all axes during the restart procedure.

Retrofit Support FAQ

Q: Is the AMK D-73230 KES120 a direct drop-in replacement for other KES-series axis modules?
A: The KES120 is dimensionally and electrically compatible with other AMK AMKASYN KES-series axis modules of the same current rating class. However, axis parameters — including current limits, speed limits, encoder type, and safety function configuration — must be verified and re-entered for the specific motor and application. NINERMAS provides pre-shipment functional testing and can supply parameter templates upon request.

Q: What commissioning steps are required after installing the replacement KES120?
A: After physical installation, restore the axis parameter set using AMK AIPEX Pro, confirm the SERCOS or system bus address, perform a resolver or encoder offset calibration if required, and execute a controlled test cycle at reduced speed before returning to full production. NINERMAS technical support is available to assist with remote commissioning guidance.

Q: Can the KES120 be used with non-AMK motors or third-party servo motors?
A: The KES120 is optimized for AMK servo motors with compatible feedback interfaces. Use with third-party motors is possible in some configurations but requires careful verification of feedback signal compatibility, motor thermal model parameters, and current loop tuning. Contact NINERMAS for application-specific compatibility assessment.

Q: What does the 12-month warranty cover, and what is the lead time for in-stock units?
A: NINERMAS’s 12-month warranty covers all hardware defects identified under normal operating conditions. In-stock units are shipped within 3–5 business days after order confirmation and payment. Each unit undergoes functional testing before dispatch. For urgent requirements, expedited shipping options are available — contact our sales team directly.
