AMAT 0100-20313 Retrofit Interconnect Module for Legacy Systems

AMAT 0100-20313 Retrofit Interconnect Module for Legacy Systems

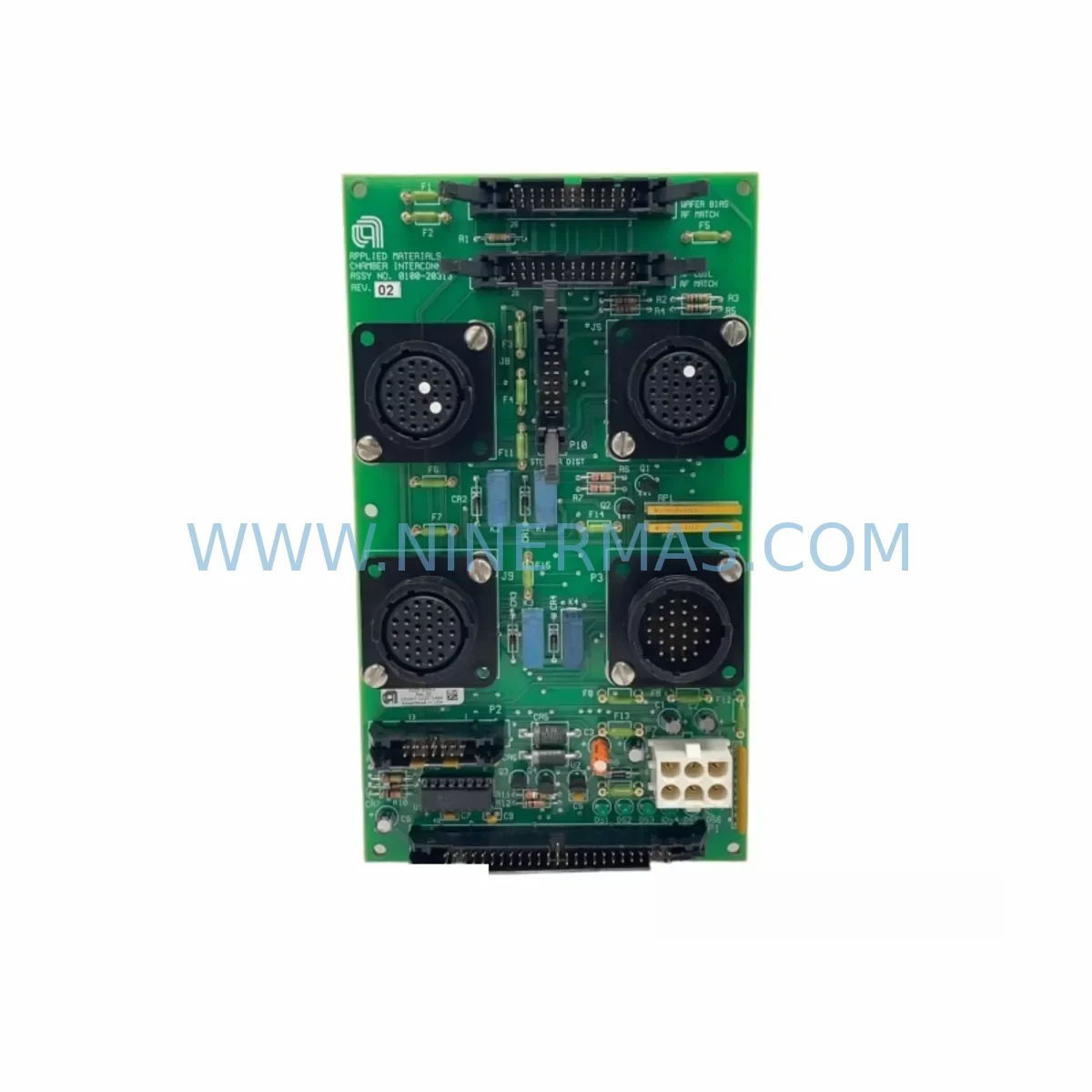

The AMAT 0100-20313, also referenced under part number 2305618-A and platform designation Jaguar II, is a ruggedized interconnect module originally designed for Applied Materials semiconductor process equipment. As production lines age and original equipment manufacturers discontinue active support for legacy platforms, the 0100-20313 has become a critical spare part for facilities seeking to extend the operational life of their existing systems without committing to a full platform replacement. This module serves as a reliable retrofit solution for engineers managing aging control architectures in CVD, PVD, etch, and implant tool environments.

Facilities operating legacy Applied Materials equipment frequently encounter the challenge of sourcing discontinued interconnect components. The 0100-20313 addresses this directly by providing a form-fit-function compatible replacement that preserves original signal routing, backplane interface geometry, and connector pinout compatibility. For process engineers and maintenance teams, this means reduced engineering hours during swap-out, lower risk of wiring errors, and faster return to production after an unplanned downtime event.

NINERMAS COMPANY LIMITED maintains reserved inventory of the AMAT 0100-20313 to support customers with long-term supply commitments. Each unit undergoes pre-shipment functional testing and ships with a 12-month warranty covering manufacturing defects and operational failures under normal use conditions.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the AMAT 0100-20313 in a live production environment requires careful pre-work to avoid extended downtime and configuration errors. Before removing the existing module, maintenance teams should document the current wiring harness routing, connector locking positions, and any field-applied labels on adjacent signal cables. Photographing the installation from multiple angles is strongly recommended.

In Jaguar II platform configurations, the 0100-20313 typically interfaces with adjacent I/O distribution boards and signal conditioning assemblies. Engineers should verify that the replacement unit’s connector geometry matches the host chassis revision, as minor mechanical revisions across Jaguar II production runs can affect module seating depth and locking tab alignment. If the facility also operates related AMAT modules such as the 0100-20314 signal interface board or the 0100-20312 distribution module, cross-referencing the chassis wiring diagram against all installed components will help identify any cascading compatibility considerations.

Power supply capacity is another critical checkpoint. The interconnect module draws regulated DC power from the chassis backplane. Before installation, confirm that the existing AMAT power supply module — commonly a unit in the 0190-series such as the 0190-35811 or a functionally equivalent replacement — can sustain the combined load of all installed modules after the swap. Insufficient headroom can cause intermittent faults that are difficult to diagnose post-installation.

For facilities that have partially upgraded their control architecture, the 0100-20313 may need to coexist with newer I/O expansion modules or updated communication interface cards. In these mixed-generation environments, verifying module address assignments is essential. Address conflicts between the legacy interconnect module and newer digital I/O boards — such as those in the 0100-01360 family — can cause the host controller to misread process signals, leading to false alarms or recipe execution errors.

HMI screen mapping should also be reviewed during retrofit planning. If the facility’s process control software references specific I/O channel addresses tied to the original 0100-20313 installation, any change in module slot position or address configuration will require corresponding updates to the HMI display logic. Coordinate with the process control team to schedule HMI validation as part of the commissioning sequence, not as an afterthought.

Communication link integrity between the interconnect module and the host controller — whether via a legacy serial backplane bus or a more recent fieldbus implementation — must be verified after installation. Use the system’s built-in diagnostic utilities or an external protocol analyzer to confirm that all expected data frames are being transmitted and acknowledged correctly before releasing the tool to production.

For facilities managing a broader control cabinet upgrade that includes replacing aging relay panels, terminal blocks, and signal isolators alongside the interconnect module, planning the sequence of replacements to minimize cumulative downtime is critical. Grouping the 0100-20313 replacement with other scheduled maintenance activities — such as replacing worn terminal block assemblies or recalibrating signal isolators in the same cabinet zone — reduces the total number of planned outage windows required.

Downtime Control During System Migration

Minimizing downtime during the replacement of the AMAT 0100-20313 begins with preparation, not execution. A well-structured pre-work checklist — covering module identification, wiring documentation, spare parts staging, and tool availability — can reduce the actual swap time to under two hours for experienced technicians familiar with the Jaguar II platform.

Preserving the original program logic is non-negotiable. Before any hardware change, back up the current controller program, including all recipe parameters, alarm setpoints, and I/O mapping tables. If the host controller uses a proprietary programming environment, confirm that the backup file format is compatible with the version of software available on-site. For older AMAT platforms, this may require maintaining a legacy programming workstation with the appropriate software version installed.

To maintain field control continuity during the swap, consider whether any process interlocks can be temporarily bypassed under a formal management-of-change procedure. This approach allows adjacent systems to remain operational while the interconnect module is being replaced, reducing the blast radius of the outage to a single tool or zone rather than an entire process bay.

After installation, follow a structured commissioning sequence: power-on self-test, signal continuity check, address verification, communication link confirmation, and a supervised process dry-run before returning the tool to full production. Document all findings and retain the commissioning record as part of the equipment maintenance history.

Retrofit Support FAQ

Q: Is the AMAT 0100-20313 a direct replacement for the original installed unit?
A: Yes. The 0100-20313 is designed as a form-fit-function replacement for the original module. Cross-reference part number 2305618-A to confirm compatibility with your specific chassis revision before ordering.

Q: What pre-shipment testing is performed on each unit?
A: Every AMAT 0100-20313 supplied by NINERMAS undergoes functional testing prior to shipment to verify electrical integrity and connector condition. A test report is available upon request.

Q: What is the warranty coverage?
A: Each unit ships with a 12-month warranty from the date of shipment, covering manufacturing defects and operational failures under normal operating conditions. Warranty claims are handled directly by NINERMAS COMPANY LIMITED.

Q: Can NINERMAS support long-term supply commitments for this part?
A: Yes. NINERMAS maintains reserved inventory of the 0100-20313 and can support scheduled procurement programs for facilities with ongoing maintenance requirements. Contact our team to discuss volume pricing and lead time commitments.
