AMAT 0040-47632 Retrofit-Compatible Housing for Legacy Systems

AMAT 0040-47632 Retrofit-Compatible Housing for Legacy Systems

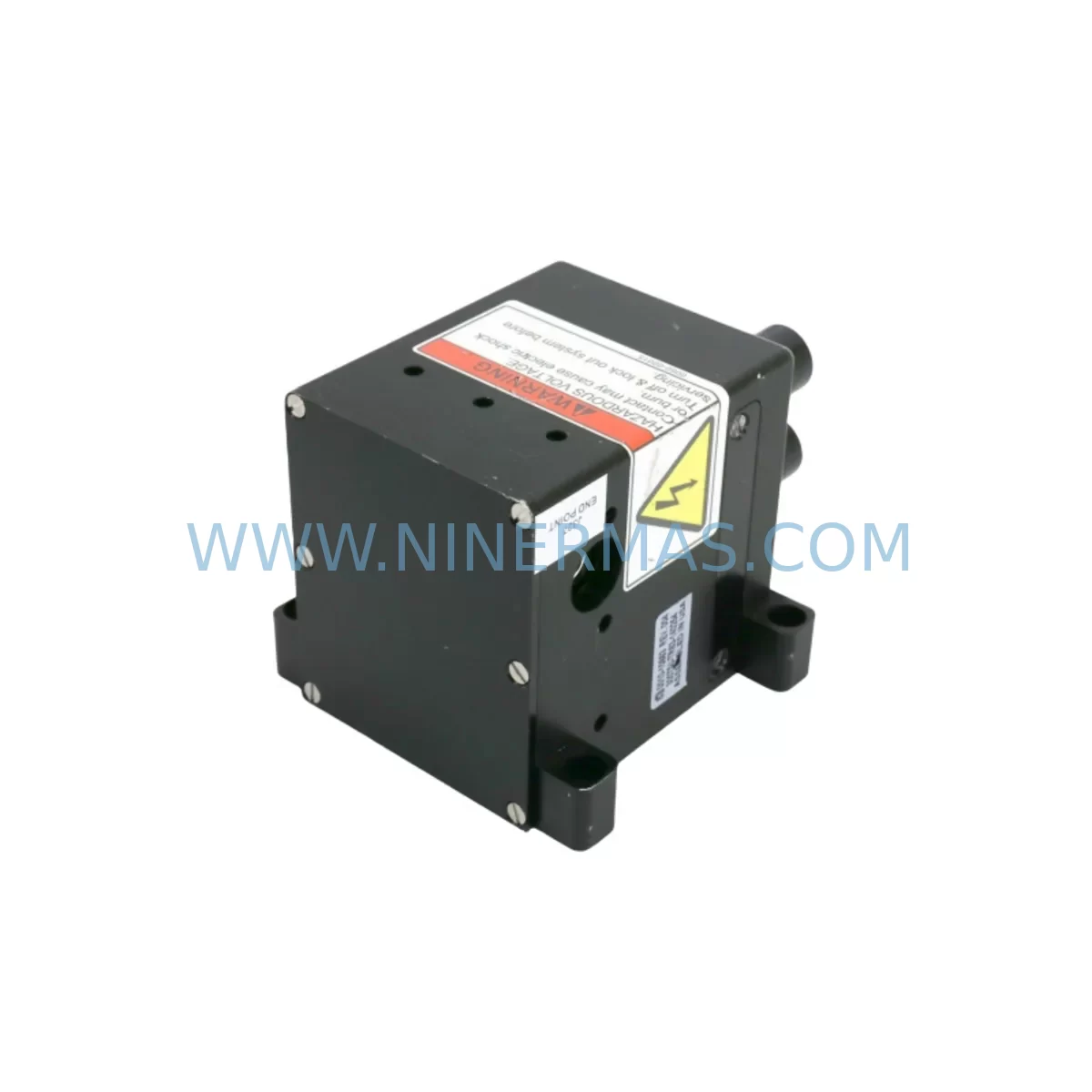

The Applied Materials 0040-47632 is a critical housing enclosure component originally designed for the AMAT EEP (End Effector Platform) series semiconductor processing equipment. As Applied Materials has progressively discontinued support for legacy EEP-series platforms, maintenance engineers and system integrators managing older fab lines increasingly face the challenge of sourcing direct-fit replacement housings that preserve mechanical alignment, thermal management, and electrical shielding integrity without requiring full platform replacement.

NINERMAS maintains verified stock of the 0040-47632 housing module, along with associated cross-reference part numbers including 0010-10663, 810-495659-400, TTLI29-11-F, MASTER3, and 3880-200181-11. Each unit undergoes pre-shipment functional inspection and dimensional verification to confirm fit compatibility with existing EEP-series chassis frames before dispatch. A 12-month warranty is included as standard on all units shipped.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

When planning a retrofit around the 0040-47632 housing, the scope of work typically extends beyond the housing itself. Engineers managing EEP-series line upgrades frequently need to simultaneously address the condition of adjacent components within the same control enclosure. The EEP platform’s power distribution board — often referenced under AMAT part families in the 0190-xxxxx and 0100-xxxxx series — must be inspected for capacitor aging and connector oxidation before the new housing is seated, as thermal stress from a degraded power module can shorten the service life of a freshly installed enclosure.

I/O expansion modules mounted within the same chassis, such as AMAT digital I/O boards in the 0660-xxxxx range, should be re-seated and their ribbon cable connectors cleaned during the same maintenance window. If the retrofit involves migrating from an older AMAT proprietary communication protocol to a more modern fieldbus standard — such as PROFIBUS DP or EtherCAT — the communication gateway module installed in the backplane slot adjacent to the housing must be verified for firmware compatibility with the replacement controller platform.

For sites running AMAT Centura or Producer platform derivatives, the 3880-200181-11 sub-assembly referenced in the cross-reference list is commonly found in the same equipment generation as the 0040-47632 housing. Technicians should confirm that the backplane connector pitch on the 3880-200181-11 matches the replacement chassis before committing to a full swap. Similarly, the TTLI29-11-F and MASTER3 assemblies — which appear in EEP-series bill-of-materials documentation — may share mounting rail geometry with the 0040-47632, making it possible to consolidate multiple part replacements into a single planned downtime event.

HMI panel integration is another consideration during EEP-series housing retrofits. If the site operates a legacy AMAT touchscreen HMI tied to the original EEP controller, screen layout files and alarm tag mappings should be exported and backed up before any physical hardware is disturbed. Signal isolators installed between the EEP I/O rack and field instrumentation — particularly for thermocouple and 4–20 mA analog loops — should be checked for drift and recalibrated after the housing replacement is complete, as mechanical disturbance during installation can affect isolation barrier performance.

Programming cable compatibility is a practical concern for sites that need to re-flash or verify controller firmware after the retrofit. Confirm that the programming cable pinout used for the existing EEP controller is compatible with the replacement unit’s service port before the maintenance window begins, to avoid delays caused by adapter procurement during a live outage.

Downtime Control During System Migration

Minimizing unplanned downtime during an EEP-series housing replacement requires a structured pre-work checklist completed before the equipment is taken offline. The original program logic stored in the EEP controller — including recipe parameters, interlock sequences, and alarm thresholds — should be exported to a backup medium and verified readable before the first fastener is removed. This protects against data loss in the event that the controller’s non-volatile memory is disturbed during the physical swap.

Staging the 0040-47632 replacement housing alongside all required consumables — thermal interface pads, grounding straps, and replacement fasteners — before the maintenance window opens eliminates the most common source of extended downtime: mid-job parts shortages. NINERMAS ships the 0040-47632 with a pre-inspection report confirming dimensional conformance, so incoming inspection at the customer site can be completed in under 15 minutes.

For critical production lines where even brief interruptions carry significant cost, a parallel commissioning approach is recommended: install and verify the replacement housing on a spare chassis frame in the maintenance workshop before the live unit is taken offline. This allows the full installation and grounding verification sequence to be rehearsed, reducing on-machine time to a simple swap-and-reconnect operation. Field control continuity is maintained by keeping the original housing in service until the replacement is confirmed ready, then executing the physical changeover during a scheduled process break rather than an emergency stop.

Retrofit Support FAQ

Q1: Is the 0040-47632 a direct replacement for 0010-10663 and 810-495659-400?
Yes. The 0040-47632 shares the same chassis mounting pattern and connector cutout geometry as the 0010-10663 and 810-495659-400 in standard EEP-series configurations. NINERMAS verifies dimensional conformance on each unit before shipment. If your chassis has been modified from the original AMAT specification, please share the chassis drawing for confirmation before ordering.

Q2: What pre-shipment testing is performed on each unit?
Each 0040-47632 housing undergoes dimensional inspection, surface integrity check, and connector alignment verification before dispatch. A pre-shipment inspection report is included with every order. Units are packed in anti-static, shock-absorbing packaging to prevent transit damage.

Q3: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects, dimensional non-conformance, and material failures under normal operating conditions. It does not cover damage resulting from incorrect installation, electrical overstress, or use outside the original AMAT EEP-series application envelope. Warranty claims are processed within 5 business days of receipt of the returned unit.

Q4: What is the typical lead time and inventory availability?
NINERMAS maintains ready stock of the 0040-47632 and its cross-reference equivalents. Standard orders ship within 2–5 business days. For bulk orders or reserved inventory agreements supporting long-term maintenance contracts, contact our sales team to discuss dedicated stock allocation and extended supply commitments.
