AMAT 0021-26544 Retrofit-Compatible TEOS Blocker for Legacy Systems

AMAT 0021-26544 Retrofit-Compatible TEOS Blocker for Legacy Systems

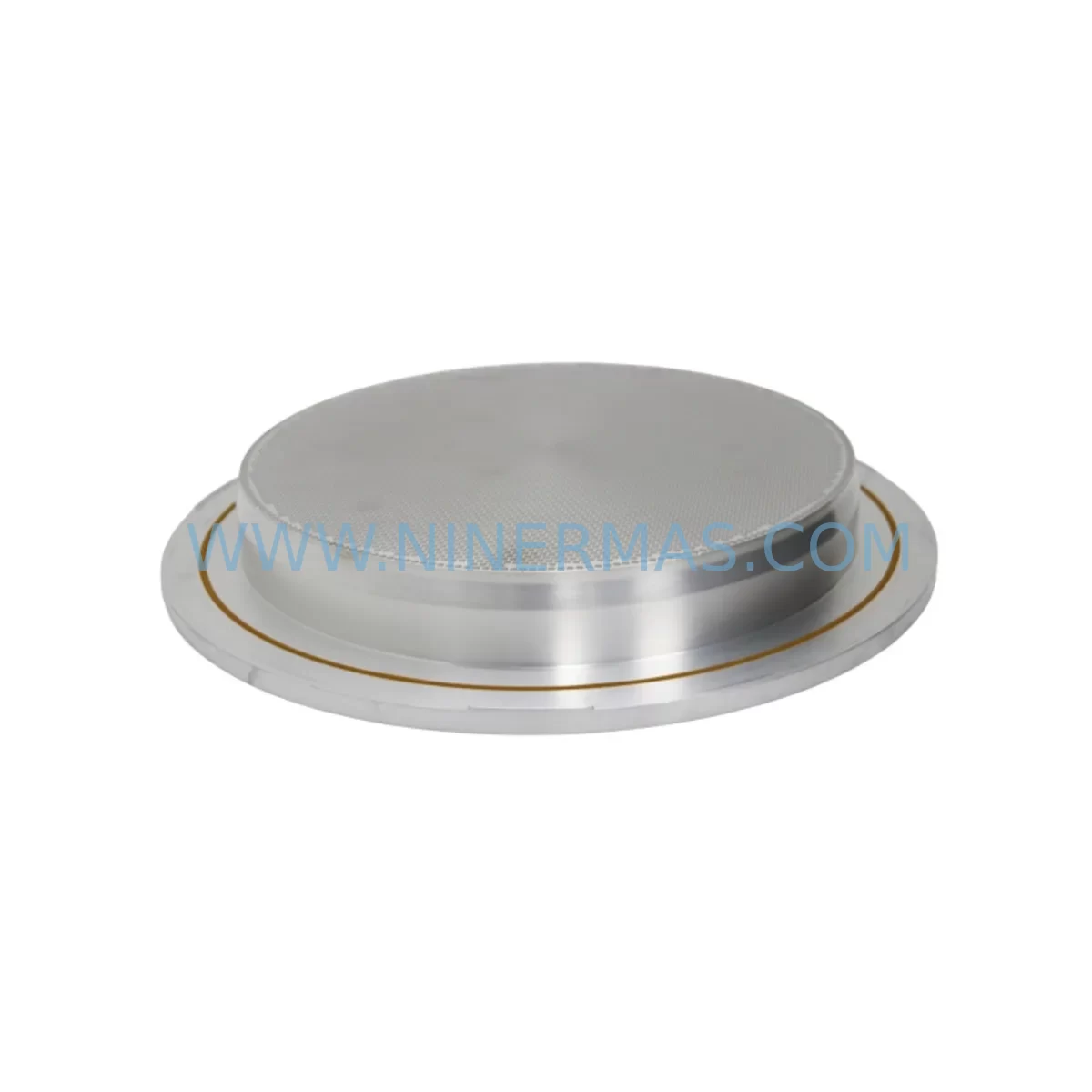

The Applied Materials 0021-26544 (cross-reference: 853-021818-002, 0040-13306) is a precision TEOS Blocker Plate engineered for use in Applied Materials CVD (Chemical Vapor Deposition) process chambers. As semiconductor fabs continue to operate legacy deposition equipment well beyond its original design lifecycle, sourcing verified replacement components for discontinued chamber assemblies has become a critical operational challenge. NINERMAS maintains ready stock of the AMAT 0021-26544 TEOS Blocker to support planned maintenance windows, emergency chamber recovery, and systematic retrofit programs targeting end-of-life CVD tool platforms.

This blocker plate is a key consumable and structural component within the TEOS CVD process module. It governs gas flow distribution above the wafer surface, directly influencing film uniformity, deposition rate stability, and chamber-to-chamber matching. When the original 0021-26544 reaches end of service life — typically indicated by surface erosion, particle generation events, or film non-uniformity excursions — a like-for-like replacement using a verified OEM-equivalent part is the safest path to restoring process baseline without re-qualification overhead.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

When planning a CVD chamber retrofit or legacy tool recovery program, the AMAT 0021-26544 TEOS Blocker is rarely replaced in isolation. A comprehensive chamber restoration typically involves evaluating the condition of the showerhead assembly, the chamber lid, the heater pedestal, and the RF match network simultaneously. Fabs running end-of-life AMAT Centura or Producer platform tools frequently encounter co-degradation across multiple chamber components, making a coordinated parts procurement strategy essential to minimizing total downtime.

In a typical TEOS CVD chamber overhaul, engineers will assess the AMAT 0021-26544 blocker plate alongside the showerhead faceplate (commonly referenced under AMAT part families such as 0020-series and 0040-series assemblies), the chamber body liner, the pumping ring, and the throttle valve assembly. The RF generator and matching network — often an AMAT 0190-series RF power module — must also be verified for output stability, as RF anomalies can accelerate blocker plate erosion and compromise film quality. Mass flow controllers (MFCs) governing TEOS precursor delivery, typically AMAT-qualified units from the 1000-series or equivalent Horiba/Brooks platforms, should be recalibrated or replaced as part of the same maintenance window to ensure process gas accuracy is restored alongside the mechanical chamber components.

For fabs operating multiple chamber configurations on a shared platform, the chamber matching process after blocker plate replacement requires careful attention to the blocker-to-showerhead gap setting. This gap directly controls gas residence time and uniformity ring width. Engineers should reference the OEM process kit installation guide and confirm gap dimensions using a calibrated feeler gauge before chamber closure. The wafer lift pin assembly and edge ring should also be inspected during the same access window, as these components share the same PM cycle and their condition affects wafer centering and edge deposition uniformity.

Where the original AMAT 0021-26544 is being replaced as part of a broader tool upgrade — for example, migrating from a single-station to a multi-station deposition configuration — the chamber controller interface, recipe parameter mapping, and endpoint detection system must all be validated against the new hardware configuration. AMAT endpoint detector modules and the associated optical fiber assemblies should be confirmed compatible with the upgraded chamber geometry before production wafers are introduced.

NINERMAS maintains inventory of related AMAT CVD chamber components to support complete retrofit kits, reducing the number of procurement cycles required and enabling a single-shipment solution for planned maintenance outages.

Downtime Control During System Migration

Unplanned downtime during a CVD chamber blocker plate replacement is one of the most avoidable risks in fab maintenance operations — provided the replacement part is available, verified, and pre-staged before the chamber is vented. NINERMAS ships the AMAT 0021-26544 with pre-shipment dimensional inspection completed, allowing maintenance teams to proceed directly to installation without incoming inspection delays.

To minimize chamber downtime, the recommended approach is to pre-stage the replacement 0021-26544 blocker plate, all required consumable hardware (fasteners, O-rings, and chamber seals), and the relevant OEM service documentation before scheduling the maintenance window. The chamber vent, blocker plate swap, and initial pump-down sequence can typically be completed within a single shift when parts are pre-positioned and the maintenance team is briefed on the torque sequence and gap verification procedure.

Protecting the original process recipe logic during a chamber hardware change requires no software modification for a like-for-like blocker plate replacement. However, if the retrofit involves any change to the chamber geometry, gas inlet configuration, or RF delivery path, the process engineer should archive the current recipe baseline and run a series of qualification wafers — typically monitor wafers measuring film thickness uniformity, deposition rate, and stress — before releasing the chamber to production. This qualification sequence is the primary safeguard against introducing process drift that could affect yield on production wafers.

For fabs with tight production schedules, NINERMAS can support expedited shipping to reduce the gap between fault detection and chamber recovery. Our global logistics network covers major semiconductor manufacturing regions, with export documentation prepared to meet customs clearance requirements in Asia, Europe, and North America.

Retrofit Support FAQ

Q1: Is the AMAT 0021-26544 a direct replacement for 853-021818-002 and 0040-13306?
Yes. The part numbers 0021-26544, 853-021818-002, and 0040-13306 are cross-reference SKUs for the same TEOS Blocker Plate assembly used in compatible Applied Materials CVD chamber configurations. NINERMAS verifies cross-reference compatibility prior to shipment. If you have a specific chamber model or process kit revision, please share it with our technical team for confirmation before ordering.

Q2: What pre-installation checks are required before fitting the replacement blocker plate?
Before installation, confirm that the chamber is fully vented and at atmospheric pressure, all RF power is isolated, and the chamber interior has cooled to a safe handling temperature. Inspect the mating surfaces on the chamber lid and showerhead for contamination or damage. Verify that the replacement 0021-26544 dimensions match the OEM specification using the service manual tolerances. Install with the correct fastener torque sequence and confirm the blocker-to-showerhead gap before closing the chamber.

Q3: Does NINERMAS provide pre-shipment testing for the 0021-26544?
Yes. All AMAT 0021-26544 units shipped by NINERMAS undergo dimensional inspection and surface condition verification before dispatch. A test report is available upon request. Our 12-month warranty covers manufacturing defects and dimensional non-conformance identified after installation under normal operating conditions.

Q4: What is the lead time and warranty coverage for the AMAT 0021-26544?
NINERMAS maintains in-stock inventory of the AMAT 0021-26544 for immediate dispatch. Standard international shipping lead times apply depending on destination. All units are covered by a 12-month warranty from the date of shipment, covering defects in materials and workmanship. For volume orders or long-term supply agreements, please contact our procurement team to discuss reserved inventory arrangements and extended lead time commitments.
