Allen-Bradley 1771-IB Safety-Reliable Input Module

Allen-Bradley 1771-IB Safety-Reliable Input Module for Critical Control Sites

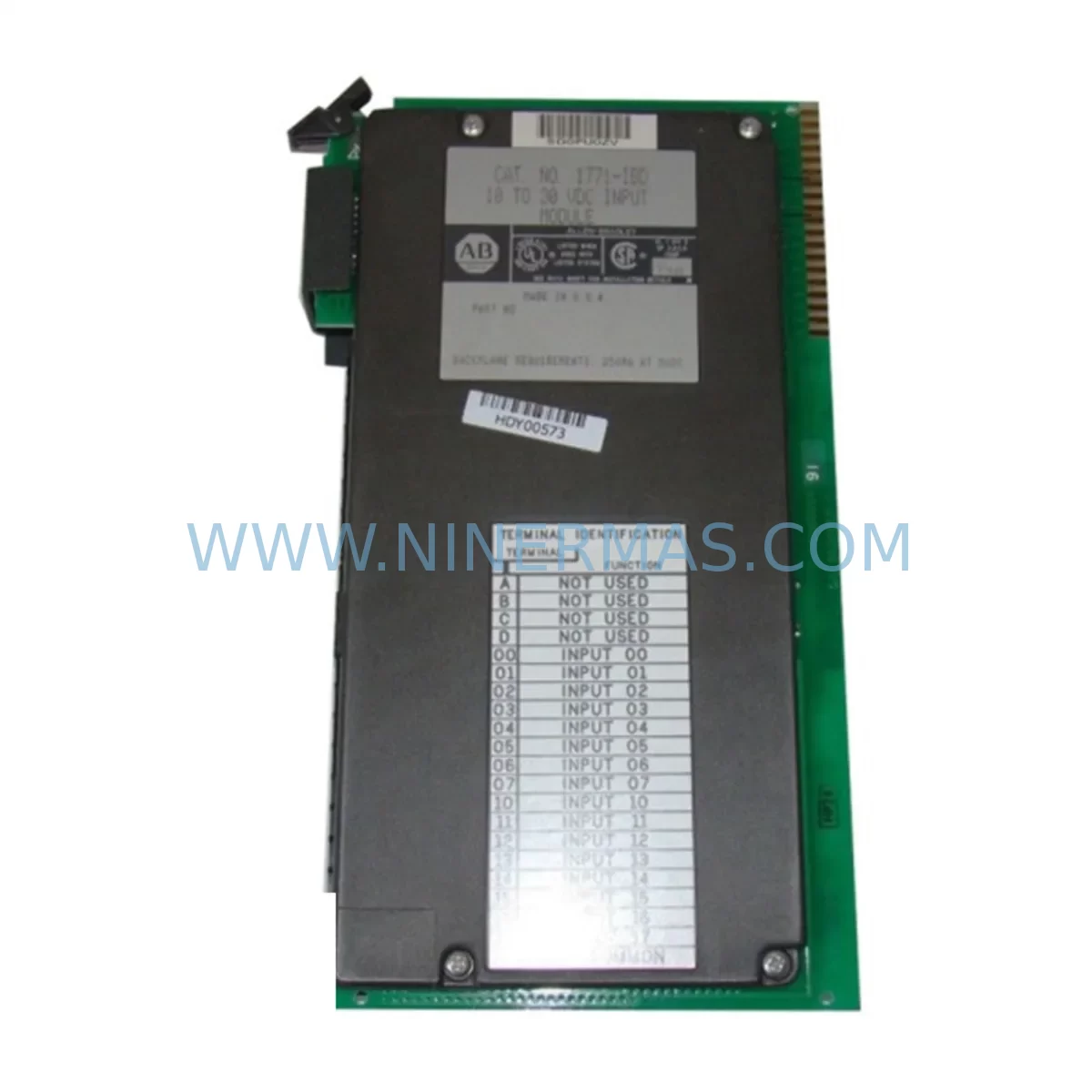

The Allen-Bradley 1771-IB is a 16-point 24VDC discrete input module engineered for the PLC-5 I/O chassis platform — one of the most widely deployed programmable logic controller architectures in continuous process industries. Designed to deliver uninterrupted signal acquisition in demanding field environments, the 1771-IB is a cornerstone component in safety-critical control cabinets where input integrity directly determines process reliability, personnel protection, and regulatory compliance.

In high-stakes industrial environments — including petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical furnaces, port crane systems, and continuous manufacturing lines — the consequences of a failed or drifting input signal can cascade into unplanned shutdowns, equipment damage, or safety incidents. The 1771-IB addresses these risks through robust signal conditioning, optical isolation, and a wide operating temperature range that sustains reliable performance even under thermal cycling, mechanical vibration, and elevated electromagnetic interference (EMI).

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In a fully integrated PLC-5 control cabinet, the 1771-IB does not operate in isolation — its reliability is interdependent with every other module and power component in the rack. A well-engineered safety architecture begins with a stable power foundation: the Allen-Bradley 1771-P4S Power Supply provides regulated backplane power to the 1771 chassis, ensuring that voltage fluctuations on the plant floor do not propagate into the logic system and cause spurious input reads or module resets.

Signal integrity at the 1771-IB’s input terminals is further protected when field wiring is routed through properly rated terminal blocks and surge arrestors. In high-EMI zones — such as those adjacent to variable frequency drives (VFDs), large motor starters, or arc furnaces — the use of shielded cable and ferrite cores on field wiring significantly reduces the risk of signal noise being misinterpreted as a valid input state. This is particularly critical in safety interlock circuits where a false ON signal could permit an unsafe machine state.

The Allen-Bradley 1771-OBD Output Module is the natural companion to the 1771-IB in discrete control loops: while the 1771-IB reads field device states (limit switches, proximity sensors, pushbuttons, pressure switches), the 1771-OBD drives actuators, solenoids, and relay coils in response to the PLC-5 processor’s logic decisions. Pairing these modules within the same 1771 chassis — managed by a 1771-ASB Remote I/O Adapter — allows distributed control architectures to extend safety interlocks across large plant footprints without sacrificing scan-time determinism.

For applications requiring analog process variable monitoring alongside discrete safety inputs, the Allen-Bradley 1771-IFE Analog Input Module can be installed in adjacent slots of the same chassis, sharing the same backplane power and communicating over the same Data Highway Plus (DH+) network managed by the Allen-Bradley 1785-L40B PLC-5/40 Processor. This integrated approach minimizes the number of communication interfaces, reducing potential points of failure in the control architecture.

Where the 1771-IB is deployed in remote I/O drops connected via the Allen-Bradley 1770-SD2 Remote I/O Cable, proper cable termination and impedance matching are essential to prevent reflection-induced communication errors that could cause the processor to lose contact with the remote rack — a condition that typically forces the system into a fault state and triggers an unplanned shutdown. Maintaining a spare 1771-IB module in the local storeroom, alongside spare 1771-WB Wiring Arms, ensures that field replacement can be completed within a single maintenance window without requiring a full system reconfiguration.

Critical Industrial Safety Applications

The Allen-Bradley 1771-IB has earned a proven service record across the most demanding sectors of heavy industry:

Petrochemical & Refining: In continuous distillation and catalytic cracking units, the 1771-IB monitors high-integrity interlock inputs — including emergency shutdown (ESD) pushbuttons, high-level switches, and flame detector contacts — where signal loss or false activation could trigger a process trip or, worse, allow an unsafe condition to persist undetected. Its optical isolation prevents ground loops from corrupting safety-critical input states in environments where multiple earthing systems coexist.

Electric Power Generation: Turbine control and boiler management systems rely on the 1771-IB to read temperature switch contacts, vibration monitor relay outputs, and lube oil pressure switches. In these applications, the module’s ability to maintain accurate input discrimination under high common-mode voltage conditions — common near large transformers and bus bars — is essential to preventing nuisance trips and protecting generating assets.

Mining & Mineral Processing: Conveyor interlock systems, crusher protection circuits, and ventilation fan monitoring in underground and surface mining operations subject control hardware to extreme dust ingress, humidity cycling, and mechanical shock. The 1771-IB’s sealed construction and wide temperature tolerance make it a reliable choice for these environments, where module failure can halt production across an entire ore processing train.

Water & Wastewater Treatment: Pump station control panels and SCADA-integrated treatment plant automation systems use the 1771-IB to monitor float switches, valve position feedback, and motor run contacts. In facilities operating under continuous 24/7 duty cycles, the module’s long mean time between failures (MTBF) and straightforward field replacement procedure minimize the risk of extended service interruptions.

Metallurgy & Steel Production: Rolling mill control systems and electric arc furnace (EAF) automation expose control hardware to intense electromagnetic fields, radiated heat, and vibration. The 1771-IB’s input filtering and transient suppression circuitry protect against the high-energy electrical transients generated by EAF electrode regulation systems, preventing false input reads that could disrupt rolling schedules or damage downstream equipment.

Port & Marine Logistics: Ship-to-shore crane control systems and automated container handling equipment operate in salt-air environments with wide ambient temperature swings. The 1771-IB’s corrosion-resistant design and robust input filtering ensure reliable operation of hoist limit switches, anti-collision interlock inputs, and load cell signal contacts in these challenging coastal environments.

Safety and Quality FAQ

Q1: What warranty coverage is provided with the Allen-Bradley 1771-IB?
All 1771-IB modules supplied by NINERMAS COMPANY LIMITED carry a 12-month warranty from the date of shipment. This warranty covers functional defects identified under normal operating conditions and includes technical support for installation and commissioning. Warranty claims are processed promptly to minimize any impact on your production schedule.

Q2: What pre-shipment testing is performed on each 1771-IB module?
Every 1771-IB module undergoes functional verification testing prior to shipment, including input channel continuity checks, optical isolation integrity verification, and backplane interface testing using compatible 1771 chassis hardware. Modules supplied as Tested Refurbished are additionally subjected to burn-in testing to screen for early-life failures before delivery.

Q3: Is the 1771-IB compatible with all PLC-5 processor variants and 1771 chassis configurations?
The 1771-IB is compatible with the full range of Allen-Bradley PLC-5 processors — including the 1785-L20B, 1785-L40B, 1785-L60B, and 1785-L80B — when installed in any standard 1771 I/O chassis. It is also compatible with remote I/O configurations using the 1771-ASB adapter. Module keying should be configured to match the slot assignment defined in the processor’s I/O configuration table to prevent inadvertent module substitution errors.

Q4: Can NINERMAS support long-term supply of the 1771-IB for ongoing maintenance programs?
Yes. NINERMAS maintains standing inventory of the Allen-Bradley 1771-IB to support planned maintenance programs, emergency breakdown replacements, and capital spares strategies for facilities committed to the PLC-5 platform. We can provide scheduled delivery agreements and reserve stock allocations for customers with high-availability requirements, ensuring that a critical spare is always available when needed — without the lead times associated with standard distribution channels.
