Allen-Bradley 1762-L40BWAR Safety-Reliable PLC for Critical Control

Allen-Bradley 1762-L40BWAR Safety-Reliable PLC for Critical Control

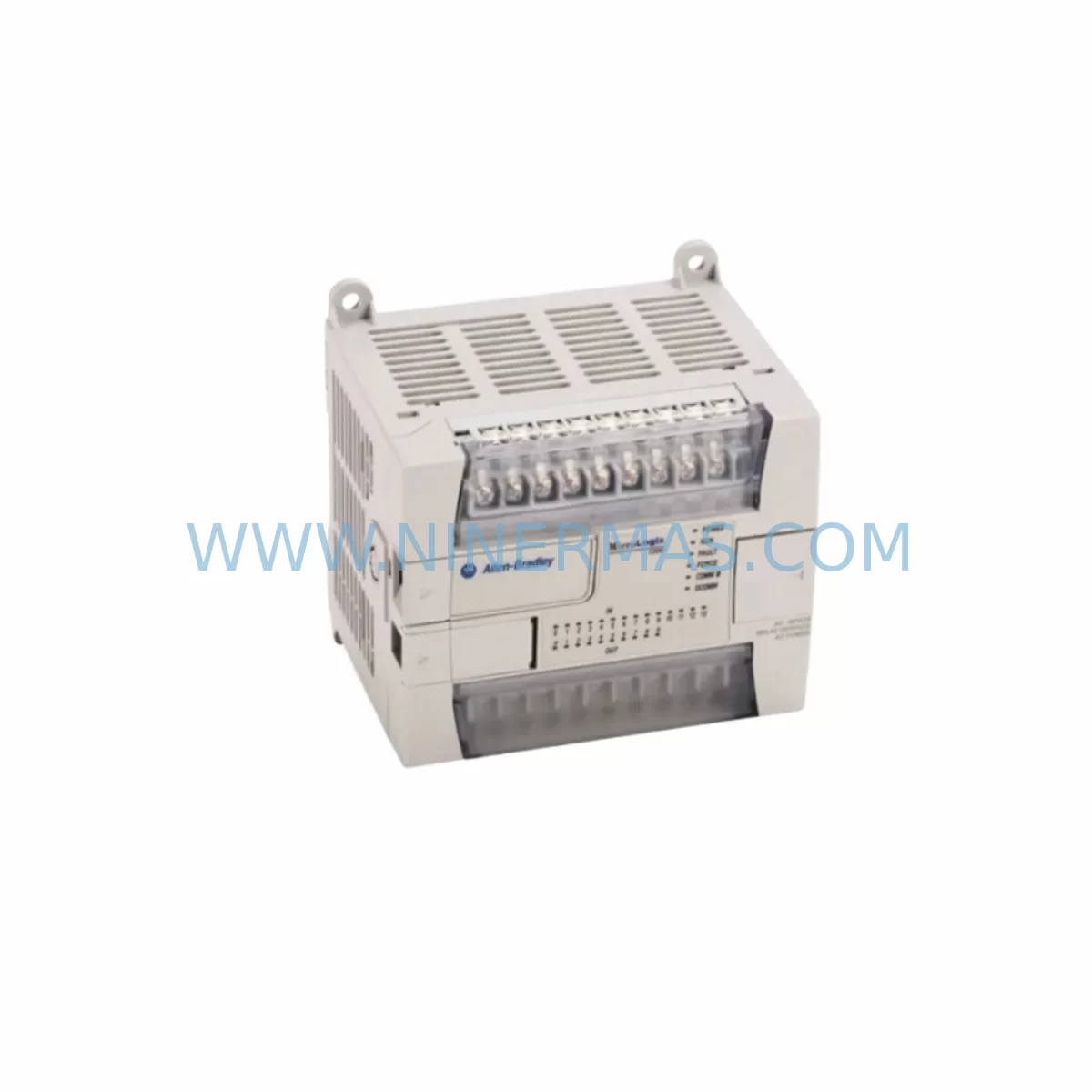

The Allen-Bradley 1762-L40BWAR is a 40-point AC-powered, relay-output programmable logic controller belonging to the MicroLogix 1200 series — one of Rockwell Automation’s most widely deployed compact PLC platforms in safety-sensitive and continuous-process industrial environments. With 24 DC inputs and 16 relay outputs, this controller is engineered to deliver deterministic scan-cycle performance in applications where control interruption, signal drift, or unexpected output state changes carry direct safety and production consequences. At NINERMAS, every 1762-L40BWAR unit is sourced as an original spare part, subjected to pre-shipment functional testing, and backed by a 12-month warranty to support maintenance engineers and procurement teams managing critical control infrastructure.

In petrochemical plants, power generation facilities, water treatment stations, and continuous manufacturing lines, the 1762-L40BWAR is frequently installed in control cabinets where it manages interlock logic, motor starter sequences, valve actuation, and alarm relay outputs. Its relay output architecture makes it inherently suited to high-inrush load switching and direct interface with field devices operating at mixed voltage levels — a key advantage in legacy panel environments where replacing the controller must not require rewiring the entire output circuit. The AC power supply input (100–240 VAC) further simplifies integration into existing cabinet power distribution without requiring an additional DC power supply rail for the CPU itself.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

When a 1762-L40BWAR fails or is flagged for scheduled replacement during annual maintenance, the risk to the control cabinet extends well beyond the CPU module itself. Maintenance engineers conducting a thorough cabinet inspection should simultaneously evaluate all components sharing the same power distribution and communication backbone. The 1762-OW16 relay output expansion module and 1762-IQ16 DC input expansion module are the most common I/O extensions paired with this controller — their terminal blocks and wiring should be inspected for oxidation, loose connections, and insulation degradation at the same time as the CPU swap.

The cabinet’s 24 VDC auxiliary power supply — often a 1606-XLP series or equivalent DIN-rail power supply — feeds the input circuit commons and field sensor loops. A failing or under-rated power supply is a frequent root cause of intermittent input faults that are misdiagnosed as PLC failures. Verifying output voltage stability and ripple under load before commissioning the replacement 1762-L40BWAR eliminates this risk. Similarly, the 1762-IF4 analog input module, if installed, should be checked for signal drift, particularly in high-temperature or high-humidity environments where analog accuracy degrades over time.

Communication integrity is equally critical. The RS-232 channel on the 1762-L40BWAR is typically used for programming and HMI connection — often to a PanelView 300 Micro or PanelView Component C400 operator terminal. The RS-485 / DH-485 channel connects to upstream SCADA systems or remote I/O. Inspecting the 1761-NET-AIC Advanced Interface Converter, if present, and verifying cable shielding continuity on the DH-485 segment prevents communication faults after the controller replacement. Surge protection devices on the communication lines — such as DIN-rail mounted signal isolators or transient voltage suppressors — should also be confirmed functional.

Relay output contacts on the 1762-L40BWAR drive motor starters, solenoid valves, and alarm annunciators. Before energizing the replacement unit, maintenance teams should verify that all downstream contactor coils, interposing relays, and terminal block assemblies (such as Phoenix Contact or Weidmüller DIN-rail terminals) are within specification. A worn contactor coil presenting a low-impedance fault can damage relay output contacts on a new controller within hours of commissioning — a preventable failure that a pre-replacement circuit audit eliminates.

Critical Industrial Safety Applications

The 1762-L40BWAR is deployed across a broad range of safety-sensitive and continuous-process industries. In petrochemical and refinery facilities, it manages pump interlock sequences, emergency shutdown relay logic, and valve position feedback — applications where a false output or missed interlock can trigger process upsets with safety consequences. Its relay output architecture provides galvanic isolation between the PLC logic and field devices, reducing the risk of fault propagation across the control circuit.

In power generation and substation automation, the 1762-L40BWAR controls auxiliary systems including cooling fans, oil pumps, and breaker status monitoring. The controller’s deterministic scan cycle and robust EMI immunity make it suitable for environments with high magnetic field interference from transformers and bus bars. Water treatment and wastewater facilities rely on this controller for dosing pump sequencing, level control interlocks, and alarm relay management — applications requiring continuous operation with minimal unplanned downtime.

In mining and mineral processing environments, the 1762-L40BWAR operates in dusty, high-vibration conditions managing conveyor interlocks, crusher sequencing, and ventilation control. Its wide operating temperature range and vibration-rated design support reliable operation in surface and underground installations. Metallurgical and steel plant applications use this controller for furnace auxiliary control, cooling water interlock, and rolling mill auxiliary sequencing — environments where thermal cycling and electrical noise are constant stressors on control hardware.

Port and marine terminal automation systems use the 1762-L40BWAR for crane auxiliary control, conveyor sequencing, and safety interlock management. In these environments, salt air corrosion and humidity are primary aging factors — making pre-tested, warranted spare parts essential for rapid replacement without the risk of installing a degraded unit. NINERMAS maintains reserved inventory of the 1762-L40BWAR specifically to support emergency replacement requests from port and marine operators with tight vessel turnaround schedules.

Safety and Quality FAQ

Q1: What does the 12-month warranty on the 1762-L40BWAR cover?
The 12-month warranty covers functional failure under normal operating conditions from the date of shipment. Each unit undergoes pre-shipment functional testing to verify I/O operation, communication port integrity, and power supply performance before dispatch. If a unit fails within the warranty period under normal use, NINERMAS provides replacement or repair support. The warranty applies to the original purchaser and is documented with each shipment.

Q2: How do I confirm compatibility between the 1762-L40BWAR and my existing MicroLogix 1200 installation?
The 1762-L40BWAR is a direct form-fit-function replacement for other 1762-L40 variants with the same I/O count and relay output configuration. Compatibility verification should confirm: (1) the existing program was developed in RSLogix 500 and can be uploaded from the outgoing unit before replacement; (2) the expansion I/O modules connected are 1762-series compatible; (3) the communication channel configuration (baud rate, node address) matches the replacement unit’s default or programmed settings. NINERMAS technical support can assist with compatibility verification prior to order confirmation.

Q3: Can NINERMAS support long-term supply of the 1762-L40BWAR for multi-year maintenance contracts?
Yes. NINERMAS maintains reserved inventory programs for high-demand spare parts including the 1762-L40BWAR. Procurement engineers managing multi-year maintenance contracts or annual shutdown spare parts lists can request a long-term supply agreement with committed stock allocation, fixed pricing, and priority dispatch. This eliminates lead-time risk for a controller that is no longer in standard production and may have extended delivery times through conventional distribution channels.

Q4: What pre-shipment testing is performed on each 1762-L40BWAR unit?
Each unit is powered up and subjected to functional I/O testing — verifying that all 24 DC inputs respond correctly to test signals and all 16 relay outputs actuate and release within specification. Communication ports are tested for RS-232 and RS-485 connectivity. Power supply input is verified across the rated voltage range. Units that do not pass all test criteria are quarantined and not shipped. A test record is maintained for each dispatched unit and available upon request.
