ABB YPQ201A YT204001-KA/5 Service-Ready Spare Part

ABB YPQ201A YT204001-KA/5 Service-Ready Spare Part for Industrial Maintenance

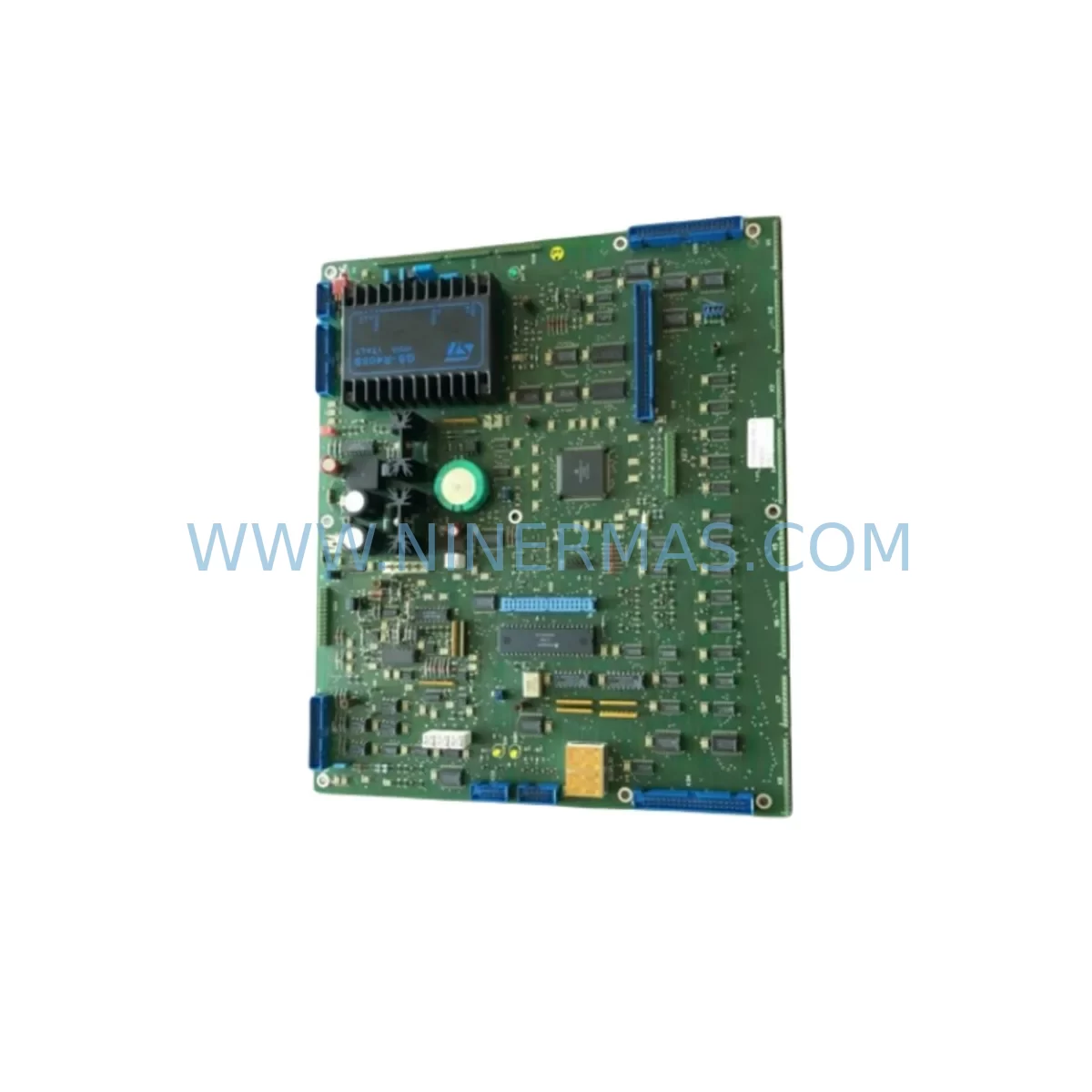

The ABB YPQ201A YT204001-KA/5 is a service-ready spare control board engineered for mission-critical industrial automation environments. Sourced to original ABB specifications, this module is a direct replacement for aging or failed units within ABB Symphony Plus and Harmony DCS architectures. For maintenance engineers managing continuous process plants, power generation facilities, or large-scale discrete manufacturing lines, having a verified spare of the YPQ201A YT204001-KA/5 on the shelf is a fundamental risk-mitigation strategy — one that directly reduces mean time to repair (MTTR) and protects production uptime.

Unplanned downtime caused by a failed control board can cascade rapidly across an entire control loop. The YPQ201A YT204001-KA/5 is designed to slot into existing ABB cabinet configurations without requiring firmware re-engineering or hardware modification, provided the host backplane and power supply rails are within specification. This compatibility-first design makes it a preferred choice for both emergency replacement and planned annual overhaul programs.

At NINERMAS, every unit of the ABB YPQ201A YT204001-KA/5 undergoes pre-shipment functional testing against original ABB electrical parameters. Each board is inspected for component integrity, solder joint quality, and connector pin condition before packaging. Units are shipped with full documentation support and are backed by a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance or procurement engineer schedules replacement of the ABB YPQ201A YT204001-KA/5, the replacement event should be treated as a broader cabinet health checkpoint — not an isolated board swap. Field experience across ABB Symphony Plus installations consistently shows that a failed control board is often accompanied by degraded performance in adjacent components sharing the same power rail or backplane slot.

Before or during the YPQ201A replacement, engineers should inspect and verify the following associated components:

• ABB PXAH401 / PXAH402 Power Supply Module — Confirm output voltage stability on the 24 VDC rail feeding the YPQ201A slot. A sagging or noisy power supply is a leading cause of control board failure and must be ruled out before commissioning the replacement unit.
• ABB YPP110A Backplane Module — Inspect the backplane connector pins for oxidation, mechanical damage, or intermittent contact. A compromised backplane will cause repeated failures of any replacement board installed into the affected slot.
• ABB YPQ110A / YPQ120A I/O Modules — Verify that adjacent I/O modules in the same rack are operating within normal signal ranges. Faulty I/O modules can generate bus errors that are misdiagnosed as control board failures.
• ABB CI854A / CI857 Communication Interface Modules — Check PROFIBUS or FOUNDATION Fieldbus communication integrity. A degraded communication module can cause the YPQ201A to report faults even when the board itself is functional.
• ABB TB820V2 / TB840A Termination Boards — Inspect field wiring termination boards for loose connections, moisture ingress, or corroded terminals. Poor termination quality introduces signal noise that stresses control board input circuits.
• 24 VDC Fuse Blocks and Circuit Protection — Replace any fuses in the affected cabinet zone as a precautionary measure. Fuse degradation is often invisible until a replacement board draws startup current and triggers a nuisance trip.
• ABB AC800M Controller Module — If the YPQ201A interfaces with an AC800M controller, verify controller firmware version compatibility and confirm that the replacement board’s hardware revision is supported by the installed firmware.
• Signal Isolators and Barriers — For installations in hazardous areas or with long field cable runs, inspect Zener barriers or galvanic isolators in the signal loop. Degraded isolation can introduce ground loops that damage sensitive control board input stages.
• ABB Panel HMI / Operator Station — After board replacement, perform a full I/O checkout from the HMI to confirm that all process variables are reading correctly and that no latent alarms remain active from the fault event.

Procurement engineers should consider stocking a minimum of one additional YPQ201A YT204001-KA/5 unit per control system cluster, particularly in plants operating on extended maintenance cycles of 18 months or longer. NINERMAS supports long-term supply agreements that lock in pricing and guaranteed availability for critical spare parts across multi-year maintenance programs.

Site Replacement Workflow

Replacing the ABB YPQ201A YT204001-KA/5 in a live or recently shut-down system follows a structured sequence designed to minimize downtime and eliminate re-work risk:

• Step 1 — Pre-Replacement Verification: Confirm the replacement unit’s part number, hardware revision, and firmware compatibility against the installed system’s engineering documentation. Cross-reference the ABB system configuration database to ensure the YT204001-KA/5 hardware variant matches the slot assignment.
• Step 2 — Safe Isolation: Follow the plant’s lockout/tagout (LOTO) procedure for the affected cabinet section. De-energize the 24 VDC supply rail to the target backplane slot. Do not rely solely on software inhibit — physical isolation is mandatory.
• Step 3 — Board Extraction: Release the module locking lever and extract the failed YPQ201A board using the handle grip. Avoid touching PCB traces or connector pins. Place the removed board in an ESD-protective bag for failure analysis or return.
• Step 4 — Slot and Backplane Inspection: Before inserting the replacement, visually inspect the backplane connector for bent pins, debris, or moisture. Clean with dry compressed air if required. Confirm that the slot address DIP switches or jumper settings on the new board match the original configuration.
• Step 5 — Replacement Installation: Insert the new ABB YPQ201A YT204001-KA/5 firmly into the backplane slot until the locking lever engages. Re-energize the 24 VDC rail and observe the module’s status LEDs for normal initialization sequence.
• Step 6 — System Commissioning: From the ABB Symphony Plus engineering workstation or AC800M controller, perform a module recognition scan. Confirm that the replacement board is detected at the correct node address and that all associated I/O channels are reporting valid process values.
• Step 7 — Functional Test and Handover: Execute a full loop check for all I/O points associated with the replaced module. Document the replacement event in the plant’s maintenance management system (CMMS) and update the spare parts inventory record.

This workflow is applicable to both emergency breakdown replacements and planned preventive maintenance shutdowns. For systems where the YPQ201A YT204001-KA/5 has been in service for more than five years, NINERMAS recommends proactive replacement during the next scheduled outage rather than waiting for failure — a strategy that eliminates unplanned downtime risk at minimal incremental cost.

Spare Parts Support FAQ

Q1: Is the ABB YPQ201A YT204001-KA/5 compatible with both ABB Symphony Plus and older Harmony DCS systems?
The YPQ201A YT204001-KA/5 is designed for ABB’s Symphony and Harmony DCS platform families. Compatibility with a specific system revision depends on the hardware variant suffix (KA/5 in this case) and the installed firmware version on the host controller. NINERMAS recommends providing your system’s engineering documentation or controller firmware version when placing an order so our technical team can confirm compatibility before shipment.

Q2: What pre-shipment testing does NINERMAS perform on the YPQ201A YT204001-KA/5?
Every unit undergoes a multi-point inspection covering power-on functional verification, connector pin integrity check, PCB visual inspection for component damage or solder defects, and ESD-safe packaging. Units that do not pass all inspection criteria are quarantined and not shipped. A test record is available upon request for quality-critical procurement programs.

Q3: What does the 12-month warranty cover, and how is a warranty claim processed?
The 12-month warranty covers functional failure and manufacturing defects under normal operating conditions. It does not cover damage caused by incorrect installation, overvoltage events, or physical mishandling. To initiate a warranty claim, contact NINERMAS at sale@ninermas.com with the order reference, a description of the failure symptom, and photographic evidence of the installation condition. Replacement or repair will be arranged within 5 business days of claim verification.

Q4: Can NINERMAS support long-term supply commitments for the YPQ201A YT204001-KA/5?
Yes. NINERMAS operates a long-term spare parts supply program specifically designed for industrial facilities managing aging ABB DCS systems. Under this program, customers can reserve stock allocations, lock in pricing for 12–36 month periods, and receive priority fulfillment during periods of market scarcity. Contact our procurement team to discuss a tailored supply agreement for your plant’s maintenance schedule.
