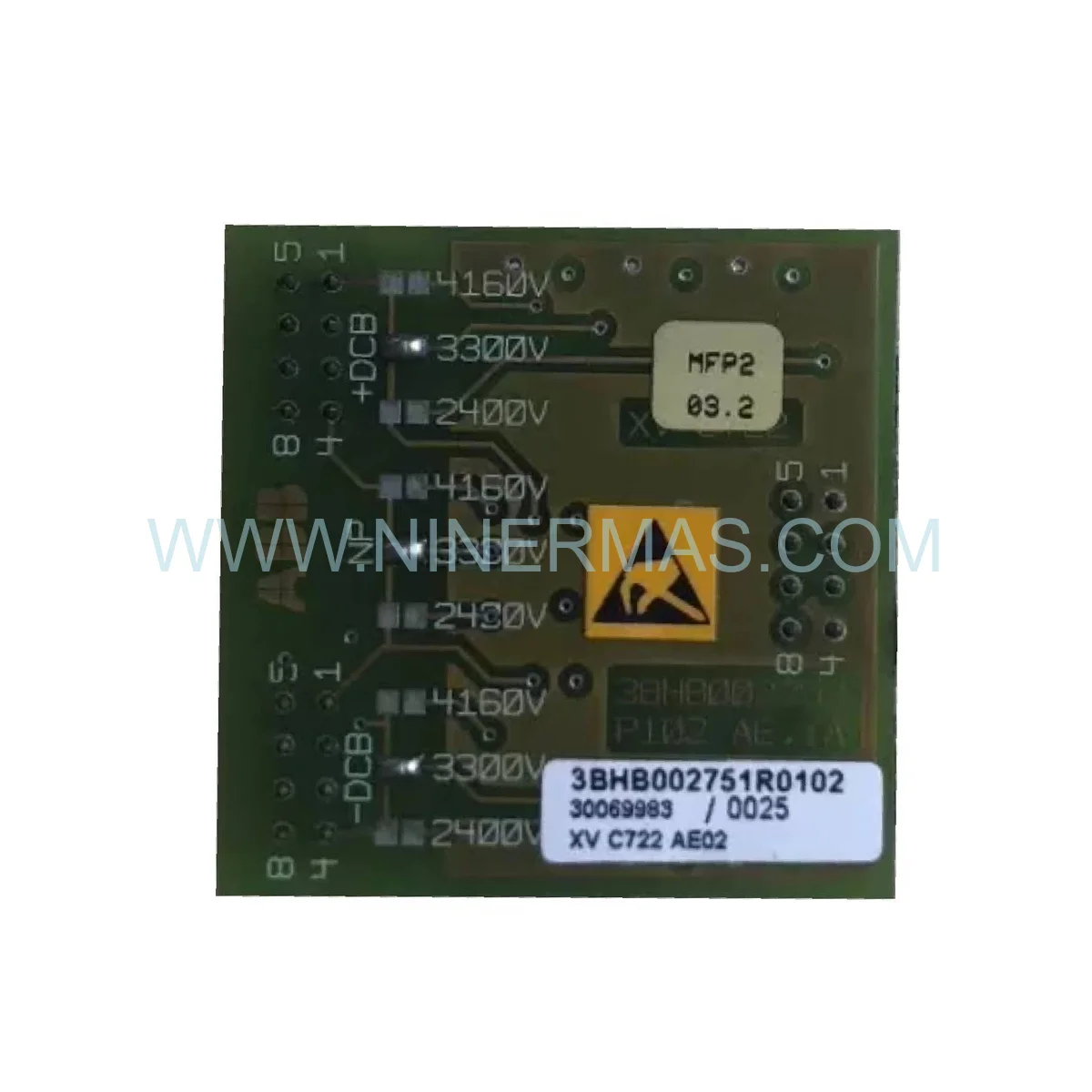

ABB XVC722AE02 | 3BHB002751R0102 Retrofit & System Modernization Board

ABB XVC722AE02 – Professional Retrofit & System Upgrade Component

System Modernization & Migration Analysis

As a System Migration Architect, the first question any upgrade project must answer is: which components are load-bearing pillars of the existing control architecture? The ABB XVC722AE02 (3BHB002751R0102) is precisely that pillar. In aging DCS and TSI environments where communication bottlenecks throttle throughput and legacy backplane designs limit scalability, this main circuit interface board delivers a decisive performance leap — restoring deterministic data exchange, eliminating signal degradation, and extending the operational lifespan of the surrounding control infrastructure by years, if not decades.

What makes the ABB XVC722AE02 (3BHB002751R0102) indispensable in retrofit scenarios is its backward-compatible architecture. Whether your facility runs on aging PROFIBUS-DP networks, legacy Modbus RTU loops, or proprietary ABB fieldbus variants, this board bridges the gap between old-generation controllers and modern supervisory systems without requiring a full platform overhaul. It is the cornerstone of a phased migration strategy — allowing engineers to modernize incrementally rather than face the operational risk of a full cutover.

From a cost-risk perspective, deploying the XVC722AE02 as a retrofit component dramatically reduces migration expenditure. By reusing existing field wiring, enclosures, and I/O infrastructure, facilities avoid the capital outlay of greenfield installations while achieving measurable gains in system reliability, diagnostic transparency, and cybersecurity posture. This is the essence of intelligent industrial modernization.

Upgrade Highlights & Compatibility

• ✅ Drop-in Legacy Compatibility: Supports RS-485, CAN, PROFIBUS-DP, DeviceNet, and proprietary ABB protocols — no rewiring required in most retrofit scenarios
• Performance Enhancement: 16/32-bit parallel bus interface at 10-20 MHz clock speeds eliminates legacy communication latency
• ✅ Future-Proof Architecture: Optional 10/100 Mbps Ethernet interface enables IIoT gateway integration and SCADA modernization
• Galvanic Isolation (1500 VDC): Protects modern processor assets from legacy field-side electrical noise during hybrid operation
• ✅ Extended Temperature Range: -40°C to +70°C operation ensures compatibility with existing harsh-environment enclosures
• MTBF >150,000 hours: Reduces unplanned downtime risk during the critical transition period between old and new systems
• ✅ DIN Rail Mounting (EN 60715 TH35): Fits existing panel layouts without mechanical modification — true hardware upgrade with zero structural rework

Modernization Use Cases & Success Stories

DCS Modernization in Chemical & Refinery Plants: Facilities running 15-25 year-old distributed control systems face a critical inflection point: replace everything at once (high risk, high cost) or migrate in stages. The XVC722AE02 enables the latter. By replacing the interface board while retaining existing I/O cards and field wiring, process engineers achieve a 40-60% reduction in migration scope. Real-world deployments in petrochemical complexes have demonstrated seamless integration between legacy ABB Advant OCS controllers and modern ABB System 800xA platforms — with zero process interruption during the cutover window.

Turbine Supervisory Instrumentation (TSI) Upgrades: In power generation facilities, TSI systems monitoring shaft vibration, axial displacement, and bearing temperatures cannot tolerate communication gaps. The XVC722AE02’s hot-standby redundancy capability (automatic failover <100ms) makes it the preferred retrofit component for gas and steam turbine control panels. Engineers at combined-cycle power plants have used this board to bridge legacy Bently Nevada-compatible signal chains with modern ABB UNITROL and Symphony Plus platforms — achieving full data continuity without turbine shutdown.

Automotive Assembly Line Retrofit: High-throughput discrete manufacturing lines face pressure to integrate vision systems, RFID traceability, and MES connectivity into existing PLC architectures. The XVC722AE02’s multi-protocol serial channels and optional Ethernet gateway enable this integration without replacing the core PLC hardware — a Retrofit Solution that delivers Industry 4.0 connectivity at a fraction of greenfield cost.

Migration Technical Data Sheet

Supply Chain & Deployment Support

• Original & Factory Sealed: Every ABB XVC722AE02 (3BHB002751R0102) unit ships in original ABB packaging with full traceability documentation — no refurbished or grey-market stock
• Expedited Global Logistics: DHL Express, FedEx Priority, and UPS Worldwide options available for emergency retrofit deployments — typical lead time 3-7 business days to major industrial hubs
• Technical Support for Obsolete & Legacy Hardware: Our engineering team provides pre-sales compatibility analysis, installation guidance, and post-deployment troubleshooting for complex retrofit scenarios involving mixed-generation ABB systems
• Retrofit Documentation Package: On request, we provide wiring comparison charts, firmware compatibility matrices, and migration checklists tailored to your existing system configuration
• Long-Term Supply Commitment: Strategic inventory maintained to support multi-phase migration projects spanning 12-36 months — guaranteed unit availability for phased rollouts

Retrofit FAQ (Upgrade Guide)

Q1: Will the ABB XVC722AE02 (3BHB002751R0102) physically fit in my existing control panel without structural modification?
A: In the vast majority of retrofit scenarios, yes. The XVC722AE02 uses standard DIN rail mounting (EN 60715 TH35) with a compact 240g footprint. If your existing panel accommodates DIN rail modules, no mechanical rework is required. We recommend verifying the slot pitch and adjacent module clearance (minimum 25mm on each side) before installation. Contact our team for a panel layout compatibility review.

Q2: How does the XVC722AE02 handle communication between my legacy PROFIBUS-DP network and a new Ethernet-based SCADA system?
A: The XVC722AE02 supports multi-protocol serial channels (RS-485/CAN configurable) alongside an optional 10/100 Mbps Ethernet interface. This enables protocol bridging between legacy PROFIBUS-DP field devices and modern OPC-UA or Modbus TCP SCADA platforms — a core function of any Seamless Integration retrofit strategy. Configuration is performed via ABB Control Builder or Automation Builder software.

Q3: Can this board serve as a direct replacement for an older ABB interface module that has reached EOL (End of Life)?
A: The XVC722AE02 (3BHB002751R0102) is designed with backward compatibility as a core engineering principle. In most cases it serves as a functional replacement for earlier-generation ABB circuit interface boards within the same product family. We strongly recommend providing your existing module’s part number to our technical team for a formal compatibility assessment before ordering.

Q4: What is the maximum cable length supported for legacy RS-485 connections in a retrofit configuration?
A: RS-485 differential signaling supports cable runs up to 1,200 meters at 9,600 bps, decreasing to approximately 100 meters at 115,200 bps. For existing installations with long cable runs, we recommend maintaining the original baud rate settings during initial commissioning, then optimizing after system stability is confirmed. Ferrite cores and proper shield grounding are essential in electrically noisy retrofit environments.

Q5: Does the XVC722AE02 support hot-swap replacement during live system operation?
A: Hot-swap capability depends on the specific system architecture and whether redundant modules are configured. In hot-standby redundant deployments, the standby XVC722AE02 assumes control within <100ms of primary module fault detection, enabling planned replacement without process interruption. For non-redundant systems, a controlled maintenance window is required. Our team can advise on redundancy architecture design for your specific retrofit project.

Q6: What documentation should I prepare before beginning a retrofit project using the 3BHB002751R0102?
A: A successful retrofit requires: (1) existing system wiring diagrams and I/O lists, (2) current firmware versions of adjacent modules, (3) PLC program backup and configuration archive, (4) communication parameter records (baud rate, node IDs, timeout values), and (5) panel layout drawings for clearance verification. Our deployment support team provides a standardized pre-retrofit checklist upon request.
