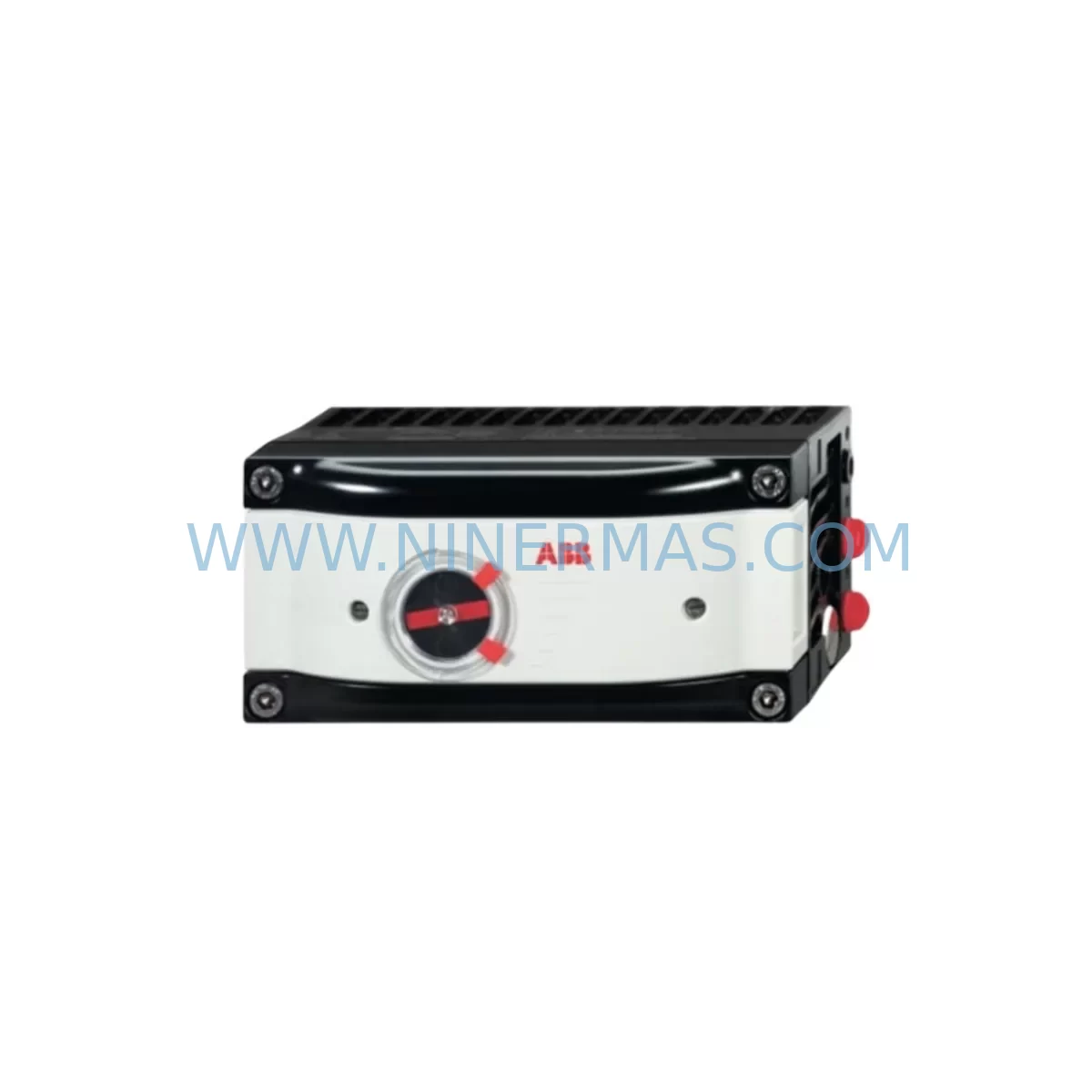

The ABB TZIDC-200 (Part No. V18348-10161310110) is an intelligent digital positioner engineered for safety-critical valve control in continuous production environments. Designed to meet the demanding requirements of petrochemical, power generation, mining, water treatment, metallurgical, and heavy manufacturing facilities, the TZIDC-200 delivers precise, repeatable positioning performance even under extreme electromagnetic interference, high ambient temperatures, mechanical vibration, dust ingress, and moisture exposure. Its robust design directly addresses the most common causes of unplanned shutdowns: control loop interruption, signal drift, spurious valve actuation, power fluctuation, and communication anomalies.

At NINERMAS, every ABB TZIDC-200 unit undergoes rigorous pre-shipment functional testing and is backed by a 12-month warranty, ensuring that replacement parts arrive ready for immediate installation without additional commissioning risk. Long-term inventory reserves are maintained to support planned maintenance cycles and emergency spare part requirements, minimizing lead times for safety-critical applications.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In safety-instrumented systems and critical control cabinets, the TZIDC-200 functions as the final control element between the safety logic solver and the process valve. Its contactless position sensor eliminates mechanical wear-induced signal drift — a leading cause of spurious valve trips in high-cycle applications such as compressor anti-surge loops and reactor feed control. The integrated partial stroke test (PST) capability allows operators to verify valve operability without interrupting the process, directly reducing proof-test downtime in SIL 2 safety loops.

For complete control cabinet integrity, the TZIDC-200 is commonly deployed alongside the ABB TZIDC-120 positioner on smaller actuator assemblies within the same valve train, ensuring consistent diagnostic coverage across all control valves in the loop. Power supply stability is maintained by the ABB SS822 redundant power supply module, which prevents positioner dropout during grid transients or UPS switchover events. Communication continuity between the positioner and the DCS is secured through the ABB CI867K01 HART multiplexer interface, enabling simultaneous HART device management across multiple field instruments without interrupting the 4–20 mA control signal.

In PROFIBUS PA architectures, the ABB CI854AK01 PROFIBUS DP/PA coupler bridges the positioner’s fieldbus segment to the main control network, maintaining deterministic communication even under high electromagnetic interference from variable frequency drives and large motor starters. Analog signal integrity from upstream transmitters is preserved by the ABB AI830A analog input module paired with ABB TU830V1 terminal units, which provide galvanic isolation and surge protection at the marshalling cabinet level.

For process safety logic, the TZIDC-200 integrates with ABB PM866K01 controller modules running safety-rated control programs, where the positioner’s HART diagnostics feed directly into the safety PLC’s asset management layer. In high-vibration environments such as offshore platforms and mining conveyors, the ABB DP840 pulse counter module monitors actuator stroke counts, enabling predictive maintenance scheduling before mechanical fatigue affects valve response time. The ABB AI810 analog input module provides additional process variable monitoring within the same I/O backplane, consolidating field signals and reducing wiring complexity in compact control cabinets.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: The TZIDC-200 is deployed on emergency shutdown (ESD) valves, pressure control valves, and feed/product isolation valves in hydrocarbon processing units. Its SIL 2 capability and ATEX certification make it suitable for Zone 1 and Zone 2 hazardous areas, where valve failure can result in catastrophic process release. The PST function enables proof testing of ESD valves during normal operation, maintaining SIL integrity without requiring process shutdown.

Power Generation: In coal-fired, gas turbine, and combined-cycle power plants, the TZIDC-200 controls steam control valves, turbine bypass valves, and boiler feed water control valves. Its wide operating temperature range and vibration resistance ensure stable positioning performance in high-temperature turbine halls and boiler houses, where conventional positioners frequently suffer from thermal drift and mechanical loosening.

Mining and Mineral Processing: Slurry control, flotation cell level control, and tailings management systems rely on the TZIDC-200’s IP66 sealing and corrosion-resistant housing to maintain reliable valve positioning in wet, dusty, and chemically aggressive environments. The self-diagnostic capability reduces unplanned maintenance interventions in remote mine sites where technician access is limited.

Water and Wastewater Treatment: Municipal and industrial water treatment facilities use the TZIDC-200 on chemical dosing valves, filter backwash control valves, and effluent discharge isolation valves. Its low power consumption and loop-powered design simplify installation in distributed field panels without requiring additional power infrastructure.

Metallurgy and Steel Production: Continuous casting, rolling mill hydraulic systems, and furnace atmosphere control applications demand positioners capable of withstanding intense electromagnetic interference from large induction furnaces and high-current bus systems. The TZIDC-200’s IEC 61000-compliant EMC design ensures stable control signal reception and accurate valve positioning under these conditions.

Port and Marine Applications: Cargo loading arm control, ballast water management, and engine room valve automation on vessels and offshore platforms benefit from the TZIDC-200’s compact design, corrosion-resistant enclosure, and HART communication capability, which supports remote diagnostics from the vessel’s integrated automation system.

Safety and Quality FAQ

Q1: What warranty coverage is provided for the ABB TZIDC-200 V18348-10161310110?
Every TZIDC-200 unit supplied by NINERMAS is covered by a 12-month warranty from the date of shipment. This warranty covers functional defects identified under normal operating conditions and includes technical support for installation and commissioning. Pre-shipment functional testing is performed on each unit to verify positioner response, signal calibration, and communication integrity before dispatch.

Q2: How is compatibility with existing ABB valve actuators and DCS systems verified?
The TZIDC-200 is designed for direct mechanical and electrical compatibility with ABB’s standard pneumatic actuator range, including linear and rotary actuator types. HART 7 communication ensures compatibility with all major DCS platforms including ABB System 800xA, Emerson DeltaV, Honeywell Experion, and Siemens PCS 7. NINERMAS technical staff can assist with compatibility verification based on your actuator model, signal type, and fieldbus architecture prior to order confirmation.

Q3: Is long-term supply of the TZIDC-200 V18348-10161310110 guaranteed for planned maintenance programs?
NINERMAS maintains reserved inventory of the TZIDC-200 to support long-term maintenance contracts and planned turnaround schedules. Customers with recurring spare part requirements can arrange forward stock reservations to ensure availability during planned shutdowns, eliminating the risk of extended lead times from the original manufacturer. Contact our procurement team to discuss volume commitments and delivery scheduling.

Q4: What safety certifications does the TZIDC-200 carry for use in hazardous area installations?
The TZIDC-200 holds ATEX and IECEx certifications for use in explosive atmospheres (Ex ia IIC and Ex d IIC), making it suitable for Zone 1 and Zone 2 classified areas in petrochemical, gas processing, and chemical manufacturing facilities. Its SIL 2 functional safety rating per IEC 61508 supports deployment in safety-instrumented functions (SIF) where independent valve position verification is required by the safety requirements specification (SRS).
