ABB TU838 3BSE008572R1 Retrofit-Compatible Terminal Unit

ABB TU838 3BSE008572R1 Retrofit-Compatible Terminal Unit for Legacy Systems

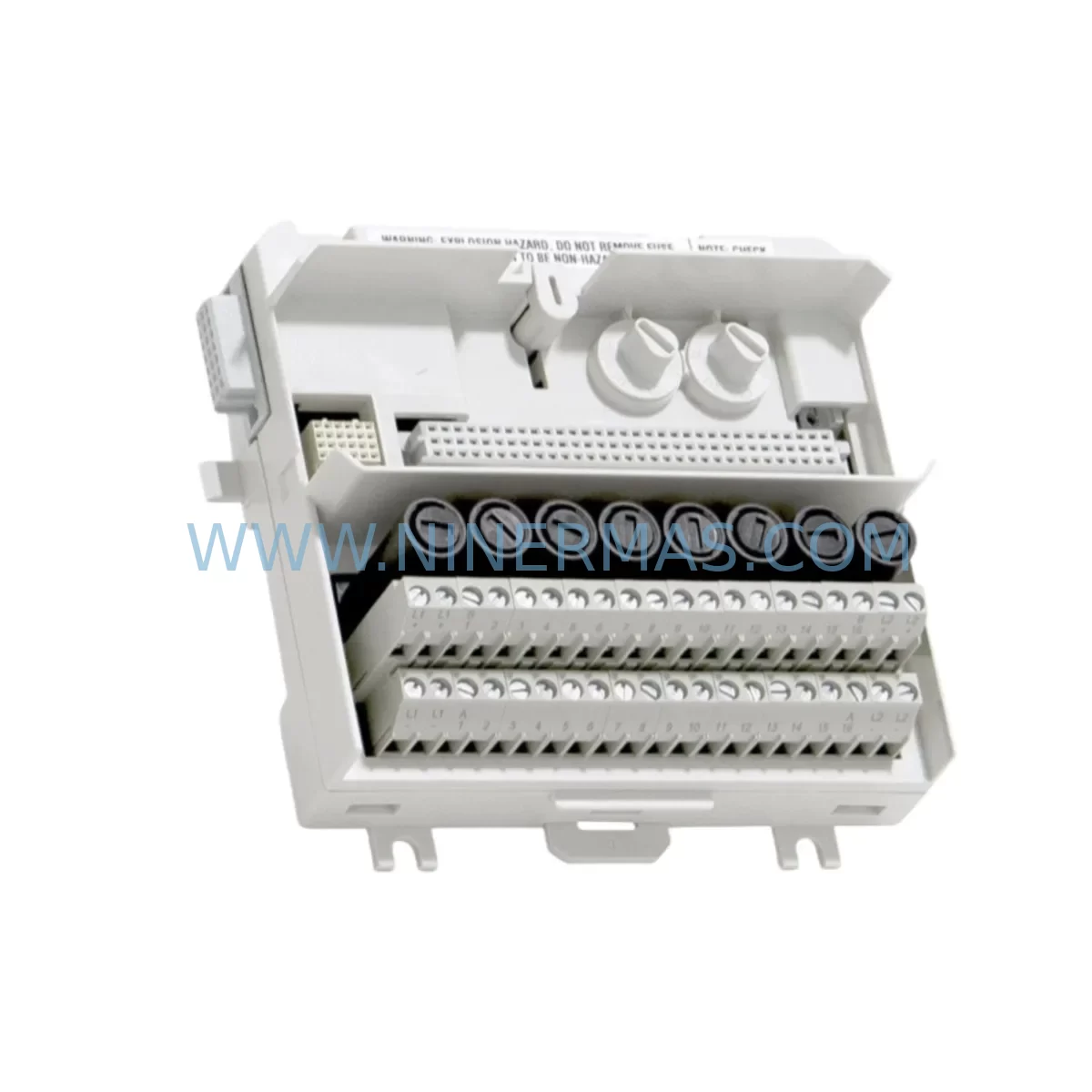

The ABB TU838 (3BSE008572R1) is a field-proven terminal unit designed for the ABB 800xA distributed control system platform. As legacy automation infrastructure ages and original spare parts become increasingly difficult to source, the TU838 serves as a critical retrofit-compatible component that enables engineers to extend the operational life of existing control architectures without forcing a full system overhaul. Whether you are managing a planned upgrade, responding to an unexpected module failure, or executing a phased migration strategy, the TU838 provides the mechanical and electrical interface continuity that modern retrofit projects demand.

At NINERMAS, we maintain verified stock of the ABB TU838 3BSE008572R1, fully tested prior to shipment and backed by a 12-month warranty. Every unit undergoes outgoing inspection to confirm terminal integrity, backplane connector condition, and labeling accuracy before dispatch. Our inventory supports both emergency replacement orders and long-term procurement planning for facilities operating ABB 800xA-based control systems.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing a terminal unit in an active 800xA control environment requires careful pre-migration planning. The TU838 interfaces directly with ABB S800 I/O modules — including commonly deployed units such as the AI810 analog input module, the AO810 analog output module, and the DI810 digital input module. Before removing the legacy terminal unit, engineers should document all field wiring terminations, verify the screw torque specifications, and photograph the existing wiring layout to support accurate reconnection.

The backplane slot position must be confirmed against the system’s I/O configuration database. In 800xA environments, the CI854 PROFIBUS DP communication interface module and the CI801 Modulebus optical port module define the communication architecture that the TU838 must remain aligned with. Any change in slot addressing or module type during retrofit can trigger alarm floods or force a partial controller restart — both of which must be planned for in the maintenance window schedule.

Power supply continuity is equally critical. The SD821 and SD822 power supply modules feeding the I/O station must be verified for adequate current capacity before adding or replacing terminal units. If the existing power budget is marginal, a parallel power supply or load redistribution across the TB820 Modulebus modem may be required before the retrofit proceeds.

For facilities using legacy MOD 300 or Advant Controller 450 platforms migrating toward 800xA, the TU838 is frequently part of a broader I/O migration that also involves replacing DSAI 130 or DSDO 115 signal modules. In these scenarios, the terminal unit serves as the physical anchor point for field cable continuity — allowing the I/O module above it to be swapped while the field wiring remains undisturbed. This approach is central to minimizing downtime during phased migration projects.

HMI screen updates and tag re-binding in ABB System 800xA Operations should be completed and verified in a staging environment before the physical swap is executed on the live system. Commissioning engineers should also confirm that the Control Builder M project reflects the updated hardware configuration to prevent runtime mismatches.

Downtime Control During System Migration

Unplanned downtime during a terminal unit replacement is one of the most avoidable risks in industrial retrofit projects — provided the migration is properly sequenced. The TU838’s mechanical design allows field wiring to remain connected to the terminal base while the I/O module above is removed and replaced, which is the foundation of ABB’s hot-swap capable I/O architecture in supported configurations. However, engineers must verify whether the specific I/O channel type and controller firmware version support live module replacement before attempting it in a running process.

For processes where any interruption is unacceptable — such as continuous chemical reactors, power generation auxiliaries, or water treatment dosing systems — a parallel wiring strategy using a temporary junction box and signal isolators can maintain field signal continuity while the terminal unit is physically replaced. Signal isolators compatible with 4–20 mA loops can bridge the gap during the transition window, preserving control loop integrity without forcing a process hold.

After physical installation of the replacement TU838, the commissioning sequence should include: channel-by-channel signal verification against the P&ID, confirmation of alarm setpoint retention in the DCS, and a functional test of any interlock logic that references the affected I/O channels. Documenting the as-built wiring state post-retrofit is essential for future maintenance reference and audit compliance.

NINERMAS supports customers through the procurement phase of retrofit projects by providing advance shipping, pre-shipment test reports, and technical documentation for the TU838 upon request. Our stock availability allows customers to hold a verified spare on-site before the maintenance window begins, eliminating last-minute sourcing delays that compress commissioning time.

Retrofit Support FAQ

Q1: Is the ABB TU838 3BSE008572R1 a direct drop-in replacement for an existing TU838 in my 800xA system?
Yes. The TU838 3BSE008572R1 is the standard part number for this terminal unit and is a direct mechanical and electrical replacement for existing TU838 positions. You should verify the backplane slot address and field wiring layout before installation to ensure the replacement is correctly mapped in your I/O configuration.

Q2: What pre-shipment testing does NINERMAS perform on the TU838?
Each TU838 unit shipped by NINERMAS undergoes visual inspection, terminal integrity verification, and connector condition assessment before dispatch. A test report is available upon request. All units are covered by a 12-month warranty from the date of shipment.

Q3: Can the TU838 be used in a migration from MOD 300 or Advant to 800xA?
The TU838 is designed for the 800xA S800 I/O platform. In migration projects from MOD 300 or Advant systems, it is typically introduced as part of the new I/O infrastructure rather than as a direct replacement for legacy Advant terminal units. Compatibility with your specific migration path should be confirmed against your system’s hardware configuration documentation.

Q4: Does NINERMAS maintain ongoing stock of the TU838 for long-term supply?
Yes. NINERMAS maintains inventory of the ABB TU838 3BSE008572R1 to support both immediate replacement needs and long-term spare parts planning. We can provide lead time confirmation and quantity availability upon inquiry. Contact us at sale@ninermas.com or +0086 187 5021 5667 for current stock status.
