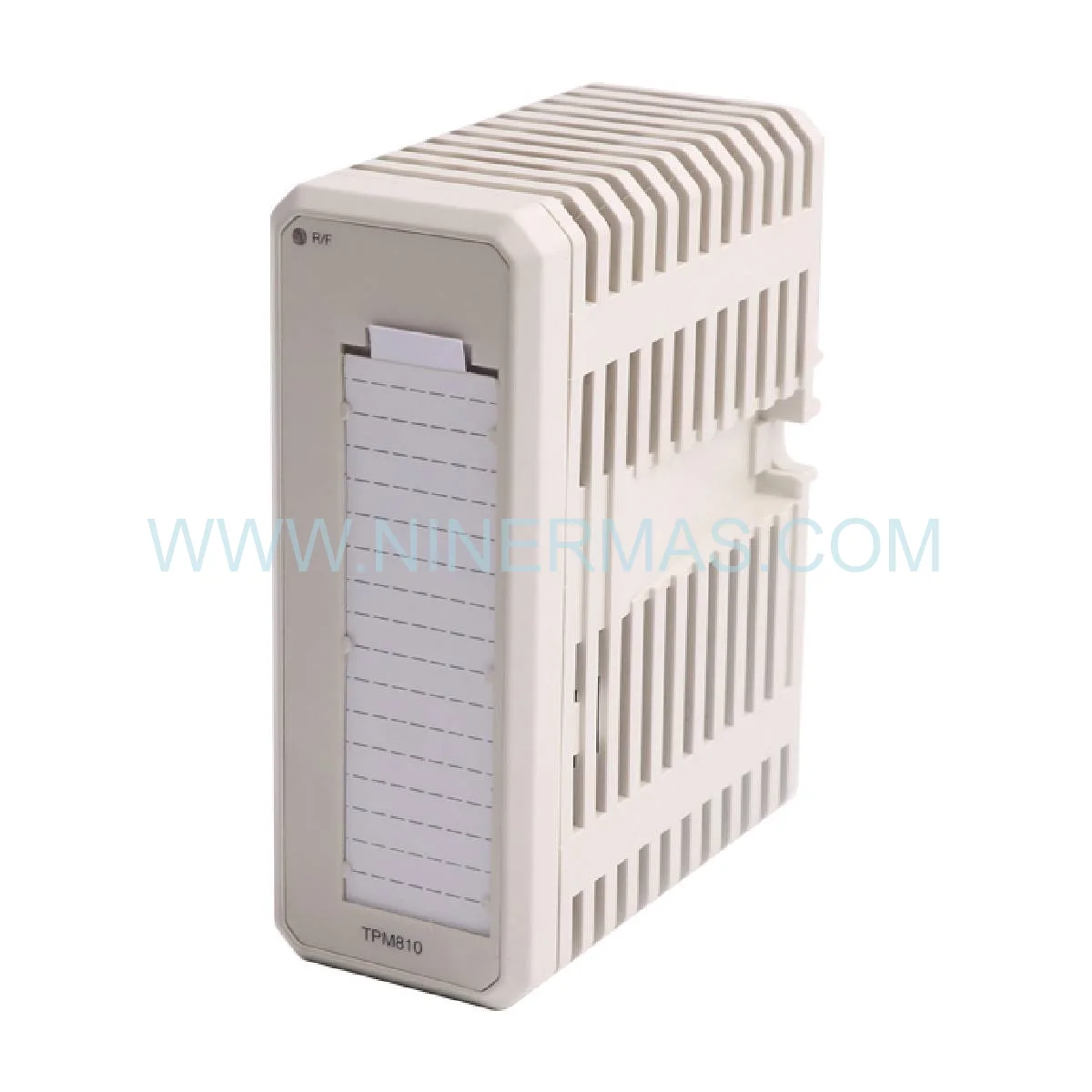

ABB TPM810 Turbine Protection Module | Original & New Spare Parts

ABB TPM810 Turbine Protection Module – Industrial Process Solution

Technical Overview & First Impression

From the perspective of an Industrial Solution Architect, the ABB TPM810 occupies a mission-critical position within Distributed Control System (DCS) architectures — specifically as the dedicated turbine protection backbone in the ABB S+ Turbine family. In power generation, petrochemical, and heavy industrial environments, this module continuously monitors vibration, speed deviation, bearing temperature, and axial displacement, triggering protective shutdown sequences before catastrophic mechanical failure can occur. The ABB TPM810 is not merely a monitoring device; it is the last line of defense for high-value rotating assets that, if lost, can halt entire production lines for weeks.

What distinguishes the TPM810 from generic alternatives is its native compatibility with ABB’s S+ control architecture, enabling seamless Fieldbus communication and real-time data exchange with upstream DCS supervisory layers. Engineers who have worked with legacy S-series platforms will recognize the TPM810’s backward-compatible I/O mapping, which dramatically reduces integration risk during system upgrades or emergency replacements. Its firmware supports both traditional hardwired safety loops and modern Ethernet-based diagnostic networks — a dual capability that makes it equally valuable in greenfield projects and brownfield retrofits.

Original factory-sealed units of the TPM810 are increasingly scarce on the global market. As ABB transitions its portfolio toward next-generation platforms, procurement teams managing aging DCS infrastructure face mounting pressure to secure certified Legacy Components before supply chains dry up entirely. This is a critical part for industry safety, and its availability in factory-sealed, fully tested condition represents a significant procurement advantage for any maintenance organization.

Key Technical Highlights

Real-Time Multi-Parameter Monitoring: Simultaneous acquisition of vibration, speed, temperature, and axial displacement data with millisecond response latency.
S+ Platform Native Integration: Plug-and-play compatibility with ABB S+ Turbine DCS architecture; no custom firmware required for standard deployments.
High-Speed Protective Relay Output: Sub-100ms trip signal generation ensures turbine shutdown before mechanical damage thresholds are exceeded.
Redundancy-Ready Architecture: Supports 1oo2 and 2oo3 voting logic configurations for Safety Instrumented System (SIS) compliance in high-availability plants.
Fieldbus Communication: Integrated PROFIBUS DP and Modbus RTU interfaces enable direct connectivity to third-party PLCs and SCADA systems without additional gateways.
Self-Diagnostic Capability: Continuous internal health monitoring with fault code generation reduces mean time to repair (MTTR) during unplanned outages.
Industrial-Grade Enclosure: DIN rail mountable, rated for extended temperature ranges and high-vibration environments typical of turbine halls and compressor stations.

Vertical Industry Applications

Petrochemical & Refining: In fluid catalytic cracking (FCC) units and hydrocracker complexes, the TPM810 protects turbine-driven compressors and pumps that operate continuously at high differential pressures. A single unplanned trip in these environments can cost operators hundreds of thousands of dollars per hour; the TPM810’s predictive fault detection directly reduces that exposure.

Power Generation (Thermal & Combined Cycle): Steam and gas turbines in utility-scale power stations rely on the TPM810 for overspeed protection and bearing condition monitoring. Its high-speed trip output meets the response time requirements of grid-connected generation assets where frequency stability is non-negotiable.

Mining & Mineral Processing: Large-scale ore processing facilities use turbine-driven mills and conveyors that operate in dusty, high-vibration environments. The TPM810’s robust hardware design and self-diagnostic routines minimize false trips while ensuring genuine fault conditions are captured immediately.

Marine & Offshore Platforms: Offshore oil and gas platforms and LNG carriers require turbine protection systems that can withstand salt-laden atmospheres and constant mechanical vibration. The TPM810’s industrial-grade construction and certified reliability make it a preferred choice for marine automation engineers.

Pulp & Paper Manufacturing: Recovery boiler turbines and steam-driven digesters in pulp mills operate under demanding thermal and mechanical conditions. The TPM810 provides the continuous Process Control oversight needed to maintain production continuity and comply with environmental safety regulations.

Data Sheet & Specifications

Quality Assurance & Supply Chain

Every ABB TPM810 unit supplied through our channel is 100% original, sourced directly from authorized ABB distribution networks and verified against factory serial number databases. Units are maintained in factory-sealed condition throughout the storage and logistics chain, ensuring that customers receive components in the same state as they left ABB’s Malta manufacturing facility.

Our 12-Month Comprehensive Warranty covers all manufacturing defects and functional failures under normal operating conditions. In the event of a warranty claim, replacement units are dispatched within 48 hours to minimize plant downtime. For emergency maintenance scenarios — where a turbine trip has already occurred and every hour of downtime represents significant financial loss — we offer priority emergency delivery via DHL Express, FedEx International Priority, and UPS Worldwide Express, with same-day dispatch available for in-stock units.

All units undergo pre-shipment functional verification, and full traceability documentation (including batch certificates and test reports) is available upon request. For customers operating under IEC 61511 or IEC 62061 safety management frameworks, we can provide the documentation packages required for safety case submissions.

Buyer’s FAQ — Selection Guide

Q1: How can I verify that the ABB TPM810 I receive is a genuine original component and not a counterfeit or refurbished unit?
A: Genuine ABB TPM810 units carry a factory-applied holographic label with a unique serial number that can be cross-referenced against ABB’s global product authentication database. Our units are supplied in original ABB packaging with intact tamper-evident seals. We provide a Certificate of Authenticity and batch traceability documentation with every shipment. If you have any doubt upon receipt, ABB’s regional technical support team can verify the serial number directly.

Q2: Where can I obtain the official datasheet and technical manual for the ABB TPM810?
A: The official ABB TPM810 datasheet, installation manual, and configuration guide are available through ABB’s Library portal (library.abb.com) using the model number as the search key. Alternatively, our technical team can provide the relevant documentation package upon order confirmation, including application notes specific to S+ Turbine system integration.

Q3: Is the ABB TPM810 compatible with older versions of the ABB S+ Turbine control system, and what firmware version is required?
A: The TPM810 is designed for backward compatibility with S-series turbine protection platforms. It supports firmware versions from S+ Turbine V2.x onward. For installations running earlier firmware, a firmware upgrade of the host controller may be required before integration. Our engineers can advise on compatibility matrices based on your specific system version and installed base configuration.

Q4: What is the lead time for ABB TPM810 units, and do you offer emergency delivery for critical plant shutdowns?
A: In-stock units are dispatched within 24 hours of order confirmation. For emergency repair situations where a turbine is already offline, we offer same-day dispatch with DHL Express, FedEx International Priority, or UPS Worldwide Express — typically achieving delivery within 1-3 business days to major industrial hubs globally. Contact our team directly for emergency procurement support.

Q5: Can the ABB TPM810 be used as a direct replacement in a Safety Instrumented System (SIS), and does it meet IEC 61511 requirements?
A: The TPM810 supports redundant voting logic configurations (1oo2, 2oo3) that are compatible with SIS architectures. However, formal SIS qualification requires a full functional safety assessment specific to your plant’s Safety Requirements Specification (SRS). We recommend engaging a certified Functional Safety Engineer (FSE) to validate the TPM810’s integration into your SIS loop before commissioning. We can provide the relevant safety data sheets and failure rate data (PFD/PFH) to support this process.

Q6: What distinguishes the ABB TPM810 from newer ABB turbine protection modules, and is it still the right choice for my application?
A: The TPM810 remains the correct choice for any installation already running on the ABB S+ Turbine platform, where replacing the entire control system would be cost-prohibitive. As a Legacy Component within ABB’s DCS Hardware portfolio, it provides a cost-effective path to maintaining system integrity without a full platform migration. For new installations, ABB’s current-generation turbine protection solutions may offer additional features; however, for brownfield maintenance and emergency replacement scenarios, the TPM810 is the definitive solution.
