ABB TB511-ETH 1SAP111100R0170 Safety-Reliable Ethernet Module for Critical Control Sites

ABB TB511-ETH 1SAP111100R0170 Safety-Reliable Ethernet Module for Critical Control Sites

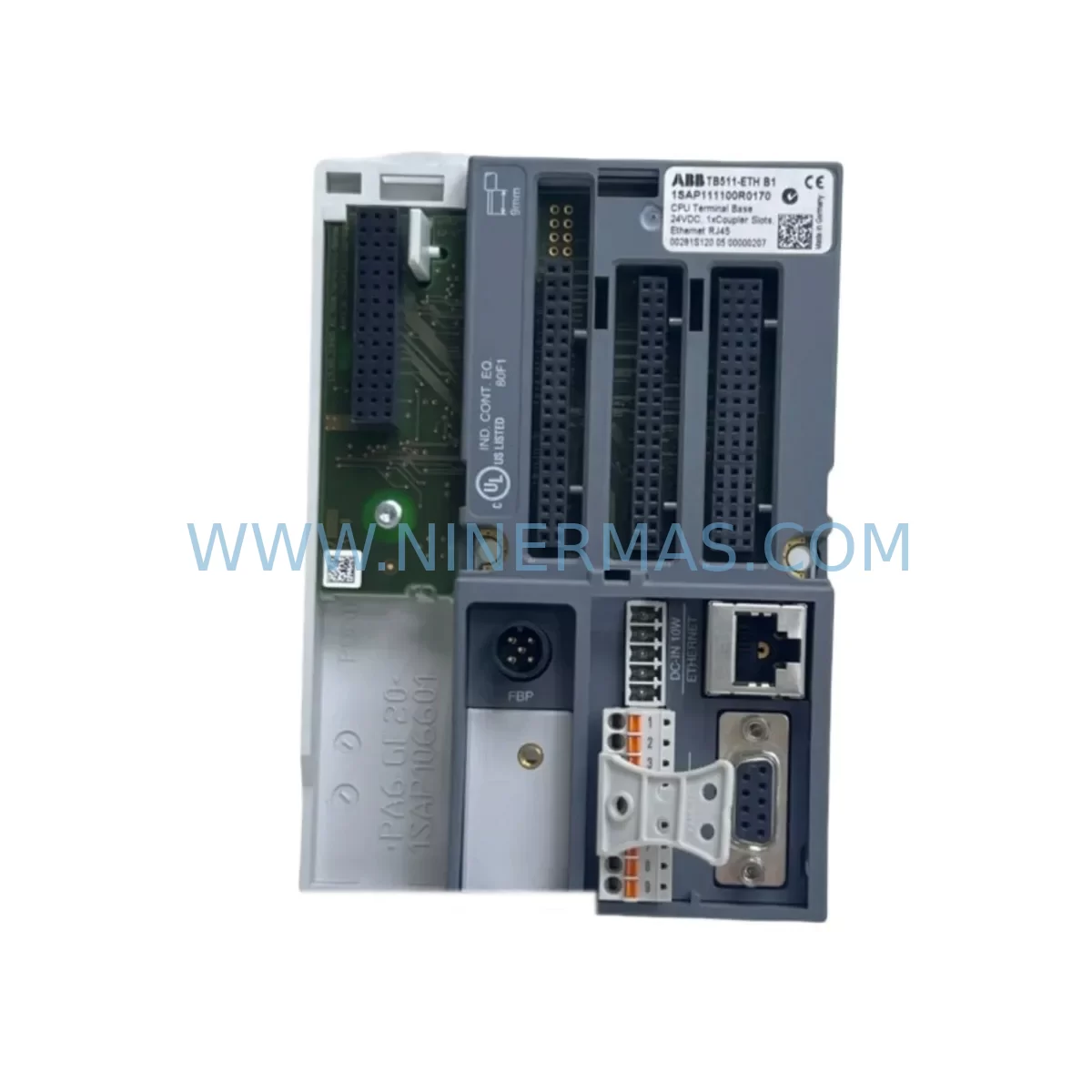

The ABB TB511-ETH (1SAP111100R0170) is a high-performance Ethernet communication module designed for the ABB AC500 series programmable logic controller platform. Engineered to meet the demanding requirements of continuous industrial production environments, this module delivers stable, interference-resistant Ethernet connectivity in critical control cabinets where communication failure is not an option. Whether deployed in petrochemical interlock systems, power distribution automation, mining conveyor control, or water treatment SCADA networks, the TB511-ETH provides the communication backbone that keeps safety-critical processes running without interruption.

In modern industrial facilities, unplanned communication downtime between the PLC CPU and the field network can trigger cascading failures — from nuisance trips and process shutdowns to dangerous uncontrolled states. The TB511-ETH is purpose-built to eliminate these risks by providing a robust, electrically isolated Ethernet interface that maintains signal integrity even in environments with heavy electromagnetic interference (EMI), ground loops, high-frequency switching noise from variable frequency drives (VFDs), and power line transients. Its design ensures that the AC500 CPU module — such as the PM573-ETH or PM591-ETH — maintains uninterrupted communication with PROFINET, Modbus TCP, or EtherNet/IP field devices, HMI panels, and supervisory control systems.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

Deploying the ABB TB511-ETH 1SAP111100R0170 as the Ethernet communication interface within a critical control cabinet is a foundational step in reducing communication-related process risk. In a well-engineered safety control cabinet, this module works in concert with a complete ecosystem of protective and control components to ensure system-wide resilience.

At the power supply level, a dedicated ABB CP-E 24VDC/5A power supply unit provides clean, regulated 24 VDC to the AC500 backplane, ensuring the TB511-ETH and the CPU module receive stable power free from voltage sags and transients. For surge protection against lightning strikes and switching transients on the Ethernet cable, an ABB OVR Ethernet surge protective device installed at the cabinet entry point prevents destructive voltage spikes from reaching the module’s RJ45 port — a critical measure in outdoor substations and exposed field panels.

Within the AC500 rack, the TB511-ETH interfaces directly with the ABB PM573-ETH CPU module, sharing the high-speed internal backplane bus. Alongside it, ABB DC532 digital input/output modules handle field-level discrete signals from safety switches, emergency stop circuits, and interlock relays, while ABB AX522 analog input/output modules process 4–20 mA signals from pressure transmitters, temperature sensors, and flow meters — all of which depend on the TB511-ETH to relay real-time process data to the SCADA system without delay or packet loss.

For applications requiring functional safety, the TB511-ETH communication architecture can be integrated with ABB AC500-S Safety PLC modules, enabling the transmission of safety-relevant data across the Ethernet network while maintaining SIL 2 or SIL 3 integrity for the overall safety instrumented system (SIS). In high-EMI environments such as motor control centers with multiple ABB ACS880 variable frequency drives, the module’s EMC-hardened design prevents communication errors caused by high-frequency switching noise — a common cause of spurious trips and false alarms in drive-intensive applications.

Cabinet-level network segmentation using an industrial-grade managed Ethernet switch (compatible with the TB511-ETH’s 10/100 Mbps interface) allows the AC500 network to be isolated from the corporate IT network, reducing cybersecurity exposure and ensuring deterministic communication latency for time-critical control loops. When combined with ABB TB521-ETH or TB541-COM communication modules for PROFIBUS DP or serial fieldbus connectivity, the TB511-ETH enables a multi-protocol control architecture that supports legacy field devices alongside modern Ethernet-based instruments — protecting existing infrastructure investments while enabling incremental modernization.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In continuous process facilities handling flammable or toxic materials, the TB511-ETH enables real-time communication between the AC500 PLC and distributed control system (DCS) gateways, emergency shutdown (ESD) panels, and fire and gas detection systems. Its ability to maintain communication integrity during high-EMI events — caused by large motor starts, arc flash incidents, or ground faults — is essential for preventing loss of containment scenarios.

Electric Power Generation & Substation Automation: In power plant auxiliary control systems and 110 kV/220 kV substation automation panels, the TB511-ETH provides the IEC 61850-compatible Ethernet backbone for bay controllers, protection relays, and energy management systems. Its wide operating temperature range (-25°C to +70°C) ensures reliable operation in outdoor switchgear enclosures subject to seasonal temperature extremes.

Mining & Mineral Processing: Underground and open-pit mining operations subject control equipment to extreme vibration, dust ingress, and humidity. The TB511-ETH’s compliance with IEC 60068 environmental standards makes it suitable for conveyor belt control systems, crusher automation panels, and ventilation safety interlocks where communication failure could endanger personnel.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities rely on continuous SCADA communication for pump station control, chemical dosing automation, and effluent monitoring. The TB511-ETH’s Modbus TCP and EtherNet/IP support enables seamless integration with existing SCADA platforms, while its corrosion-resistant design withstands the humid, chemically aggressive atmosphere of treatment plant control rooms.

Metallurgy & Steel Production: In electric arc furnace (EAF) and continuous casting control systems, the TB511-ETH must operate reliably in the presence of intense electromagnetic fields generated by high-current bus bars and induction heating equipment. Its IEC 61000-4 EMC immunity ratings ensure communication stability in these extreme electrical environments, preventing the signal drift and packet errors that can cause costly production interruptions.

Port & Marine Automation: Ship-to-shore crane control systems, automated stacking cranes, and vessel management systems in port environments require robust Ethernet communication modules capable of withstanding salt-laden air, vibration from heavy machinery, and wide temperature swings. The TB511-ETH’s industrial-grade construction and wide environmental tolerance make it a reliable choice for these demanding maritime applications.

Safety and Quality FAQ

Q1: What warranty does the ABB TB511-ETH 1SAP111100R0170 carry?
All ABB TB511-ETH modules supplied by NINERMAS COMPANY LIMITED are covered by a 12-month warranty from the date of shipment. This warranty covers manufacturing defects, functional failures under normal operating conditions, and premature component failure. Warranty claims are processed promptly with replacement or repair at no additional cost to the customer.

Q2: What pre-shipment testing is performed on each unit?
Every TB511-ETH module undergoes a comprehensive outgoing quality inspection prior to shipment, including visual inspection for physical damage, functional power-on verification, Ethernet port connectivity testing, and firmware version confirmation. Units are shipped in original ABB packaging with full documentation to ensure traceability and authenticity.

Q3: Is the TB511-ETH compatible with all ABB AC500 CPU modules?
The TB511-ETH is designed for use with the ABB AC500 PLC platform and is compatible with PM5xx series CPU modules, including the PM573-ETH, PM591-ETH, PM592-ETH, and PM595-ETH. It is recommended to verify firmware compatibility between the TB511-ETH and the target CPU module version before installation. NINERMAS technical support can assist with compatibility verification prior to purchase.

Q4: Can long-term supply and replacement support be guaranteed for critical production sites?
Yes. NINERMAS maintains dedicated inventory of ABB AC500 series modules, including the TB511-ETH 1SAP111100R0170, to support long-term spare parts programs for critical industrial facilities. We provide scheduled replenishment agreements, emergency stock reservation, and expedited shipping for unplanned replacement requirements — ensuring that a communication module failure never becomes an extended production outage.
