ABB SPAS011 Service-Ready Spare Part for Industrial Maintenance

ABB SPAS011 Service-Ready Spare Part for Industrial Maintenance

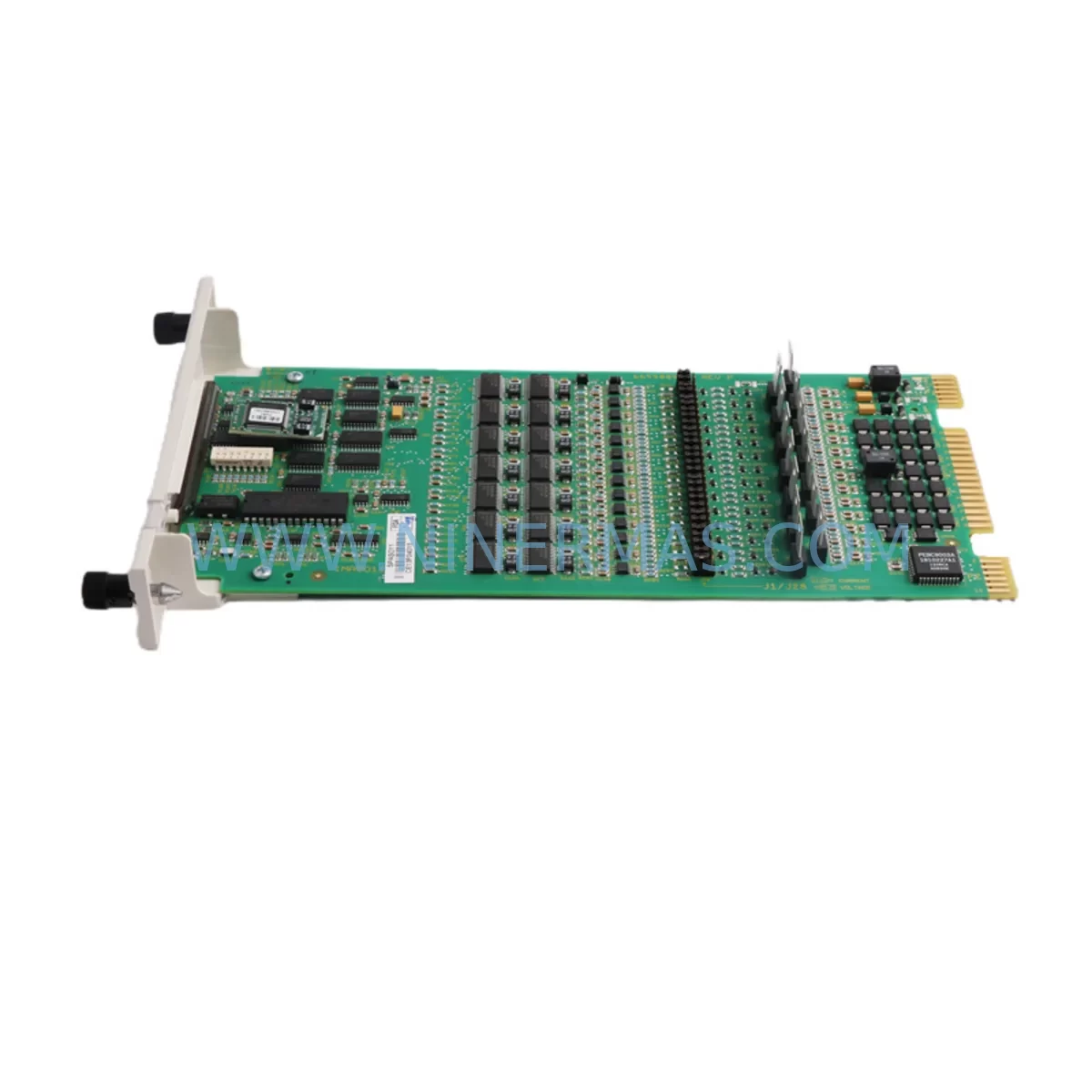

The ABB SPAS011 is an original analog output module designed for the ABB Symphony Plus distributed control system (DCS). As a critical field interface component, the SPAS011 converts digital control signals from the controller into precise 4–20 mA analog outputs, driving final control elements such as control valves, variable frequency drives, and positioners across process industries including oil & gas, power generation, chemical processing, pulp & paper, and water treatment.

When an SPAS011 module fails or degrades, the consequences are immediate: loss of analog output signals, uncontrolled process variables, and potential emergency shutdowns. Maintaining a service-ready SPAS011 in your spare parts inventory is not optional — it is a fundamental requirement for any facility operating Symphony Plus control cabinets. Downtime caused by an unavailable analog output module can cost thousands of dollars per hour in lost production. Sourcing a verified, tested replacement from a reliable supplier with a 12-month warranty is the most effective risk mitigation strategy available to maintenance and procurement engineers.

At NINERMAS, every SPAS011 unit is inspected, function-tested, and shipped with full documentation. We support long-term supply agreements for facilities requiring ongoing spare parts coverage across their Symphony Plus infrastructure.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing an SPAS011 analog output module in a Symphony Plus control cabinet is rarely an isolated task. Experienced maintenance engineers understand that a failed analog output module is often a symptom of broader stress within the I/O station or power distribution network. A thorough site inspection during SPAS011 replacement should include the following associated components:

Power Supply and Distribution: Verify the 24 VDC rail supplying the S800 I/O station. A degraded ABB SD831 or SD832 power supply module can cause intermittent analog output errors that mimic module failure. Check terminal voltage under load before condemning the SPAS011.

I/O Station Backplane and Bus Coupler: The ABB TB820 or TB840 ModuleBus coupler connects the S800 I/O station to the AC800M controller. A faulty bus coupler can cause all modules in the station — including the SPAS011 — to lose communication simultaneously. Inspect the coupler’s LED status indicators and replace if communication faults persist after SPAS011 swap.

Analog Input Modules: In closed-loop control applications, the SPAS011 analog output works in tandem with analog input modules such as the ABB AI810 or AI820. If the process variable feedback is unreliable, the control loop cannot be validated even after the output module is replaced. Confirm AI module calibration and channel integrity as part of the restoration workflow.

Digital Output and Relay Modules: Interlock and permissive signals associated with the controlled device (valve, drive, pump) are often handled by ABB DO810 digital output modules or external relay modules. Verify that interlock logic is intact and that relay contacts have not welded or degraded during the fault event.

Signal Cables and Field Wiring: Inspect the 4–20 mA field wiring from the SPAS011 terminal block to the field device. Corroded terminals, loose ferrules, or damaged shielded cable can introduce loop resistance errors that cause the new module to report calibration faults. Use a loop calibrator to verify end-to-end signal integrity before returning the loop to automatic control.

Signal Isolators and Barriers: In hazardous area installations, Zener barriers or galvanic isolators are installed between the SPAS011 output and the field device. These components can fail silently, blocking the 4–20 mA signal without triggering a module alarm. Test isolator output with a known-good signal source during commissioning of the replacement module.

Communication Modules and Controller Cards: If multiple I/O stations are affected, inspect the ABB CI854 or CI858 PROFIBUS/FOUNDATION Fieldbus communication interface modules and the AC800M controller’s CPU card. A controller firmware issue or communication module fault can cause widespread analog output failures that are incorrectly attributed to individual SPAS011 modules.

HMI and Operator Station: After restoring the SPAS011, verify that the ABB 800xA operator station or connected HMI correctly reflects the analog output values. Stale or frozen display values may indicate a historian or OPC server issue rather than a hardware fault.

Fuses and Circuit Protection: Check the fuse or circuit breaker protecting the 24 VDC supply to the affected I/O station. A blown fuse is often the first indicator of a short circuit in the field wiring or a failed module drawing excessive current.

Building a structured spare parts kit around the SPAS011 — including at least one spare AI module, one bus coupler, one power supply module, and a set of terminal block connectors — reduces mean time to repair (MTTR) and supports a proactive maintenance culture rather than a reactive one.

Site Replacement Workflow

Step 1 – Pre-Replacement Verification: Before removing the SPAS011, document all channel assignments, engineering unit ranges, and output values from the 800xA system. Export the module configuration from the control builder if possible. Confirm that the replacement SPAS011 carries the same hardware revision to ensure firmware compatibility with the existing AC800M controller version.

Step 2 – Safe Isolation: Place all affected control loops in manual mode at the operator station. Notify field operators to monitor controlled devices (valves, drives) during the replacement. De-energize the I/O station following site lockout/tagout (LOTO) procedures.

Step 3 – Module Swap: Remove the faulty SPAS011 by releasing the module latch and sliding it from the backplane. Insert the replacement module, ensuring the bus connector is fully seated. Re-energize the station and observe the module’s status LEDs — a solid green RUN indicator confirms successful initialization.

Step 4 – Configuration Restore: Download the module configuration from the AC800M controller. Verify that all eight analog output channels are active and reporting correct engineering unit values. Use a loop calibrator or field instrument to confirm that the 4–20 mA output at the field terminal matches the commanded value from the controller.

Step 5 – Return to Automatic: Transfer control loops from manual to automatic one at a time, monitoring process variable response. Document the replacement in the site maintenance management system (CMMS) and update the spare parts inventory record.

The SPAS011’s hot-swap capability within the S800 I/O station architecture minimizes disruption during replacement, but proper procedure adherence remains essential to avoid process upsets or equipment damage during the transition.

Spare Parts Support FAQ

Q1: Is the SPAS011 compatible with all versions of the ABB Symphony Plus system?
The SPAS011 is designed for the ABB Symphony Plus S800 I/O platform and is compatible with AC800M controllers running current Symphony Plus firmware versions. For legacy Advant or Master systems, please confirm the hardware revision and firmware version with our technical team before ordering to ensure full compatibility.

Q2: What does the 12-month warranty cover for the SPAS011?
Our 12-month warranty covers manufacturing defects, functional failures under normal operating conditions, and DOA (dead on arrival) units. Each SPAS011 is function-tested prior to shipment. In the event of a warranty claim, we provide a replacement unit or full refund, subject to inspection of the returned module.

Q3: How quickly can the SPAS011 be shipped, and do you support long-term supply agreements?
In-stock SPAS011 units ship within 1–3 business days via express international courier. For facilities with ongoing Symphony Plus maintenance programs, NINERMAS offers long-term supply agreements with reserved inventory, priority fulfillment, and fixed pricing to eliminate procurement risk for critical spare parts.

Q4: Can the SPAS011 replace older ABB analog output modules from the Advant or Master series?
In many Symphony Plus migration projects, the SPAS011 serves as the modern replacement for legacy ABB Advant AO modules. However, direct interchangeability depends on the I/O station type, backplane version, and controller configuration. We recommend providing your existing module part number and system version so our engineers can confirm compatibility before shipment.
