ABB SDCS-COM-5 3BSE006567R1 Retrofit-Compatible Communication Module

ABB SDCS-COM-5 3BSE006567R1 Retrofit-Compatible Communication Module for Legacy DC Drive Systems

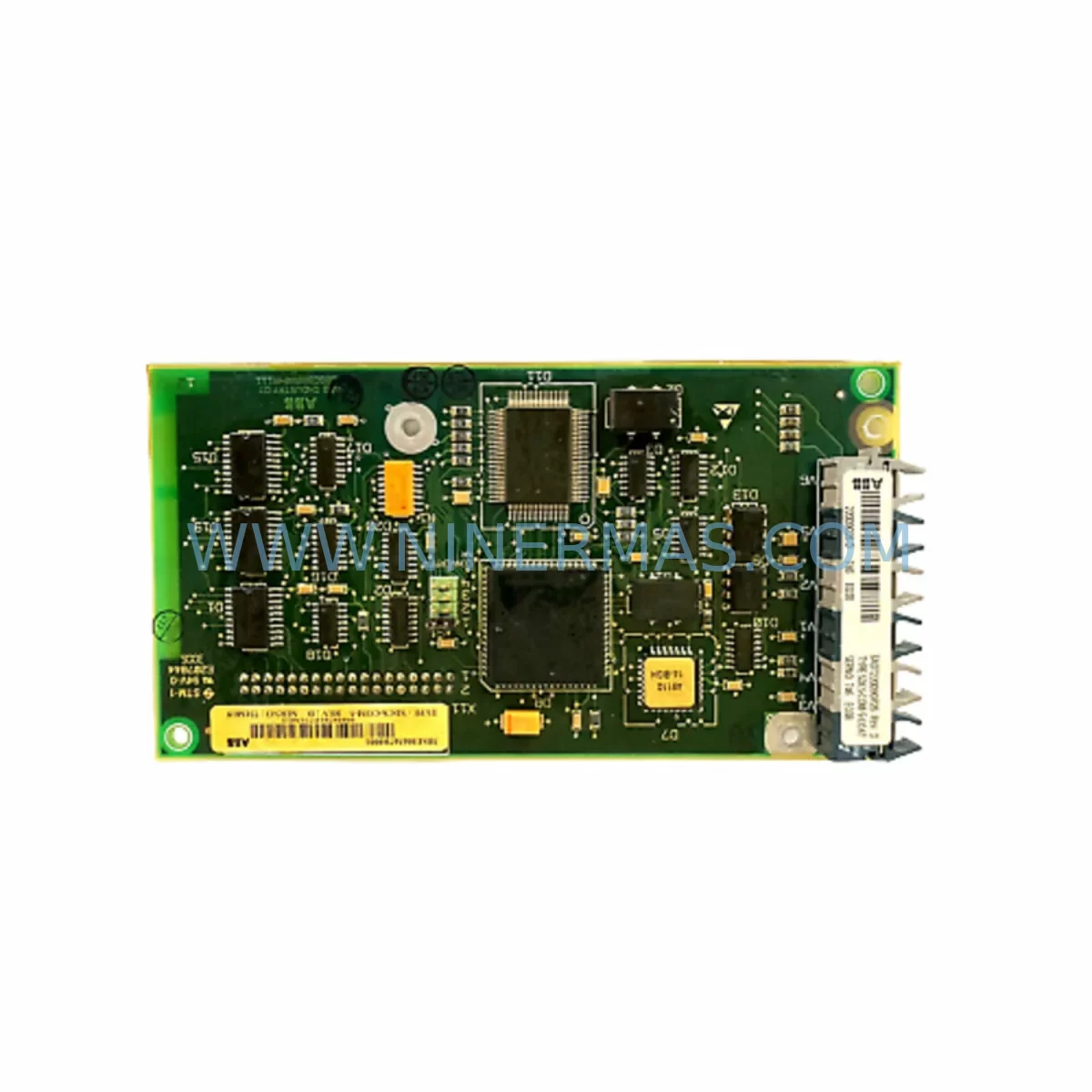

The ABB SDCS-COM-5 (part number 3BSE006567R1) is a ruggedized communication module engineered for the ABB DCS800 series DC drive platform. Designed to bridge legacy fieldbus architectures with modern automation infrastructure, this module is a critical retrofit component for facilities operating aging DC drive systems that require communication protocol continuity without full drive replacement. For maintenance engineers managing long-lifecycle production lines, the SDCS-COM-5 represents a cost-effective path to extend system service life while preserving existing control logic, HMI configurations, and network topology.

In retrofit and upgrade projects, the SDCS-COM-5 is typically deployed when a facility is migrating from an older DCS500 or Mentor II drive platform to the DCS800 series, or when an existing DCS800 installation requires communication board replacement due to hardware failure or end-of-life component obsolescence. The module slots directly into the DCS800 drive’s option slot, supporting fieldbus protocols including PROFIBUS-DP, enabling seamless integration with existing Siemens S7 PLCs, ABB AC500 controllers, or third-party SCADA systems without reprogramming the master controller.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful SDCS-COM-5 retrofit requires a structured review of the surrounding automation architecture before the module is installed. Engineers should begin by auditing the DCS800 drive’s existing option slot configuration — confirming that no conflicting option board (such as an SDCS-COM-8 for DeviceNet or an SDCS-COM-81 for CANopen) occupies the target slot. If the site previously used a DCS500 drive with an SDCS-COM-1 or SDCS-COM-3 communication board, the PROFIBUS node address and PPO type settings must be re-mapped to match the DCS800 parameter structure before the network master is reconnected.

Power supply integrity is a prerequisite for stable communication. Before commissioning the SDCS-COM-5, verify that the DCS800’s internal 24 VDC auxiliary supply — typically sourced from the SDCS-PIN-48 power interface board — is within specification. A degraded PIN board can cause intermittent communication faults that are misdiagnosed as module failures. Similarly, inspect the SDCS-DSL-4 digital signal link board and the SDCS-FEX-2 field excitation module for firmware version compatibility, as older firmware revisions may not correctly handle the PROFIBUS data exchange profile used by the SDCS-COM-5.

On the network side, confirm that the PROFIBUS-DP cable termination resistors are correctly installed at both ends of the segment, and that the cable shielding is grounded at one point only to prevent ground loops. If the site PLC is an ABB AC500 series controller with a CM572-DP communication module, verify that the GSD file loaded in the PLC configuration tool matches the SDCS-COM-5 device profile. For Siemens S7-300 or S7-400 masters, the same GSD file validation applies within STEP 7 or TIA Portal.

Where the retrofit involves replacing a complete drive rather than just the communication board, engineers should also plan for I/O terminal rewiring. The DCS800’s X4 and X5 terminal blocks handle analog and digital I/O respectively, and signal levels must be verified against the legacy drive’s wiring diagram. Interposing relay modules or signal isolators may be required if the legacy system used 0–20 mA signals while the DCS800 default is 4–20 mA. An ADAM-4017 or equivalent signal conditioner can bridge this gap without modifying the PLC program. Additionally, if the site uses an ABB CP600 or CP400 HMI panel connected via PROFIBUS, the HMI project’s drive variable mapping should be validated against the DCS800 parameter list before live commissioning.

For facilities managing multiple DC drive systems, it is advisable to stock at least one spare SDCS-COM-5 per drive line as part of a critical spares inventory. Given that this module is a single point of failure for fieldbus communication, an unplanned failure without a spare on-site can result in extended downtime while a replacement is sourced. Ninermas maintains ready stock of the SDCS-COM-5 3BSE006567R1 with pre-shipment functional testing and 12-month warranty coverage, supporting both emergency replacement and planned maintenance procurement cycles.

Downtime Control During System Migration

Minimizing production downtime during a DCS800 communication module retrofit requires careful pre-staging and a disciplined switchover sequence. The recommended approach is to configure and bench-test the replacement SDCS-COM-5 offline before the scheduled maintenance window. Using ABB’s DriveWindow Light software, engineers can pre-load the drive parameter set — including the PROFIBUS node address (parameter 51.01), PPO type (51.02), and process data mapping — so that the module is fully configured before it enters the drive enclosure.

During the switchover, the drive should be brought to a safe stop and the main contactor opened before the option slot cover is removed. The SDCS-COM-5 is a hot-swap-capable module in some firmware versions, but field practice recommends a full power-down cycle to prevent ESD damage to the option slot connector. Once the replacement module is seated and the drive is powered up, the PROFIBUS master should detect the slave automatically if the node address and GSD file are correctly matched. A full I/O function test — cycling each digital output and verifying each analog input reading against a calibrated reference — should be completed before the drive is returned to automatic control.

For sites where the DCS800 controls a critical process (such as a paper machine winder, extruder, or crane hoist), a parallel commissioning approach is recommended: bring up the replacement drive on a test bench connected to a PROFIBUS spur, validate all control functions, then perform the physical swap during a planned short outage. This approach reduces live commissioning risk and ensures that the original program logic and HMI display values are preserved without modification. Ninermas ships all SDCS-COM-5 units with a pre-shipment test report confirming communication link establishment and parameter retention, reducing on-site commissioning time.

Retrofit Support FAQ

Q1: Is the SDCS-COM-5 3BSE006567R1 a direct replacement for older ABB DC drive communication boards?
The SDCS-COM-5 is specifically designed for the DCS800 drive platform and is not pin-compatible with communication boards from the DCS500 or Mentor II series. However, it serves as the functional replacement for PROFIBUS-DP communication in any DCS800 installation where the original SDCS-COM-5 has failed or been discontinued. If you are migrating from a DCS500 with an SDCS-COM-1, the drive itself must be upgraded to DCS800 before the SDCS-COM-5 can be used.

Q2: What commissioning steps are required after installing a replacement SDCS-COM-5?
After physical installation, set the PROFIBUS node address using the DIP switches on the module face, then power up the drive and navigate to parameter group 51 (FIELDBUS ADAPTER) to confirm the module is recognized. Set PPO type (51.02) to match the PLC configuration, verify the process data mapping in parameters 51.04–51.13, and perform a PROFIBUS network scan from the master to confirm slave registration. A full I/O cycle test is recommended before returning the drive to production.

Q3: How does Ninermas verify the SDCS-COM-5 before shipment?
Every SDCS-COM-5 unit supplied by Ninermas undergoes pre-shipment functional testing, including option slot interface verification, PROFIBUS communication link establishment, and parameter read/write validation. A test report is included with each shipment. Units are packaged in anti-static ESD bags with foam protection to prevent transit damage.

Q4: What is the warranty coverage and long-term supply availability?
All SDCS-COM-5 3BSE006567R1 units supplied by Ninermas carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Ninermas maintains ongoing stock of this module to support both emergency replacement and planned annual maintenance procurement. Long-term supply agreements are available for facilities managing multiple DCS800 drive systems.
