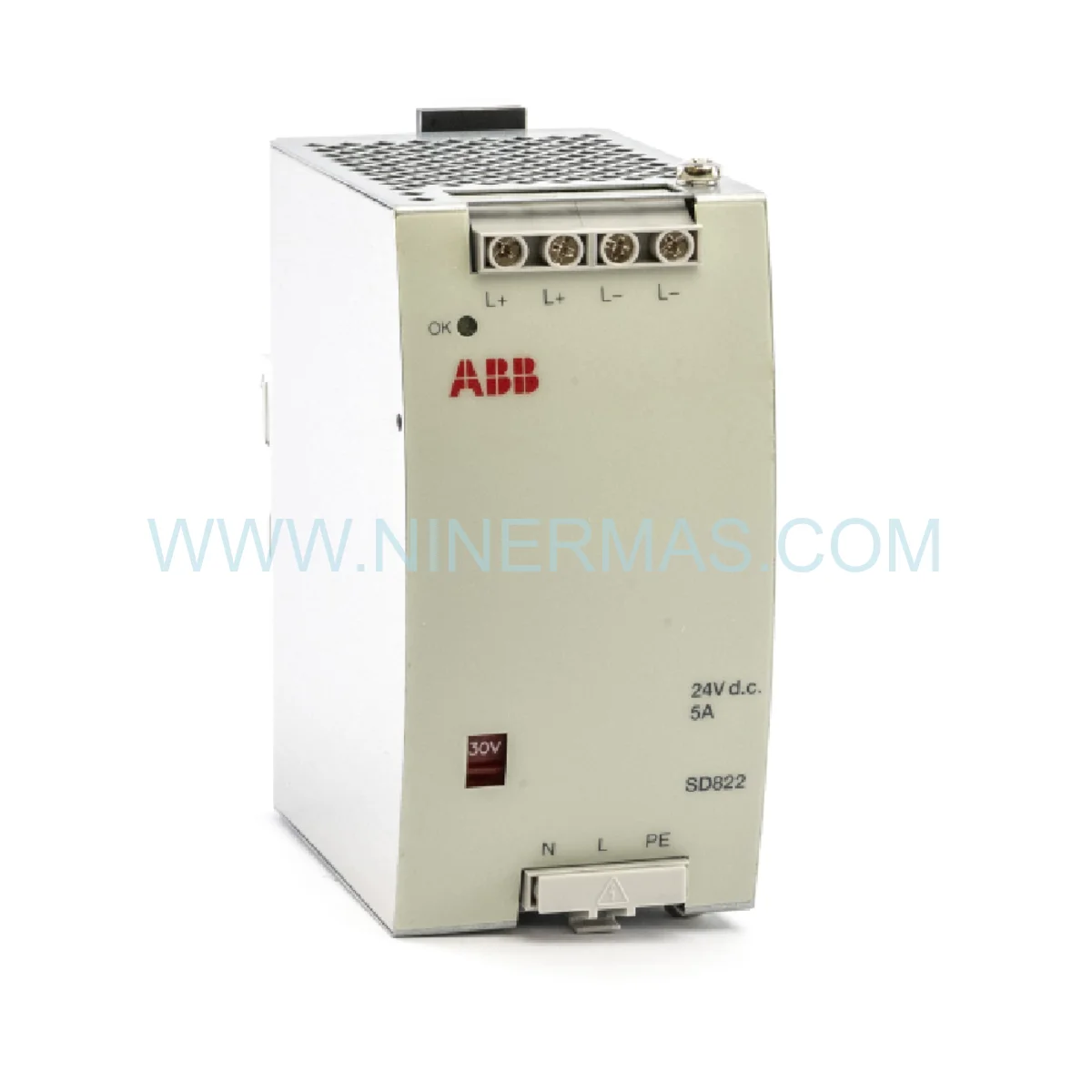

From the perspective of a seasoned Industrial Solution Architect, few components carry as much operational weight as a reliable DC power supply within a Distributed Control System. The ABB SD822 3BSC610038R1 is precisely that cornerstone — a 24V DC, 5A industrial-grade power module engineered to sustain the uninterrupted performance of ABB 800xA DCS architectures and AC 800M controller platforms. In environments where Process Control integrity is non-negotiable, this module functions as the silent backbone of your entire automation infrastructure.

What distinguishes the ABB SD822 3BSC610038R1 from generic alternatives is its deep compatibility with ABB’s proprietary Fieldbus and S800 I/O ecosystems. Unlike third-party substitutes that may introduce voltage ripple or communication latency, this OEM module is factory-calibrated to meet ABB’s stringent DCS Hardware tolerances — making it the preferred choice for engineers managing Legacy Components in aging 800xA installations. Its technical pedigree spans over a decade of field-proven deployment across petrochemical, power generation, and heavy manufacturing sectors.

Original stock of this module is increasingly scarce. As ABB transitions its portfolio toward next-generation platforms, the SD822 3BSC610038R1 has entered a critical supply phase — available in limited quantities through authorized distributors and specialist sourcing channels. Securing Factory Sealed units now is a strategic imperative for any maintenance team responsible for system continuity.

Key Technical Highlights

Precision 24V DC Output (±1%): Delivers stable, regulated power with minimal ripple — critical for sensitive analog I/O modules and high-speed communication cards within the 800xA DCS Hardware stack.
5A Continuous Output Capacity: Supports medium-to-large S800 I/O configurations without thermal derating, ensuring Stability under full process load.
Universal AC Input (100-240V, 50/60Hz): Eliminates site-specific voltage adaptation, enabling rapid global deployment across diverse industrial facilities.
Redundancy-Ready Architecture: Supports N+1 parallel operation for mission-critical Redundancy configurations — a mandatory feature in SIS and DCS environments where single points of failure are unacceptable.
Comprehensive Protection Suite: Integrated overvoltage, overcurrent, short-circuit, and thermal shutdown mechanisms protect downstream DCS Hardware from cascading failures.
DIN Rail Mounting (35mm): Compact form factor optimized for high-density control cabinet layouts, compatible with standard ABB marshalling panels.
MTBF >100,000 Hours: Factory-validated mean time between failures — a quantified assurance of long-term operational reliability in continuous process environments.

Vertical Industry Applications

Petrochemical & Refining: In hydrocarbon processing facilities, power supply failures cascade rapidly into process upsets and safety system activations. The SD822 3BSC610038R1 provides the stable 24V DC foundation required by ABB AC 800M controllers managing distillation columns, reactor loops, and emergency shutdown sequences — directly reducing unplanned downtime risk.

Power Generation & Utilities: Turbine control systems, generator excitation panels, and SCADA networks demand unwavering DC power quality. This module’s tight output regulation and redundancy support make it a standard specification in combined-cycle power plants and grid-connected renewable energy installations.

Mining & Minerals Processing: Harsh ambient conditions — dust, vibration, wide temperature swings — are the norm in mining operations. The SD822’s IP20-rated enclosure and -25°C to +70°C operating range ensure reliable performance in conveyor control, crusher automation, and flotation circuit management systems.

Marine & Offshore: Vessel automation and offshore platform control systems require components certified for marine-grade environments. The SD822 3BSC610038R1’s CE, UL, and CSA certifications satisfy the compliance requirements of classification societies, making it suitable for dynamic positioning systems and ballast control applications.

Pharmaceutical & Life Sciences: FDA-regulated manufacturing environments demand validated, traceable components. Factory Sealed SD822 units with full documentation support GMP compliance requirements, providing the audit trail necessary for process validation in sterile manufacturing and bioprocessing facilities.

Data Sheet & Specifications

Quality Assurance & Supply Chain

Every ABB SD822 3BSC610038R1 unit supplied through our channel is 100% Original OEM — sourced directly from ABB-authorized distribution networks or factory-sealed legacy stock. Each module undergoes pre-shipment functional verification against ABB’s published output specifications before dispatch.

Our supply chain commitment includes a 12-Month Comprehensive Warranty covering manufacturing defects, component failures, and output specification deviations. In the event of a warranty claim, replacement units are dispatched within 48 hours to minimize your system downtime exposure.

For Emergency Repair scenarios — where a failed power supply threatens continuous production — we offer Priority Express Delivery via DHL Express, FedEx International Priority, and UPS Worldwide Express. Most in-stock units ship within 24 hours of order confirmation, with door-to-door transit times of 2-5 business days to major industrial hubs globally. Full export documentation, including commercial invoices, packing lists, and certificates of origin, is provided as standard.

This module is classified as a Critical Part for Industry Safety. In DCS and SIS architectures, power supply failure is a single-point-of-failure event with direct implications for process safety integrity. Maintaining a minimum of one spare SD822 3BSC610038R1 in your maintenance stock is strongly recommended by ABB’s own spare parts management guidelines for 800xA installations.

Buyer’s FAQ — Selection Guide

Q1: How do I verify that an SD822 3BSC610038R1 unit is genuinely factory-original and not a refurbished or counterfeit part?
A: Authentic Factory Sealed units carry ABB’s original holographic label on the module housing, with the full part number ABB SD822 3BSC610038R1 printed in ABB’s standard font. The label includes a traceable batch code and manufacturing date. Inspect the PCB through the ventilation slots — original units show clean, uniform solder joints with no rework indicators. Request a copy of the supplier’s purchase documentation tracing the unit back to an ABB-authorized distributor.

Q2: Where can I obtain the official datasheet and installation manual for the SD822 3BSC610038R1?
A: The official ABB datasheet (Document ID: 3BSC610038R1) and the System 800xA Power Supply Installation Manual are available through ABB’s Library portal at library.abb.com. Our technical team can also provide application-specific configuration guidance upon request — contact us at sale@ninermas.com with your system architecture details.

Q3: Is the SD822 3BSC610038R1 compatible with both 800xA Version 5.x and Version 6.x control systems?
A: Yes. The SD822 3BSC610038R1 is a hardware power supply module with no firmware dependency — it is fully compatible across all 800xA software versions from 5.0 through 6.1, as well as earlier AC 800M standalone deployments. Compatibility is determined by physical connector type and output voltage specification, not software version.

Q4: Can this module replace an SD821 in an existing installation, and what are the implications?
A: The SD822 3BSC610038R1 (5A output) is a direct form-fit-function upgrade from the SD821 (2.5A output). The physical footprint, connector pinout, and mounting dimensions are identical. Upgrading to the SD822 increases available power headroom, which is beneficial when expanding S800 I/O configurations. No software reconfiguration is required.

Q5: What is the recommended spare parts holding strategy for the SD822 3BSC610038R1 in a critical process plant?
A: ABB’s spare parts classification system rates the SD822 as a Category A critical spare — meaning a minimum of one unit per installed system should be held on-site. For plants with multiple 800xA cabinets, a ratio of one spare per three installed units is the industry standard. Given the increasing scarcity of Legacy Components in the 800xA ecosystem, we recommend securing a 2-3 year maintenance stock position now while Factory Sealed inventory remains available.

Q6: Does the SD822 3BSC610038R1 support hot-swap replacement during live system operation?
A: In redundant N+1 power configurations where a second supply is carrying the load, the SD822 can be replaced without system shutdown — following ABB’s documented hot-swap procedure. In single-supply configurations, a controlled process hold is required before replacement. Always consult the 800xA System Hardware Installation and Replacement manual and follow your site’s Management of Change procedure before performing any live maintenance activity.
