ABB REF542PLUS 2RCA029395 A0031 Service-Ready Spare Part

ABB REF542PLUS 2RCA029395 A0031 Service-Ready Spare Part for Industrial Maintenance

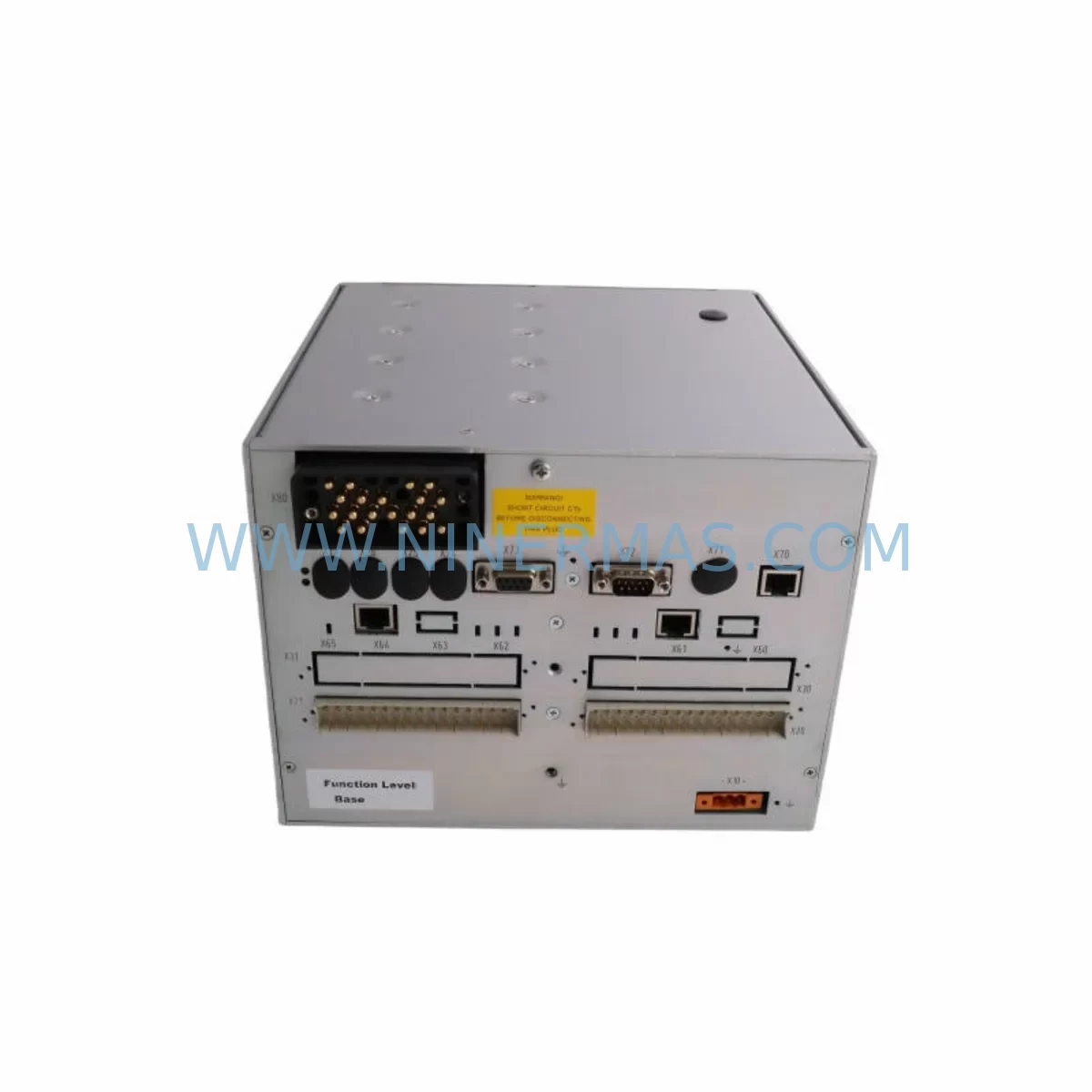

The ABB REF542PLUS 2RCA029395 A0031 is a genuine service-ready spare part designed for the ABB REF542plus protection relay series — one of the most widely deployed numerical protection and control units in medium-voltage switchgear panels across power utilities, industrial plants, and infrastructure facilities. When a REF542plus relay module fails or reaches end-of-service life, unplanned downtime can cascade across entire feeder circuits, tripping protection zones and halting production. Sourcing a verified replacement unit with confirmed firmware and hardware compatibility is the single most critical step in restoring normal operation.

At Ninermas, the 2RCA029395 A0031 is stocked as a tested, inspection-passed spare part, shipped with a 12-month warranty and full pre-delivery functional verification. Every unit undergoes output relay actuation checks, communication interface validation, and visual inspection before dispatch — ensuring that what arrives on-site is ready for immediate installation without additional bench testing delays.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the ABB REF542PLUS 2RCA029395 A0031 is rarely an isolated task. Experienced maintenance engineers know that a protection relay failure often signals stress across adjacent components in the same control cabinet or feeder circuit. A structured inspection during the replacement window significantly reduces the risk of repeat failures and unplanned outages.

When servicing the REF542plus module, the auxiliary power supply feeding the relay — typically a 24 VDC or 110 VDC panel power supply module — should be load-tested and output ripple verified. Voltage fluctuations at the auxiliary input are a leading cause of relay CPU resets and communication dropouts. Alongside the power supply, the REF542plus I/O extension modules (binary input and output cards) connected via the internal bus should be inspected for contact wear and terminal corrosion, particularly in humid or coastal industrial environments.

The REF542plus communication module — whether LON, IEC 61850 Ethernet, or MODBUS RTU — should be re-seated and its fiber optic connectors or RJ45 ports cleaned during the replacement. Communication faults that appear after a relay swap are frequently caused by disturbed connectors rather than module failure. If the panel uses a COM600 or COM610 substation gateway for SCADA integration, verify that the IEC 61850 logical node mapping remains intact after the new relay is commissioned.

Terminal blocks and Phoenix Contact or Weidmüller-type screw terminals on the CT and VT secondary circuits deserve close attention. Loose CT secondary connections during relay replacement can cause dangerously high open-circuit voltages. Always short-circuit CT secondaries before disconnecting wiring. Similarly, miniature circuit breakers (MCBs) protecting the auxiliary supply and VT secondary circuits should be exercised — a breaker that has not operated in years may fail to trip under fault conditions.

For panels that include ABB REC670 or REF615 series relays in adjacent bays sharing the same station bus, confirm that the protection coordination settings remain consistent after the REF542plus is replaced and re-parameterized. Mismatched overcurrent pickup levels between bays are a common post-maintenance oversight. If the switchgear includes ABB SACE Emax or Tmax circuit breakers with electronic trip units, verify that the breaker’s protection curve still coordinates with the relay’s IDMT characteristic after settings are restored.

Maintenance planners should also review the signal isolators and transducers on analog measurement inputs — 4–20 mA current loop isolators feeding active power, reactive power, or temperature signals into the relay’s analog inputs are often overlooked during relay replacements. A failed isolator will produce incorrect metering readings post-commissioning, leading to unnecessary alarm investigations. Finally, ensure that the HMI panel or local operator interface connected to the REF542plus is updated with the correct relay configuration file, and that event logs are cleared and timestamped correctly after the replacement is complete.

Site Replacement Workflow

A disciplined on-site replacement workflow for the 2RCA029395 A0031 minimizes exposure time and ensures the feeder is returned to service with full protection coverage:

Step 1 — Pre-outage preparation: Download and archive the existing REF542plus configuration using ABB’s CAP505 or CAP531 parameterization tool. Confirm the firmware version of the replacement unit matches or is compatible with the existing configuration file. Prepare a printed copy of the relay’s protection settings, I/O assignment list, and communication node address.

Step 2 — Isolation and de-energization: Follow the site’s switching schedule to isolate the feeder. Short-circuit all CT secondary circuits before disconnecting relay wiring. Photograph the existing wiring arrangement before removal.

Step 3 — Module swap: Remove the defective REF542plus unit from the panel. Install the replacement 2RCA029395 A0031 module, reconnect all wiring per the as-built diagram, and verify terminal torque values. Re-seat all internal bus connectors and communication cables.

Step 4 — Commissioning and testing: Upload the archived configuration to the new relay. Perform secondary injection testing on overcurrent, earth fault, and any differential or distance protection elements. Verify all binary inputs and output relay contacts operate correctly. Confirm SCADA communication is restored and event logging is active.

Step 5 — Return to service: Remove CT short-circuit links, restore auxiliary supply, and return the feeder to normal operation. Document the replacement in the site maintenance register with the new unit’s serial number and the date of commissioning.

This workflow is applicable whether the REF542plus is being replaced due to hardware failure, firmware obsolescence, or as part of a planned life-extension program for aging medium-voltage switchgear.

Spare Parts Support FAQ

Q1: Is the 2RCA029395 A0031 compatible with all REF542plus panel variants?
The 2RCA029395 A0031 is a module within the REF542plus platform. Compatibility depends on the specific hardware revision and firmware version of your existing panel. Ninermas recommends providing your panel’s nameplate data and existing relay firmware version before ordering, so our technical team can confirm compatibility and advise on any firmware alignment requirements.

Q2: What pre-shipment testing does Ninermas perform on this spare part?
Every unit shipped by Ninermas undergoes a structured pre-delivery inspection that includes power-on functional verification, output relay actuation testing, communication port integrity check, and visual inspection for physical damage. A test report is available upon request. Units that do not pass inspection are not shipped.

Q3: What is the warranty coverage and what does it include?
Ninermas provides a 12-month warranty from the date of shipment. The warranty covers hardware defects and functional failures under normal operating conditions. It does not cover damage caused by incorrect installation, overvoltage events, or unauthorized modification. Warranty claims are supported by our technical team with replacement or repair options.

Q4: Can Ninermas support long-term supply for multiple units or annual maintenance contracts?
Yes. Ninermas maintains stock of REF542plus series spare parts and can support blanket purchase orders, annual maintenance supply agreements, and emergency stock reservation for critical infrastructure operators. Contact our sales team at sale@ninermas.com or +0086 187 5021 5667 to discuss long-term supply arrangements.
