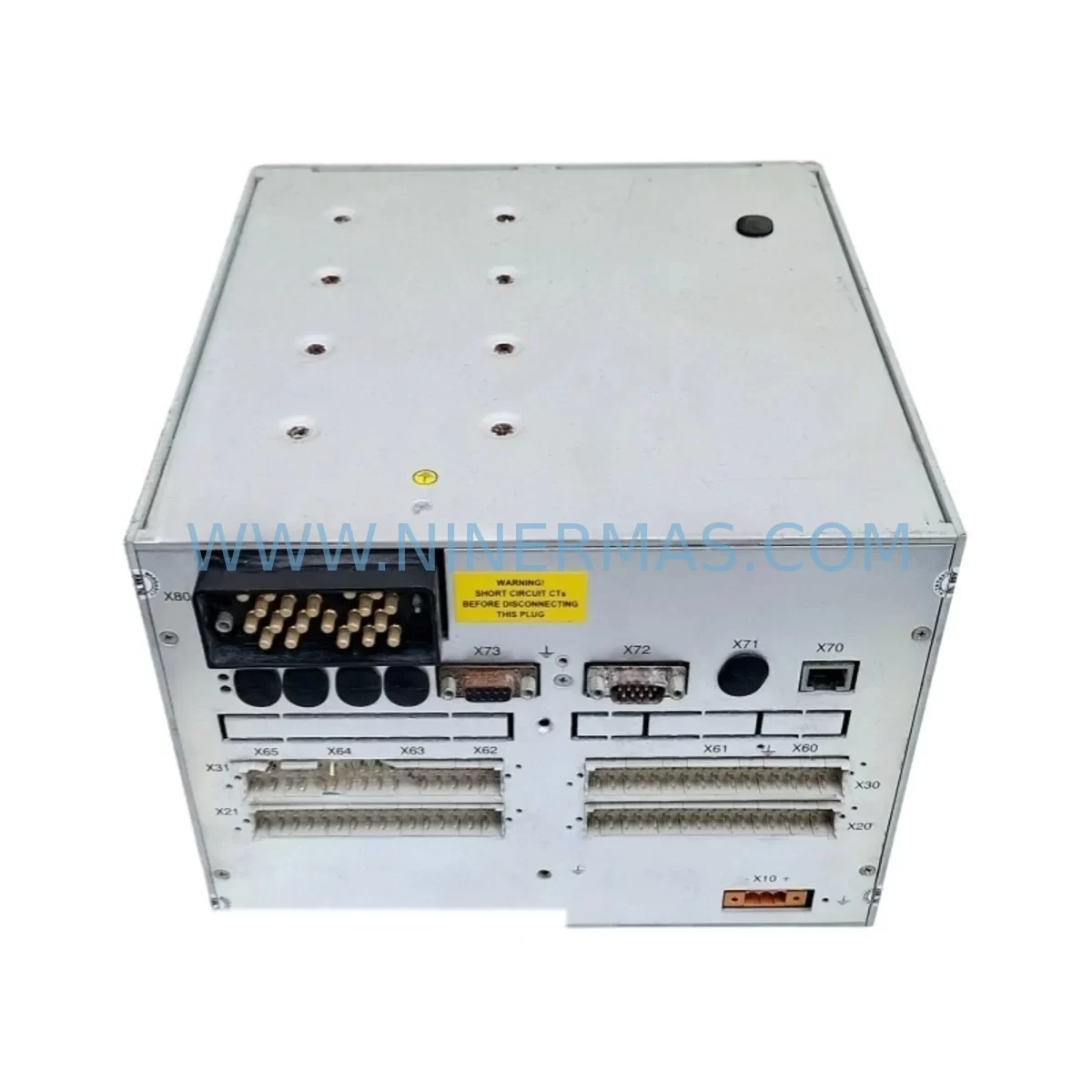

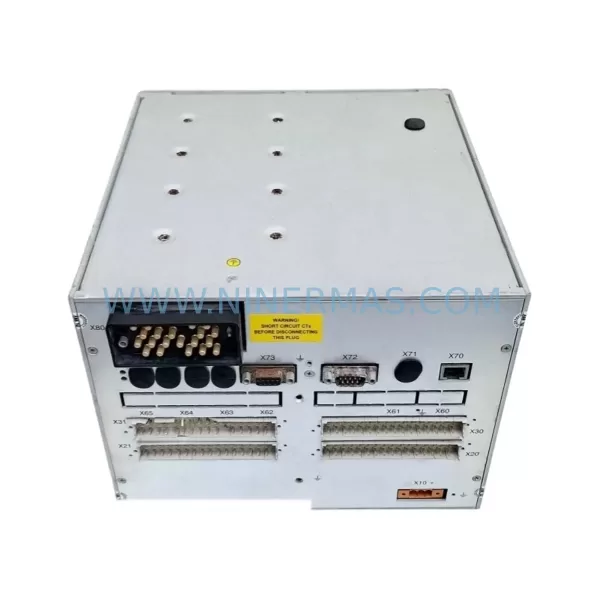

ABB REF 542plus 1VCF752000 Retrofit-Compatible Feeder Terminal

ABB REF 542plus 1VCF752000 Retrofit-Compatible Feeder Terminal for Legacy System Modernization

The ABB REF 542plus 1VCF752000 is a feeder protection and control terminal widely deployed in medium-voltage switchgear panels, industrial substations, and legacy distribution automation systems. As original ABB production of certain REF 542plus variants has been phased down, plant engineers and maintenance teams increasingly rely on verified retrofit-compatible units to sustain operational continuity without committing to a full platform migration. NINERMAS supplies the 1VCF752000 with a 12-month warranty, pre-shipment functional testing, and documented compatibility verification to support your retrofit planning from day one.

Whether you are replacing a failed unit in an aging MV feeder bay, upgrading a control cabinet that still runs on legacy SPACOM or REF 500 series logic, or migrating from older LON-bus communication to IEC 61850 GOOSE messaging, the REF 542plus 1VCF752000 provides a proven transition path. Its compact DIN-rail and panel-flush mounting footprint fits standard 4U rack spaces, making it compatible with existing ABB UniGear, SafeRing, and ZS1 switchgear cubicles without structural modification.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful REF 542plus 1VCF752000 retrofit begins well before the unit arrives on site. The first step is a thorough audit of the existing feeder bay: document the current relay model (commonly a REF 541, REF 543, or legacy SPAJ 140C), photograph all terminal wiring, and export the active parameter set using CAP 505 or the older SPACOM configuration tool. This documentation becomes the baseline for your new configuration in PCM600.

Power supply verification is critical. The 1VCF752000 accepts a wide auxiliary voltage range, but the existing panel power supply unit — often an ABB SDCS-POW-4 or a third-party 24 V DC rail supply — must have sufficient residual capacity to support the relay’s inrush current during startup. If the cabinet also houses an ABB RIO600 remote I/O unit or an ABB COM600 substation gateway, calculate the total load budget before proceeding.

Terminal wiring adaptation is the most time-consuming field task. The REF 542plus uses a rear-terminal connector block layout that differs from the SPAJ 140C’s plug-in terminal arrangement. Prepare a cross-reference wiring schedule mapping each existing conductor to its new terminal number. Pay particular attention to the trip circuit supervision loop, the binary input voltage thresholds, and the analog CT/VT input terminals — a 1 A versus 5 A CT mismatch at this stage will cause protection mis-operation and must be caught during pre-commissioning loop checks.

Communication migration deserves equal attention. Many legacy installations use LON-bus or Modbus RTU to connect feeder relays to an ABB MicroSCADA or third-party DCS. The REF 542plus 1VCF752000 supports IEC 61850 Ed.1 and Ed.2 natively, but if your SCADA system does not yet support IEC 61850, you will need an ABB COM600 gateway or a Moxa MGate protocol converter to bridge the legacy Modbus RTU segment. Update the IED naming convention in your SCL/SCD file to reflect the new relay, and re-import the updated SCD into your engineering workstation before going live.

For sites running ABB Relion series relays alongside legacy REF 500 units, the 1VCF752000 can coexist on the same IEC 61850 station bus, provided VLAN segmentation is correctly configured on the station LAN switch. If the feeder bay also includes an ABB REM 615 motor protection relay or an ABB REF 615 feeder relay on the same bus, verify that GOOSE message subscriptions are updated to reference the new REF 542plus IED name — stale GOOSE subscriptions are a common cause of protection scheme failures after relay replacement.

Finally, confirm physical installation space. The REF 542plus 1VCF752000 requires a standard panel cutout of approximately 177 × 177 mm (4U, half-width). If the existing cutout was sized for a narrower SPAJ 140C or a full-width REF 543, a panel adapter plate or cutout modification will be needed. NINERMAS can advise on adapter plate availability for common ABB switchgear types upon request.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern for any live feeder bay retrofit. The recommended approach is a staged hot-swap procedure: configure and bench-test the replacement REF 542plus 1VCF752000 fully off-line before the scheduled outage window. Load the migrated parameter set from PCM600, verify all protection function outputs on a relay test bench using a secondary injection kit (such as an Omicron CMC 356 or equivalent), and confirm that trip and alarm outputs operate correctly at the expected thresholds.

During the outage, follow a strict sequence: isolate the feeder, open the circuit breaker, lock out the auxiliary supply to the existing relay, disconnect and label all terminal wiring, remove the old unit, install the 1VCF752000, reconnect wiring per the cross-reference schedule, restore auxiliary power, and perform a final loop check before re-energizing. Keep the original relay’s parameter printout and wiring photographs accessible throughout — they are your fastest recovery reference if an unexpected discrepancy appears during commissioning.

Protect the original program logic by archiving the CAP 505 or PCM600 project file to a secure network location before the outage begins. If the feeder is part of a busbar protection or inter-tripping scheme involving an ABB REB 670 busbar protection IED or a line differential relay, notify the protection engineer so that the scheme can be temporarily inhibited or supervised during the relay swap. Restoring scheme supervision before re-energization is a mandatory step that must appear on your outage checklist.

For sites where even a brief outage is operationally sensitive, consider deploying a temporary bypass using a portable protection relay connected in parallel with the existing unit during the transition period. This approach extends the outage preparation phase but reduces the live outage window to the time required for physical swap and loop check — typically 2 to 4 hours for an experienced team.

Retrofit Support FAQ

Q1: Is the ABB REF 542plus 1VCF752000 a direct drop-in replacement for the REF 541 and REF 543?
A: Functionally yes — the REF 542plus shares the same protection function library and PCM600 configuration environment as the REF 541 and REF 543. However, the physical terminal layout and mounting cutout dimensions differ between models. Always verify the panel cutout size and prepare a terminal cross-reference wiring schedule before installation. Parameter files from CAP 505 can be imported into PCM600 with minor adaptation.

Q2: What communication protocols does the 1VCF752000 support, and can it integrate with an existing Modbus RTU SCADA system?
A: The REF 542plus 1VCF752000 supports IEC 61850 Ed.1/Ed.2, LON, and Modbus RTU. If your SCADA system uses Modbus RTU, the relay can communicate directly via its serial port without a protocol gateway. For IEC 61850 integration, an Ethernet port and a compatible IEC 61850 client (such as ABB COM600 or MicroSCADA Pro) are required.

Q3: Does NINERMAS provide a pre-shipment test report, and what does the 12-month warranty cover?
A: Yes. Every REF 542plus 1VCF752000 unit supplied by NINERMAS undergoes a functional test prior to shipment, and a test report is included with the delivery documentation. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or unauthorized modification.

Q4: How quickly can NINERMAS ship the REF 542plus 1VCF752000, and is stock available?
A: NINERMAS maintains inventory of the REF 542plus 1VCF752000 to support urgent retrofit and emergency replacement requirements. Standard lead time for in-stock units is 3–7 business days for international shipment. For urgent requirements, expedited shipping options are available. Contact our team at sale@ninermas.com or +0086 187 5021 5667 to confirm current stock availability and delivery schedule.
