ABB PPC322BE HIEE300900R0001 Service-Ready Spare Part for Industrial Maintenance

ABB PPC322BE HIEE300900R0001 Service-Ready Spare Part for Industrial Maintenance

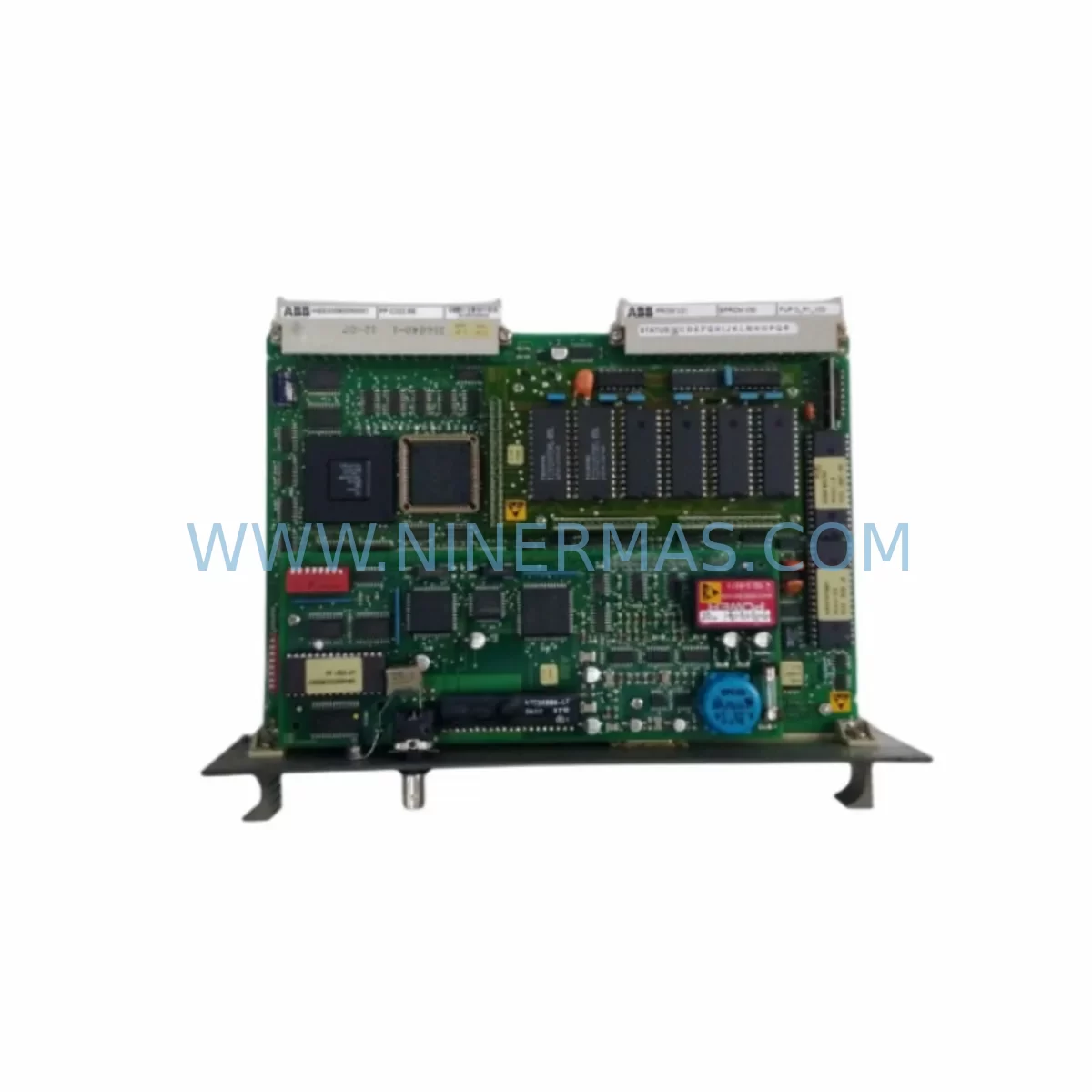

The ABB PPC322BE (HIEE300900R0001) is a process controller module designed for the ABB Symphony Plus distributed control system (DCS) platform — one of the most widely deployed control architectures in power generation, chemical processing, pulp and paper, and heavy industrial facilities worldwide. When this module fails or degrades, the consequences extend far beyond a single loop: entire control segments can go offline, triggering unplanned shutdowns that cost thousands of dollars per hour in lost production. Stocking a verified, service-ready replacement is not optional — it is a core element of any responsible maintenance strategy.

At NINERMAS, every PPC322BE / HIEE300900R0001 unit is sourced from authorized channels or decommissioned systems with full traceability, inspected against original ABB specifications, function-tested prior to dispatch, and backed by a 12-month warranty. Our goal is simple: when your line goes down, your spare part ships the same day.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the PPC322BE / HIEE300900R0001 in a live Symphony Plus cabinet is rarely an isolated task. Experienced maintenance engineers know that a controller module failure is often a symptom of broader system stress — and that a thorough site inspection during the replacement window can prevent the next unplanned outage.

Before or during replacement of the PPC322BE, your team should systematically inspect the following components in the same control cabinet and electrical circuit:

• Power Supply Module (e.g., ABB PP825 / HIEE305097R0001): A degraded 24 VDC rail is one of the leading causes of premature controller failure. Verify output voltage stability under load before installing the new module.
• Backplane / Rack Assembly: Inspect the Symphony Plus controller rack for bent connector pins, oxidation, or mechanical damage. A faulty backplane can destroy a replacement module within hours of installation.
• I/O Modules (e.g., ABB AI810, AO810, DI810, DO810 series): With the controller offline, this is the ideal time to check all analog and digital I/O modules in the same rack for error flags, loose terminal connections, or signal drift that may have contributed to the original fault.
• Communication Modules (e.g., ABB CI854, CI857 — PROFIBUS / FOUNDATION Fieldbus interfaces): Verify that fieldbus communication modules are firmware-current and that their network termination resistors are intact. A communication module fault can mimic a controller CPU failure.
• Redundancy Module / Switchover Unit: If your system runs a redundant PPC322BE pair, test the switchover logic before returning to service. A failed redundancy module that has never been exercised is a hidden single point of failure.
• Terminal Blocks and Field Wiring: Inspect all terminal blocks connected to the I/O marshalling panel. Loose or corroded terminations cause intermittent faults that are difficult to diagnose remotely and can damage replacement modules.
• Signal Isolators and Barriers: For installations in hazardous areas or with long cable runs, check Zener barriers and galvanic isolators in the signal conditioning circuit. Degraded isolation can introduce noise that destabilizes the controller.
• Fuses and Circuit Protection: Replace any blown or discolored fuses in the 24 VDC distribution circuit. A fuse that has operated once is thermally weakened and should not be returned to service.
• HMI / Operator Station Connectivity: After module replacement, verify that the Symphony Plus operator station (e.g., running ABB 800xA or Composer HMI) re-establishes full tag communication without residual alarm floods or orphaned control loops.
• Battery-Backed Memory / Retention Module: If the PPC322BE variant in your system uses a battery-backed SRAM for program retention, inspect the battery condition and replace if the last replacement date is unknown or exceeds the manufacturer’s recommended interval.

Addressing these components during a planned replacement window transforms a reactive repair into a proactive maintenance event — reducing the probability of a repeat failure and extending the operational life of the entire control system.

Site Replacement Workflow

The following workflow is designed to minimize downtime and ensure a safe, verified replacement of the ABB PPC322BE / HIEE300900R0001 in a Symphony Plus DCS environment:

1. Pre-Replacement Preparation: Back up the current controller configuration using ABB Composer or the applicable engineering tool. Confirm the firmware version of the replacement module matches the system baseline. Notify operations of the planned control interruption window.
2. Safe Isolation: Follow your site’s lockout/tagout (LOTO) procedure. De-energize the controller rack if a hot-swap is not supported by your system configuration. Confirm that redundant controllers (if present) have assumed control before removing the faulty module.
3. Physical Replacement: Remove the faulty PPC322BE by releasing the front-panel locking levers. Insert the replacement module firmly into the backplane slot until the connector seats fully. Secure the locking levers.
4. Power-Up and Diagnostics: Re-energize the rack. Observe the module’s LED status indicators: a steady green RUN LED confirms normal boot. A flashing or red FAULT LED indicates a configuration mismatch or hardware fault — do not proceed to loop commissioning until resolved.
5. Configuration Download: Using ABB Composer, download the backed-up configuration to the replacement module. Verify that all control loops, setpoints, and alarm limits are correctly restored.
6. Loop Verification: Perform a loop check on all I/O channels associated with the replaced controller. Confirm that analog inputs read correctly, analog outputs drive field devices as expected, and digital I/O states match field conditions.
7. Return to Service: Hand back control to the operations team. Monitor the system for the first 30 minutes post-replacement for any unexpected alarms, communication faults, or process deviations.
8. Documentation: Record the replacement in your maintenance management system (CMMS), including the old module’s serial number, failure mode, replacement date, and the new module’s serial number and warranty expiry date.

This structured approach is applicable whether you are replacing an end-of-life module in an aging Symphony Plus system or restoring a system after an unplanned failure. NINERMAS can provide technical support documentation and compatibility confirmation prior to shipment upon request.

Spare Parts Support FAQ

Q1: Is the PPC322BE / HIEE300900R0001 compatible with both Symphony Plus and older Harmony DCS systems?
The PPC322BE is a Symphony Plus platform module. Compatibility with legacy Harmony (e.g., INFI 90) systems depends on the specific rack and backplane configuration. NINERMAS recommends providing your system’s rack model and firmware version so we can confirm compatibility before shipment. We do not ship unverified substitutions.

Q2: What does the 12-month warranty cover, and what is the claims process?
Our 12-month warranty covers functional failure of the module under normal operating conditions — meaning correct supply voltage, proper installation, and an environment within the module’s rated temperature and humidity range. If a module fails within the warranty period, contact sale@ninermas.com with your order number and a description of the fault. We will arrange a replacement or repair at no additional cost, including return shipping coordination.

Q3: How do you test modules before shipment, and can I request a test report?
Every PPC322BE unit undergoes functional testing on a compatible Symphony Plus rack prior to dispatch. Testing includes power-up verification, communication bus check, and LED status confirmation. A test report is available upon request for customers with quality assurance requirements. Please specify this requirement at the time of order.

Q4: Can NINERMAS support long-term supply for this module as part of an ongoing maintenance contract?
Yes. NINERMAS maintains standing inventory of high-demand Symphony Plus components and can establish a long-term supply agreement for customers with recurring maintenance needs. This includes reserved stock allocation, priority dispatch, and fixed pricing for contract periods. Contact our sales team at sale@ninermas.com or +0086 187 5021 5667 to discuss your requirements.
