ABB PM902F 3BDH001000R0001 Retrofit-Compatible CPU for Legacy Systems

ABB PM902F 3BDH001000R0001 Retrofit-Compatible CPU for Legacy Systems: Seamless Upgrade for Aging Automation Infrastructure

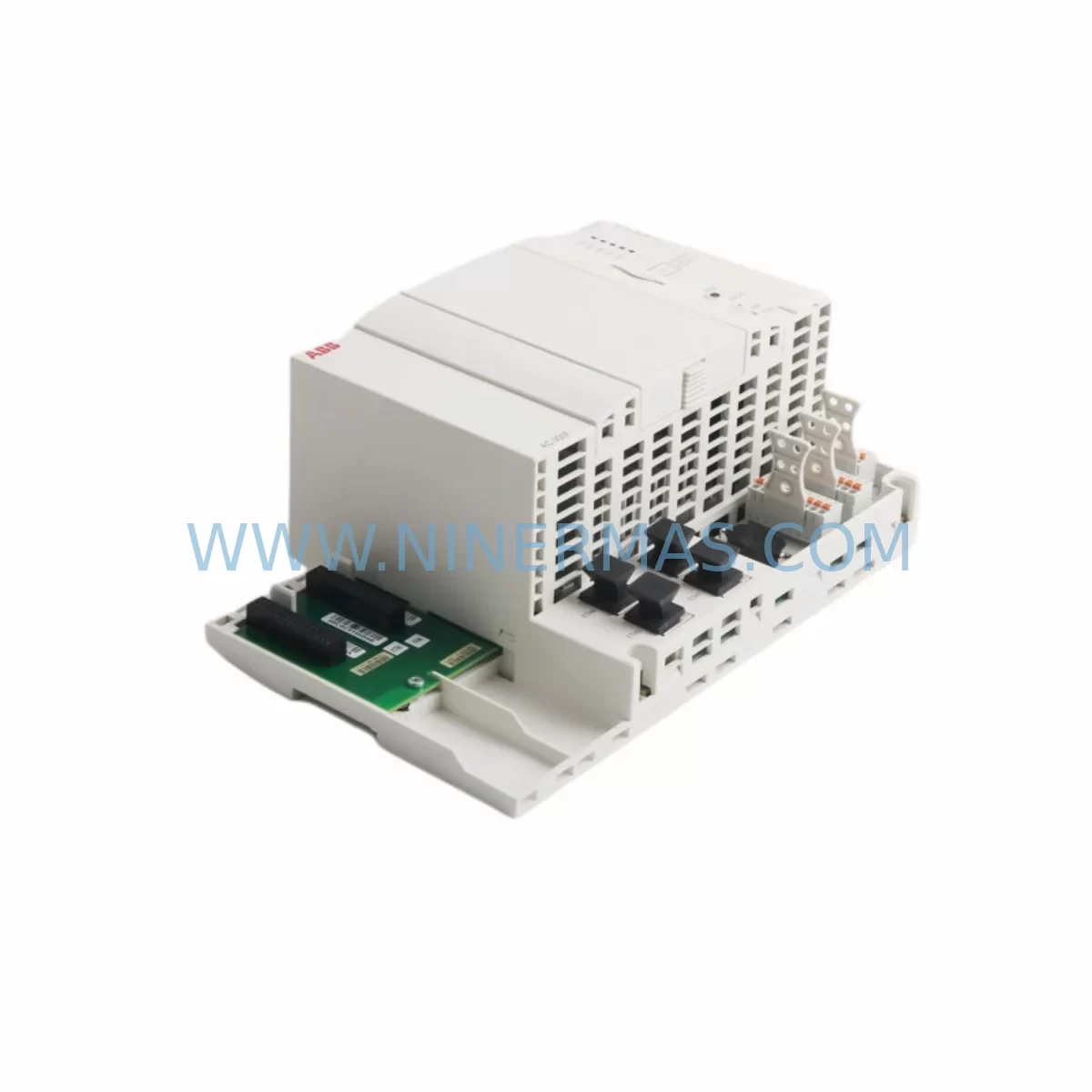

The ABB PM902F 3BDH001000R0001 is a ruggedized CPU module engineered for demanding industrial environments and purpose-built to serve as a reliable retrofit solution for legacy ABB AC500 control platforms. As automation systems age and original hardware reaches end-of-life, the PM902F 3BDH001000R0001 provides a technically sound, cost-effective path to extend operational continuity without requiring a full system overhaul. NINERMAS maintains verified inventory of this module, backed by a 12-month warranty and pre-shipment functional testing.

Whether you are managing a brownfield upgrade, replacing a failed CPU in a critical production line, or migrating from an obsolete controller platform, the PM902F 3BDH001000R0001 is designed to integrate into existing cabinet layouts with minimal disruption. Its ruggedized construction supports operation across wide temperature ranges, high-vibration environments, and electrically noisy industrial settings — making it particularly well-suited for process industries, utilities, and heavy manufacturing.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the PM902F 3BDH001000R0001 into an existing control system begins well before the module arrives on site. Retrofit engineers should start by auditing the current cabinet layout to confirm that the installed terminal base — typically a TB521 or TB541 — is mechanically and electrically compatible with the PM902F form factor. The terminal base governs power distribution to the CPU and connected I/O modules, so verifying its rated current capacity is a non-negotiable first step, particularly in systems where additional DC532 digital I/O modules or AI531 analog input modules have been added over time.

Next, engineers should document the existing backplane slot assignments. In multi-rack configurations using an AC500 expansion rack with a CI590-CS31 CS31 bus coupler, module addressing must be preserved exactly to avoid I/O mapping conflicts after the CPU swap. Any deviation in slot addressing will require corresponding changes in the PLC program, which adds commissioning time and risk. Where the legacy system uses a CM572-DP PROFIBUS DP communication module for field device connectivity, confirm that the new PM902F firmware version supports the same GSD file configurations to avoid re-parameterization of connected drives, valve positioners, or remote I/O stations.

For systems that include an CP651 or CP661 HMI panel communicating with the CPU over Ethernet MODBUS TCP, the IP address configuration and tag database should be exported and backed up before the CPU is removed. After installing the PM902F 3BDH001000R0001, the HMI communication link must be re-established and all screen animations verified against live process values. In plants where a CM589-PNIO PROFINET IO communication module is used, ensure the PROFINET device name and IP parameters are correctly restored in the new CPU’s configuration.

Signal isolation is another consideration in older installations. Where legacy wiring introduces ground loops or signal noise, inline signal isolators or loop-powered transmitter barriers may already be present in the marshalling cabinet. These passive components are unaffected by the CPU replacement but should be inspected for condition as part of the broader retrofit scope. Similarly, if the system uses a TK501 programming cable or USB-to-serial adapter for local programming access, confirm driver compatibility with the engineering workstation running Automation Builder before the maintenance window begins.

Finally, review the physical installation space. The PM902F 3BDH001000R0001 occupies the same footprint as other AC500 series CPUs, but cable management around the terminal base and adjacent power supply module PS501 should be inspected to ensure adequate airflow and clearance for the ruggedized module’s thermal management requirements.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern in any live system CPU replacement. For the PM902F 3BDH001000R0001, the recommended approach is to prepare a complete offline backup of the existing PLC program using ABB’s Automation Builder software before the maintenance window opens. This backup should include the full hardware configuration, I/O mapping, communication parameters, and any motion or PID control blocks. Storing this backup on both the engineering workstation and a secure network location ensures recovery options if commissioning encounters unexpected issues.

During the physical swap, the sequence matters: power down the terminal base cleanly, remove the legacy CPU, seat the PM902F 3BDH001000R0001 firmly into the terminal base connector, and restore power before attempting any program download. A cold-start download of the verified program backup is preferable to relying on retained memory from the previous module, as firmware differences between the old and new CPU can cause unpredictable behavior if retained data is used without validation.

Once the program is loaded, bring the system up in a controlled test mode where possible — inhibiting output actuation while verifying that all input signals are reading correctly. Confirm communication with all downstream devices including field instruments, variable frequency drives, and remote I/O before releasing the system to automatic control. Document the commissioning results, including any parameter changes made during the process, to support future maintenance and regulatory compliance requirements. With proper preparation, a PM902F CPU replacement can typically be completed within a planned four-to-eight-hour maintenance window, preserving production continuity and reducing the financial impact of the upgrade.

Retrofit Support FAQ

Q1: Is the PM902F 3BDH001000R0001 a direct drop-in replacement for the standard PM902?
The PM902F is the ruggedized variant of the PM902 and shares the same terminal base interface and AC500 backplane compatibility. In most installations it can replace a standard PM902 directly, but a firmware review is recommended to confirm that the program compiled for the original CPU will execute correctly on the PM902F. NINERMAS technical support can assist with compatibility verification prior to shipment.

Q2: What wiring changes are required when installing this module?
No wiring changes to field cables are required. All field connections terminate at the I/O modules and terminal base, which remain in place during the CPU swap. The only connections to verify are the communication cables (Ethernet, serial) attached directly to the CPU module’s front ports, which should be re-seated and tested after installation.

Q3: Does NINERMAS provide pre-shipment testing for this module?
Yes. Every PM902F 3BDH001000R0001 unit dispatched by NINERMAS undergoes functional verification testing before shipment. A test report is available upon request. All units are covered by a 12-month warranty from the date of delivery.

Q4: What is the typical lead time and do you maintain stock?
NINERMAS maintains ready inventory of the PM902F 3BDH001000R0001 to support urgent replacement requirements. Standard orders are processed and dispatched within 1–3 business days. For large-quantity or project-based procurement, contact our sales team to confirm availability and arrange priority allocation.
