ABB PM863K01 Retrofit-Compatible Processor for Legacy Systems

ABB PM863K01 Retrofit-Compatible Processor for Legacy Systems

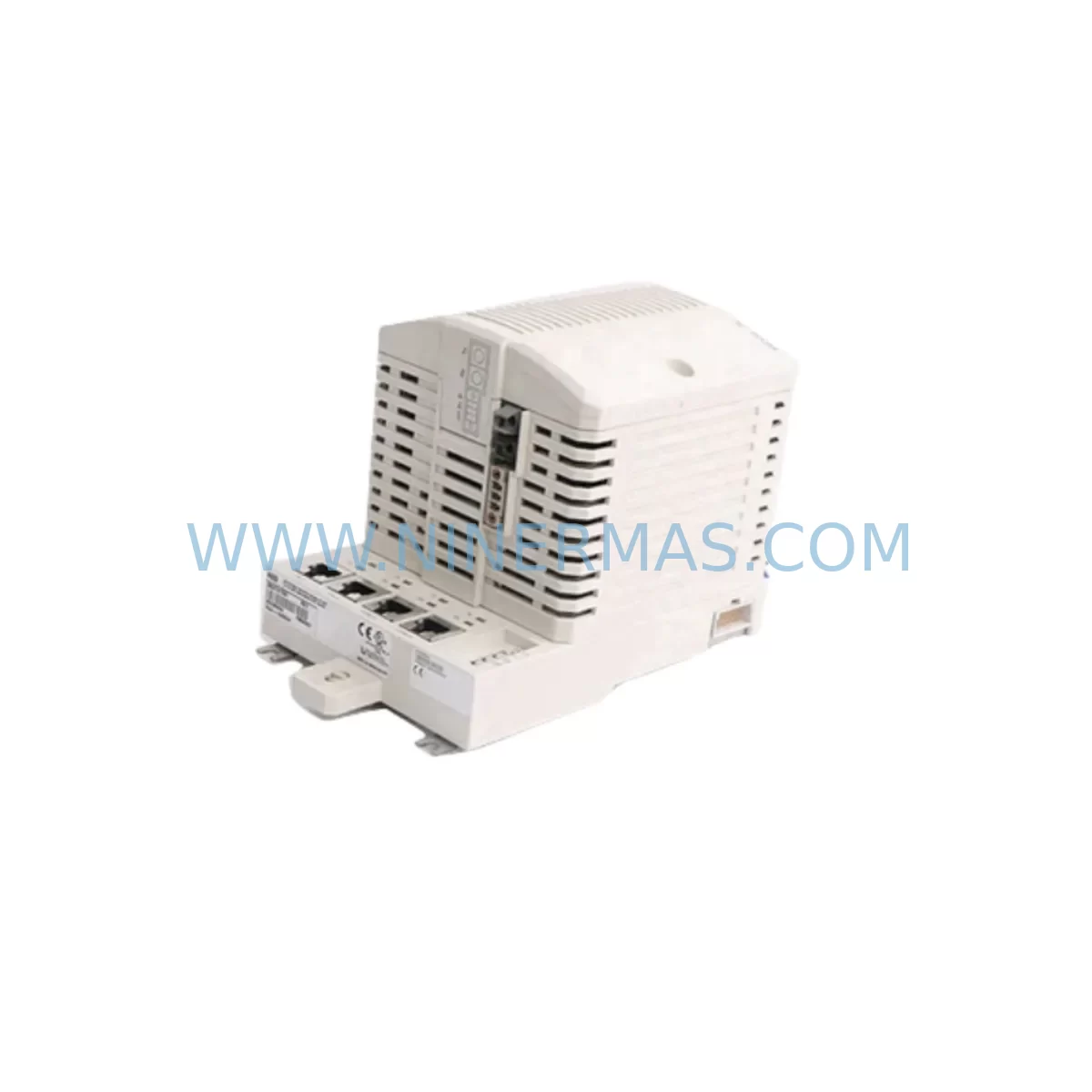

The ABB PM863K01 is a high-performance processor module designed for the AC 800M controller platform — one of ABB’s most widely deployed distributed control systems in power generation, oil & gas, pulp and paper, and heavy manufacturing. As legacy AC 800M installations age and original hardware reaches end-of-life, the PM863K01 has become a critical retrofit component for engineers tasked with extending system life, replacing failed processors, and maintaining control continuity without a full DCS migration.

For maintenance engineers managing aging control cabinets, the PM863K01 offers a direct-fit replacement path that preserves existing program logic, I/O mapping, and communication architecture. Its compatibility with the AC 800M backplane means that in most retrofit scenarios, the module can be installed without rewiring terminal blocks or reconfiguring field device addresses — a significant advantage when downtime windows are measured in hours, not days.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the PM863K01 in an operational AC 800M system requires a structured approach that accounts for the full control cabinet ecosystem. Before removing the existing processor, engineers should document the current firmware version and application program using ABB’s Control Builder M software. A backup of the project file — including all function block diagrams, SFC sequences, and variable tables — must be secured to a local engineering workstation before any hardware swap begins.

The AC 800M controller unit typically houses the processor alongside a redundant power supply pair such as the SD821 or SD822, which should be inspected for output voltage stability and capacitor aging before the retrofit. A failing power supply is a common root cause of processor faults and should be replaced proactively during the same maintenance window. The TB820V2 or TB840A communication interface modules, which handle PROFIBUS DP master connections to S800 I/O clusters, should also be verified for firmware compatibility with the replacement PM863K01.

On the I/O side, the AI810, AO810, DI810, and DO810 S800 I/O modules connected via the S800 I/O bus should be checked for address conflicts and channel integrity. If the retrofit involves upgrading from an earlier processor revision such as the PM860K01 or PM861K01, engineers must confirm that the I/O module firmware versions are supported by the new processor’s operating system. In some cases, a coordinated firmware upgrade of the CI854B or CI858 communication interface modules is required to maintain PROFIBUS and FOUNDATION Fieldbus connectivity.

For systems with HMI integration, the operator station running ABB’s 800xA Information Management or a third-party SCADA platform connected via OPC DA/UA should be tested for tag resolution after the processor swap. Communication links to historian servers, alarm management systems, and remote I/O panels must be re-validated before returning the unit to automatic control mode.

Terminal block wiring on the S800 I/O modules does not typically require modification during a processor-only replacement, but all cable shields, grounding connections, and surge protection devices on analog input channels should be inspected as part of the retrofit procedure. Signal isolators on thermocouple and RTD inputs are particularly susceptible to degradation in high-vibration or high-humidity environments and should be tested for drift.

Downtime Control During System Migration

Minimizing unplanned downtime during an AC 800M processor retrofit requires pre-staging the replacement PM863K01 with the correct firmware version before the maintenance window opens. NINERMAS supplies the PM863K01 with pre-shipment functional testing completed, allowing engineers to verify module operation on a bench setup before installation in the live control cabinet.

The recommended migration sequence is: (1) back up the application program and all controller parameters; (2) switch the process to manual control or safe state; (3) power down the controller unit following ABB’s lockout/tagout procedure; (4) replace the processor module; (5) restore power and re-download the application program via Control Builder M; (6) verify all I/O channel readings and communication link status; (7) perform a controlled return to automatic mode with operator supervision.

For redundant AC 800M configurations, the switchover to the standby processor can be used to perform the replacement on the primary unit without a full process shutdown — a significant advantage in continuous process industries. Engineers should confirm that the redundancy synchronization link between the two processor modules is functioning correctly before and after the swap.

NINERMAS maintains service-ready stock of the PM863K01 with typical lead times of 3–7 business days for global shipment, supporting both planned annual maintenance and emergency breakdown recovery scenarios. Long-term supply agreements are available for customers managing large AC 800M fleets across multiple sites.

Retrofit Support FAQ

Q: Is the PM863K01 a direct replacement for the PM860K01 or PM861K01?
A: The PM863K01 is generally compatible with earlier AC 800M processor revisions, but firmware version alignment is required. NINERMAS recommends providing your current processor firmware version and Control Builder M project version when ordering to confirm compatibility before shipment.

Q: Does NINERMAS test the PM863K01 before shipment?
A: Yes. Every PM863K01 unit undergoes full functional testing prior to dispatch. Test records are available upon request and all units are covered by a 12-month warranty from the shipment date.

Q: Can the PM863K01 be used in a redundant AC 800M configuration?
A: Yes, the PM863K01 supports redundant processor configurations when paired with the appropriate redundancy module and correctly configured in Control Builder M. Both primary and standby units should be the same hardware revision for reliable switchover performance.

Q: What is NINERMAS’s long-term supply commitment for the PM863K01?
A: NINERMAS maintains dedicated stock of the PM863K01 and other AC 800M components to support customers with long-term maintenance contracts. We offer reserved inventory agreements for customers requiring guaranteed availability over 12–36 month horizons.
