ABB PFPK122 3BSE013036R1 Service-Ready Spare Part for Industrial Maintenance

ABB PFPK122 3BSE013036R1 Service-Ready Spare Part for Industrial Maintenance

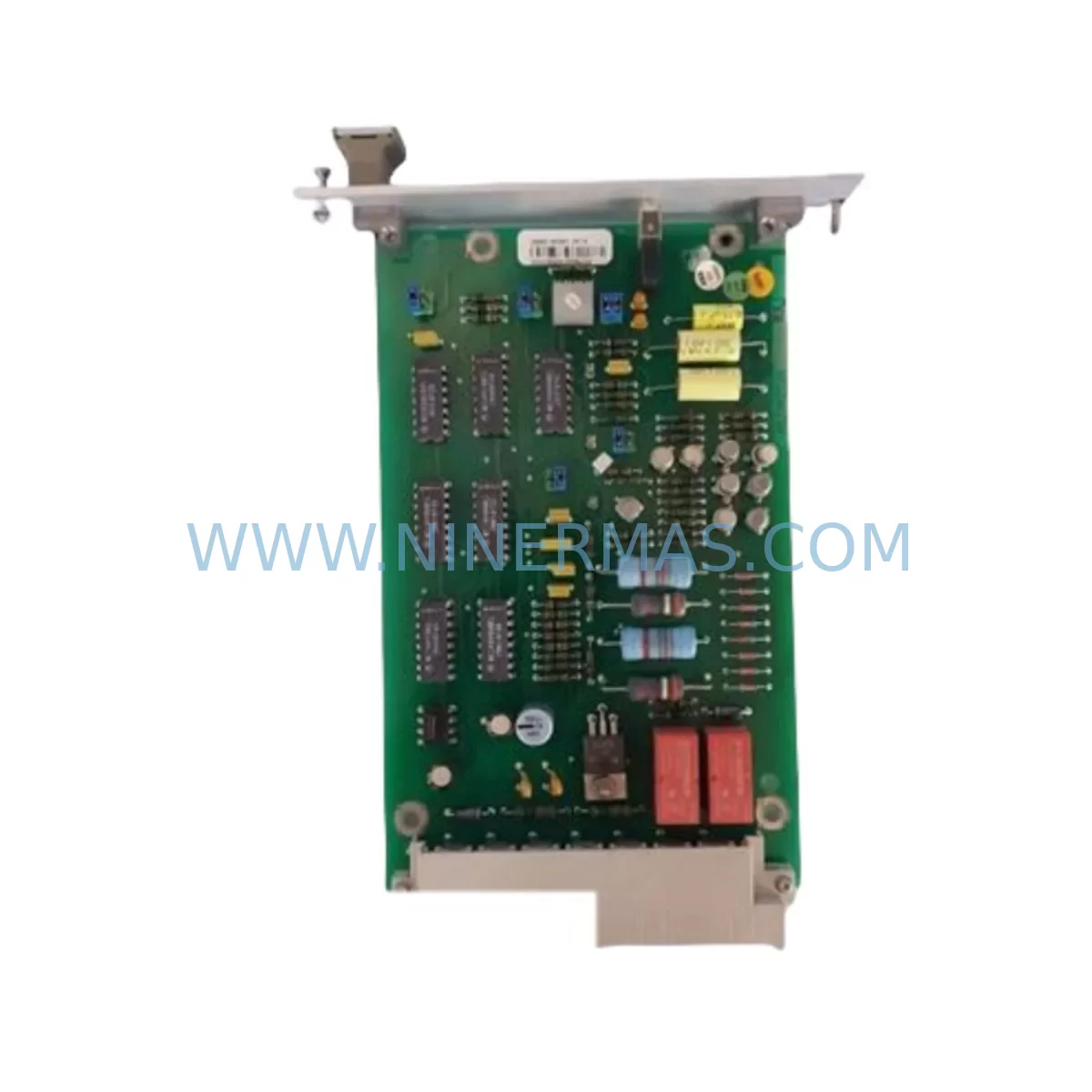

The ABB PFPK122 (3BSE013036R1) is a ruggedized circuit board module designed for demanding industrial automation environments. As a critical component within ABB’s Advant and AC450 control system architecture, this board plays a central role in maintaining signal integrity, process continuity, and system stability across power generation, oil & gas, chemical processing, and heavy manufacturing facilities. When this module fails or degrades, the consequences can range from intermittent I/O faults to complete process shutdowns — making fast, reliable spare part availability a top priority for maintenance and procurement engineers.

At NINERMAS, we supply the PFPK122 3BSE013036R1 as a service-ready original spare part, fully tested before shipment and backed by a 12-month warranty. Our inventory is maintained to support both emergency replacement orders and planned annual maintenance schedules, ensuring your facility is never left waiting during a critical outage.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the PFPK122 3BSE013036R1 in the field is rarely an isolated task. Experienced maintenance engineers understand that a failed circuit board module is often a symptom of broader stress within the control cabinet — and that a thorough inspection of surrounding components during the same maintenance window can prevent secondary failures and unplanned downtime in the weeks that follow.

When servicing the PFPK122, it is strongly recommended to simultaneously inspect the ABB DSQC power supply module feeding the backplane, as voltage fluctuations are a leading cause of premature board failure. Check the NTAC-02 or NDIO-01 I/O extension modules in adjacent slots for signs of communication errors or loose backplane connectors. If the system uses PROFIBUS or MODBUS communication modules such as the NPBA-12 or NMBP-01, verify their firmware status and connector integrity during the same visit.

Terminal blocks and field wiring connected to the I/O bus should be inspected for oxidation, loose ferrules, or thermal discoloration — particularly in high-vibration or high-humidity environments. Replacing worn Phoenix Contact or Weidmüller terminal blocks at the same time as the PFPK122 eliminates a common source of intermittent faults that are difficult to diagnose remotely.

For facilities running legacy ABB Advant systems, the PFPK112 (3BSE013035R1) and PFPK132 are closely related board variants that share the same rack architecture and should be included in your annual spare parts inventory review. Similarly, the PFTL101 load cell interface module and PFSK107 signal processor board are frequently co-located in the same control cabinet and benefit from simultaneous inspection.

Signal isolators installed between field instruments and the control system — such as the ABB ISOSCAN or equivalent DIN-rail isolators — should be tested for drift and output accuracy. A degraded isolator can introduce noise that stresses the PFPK122 and accelerates its failure cycle. Fuse holders and miniature circuit breakers protecting the 24 VDC bus should also be checked for contact resistance and replaced if they show signs of arcing or heat damage.

For facilities with ABB AC450 systems integrated into a larger DCS architecture, the DSAI 130 analog input module and DSDO 115 digital output module are common companion components that should be stocked alongside the PFPK122 to ensure rapid recovery from multi-point failures during major process upsets.

Site Replacement Workflow

Replacing the ABB PFPK122 3BSE013036R1 on-site follows a structured workflow designed to minimize system downtime and ensure full compatibility with the existing control architecture:

1. Pre-Replacement Verification: Confirm the failed module’s reference number (3BSE013036R1) against the system’s hardware configuration file or cabinet label. Cross-check the slot address and backplane connector type before ordering the replacement unit. NINERMAS provides pre-shipment documentation to support this verification step.

2. System State Capture: Before removing the PFPK122, capture the current I/O status, alarm log, and any active process values using the ABB Advant engineering workstation or connected HMI. This baseline data accelerates post-replacement commissioning and helps identify any residual faults.

3. Safe Removal: Follow ABB’s lockout/tagout procedure for the affected rack. If the system supports hot-swap for this slot, confirm with the site safety officer before proceeding without a full shutdown. Remove the module by releasing the front panel locking lever and sliding it cleanly from the backplane connector.

4. Inspection and Cleaning: Inspect the backplane connector pins for damage, corrosion, or debris. Clean with appropriate contact cleaner if required. This step is critical for ensuring reliable communication between the new PFPK122 and the system bus.

5. Installation and Commissioning: Insert the replacement PFPK122 3BSE013036R1 firmly into the backplane slot. Restore power and monitor the system’s diagnostic display for module recognition and fault clearance. Verify I/O channel status against the pre-replacement baseline.

6. Documentation: Record the replacement in the site maintenance log, including the new module’s serial number, installation date, and technician name. Update the spare parts inventory to trigger a reorder for the next replacement unit — maintaining at least one PFPK122 in stock at all times is recommended for facilities where this module is critical to continuous operation.

Spare Parts Support FAQ

Q1: Is the PFPK122 3BSE013036R1 supplied by NINERMAS an original ABB component?
Yes. NINERMAS supplies only original ABB spare parts. Each PFPK122 3BSE013036R1 unit is sourced from verified supply channels, inspected upon receipt, and tested before shipment. A 12-month warranty is included with every unit, covering defects in materials and workmanship under normal operating conditions.

Q2: How do I confirm compatibility between the PFPK122 and my existing ABB Advant or AC450 system?
Compatibility is confirmed by matching the reference number 3BSE013036R1 against your system’s hardware configuration documentation or the module label on the installed unit. If you are unsure, send NINERMAS your system’s hardware list or cabinet photos and our technical team will verify compatibility before shipment.

Q3: What is the recommended spare parts stocking strategy for the PFPK122 in a continuous-process facility?
For facilities where the ABB Advant or AC450 system is critical to production continuity, we recommend maintaining a minimum of one PFPK122 3BSE013036R1 on-site at all times. For larger installations with multiple racks, a ratio of one spare per four installed units is a common industry benchmark. NINERMAS supports long-term supply agreements to ensure consistent availability without requiring large upfront inventory investments.

Q4: What testing is performed on the PFPK122 before shipment from NINERMAS?
Every PFPK122 3BSE013036R1 unit undergoes functional testing prior to shipment, including power-on verification, communication bus response, and visual inspection for physical damage. Units are packaged in anti-static protective packaging with appropriate cushioning for international freight. A test report is available upon request for customers with quality management system requirements.
