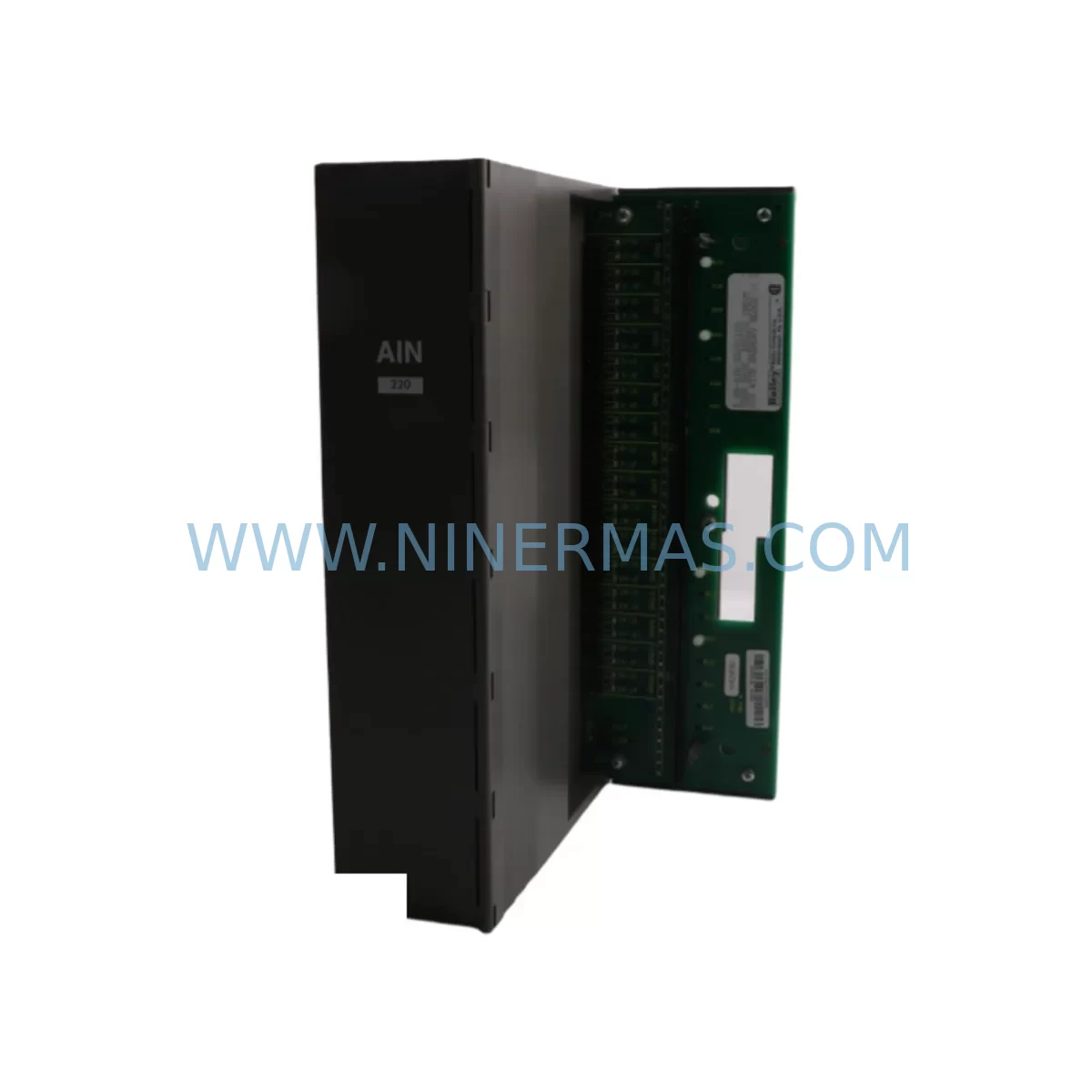

ABB P-HB-AIN-2200C100 Safety-Reliable Analog Input Module

ABB P-HB-AIN-2200C100 Safety-Reliable Analog Input Module for Critical Control Sites

The ABB P-HB-AIN-2200C100 is a high-integrity analog input module engineered for deployment within ABB Symphony Plus (formerly Bailey Harmony) distributed control systems. Designed to operate reliably in the most demanding industrial environments — including continuous process plants, critical interlock loops, heavy-duty control cabinets, and sites subject to high electromagnetic interference, dust ingress, humidity, elevated temperatures, and mechanical vibration — this module delivers the signal accuracy and operational stability that safety-critical automation demands.

In continuous production facilities such as petrochemical refineries, power generation plants, metallurgical smelters, and water treatment stations, unplanned control interruptions carry severe operational and safety consequences. The P-HB-AIN-2200C100 addresses this risk directly: its ruggedized analog input circuitry maintains signal integrity under adverse field conditions, minimizing the probability of signal drift, false readings, and spurious trips that can cascade into process shutdowns or safety system activations. Its robust design suppresses the effects of power supply fluctuations, surge impulses, and common-mode noise — all of which are endemic to heavy industrial switchgear rooms and motor control centers.

For maintenance engineers and system integrators managing legacy ABB Symphony Plus infrastructure, the P-HB-AIN-2200C100 represents a proven, drop-in replacement that preserves existing wiring, termination, and configuration investments. Long-term spare parts availability is confirmed, and each unit shipped by NINERMAS undergoes pre-shipment functional testing to verify channel accuracy, isolation integrity, and communication handshake with the Symphony Plus controller before dispatch.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

Reliable analog signal acquisition is only one layer of a robust control cabinet protection strategy. In a Symphony Plus control enclosure, the P-HB-AIN-2200C100 works in concert with a broader ecosystem of modules and components, each contributing to overall system resilience and safety.

Accurate field signal termination begins at the marshalling level. The ABB NTAI05 Analog Input Termination Unit provides the structured field wiring interface that pairs directly with analog input modules in the P-HB series, ensuring clean signal entry into the control loop and reducing the risk of wiring-induced noise or ground loops. Where thermocouple or RTD inputs are required alongside standard 4–20 mA channels, the ABB NTAI06 Thermocouple/RTD Input Termination Unit extends the analog input capability of the same control cabinet without requiring additional infrastructure.

Digital output control — for valve actuators, motor starters, and safety relay coils — is handled by the ABB NTDO02 Digital Output Termination Unit, which operates within the same Harmony base architecture. Maintaining consistent termination standards across both analog and digital I/O reduces the risk of cross-wiring errors during maintenance interventions, a common cause of spurious trips in critical interlock circuits.

Communication integrity between the Symphony Plus controller and field devices is supported by the ABB NTCL01 Communication Link Module, which manages the internal bus traffic that carries analog input data from the P-HB-AIN-2200C100 to the process controller. Any degradation in this communication path — caused by bus contention, cable faults, or module failure — can result in stale process values reaching the control algorithm, a risk that is mitigated by maintaining qualified spare modules on-site.

For sites integrating Symphony Plus with PROFIBUS-DP field devices, the ABB NPBA-12 PROFIBUS Adapter bridges the Harmony architecture to the fieldbus network, enabling unified process visibility across both legacy and modern instrumentation. Power supply stability is foundational to all of the above: the ABB HIEE300936R0101 Power Supply Unit provides the regulated DC power rail that feeds the Symphony Plus I/O rack, and its failure — without a qualified spare — can take an entire control node offline. Similarly, the ABB NDBU-95C Distributed Bus Unit manages the optical bus connections between Symphony Plus nodes, and the ABB NTMP01 Multiprocessor Module serves as the computational core that processes the analog input data delivered by the P-HB-AIN-2200C100.

For sites requiring network-level integration, the ABB SPNIS21 Network Interface Module connects the Symphony Plus system to plant-wide Ethernet or OPC-based SCADA infrastructure. Finally, the ABB 3BSE008516R1 Base Plate provides the physical mounting and backplane connectivity for the entire I/O module assembly — a component whose condition directly affects the reliability of every module installed upon it, including the P-HB-AIN-2200C100.

Maintaining qualified spares for each of these components — not only the analog input module itself — is the foundation of a credible control cabinet risk reduction strategy for continuous and safety-critical production sites.

Critical Industrial Safety Applications

The ABB P-HB-AIN-2200C100 is deployed across a wide range of critical industrial sectors where analog signal reliability is directly linked to process safety and regulatory compliance.

In petrochemical and refinery operations, the module monitors pressure transmitters, flow meters, and temperature sensors within distillation columns, reactor feed systems, and flare header controls. Signal drift or loss in these loops can trigger emergency shutdown system (ESD) activations or, conversely, mask developing process hazards — both outcomes with severe safety and financial consequences.

In power generation facilities — including coal-fired, gas turbine, and combined-cycle plants — the P-HB-AIN-2200C100 acquires analog signals from boiler drum level transmitters, turbine vibration probes, and generator excitation feedback circuits. The module’s EMI immunity is particularly valuable in generator halls, where high-frequency switching transients from power electronics can corrupt sensitive analog measurements.

In mining and mineral processing operations, the module operates within crusher control systems, conveyor load monitoring loops, and flotation cell level controls — environments characterized by heavy vibration, dust, and wide ambient temperature swings. Its ruggedized construction ensures measurement continuity even under these conditions.

In water and wastewater treatment plants, the P-HB-AIN-2200C100 monitors flow, pH, turbidity, and chemical dosing signals within treatment process loops. Regulatory compliance in these facilities depends on continuous, accurate analog data acquisition — making module reliability a compliance requirement, not merely an operational preference.

In metallurgical and steel production facilities, the module acquires signals from furnace temperature sensors, ladle weight cells, and rolling mill tension transducers — applications where measurement errors translate directly into product quality defects or equipment damage. Port and marine terminal automation systems also rely on Symphony Plus analog input modules for crane load monitoring, mooring tension measurement, and cargo handling control, where the combination of salt air, vibration, and high-current electrical equipment creates a particularly challenging operating environment.

Safety and Quality FAQ

Q1: What warranty coverage does NINERMAS provide for the ABB P-HB-AIN-2200C100?
Every ABB P-HB-AIN-2200C100 unit supplied by NINERMAS carries a 12-month warranty from the date of shipment. This covers functional defects identified under normal operating conditions consistent with the module’s rated specifications. Our warranty commitment reflects our confidence in the pre-shipment testing process applied to every unit before dispatch.

Q2: What pre-shipment testing is performed on each unit?
Each P-HB-AIN-2200C100 undergoes a structured functional verification process prior to shipment. This includes analog channel accuracy verification, isolation resistance testing, bus communication handshake confirmation, and visual inspection for physical integrity. Units that do not pass all test criteria are quarantined and not dispatched. Test records are retained for traceability.

Q3: Is the P-HB-AIN-2200C100 compatible with both Symphony Plus and legacy Bailey Infi 90 systems?
The P-HB-AIN-2200C100 is designed for the ABB Symphony Plus (Harmony) platform. Compatibility with specific Bailey Infi 90 configurations depends on the base plate, controller firmware version, and system configuration in use at your site. NINERMAS recommends providing your system configuration details so that our technical team can confirm compatibility before order placement.

Q4: Can NINERMAS guarantee long-term supply of the P-HB-AIN-2200C100 for ongoing maintenance programs?
Yes. NINERMAS maintains dedicated inventory of end-of-life and hard-to-source ABB Symphony Plus modules, including the P-HB-AIN-2200C100, specifically to support long-term maintenance and retrofit programs at continuous production facilities. We work with procurement teams to establish reserved inventory agreements and scheduled supply arrangements that align with planned maintenance windows and turnaround schedules.
