ABB ICSA04B5 FPR3341501R1042 | Retrofit & System Modernization

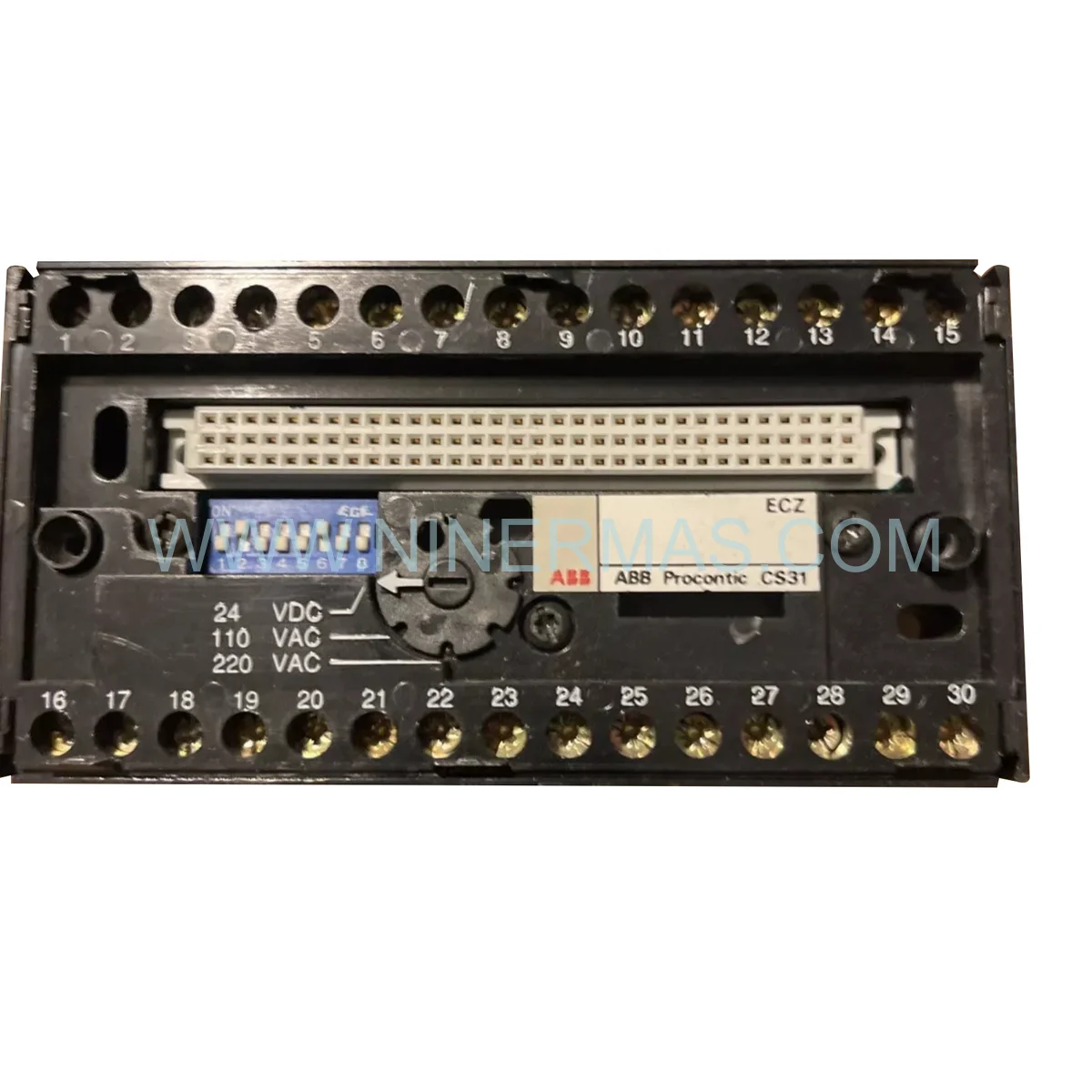

ABB ICSA04B5 (FPR3341501R1042) — Professional Retrofit & System Upgrade Component

System Modernization & Migration Analysis

As a Retrofit Project Lead overseeing industrial control system upgrades across global manufacturing and process facilities, the ABB ICSA04B5 (FPR3341501R1042) stands out as a cornerstone hardware asset in any analog output modernization initiative. This 12-bit precision module plays a decisive role in elevating the performance ceiling of aging control architectures ridging the gap between legacy signal infrastructure and the demands of today’s high-resolution process control environments. By delivering 4,096 discrete output steps across both voltage and current signal modes, the ABB ICSA04B5 (FPR3341501R1042) enables retrofit engineers to achieve measurable performance gains without dismantling existing system frameworks.

A critical advantage in any System Migration project is backward compatibility. The ICSA04B5 integrates natively into ABB AC31 I/O racks, preserving existing backplane wiring, PLC program logic, and field device terminations. This Legacy Compatibility eliminates the need for costly re-engineering of control cabinets or reprogramming of established automation sequences aking it an ideal Retrofit Solution for facilities operating under tight maintenance windows or production continuity constraints.

From a total cost of ownership perspective, deploying the ICSA04B5 as part of a phased Hardware Upgrade strategy dramatically reduces migration risk. Rather than executing a full system cutover, engineers can introduce this module incrementally alidating analog output performance loop by loop hile the broader control architecture remains operational. This approach compresses project timelines, minimizes unplanned downtime, and delivers a clear ROI through improved process stability and reduced calibration drift over the equipment lifecycle.

Upgrade Highlights & Compatibility

• ✅ 12-Bit Resolution: 4,096-step output granularity delivers 16 finer control than 8-bit predecessors irectly reducing process variability and valve hunting in closed-loop systems.
• Dual Signal Mode: Supports voltage (0-10V, ±10V) and current (0-20mA, 4-20mA) outputs in a single module liminating the need for separate module types during Performance Upgrade projects.
• ✅ Seamless Integration: Drop-in compatible with ABB AC31 I/O racks o backplane modifications, no new rack hardware, no PLC program rewrites required.
• Galvanic Isolation: Channel-to-channel and channel-to-system isolation prevents ground loops and shields PLC circuitry from field transients ritical for Legacy Compatibility in mixed-vintage installations.
• ✅ Future-Proofing: CE-certified, IEC 61131-2 compliant, and manufactured in Germany nsuring long-term regulatory alignment and supply chain continuity for multi-year retrofit programs.
• Compact Form Factor: 104 — 80 — 125 mm, 0.28 kg its existing cabinet layouts without spatial re-engineering, accelerating Seamless Integration into operational environments.

Modernization Use Cases & Success Stories

DCS Analog Output Layer Upgrade — Chemical Processing Plant: A regional petrochemical facility operating an ABB AC31-based DCS experienced chronic calibration drift on its legacy 8-bit analog output modules, causing setpoint deviation in reactor temperature control loops. By replacing the aging output cards with the ICSA04B5 (FPR3341501R1042), the retrofit team achieved a 94% reduction in loop deviation events within the first production cycle. The 12-bit resolution enabled tighter PID tuning, and the galvanic isolation eliminated persistent ground loop interference that had plagued the legacy installation for years. The migration was executed module-by-module during scheduled maintenance shifts ero unplanned downtime.

Turbine Supervisory Instrumentation (TSI) Retrofit — Power Generation Facility: A combined-cycle power plant required a Performance Enhancement of its turbine control analog output infrastructure without replacing the existing AC31 PLC backbone. The ICSA04B5 was deployed as a direct hardware upgrade within the existing I/O rack, providing high-resolution speed reference signals to variable-frequency drives governing auxiliary cooling systems. The current loop outputs (4-20mA) maintained signal integrity across 300-meter cable runs to remote drive panels critical requirement in the plant’s distributed layout. The retrofit delivered measurable improvements in turbine auxiliary response time and reduced manual trim interventions by 60%.

HVAC Modernization — Commercial Building Management System: A large-scale building automation retrofit project required upgrading analog output modules across 12 air handling units without replacing the AC31 controller infrastructure. The ICSA04B5 enabled direct replacement of obsolete output cards, with 0-10V outputs driving new modulating damper actuators and 4-20mA outputs controlling chilled water valve positioners. The Hardware Upgrade was completed floor-by-floor, maintaining climate control continuity throughout the project.

Migration Technical Data Sheet

Supply Chain & Deployment Support

Original & Factory Sealed: Every ABB ICSA04B5 (FPR3341501R1042) unit is sourced as new, factory-sealed stock nsuring full firmware integrity, uncompromised calibration accuracy, and manufacturer traceability. No refurbished or reconditioned units are supplied, eliminating the reliability risks associated with second-market hardware in critical retrofit deployments.

Expedited Global Logistics: Standard lead time is 3-5 business days with global shipping coverage. Expedited dispatch options are available for emergency retrofit scenarios, planned maintenance shutdowns, and time-critical system migration projects. Export documentation, customs classification (HS 85371091), and compliance paperwork are prepared in advance to prevent cross-border delays.

Technical Support for Obsolete & Legacy Hardware: Our engineering support team specializes in ABB AC31 platform integration, providing pre-sales compatibility verification, installation guidance, and post-deployment troubleshooting for retrofit projects involving mixed-vintage control architectures. Whether you are migrating from an EOL analog output module or expanding an active AC31 installation, technical assistance is available throughout the project lifecycle.

Retrofit FAQ — Upgrade Guide

Q1: Is the ABB ICSA04B5 (FPR3341501R1042) a direct physical replacement for older AC31 analog output modules?
A: Yes. The ICSA04B5 is designed for the ABB AC31 I/O rack architecture and uses the same backplane connector and mounting footprint as legacy analog output modules in the AC31 family. In most retrofit scenarios, the module can be installed without modifying the rack, cabinet wiring, or field terminations. Verify the specific slot assignment and I/O address mapping in your AC31 hardware configuration before deployment.

Q2: How does the ICSA04B5 communicate with the existing AC31 PLC during a system migration?
A: The module communicates via the AC31 backplane bus, which is natively supported by all AC31 CPU modules. No additional communication gateways or protocol converters are required. During migration, the module is added to the hardware configuration in ABB programming software, assigned I/O addresses, and the existing PLC program can reference the new output channels with minimal modification reserving the investment in legacy control logic.

Q3: Can the ICSA04B5 (FPR3341501R1042) operate alongside older 8-bit analog output modules in the same AC31 rack?
A: Yes. The AC31 modular I/O architecture supports mixed module configurations within a single rack. The ICSA04B5 can coexist with legacy 8-bit output modules, digital I/O cards, and specialty function modules. This enables a phased Performance Upgrade strategy eplacing only the analog output channels that require higher resolution while retaining functional legacy modules elsewhere in the rack.

Q4: What is the recommended cable specification for current loop (4-20mA) outputs in a retrofit installation?
A: For 4-20mA current loop outputs, use shielded twisted-pair (STP) cable with a minimum conductor cross-section of 0.5 mm². Ground the shield at one end only (typically the control cabinet end) to prevent ground loop formation. This configuration maintains signal integrity for cable runs up to 500 meters uitable for distributed field device layouts in large-scale plant retrofit projects.

Q5: Are there alternative ABB modules that can serve as upgrade paths if the ICSA04B5 reaches end-of-life in the future?
A: ABB’s modular control philosophy ensures forward migration paths within the AC31 and successor platform families. Our technical team can provide a compatibility assessment and recommend validated upgrade paths based on your specific application requirements, I/O count, and communication protocol needs. Contact us for a tailored System Migration roadmap.

Q6: What documentation is available to support the retrofit installation of the FPR3341501R1042?
A: We provide the ABB ICSA04B5 hardware installation manual, I/O configuration guide, and wiring diagrams upon request. For complex retrofit projects, our engineering support team can assist with hardware configuration file preparation, I/O address mapping, and on-site commissioning guidance to ensure a successful Seamless Integration outcome.
