ABB HIEE305114R0001 UNS4684A-P Service-Ready Spare Part

ABB HIEE305114R0001 UNS4684A-P Service-Ready Spare Part: Spare Replacement & Downtime Risk Control

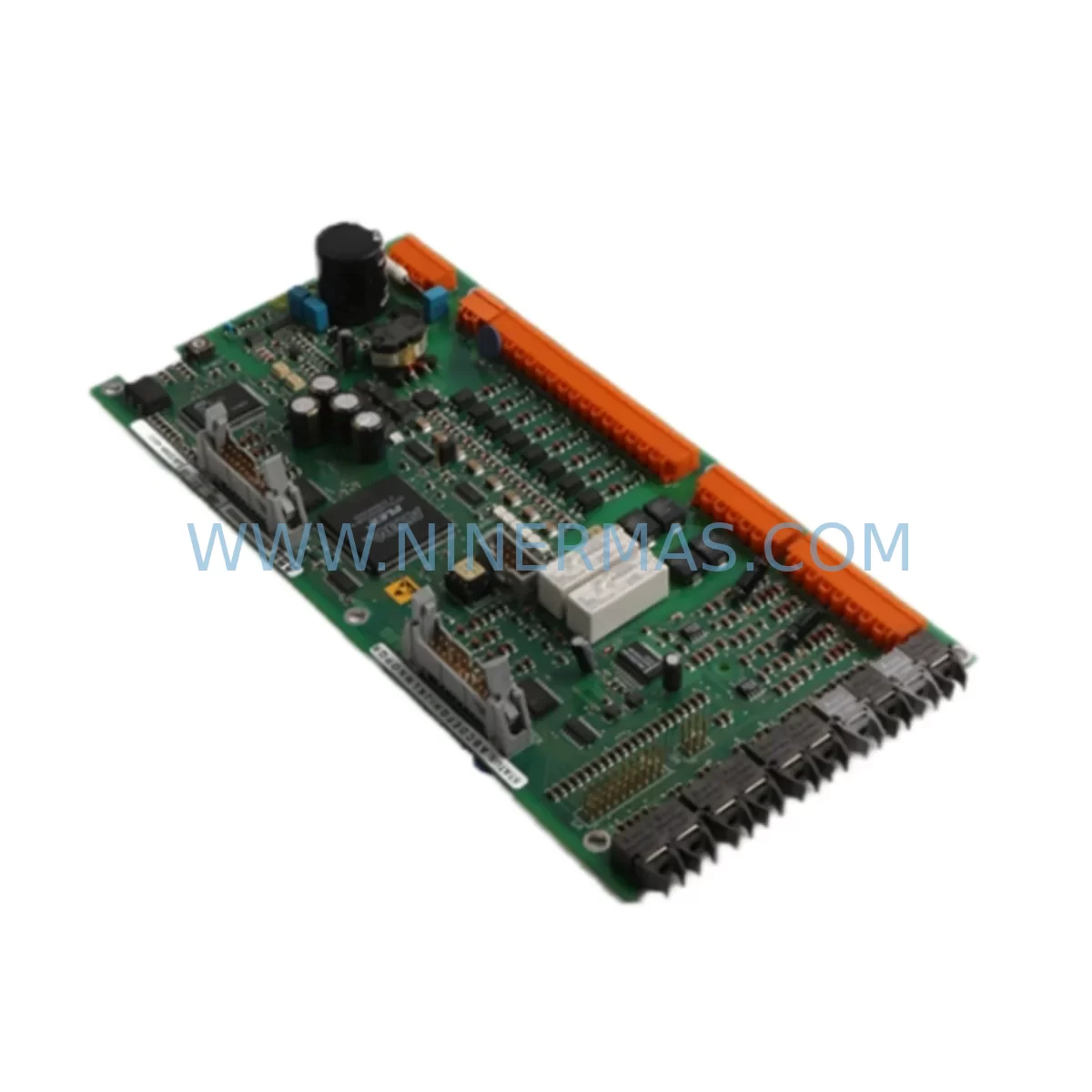

The ABB HIEE305114R0001 UNS4684A-P is a service-ready original spare part designed for industrial maintenance engineers and procurement teams managing ABB UNITROL excitation control systems. Whether you are responding to an unplanned shutdown, executing a scheduled annual overhaul, or building a strategic spare parts inventory for a critical production line, this module delivers the compatibility, reliability, and traceability required for fast, confident replacement in demanding industrial environments.

The HIEE305114R0001 is a functional board or power electronics module within the ABB UNS4684A series, part of the broader UNITROL excitation platform widely deployed in generator excitation, drive control, and industrial power regulation applications. Its role in the control cabinet is central to maintaining stable output regulation, protecting downstream electrical circuits, and ensuring continuous process availability. A failed or degraded HIEE305114R0001 can trigger excitation faults, generator trips, or process shutdowns — making rapid, verified replacement a top priority for site maintenance teams.

At NINERMAS, every ABB HIEE305114R0001 UNS4684A-P unit is sourced from verified supply channels, functionally inspected, and shipped with full documentation support. Our 12-month warranty covers manufacturing defects and functional failures under normal operating conditions, giving procurement engineers the confidence to stock this part as a long-term inventory asset.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance or procurement engineer identifies the ABB HIEE305114R0001 UNS4684A-P as a replacement requirement, the replacement event should be treated as a broader cabinet inspection opportunity. The UNITROL UNS4684A excitation system is a tightly integrated platform, and a fault in one module is frequently accompanied by stress or degradation in adjacent components.

During the same maintenance window, engineers should inspect and consider stocking the following related components:

• ABB UNS0881A / UNS0882A Power Supply Module — The internal DC power supply feeding the control board. Capacitor aging and ripple voltage increase are common failure precursors in systems of similar age. Replacing or bench-testing the power supply alongside the HIEE305114R0001 eliminates a common root cause of recurring faults.
• ABB HIEE300936R0001 / HIEE300936R0002 I/O Interface Board — Handles analog and digital I/O signals between the excitation controller and the plant DCS or PLC. Inspect for corrosion on connectors, signal drift, and damaged isolation barriers, particularly in high-humidity or high-vibration environments.
• ABB HIEE305024R0001 Gate Drive Board — Responsible for firing pulses to the thyristor or IGBT bridge. A degraded gate drive board can cause asymmetric firing, increased harmonic distortion, and eventual bridge failure. This board should be inspected whenever the main control module is replaced.
• ABB UNS3020A Thyristor Bridge Assembly — The power conversion stage of the excitation system. Check for thermal discoloration, cracked thyristors, and loose bus connections. Thermal imaging during operation is recommended before committing to a module-only replacement.
• ABB HIEE300024R0001 Measurement Board — Provides voltage and current feedback to the excitation regulator. Calibration drift or sensor failure on this board can cause the regulator to operate on incorrect feedback, leading to over-excitation or under-excitation trips.
• Terminal Blocks and Control Wiring Harness — Inspect all screw-type and spring-clamp terminal blocks in the excitation cabinet for loose connections, oxidation, and insulation cracking. Loose terminals are a leading cause of intermittent faults that are difficult to diagnose remotely.
• ABB UNITROL Communication Module (Profibus / Modbus RTU) — If the excitation system communicates with a plant DCS or SCADA via fieldbus, verify the communication module firmware version and check for address conflicts or cable shielding issues after any board replacement.
• Control Cabinet Fuses and MCBs — Replace any fuses that show signs of thermal stress or discoloration. Verify that miniature circuit breakers (MCBs) protecting the control power supply are within rated trip characteristics.
• Signal Isolators and Transducers — Any 4–20 mA or 0–10 V signal isolators feeding the excitation controller should be verified for accuracy and isolation integrity, especially in older installations where isolator drift can introduce regulation errors.
• ABB Panel HMI / Local Control Unit — If the site uses an ABB local HMI panel for excitation monitoring, verify display functionality, parameter backup, and communication link integrity after the module replacement is complete.

Proactive inspection of these components during the same maintenance window significantly reduces the probability of a secondary failure shortly after the primary repair — a scenario that is both costly and damaging to maintenance team credibility.

Site Replacement Workflow

Replacing the ABB HIEE305114R0001 UNS4684A-P in a live industrial environment requires a structured approach to minimize downtime and ensure system compatibility. The following workflow reflects best practices for maintenance engineers executing a board-level replacement in an ABB UNITROL UNS4684A excitation cabinet:

Step 1 — Pre-Replacement Preparation: Obtain the current system parameter set from the existing controller using ABB’s commissioning tool or local HMI backup function. Document all active fault codes, alarm history, and the last known operating setpoints. Confirm that the replacement HIEE305114R0001 carries the same hardware revision as the installed unit, or verify ABB’s cross-reference documentation for approved revision upgrades.

Step 2 — Safe Isolation: Follow the site’s Lockout/Tagout (LOTO) procedure. De-energize the excitation cabinet, discharge DC bus capacitors, and verify zero-voltage with a calibrated meter before opening the cabinet door. Do not rely on indicator lights alone.

Step 3 — Module Removal and Inspection: Remove the faulty HIEE305114R0001 board, noting connector orientation, cable routing, and any jumper or DIP switch settings. Photograph the installation before disconnection. Inspect the backplane connector for bent pins, carbon tracking, or moisture ingress.

Step 4 — New Module Installation: Install the replacement UNS4684A-P module, ensuring all connectors are fully seated and locking clips are engaged. Restore any jumper or DIP switch settings to match the original configuration. Reconnect all cables in the documented order.

Step 5 — Parameter Restore and Commissioning: Restore the saved parameter set to the new module. Perform a no-load functional test before reconnecting to the generator or load. Verify excitation voltage and current feedback readings against expected values. Check communication link status with the plant DCS.

Step 6 — Return to Service and Documentation: After successful commissioning, update the site maintenance log with the replacement date, new module serial number, and any parameter changes made. Schedule a follow-up inspection at 30 days to verify stable operation.

This structured approach reduces mean time to repair (MTTR), prevents secondary damage from incorrect installation, and creates an auditable maintenance record — all critical requirements for ISO 55001-aligned asset management programs.

Spare Parts Support FAQ

Q1: What is the warranty coverage for the ABB HIEE305114R0001 UNS4684A-P supplied by NINERMAS?
All ABB HIEE305114R0001 UNS4684A-P units supplied by NINERMAS carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Each unit undergoes functional inspection and continuity verification before shipment. In the event of a warranty claim, NINERMAS will provide a replacement unit or technical support to resolve the issue. Warranty does not cover damage resulting from incorrect installation, overvoltage events, or unauthorized modification.

Q2: How do I verify compatibility between the HIEE305114R0001 and my installed UNS4684A series cabinet?
Compatibility verification should include confirming the hardware revision of the installed module against the replacement unit, checking the ABB UNITROL system documentation for approved spare part cross-references, and verifying that firmware or parameter sets are compatible with the new hardware revision. NINERMAS technical support can assist with compatibility confirmation if you provide your cabinet nameplate data and existing module revision number. We recommend never replacing a board without first confirming hardware revision compatibility.

Q3: Can NINERMAS support long-term or repeat supply of the HIEE305114R0001 for ongoing maintenance programs?
Yes. NINERMAS specializes in long-term spare parts supply for industrial automation and excitation systems, including legacy ABB UNITROL platforms. We maintain sourcing relationships that allow us to fulfill repeat orders for critical spare parts even when original manufacturer stock is limited or discontinued. Procurement engineers managing multi-site maintenance programs or annual spare parts budgets are encouraged to contact us to discuss framework agreements, reserved stock arrangements, and priority fulfillment options.

Q4: What information should I provide when requesting a quote for the ABB HIEE305114R0001 UNS4684A-P?
To ensure accurate quotation and fastest possible fulfillment, please provide: the full part number (HIEE305114R0001), the module variant (UNS4684A-P), the required quantity, your delivery location and required lead time, and if available, the hardware revision of the currently installed unit. For urgent breakdown situations, please contact us directly by phone for priority processing. Our team is experienced in supporting emergency spare parts procurement for unplanned shutdowns.
