ABB HIEE300661R0001 C090 AE01 Safety-Reliable Relay for Critical Control Sites

ABB HIEE300661R0001 C090 AE01 Safety-Reliable Relay for Critical Control Sites

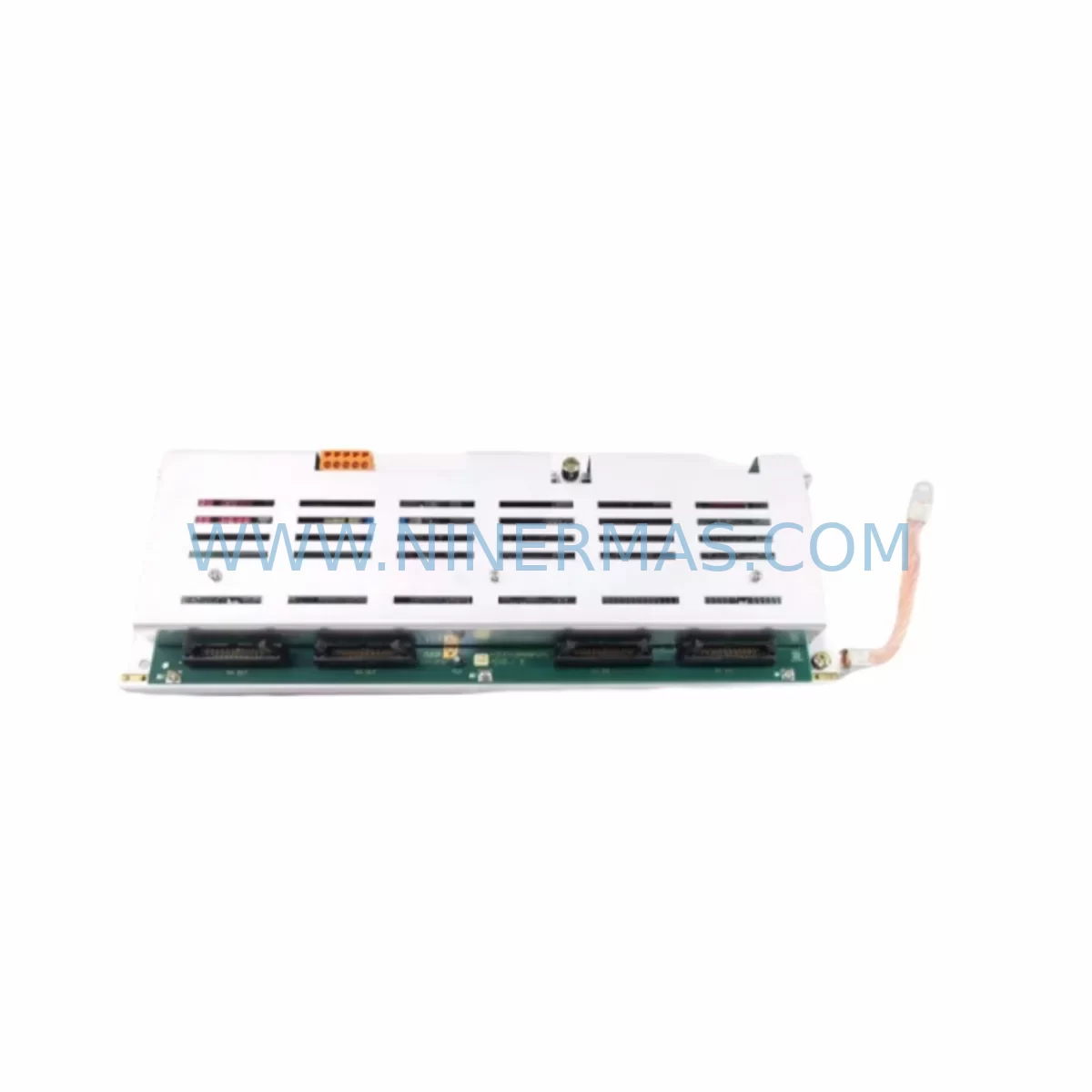

The ABB HIEE300661R0001 (C090 AE01) is a safety-critical relay output module engineered for the Advant OCS and MOD 300 distributed control system platforms. Designed to operate continuously in demanding industrial environments, this module delivers dependable discrete output switching for interlock circuits, emergency shutdown sequences, and process control loops where signal integrity and contact reliability are non-negotiable. For plant engineers managing aging DCS infrastructure, the HIEE300661R0001 represents a proven, drop-in replacement that eliminates the risk of unplanned downtime caused by relay contact degradation, coil failure, or output card obsolescence.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In critical control cabinets serving continuous process industries, a single failed relay output card can cascade into a full interlock trip, forcing an unplanned shutdown that costs far more than the component itself. The HIEE300661R0001 C090 AE01 is engineered to prevent exactly this scenario. Its galvanically isolated relay contacts protect the controller backplane from field-side voltage spikes, while the built-in transient suppression absorbs inductive load switching surges that would otherwise degrade adjacent I/O cards over time.

When integrated into an ABB Advant OCS rack alongside the HIEE300660R0001 digital input module, the DSDO110 digital output board, and the DSDP110 pulse counter module, the HIEE300661R0001 forms a complete, coordinated I/O subsystem capable of handling both high-speed interlock logic and slow-scan process monitoring without cross-interference. For power conditioning within the same cabinet, pairing this relay module with an ABB DSQC508 power supply unit or a HIEE300885R0001 24 VDC power distribution module ensures that voltage fluctuations on the field bus do not propagate into the relay coil drive circuits.

In high electromagnetic interference environments — common in arc furnace control rooms, variable frequency drive (VFD) panels, and high-voltage switchgear buildings — the module’s IEC 61000-compliant EMC design prevents signal drift and spurious relay actuation. Supplementing the installation with an ABB DSAI130 analog input module for process variable monitoring and an NTAI05 termination unit for field wiring consolidation further reduces the risk of loose connections, ground loops, and communication anomalies that are leading causes of nuisance trips in legacy DCS architectures.

For safety instrumented system (SIS) adjacent applications, the HIEE300661R0001 can serve as the final output element in a partial stroke testing circuit, working in conjunction with an ABB DSPC172 processor module and DSMB175 memory board to execute automated valve position verification without interrupting production. This configuration is particularly valuable in petrochemical and LNG facilities where proof-test intervals must be documented for functional safety compliance.

Critical Industrial Safety Applications

The HIEE300661R0001 C090 AE01 relay module has demonstrated reliable field performance across a broad spectrum of safety-critical industrial applications:

Petrochemical & Refinery Plants: Used in emergency shutdown (ESD) panel I/O racks to switch solenoid valves, motor contactors, and alarm annunciators. The module’s contact isolation prevents cross-contamination of hazardous area signals into the safe-area DCS backplane, a requirement under IEC 61511 functional safety standards.

Power Generation & Substation Control: Deployed in turbine governor control panels and boiler management systems where relay output reliability directly affects grid stability. The module’s resistance to high-frequency conducted interference from nearby protection relays and circuit breakers makes it a preferred choice for power plant I&C engineers.

Mining & Mineral Processing: Installed in conveyor interlock systems, crusher motor control centers, and ventilation fan control panels operating in dusty, high-vibration environments. The sealed relay contacts resist particulate ingress that would otherwise cause contact resistance buildup and intermittent output failures.

Water & Wastewater Treatment: Applied in pump station control panels and chemical dosing systems where the module manages discrete outputs for valve actuators and pump starters in humid, corrosive atmospheres. The wide humidity tolerance (5–95% RH) ensures stable operation without derating.

Metallurgy & Steel Mills: Utilized in rolling mill drive control systems and ladle crane interlocks where high ambient temperatures and intense electromagnetic fields from induction furnaces demand robust output module performance. The HIEE300661R0001’s thermal design supports continuous operation at elevated cabinet temperatures without relay coil overheating.

Port & Marine Automation: Integrated into ship-to-shore crane control systems and vessel automation panels where salt-laden air and constant mechanical vibration accelerate component wear. Stocking this module as a certified spare ensures rapid swap-out during scheduled maintenance windows, minimizing vessel turnaround delays.

Safety and Quality FAQ

Q1: What warranty coverage does the HIEE300661R0001 C090 AE01 carry?
All HIEE300661R0001 units supplied by NINERMAS carry a 12-month warranty from the date of shipment. This covers manufacturing defects, premature relay contact failure, and logic-side component faults. Warranty claims are supported by our technical team with replacement dispatch within 5 business days.

Q2: What pre-shipment testing is performed on each unit?
Every HIEE300661R0001 module undergoes a multi-point functional test prior to dispatch, including relay coil energization verification, contact continuity measurement across all output channels, isolation resistance testing between field and logic sides, and visual inspection for PCB damage, corrosion, or component displacement. Test records are available upon request.

Q3: Is this module compatible with all Advant OCS and MOD 300 rack configurations?
The HIEE300661R0001 C090 AE01 is designed for direct installation into standard ABB Advant OCS and MOD 300 I/O racks. It is compatible with AC 450 and AC 410 controller configurations. For non-standard rack revisions or mixed-generation backplanes, our technical team can verify compatibility based on your system’s rack ID and firmware revision before shipment.

Q4: Can NINERMAS guarantee long-term supply for this end-of-life ABB module?
Yes. NINERMAS maintains dedicated inventory reserves for critical Advant OCS and MOD 300 series components, including the HIEE300661R0001 and related modules such as the HIEE300660R0001, DSDO110, and DSDP110. Our global sourcing network enables us to fulfill repeat orders and blanket purchase agreements, supporting plant maintenance programs that require guaranteed spare parts availability over multi-year operational horizons.
