ABB HIEE205010R0001 UNS3020A-Z V1 Service-Ready Spare Part

ABB HIEE205010R0001 UNS3020A-Z V1 Service-Ready Spare Part for Industrial Maintenance

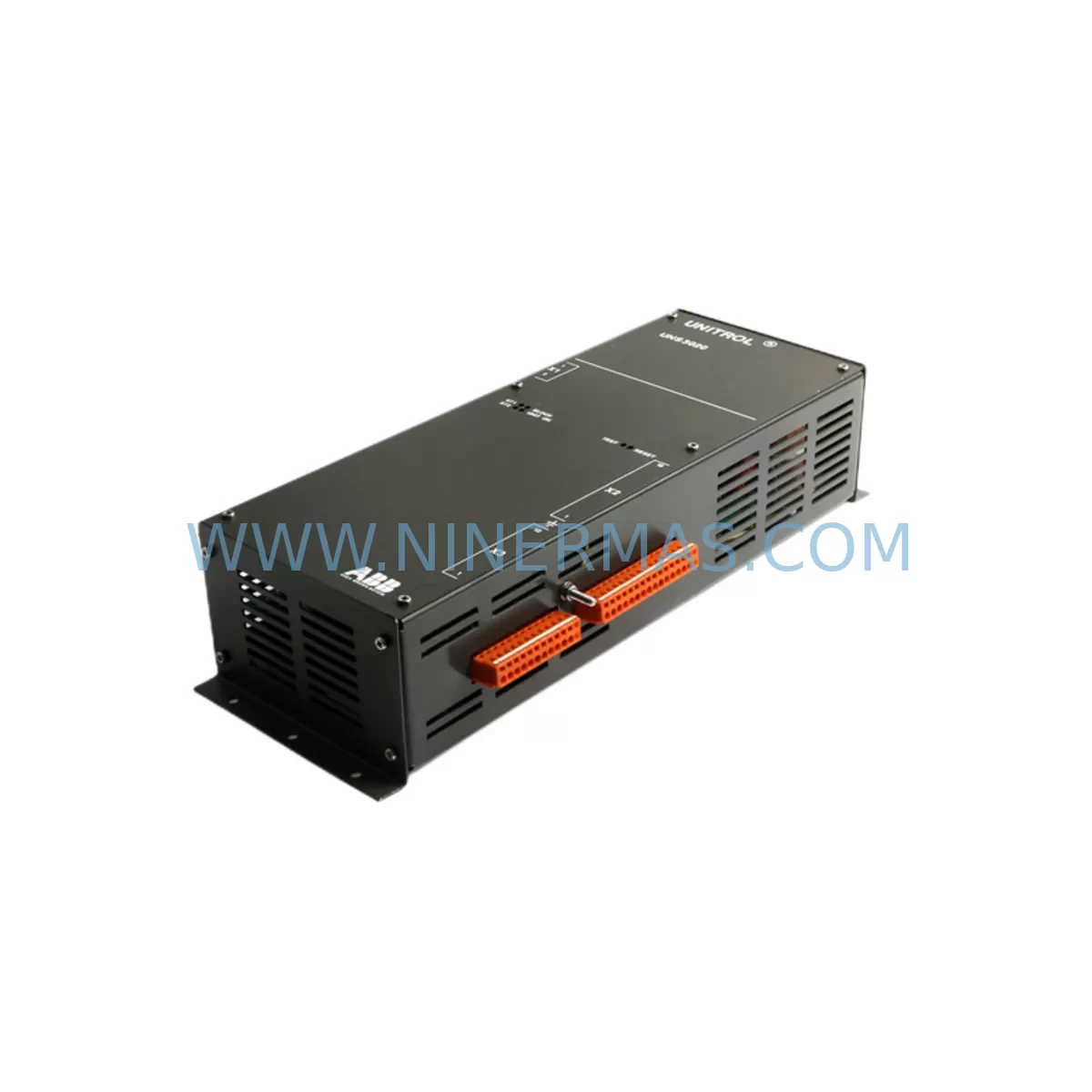

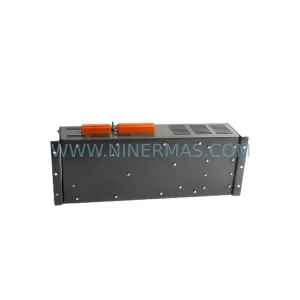

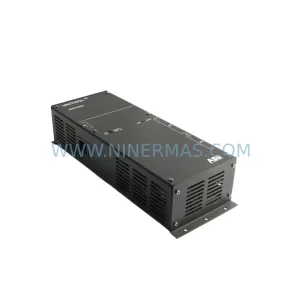

The ABB HIEE205010R0001 UNS3020A-Z V1 is an original protection relay module engineered for ABB’s industrial automation and DCS platforms. Designed for demanding process environments — including power generation, oil & gas, chemical processing, and heavy manufacturing — this relay module plays a critical role in safeguarding electrical circuits, protecting downstream equipment, and maintaining system integrity during fault conditions. Sourced directly from verified supply channels, every unit offered by NINERMAS undergoes pre-shipment inspection and functional verification to ensure it meets OEM specifications before leaving our warehouse.

For maintenance engineers managing aging ABB control systems, the HIEE205010R0001 UNS3020A-Z V1 represents a high-priority spare. Its role in protection logic means that a failed or degraded unit can trigger unplanned shutdowns, cascade faults across I/O loops, or compromise the safety interlock architecture of the entire control cabinet. Keeping a verified replacement on the shelf is not optional — it is a fundamental element of any responsible maintenance strategy.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the HIEE205010R0001 UNS3020A-Z V1 in the field, a thorough maintenance engineer will not stop at swapping the relay module alone. The surrounding electrical ecosystem must be evaluated to prevent repeat failures and ensure the restored system operates reliably. Begin by inspecting the ABB DSQC power supply module feeding the relay’s control circuit — an unstable or under-voltage supply is one of the most common root causes of premature relay failure. Verify that the 24VDC bus rail and terminal blocks (such as ABB’s ENTRELEC or Phoenix Contact series) show no signs of oxidation, loose crimps, or thermal discoloration.

Next, audit the I/O modules connected to the relay’s digital output channels. ABB DI810 and DO810 I/O modules in the same rack should be checked for correct addressing and signal integrity. If the relay interfaces with a safety interlock loop, the ABB AI810 analog input module and associated signal isolators (such as the MTL or P+F series) should be tested for drift or ground fault conditions. Communication integrity between the relay and the ABB AC800M controller CPU should be confirmed via the CI854 PROFIBUS communication interface or equivalent fieldbus module — a degraded communication link can mask relay faults until a critical event occurs.

For sites running legacy ABB Advant systems, also inspect the DSDO110 digital output module and DSDP150 pulse counter board if they share the same backplane segment. Fuse holders and miniature circuit breakers (MCBs) protecting the relay’s input circuit should be tested for correct trip ratings and replaced if they show signs of aging. Finally, if the control cabinet includes an ABB CP600 or CP400 HMI panel, verify that alarm acknowledgment and relay status displays are functioning correctly after the replacement — a misconfigured HMI alarm mask can hide recurring relay faults from operators.

Procurement engineers should note that the HIEE205010R0001 is frequently ordered alongside ABB HIEE300900R0001 and HIEE205024R0001 relay variants as part of a standardized cabinet spare kit. Maintaining a minimum stock of two units per critical relay position is recommended for facilities with 24/7 uptime requirements.

Site Replacement Workflow

Replacing the ABB HIEE205010R0001 UNS3020A-Z V1 on-site follows a structured sequence to minimize downtime and avoid configuration errors. Before removal, document the existing relay’s wiring terminations, DIP switch settings, and any jumper configurations using photographs or a maintenance logbook entry. Power down the affected circuit segment following your site’s lockout/tagout (LOTO) procedure — do not rely solely on the control system’s software inhibit.

Remove the faulty module from its backplane slot or DIN rail position, taking care to discharge any residual capacitive energy in the circuit. Install the replacement HIEE205010R0001 UNS3020A-Z V1, ensuring the backplane connector is fully seated and all terminal screws are torqued to the manufacturer’s specification. Restore power and perform a functional test: verify relay coil energization, contact closure, and signal feedback to the controller. Confirm that the AC800M CPU or connected DCS node recognizes the module without generating hardware fault alarms.

For systems where the relay is part of a redundant protection scheme, perform a switchover test to confirm that the standby path activates correctly before returning the primary circuit to service. Update your CMMS (Computerized Maintenance Management System) with the replacement date, new module serial number, and next scheduled inspection interval. This workflow ensures that the replacement not only restores function but also resets the maintenance clock for the component, supporting long-term reliability tracking.

Spare Parts Support FAQ

Q1: Is the HIEE205010R0001 UNS3020A-Z V1 a direct drop-in replacement for older ABB relay variants?
In most cases, yes. The UNS3020A-Z V1 designation indicates a specific hardware revision within the ABB protection relay family. Before installation, confirm that the backplane slot type, terminal wiring configuration, and firmware version of your controller are compatible with the V1 revision. NINERMAS technical support can assist with compatibility verification prior to purchase.

Q2: What pre-shipment testing does NINERMAS perform on this module?
Every HIEE205010R0001 unit undergoes visual inspection for physical damage, connector integrity check, coil resistance measurement, and functional energization test before dispatch. Units that do not meet OEM performance benchmarks are quarantined and not shipped. A test report is available upon request for critical applications.

Q3: What does the 12-month warranty cover, and how is a warranty claim processed?
The 12-month warranty covers manufacturing defects and functional failures occurring under normal operating conditions as defined by ABB’s product specifications. It does not cover damage caused by incorrect installation, overvoltage events, or unauthorized modification. To initiate a warranty claim, contact NINERMAS at sale@ninermas.com with your order number, a description of the fault, and photographic evidence. Replacement or repair will be arranged within 5 business days of claim approval.

Q4: Can NINERMAS support long-term or recurring supply of this part for multi-site maintenance programs?
Yes. NINERMAS specializes in long-term spare parts supply for industrial automation systems, including obsolete and hard-to-source ABB components. We offer blanket purchase agreements, consignment stock arrangements, and priority allocation for customers with multi-site or high-volume requirements. Contact our procurement team to discuss a tailored supply agreement that aligns with your annual maintenance budget and inventory strategy.
