ABB HEIE420158R0001 XT376A-E Retrofit-Compatible I/O for Legacy Systems

ABB HEIE420158R0001 XT376A-E Retrofit-Compatible I/O for Legacy Systems: Seamless Upgrade for Aging 800xA Automation Platforms

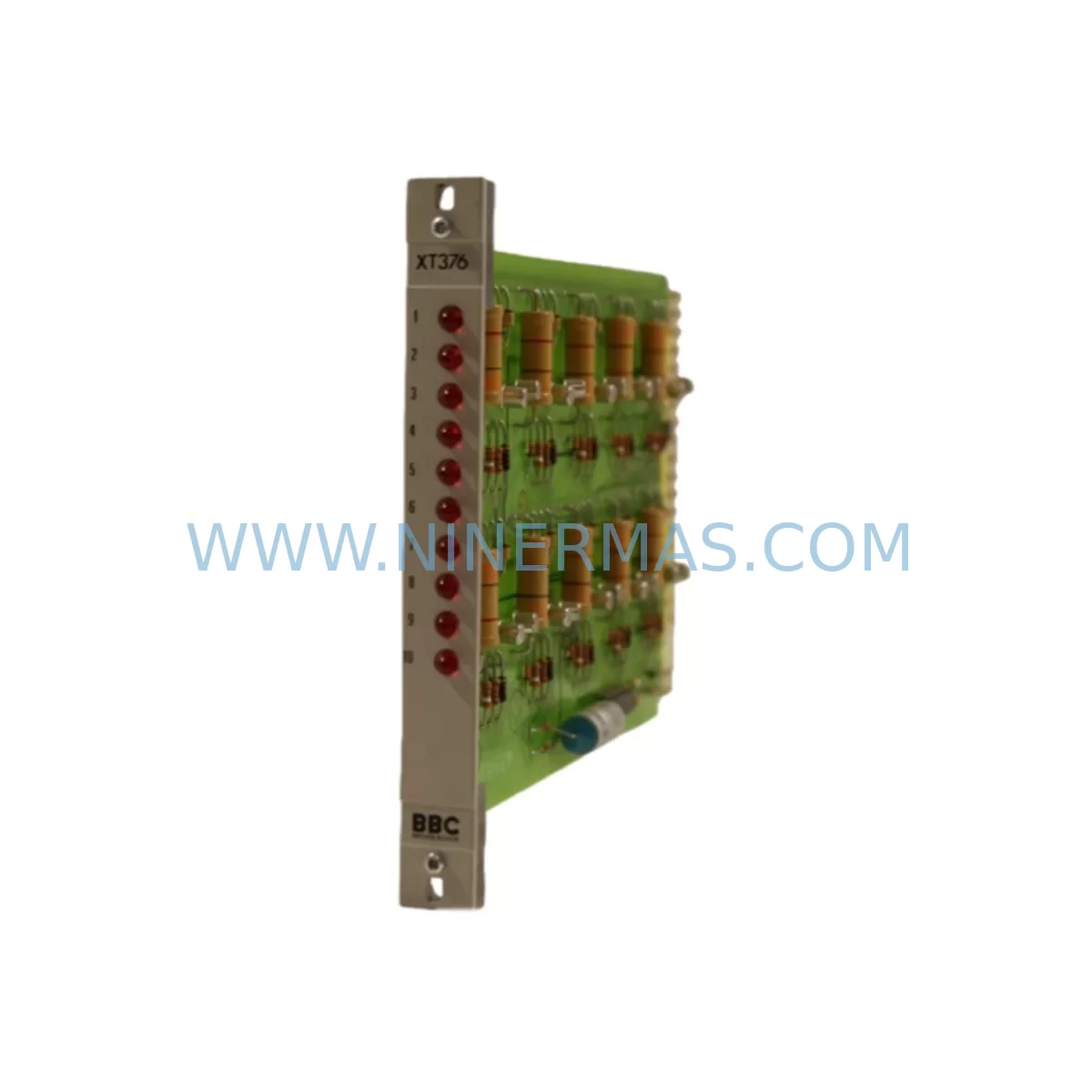

The ABB HEIE420158R0001 (module designation XT376A-E) is a critical I/O interface module originally designed for ABB’s 800xA Distributed Control System platform. As industrial facilities worldwide face the challenge of maintaining aging automation infrastructure, this module has become one of the most sought-after retrofit and replacement components for legacy control cabinets running on the 800xA architecture. NINERMAS maintains verified stock of the HEIE420158R0001 XT376A-E, fully tested and backed by a 12-month warranty, to support your system modernization and unplanned downtime recovery needs.

Whether you are executing a planned retrofit of an existing production line, replacing a failed module in an emergency shutdown scenario, or extending the operational life of a legacy control system pending a full platform migration, the HEIE420158R0001 XT376A-E provides the compatibility and reliability your engineering team requires.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Retrofitting an ABB 800xA-based control system requires careful pre-engineering to avoid extended downtime and configuration errors. The HEIE420158R0001 XT376A-E sits within a broader ecosystem of interdependent hardware, and a successful retrofit depends on understanding how this module interacts with adjacent components in the control cabinet and on the backplane.

Before removing the existing module, engineers should document the full I/O assignment list and cross-reference it with the current ABB Control Builder project file. The AC800M controller — typically an AC800M PM864 or PM866 — must have its application program backed up and version-locked before any hardware change is initiated. Failure to do so risks losing the live program state if the controller resets during the swap.

On the backplane side, confirm that the TB820 or TB840 Termination Unit connected to the existing HEIE420158R0001 is compatible with the replacement unit’s signal interface. In many legacy installations, the termination unit and the I/O module were paired at commissioning, and substituting one without verifying the other can result in signal mapping errors or ground loop issues in analog channels.

Power distribution within the cabinet also requires attention. The HEIE420158R0001 draws its operating power from the 24VDC bus supplied by the cabinet’s power supply module — often an ABB SD821 or SD823 unit. Before installation, measure the available current headroom on the 24VDC rail to confirm the new module will not cause a supply overload, particularly in densely populated racks where multiple I/O modules share a common bus.

For systems using PROFIBUS DP as the field communication backbone, verify that the DP segment address assigned to the HEIE420158R0001 does not conflict with other nodes on the same segment. In older installations, address assignments may not be fully documented, and a bus scan using a PROFIBUS diagnostic tool is recommended before the new module is brought online.

Where the control system interfaces with an ABB Operator Workplace or an InduSoft/ABB Ability SCADA layer, confirm that the HMI faceplates and alarm tags referencing signals from this I/O module are mapped correctly. Tag renaming or address shifts introduced during the retrofit can cause HMI display errors or missed alarms if not reconciled in the graphics database before restart.

In multi-rack configurations using the S800 I/O family, also verify that the CI854 or CI858 communication interface module connecting the rack to the AC800M controller is operating within its maximum I/O node count. Adding or replacing modules in a saturated rack can trigger configuration faults at the controller level.

Signal isolators — such as those used on thermocouple or 4–20mA analog inputs — should be inspected and re-calibrated after the module swap, as the new module’s input impedance characteristics may differ slightly from the original, affecting measurement accuracy on sensitive process loops.

Finally, if the retrofit involves migrating from an older 800xA version to a newer release, confirm that the HEIE420158R0001 XT376A-E firmware is compatible with the target 800xA system version. In some upgrade paths, a firmware update to the module itself is required before the controller will recognize it as a valid node.

Downtime Control During System Migration

Minimizing production downtime during a module replacement or system migration is the primary concern for most plant engineers. With the HEIE420158R0001 XT376A-E, a well-prepared swap can typically be completed within a planned maintenance window of two to four hours, provided all pre-engineering steps have been completed in advance.

The most effective downtime reduction strategy is to complete all software preparation — program backup, tag list export, HMI snapshot, and communication configuration — before the physical module is removed. This ensures that if any unexpected issue arises during the hardware swap, the engineering team can restore the previous configuration without relying on memory or incomplete documentation.

Where the process allows, consider using a hot-standby or redundant controller path to maintain partial control continuity during the swap. In 800xA systems with redundant AC800M controllers, it may be possible to isolate the affected I/O rack from one controller while the other maintains supervisory control, reducing the impact on live process loops.

After the new HEIE420158R0001 is installed and powered, perform a full I/O checkout before returning the system to automatic control. Verify each channel individually — both digital and analog — against the field instrument or actuator it serves. Pay particular attention to analog output channels driving control valves or variable speed drives, as an incorrect signal during startup can cause process upsets.

Document all changes made during the retrofit, including module serial numbers, firmware versions, address settings, and any wiring modifications. This documentation becomes the baseline for future maintenance and is essential if a warranty claim needs to be submitted.

NINERMAS provides pre-shipment functional testing on all HEIE420158R0001 XT376A-E units, reducing the risk of receiving a non-functional module and eliminating one variable from the commissioning process. Units are shipped with test records available on request.

Retrofit Support FAQ

Q1: Is the HEIE420158R0001 XT376A-E a direct drop-in replacement for the original ABB module?
A: Yes. The HEIE420158R0001 XT376A-E is the same part number and designation as the original ABB production module. It is designed for direct installation into the same backplane slot without mechanical modification. However, engineers should always verify the module address configuration and I/O tag mapping in ABB Control Builder before returning the system to service, as address settings are not retained from the previous module.

Q2: What commissioning steps are required after installing the replacement module?
A: After physical installation, the module must be recognized by the AC800M controller via ABB Control Builder. Confirm the module node address matches the original configuration, perform a full download if required, and execute an I/O channel checkout to verify signal integrity on all connected field devices. If the system uses PROFIBUS DP, run a bus diagnostic to confirm the module is communicating correctly on the segment.

Q3: Can NINERMAS supply other ABB 800xA components needed for the same retrofit project?
A: Yes. NINERMAS maintains stock of a wide range of ABB 800xA and S800 I/O family components, including communication interface modules, termination units, power supply modules, and controller boards. Contact our sales team with your full bill of materials and we will confirm availability and lead times for all required items.

Q4: What does the 12-month warranty cover, and how is a claim processed?
A: The 12-month warranty covers manufacturing defects and functional failure under normal operating and storage conditions. If a unit fails within the warranty period, contact NINERMAS with the original invoice, a description of the failure, and the module serial number. We will arrange a replacement or repair at no additional cost. Pre-shipment test records are available for all units to support warranty documentation.
