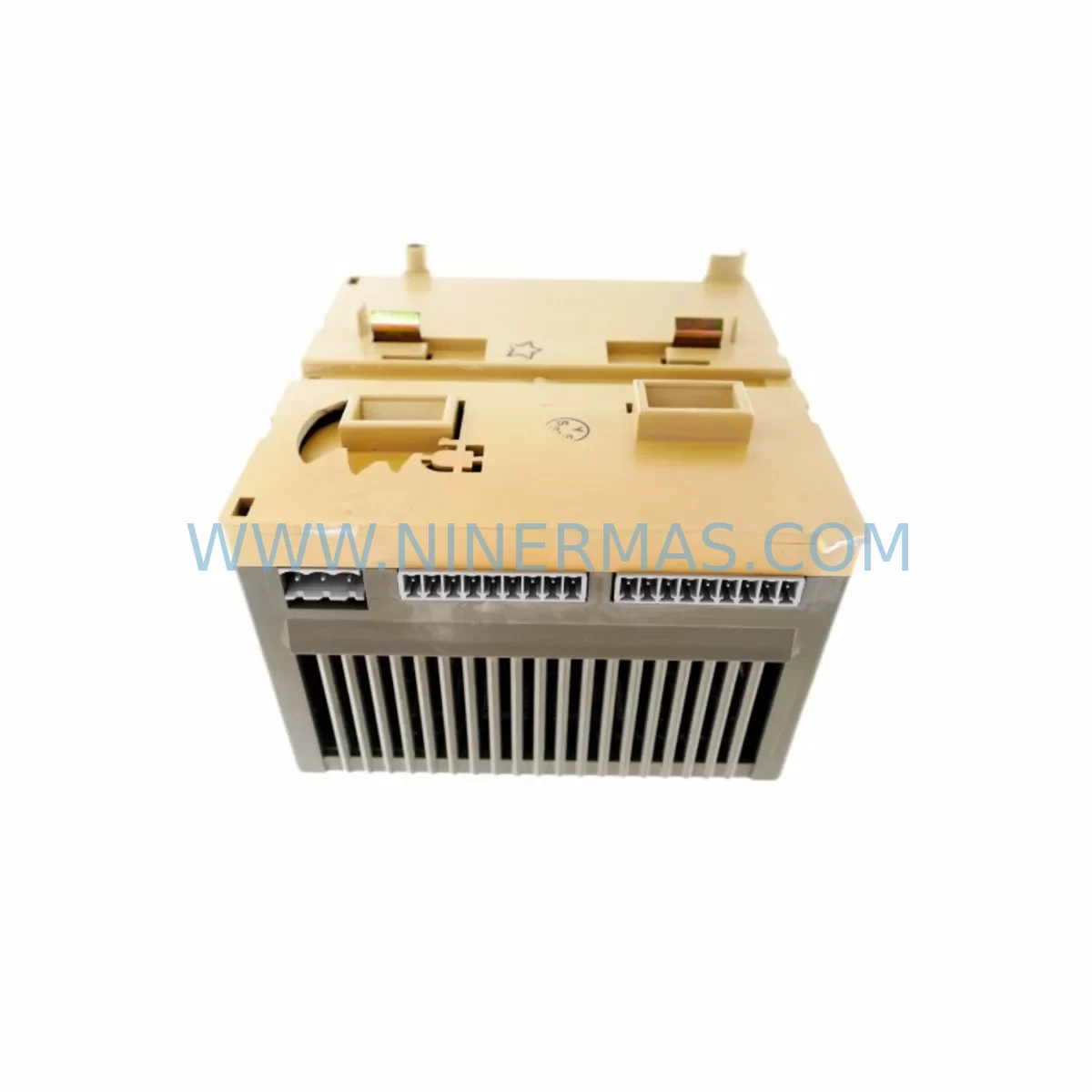

The ABB GJR5251400R0202 07DC91 is a central processing unit module designed for the Advant Controller 31 (AC31) platform — one of ABB’s most widely deployed compact PLC families in process automation, machine control, and utility infrastructure. As the AC31 series has reached end-of-life status, many facilities operating legacy control panels, distributed I/O cabinets, and standalone machine controllers now face the challenge of sourcing reliable, tested replacement units to extend system life without committing to a full platform migration.

NINERMAS supplies the GJR5251400R0202 07DC91 as a retrofit-compatible spare, pre-tested and verified against original ABB factory specifications. Each unit undergoes functional verification prior to shipment, covering CPU initialization, program memory integrity, communication port response, and backplane interface continuity. A 12-month warranty is included with every unit.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

When the GJR5251400R0202 07DC91 is identified as a replacement candidate in an aging AC31-based control system, the retrofit scope typically extends beyond the CPU module itself. A thorough site survey should account for the full rack assembly, including any co-installed I/O modules such as the 07AI91 analog input module or 07DI92 digital input module, which share the same backplane and may have accumulated wear or firmware drift over years of continuous operation.

Power integrity is a critical first checkpoint. The rack’s power supply module — commonly the 07KP90 or 07KT98 — must be verified to deliver stable 24 VDC within tolerance before the new CPU is seated. Voltage sag or ripple on the backplane bus can cause intermittent CPU faults that are difficult to diagnose after installation. If the PSU is original to the system and has not been replaced within the past five to seven years, proactive replacement is strongly recommended as part of the same maintenance window.

Communication continuity is the next priority. The AC31 platform uses the CS31 serial fieldbus to link the CPU with remote I/O stations. Before removing the original GJR5251400R0202, document all CS31 node addresses, baud rate settings, and termination resistor positions. Remote I/O modules such as the 07CA91 communication adapter or distributed I/O racks connected via CS31 must retain their address configuration to avoid bus conflicts after the CPU swap. If the system also uses PROFIBUS-DP for upstream SCADA integration, verify that the DP master configuration file (GSD) remains compatible with the replacement CPU’s firmware revision.

Program backup is non-negotiable. Use 907 PC331 or the ABB Automation Builder environment to extract and archive the existing application program, including all function block instances, variable declarations, and retain data. This backup serves both as a recovery baseline and as the source file for any necessary program adaptation if the replacement unit carries a different firmware version. In systems where the HMI — such as an ABB CP600 or PP845 operator panel — communicates directly with the CPU over a serial or Ethernet link, the HMI project file should also be archived and the communication driver version confirmed against the replacement module’s supported protocol stack.

For facilities managing multiple AC31 racks across a production line, it is advisable to maintain a small buffer stock of critical modules. Alongside the CPU, consider stocking the 07AI91 analog input, 07DO92 digital output, and at least one spare 07KP90 power supply. This approach minimizes exposure to extended lead times for obsolete components and supports a predictable spare parts lifecycle program aligned with planned maintenance intervals.

Downtime Control During System Migration

Minimizing unplanned downtime during a CPU replacement on an active AC31 system requires disciplined pre-work and a clear sequence of steps. Begin by scheduling the swap during a planned maintenance window — ideally during a shift changeover or scheduled production stop — to avoid interrupting live process control loops. Before powering down the rack, confirm that all upstream supervisory systems (DCS, SCADA, or MES) have acknowledged the planned outage and that any interlocked safety functions have been placed in a safe hold state.

Once the rack is de-energized, photograph or document the existing wiring at all terminal blocks, particularly on any analog signal modules where shielding and grounding arrangements are critical. The GJR5251400R0202 07DC91 itself does not require field wiring changes for a like-for-like replacement, but adjacent I/O modules with field-side terminal connections should be inspected for loose terminations or corrosion while the panel is open.

After seating the replacement CPU, restore power and allow the module to complete its self-diagnostic cycle before loading the application program. Monitor the CS31 bus status indicators to confirm that all remote I/O nodes have re-established communication. Load the archived program, verify retain variable values, and perform a controlled test cycle — activating each output channel in sequence and confirming feedback from field instruments — before returning the system to automatic mode. Total swap time for an experienced technician familiar with the AC31 platform is typically 60 to 120 minutes, excluding pre-work and documentation.

For systems where even brief interruptions are unacceptable, consider a parallel commissioning approach: configure and test the replacement CPU on a bench rack using a copy of the production program before the maintenance window, so that the field installation is limited to a physical swap and program download rather than a full commissioning sequence.

Retrofit Support FAQ

Q1: Is the GJR5251400R0202 07DC91 a direct drop-in replacement for the original ABB part?
Yes. The unit supplied by NINERMAS is functionally equivalent to the original ABB GJR5251400R0202 07DC91 and is designed for direct installation in the same AC31 rack slot. No hardware modification to the panel or backplane is required. Each unit is tested prior to shipment to confirm CPU initialization, memory integrity, and communication port function.

Q2: What pre-installation checks are required before swapping the CPU?
Verify backplane power supply output (24 VDC ±10%), back up the existing application program using 907 PC331 or Automation Builder, document all CS31 node addresses and baud rate settings, and confirm HMI communication driver compatibility. If PROFIBUS-DP is in use, retain the GSD configuration file and verify it against the replacement unit’s firmware.

Q3: What does the 12-month warranty cover?
The 12-month warranty covers functional failure of the module under normal operating conditions, including CPU processing faults, communication port failure, and backplane interface defects. It does not cover damage resulting from incorrect installation, overvoltage, or physical impact. NINERMAS provides replacement or repair at no additional cost within the warranty period.

Q4: What is the typical lead time and stock availability?
NINERMAS maintains stock of the GJR5251400R0202 07DC91 for immediate dispatch. Standard international shipping lead time is 3–7 business days depending on destination. For urgent requirements or bulk spare parts programs, contact our team directly to confirm availability and arrange priority shipment.
