ABB FI820F 3BDH000031R1 Retrofit-Compatible Gateway for Legacy Systems

ABB FI820F 3BDH000031R1 Retrofit-Compatible Gateway for Legacy Systems

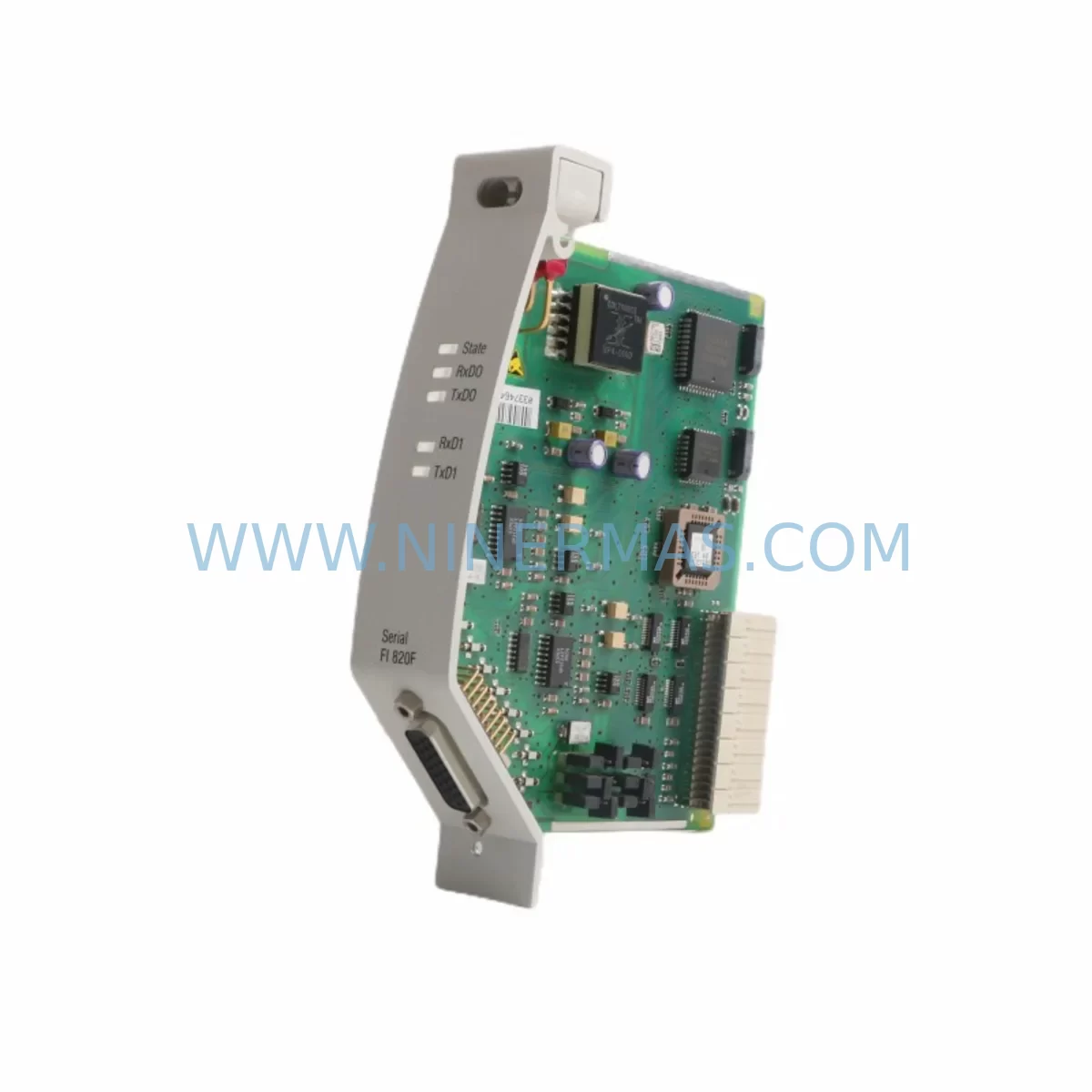

The ABB FI820F (part number 3BDH000031R1) is a fieldbus communication interface module designed for integration within the AC800F controller platform. As legacy AC800F installations reach end-of-life and original spare parts become increasingly scarce, the FI820F 3BDH000031R1 remains one of the most sought-after retrofit components for engineers tasked with sustaining, upgrading, or migrating existing automation infrastructure. Whether you are extending the operational life of a distributed control system, replacing a failed communication node, or planning a phased migration to a newer control architecture, this module provides the compatibility and reliability required for mission-critical industrial environments.

The FI820F functions as a fieldbus interface within the AC800F rack assembly, enabling communication between the controller backplane and field devices over PROFIBUS DP or other supported fieldbus protocols. In retrofit scenarios, engineers must carefully verify the backplane slot assignment, module address configuration, and fieldbus segment parameters before installation. The module’s physical form factor is compatible with standard AC800F rack units, but installation space within the control cabinet should be confirmed, particularly in densely populated panels where adjacent modules such as the PM803F processor module or CI854 PROFIBUS interface may limit clearance.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the FI820F 3BDH000031R1 into an existing AC800F system requires a structured pre-installation assessment. Begin by auditing the current rack configuration: identify all installed modules including the PM803F or PM802F processor, any CI854 or CI858 PROFIBUS communication interfaces, AI810 or AO810 analog I/O modules, and DI810 or DO810 digital I/O modules. Document the physical slot positions and the logical module addresses assigned in the Control Builder F project. Any mismatch between the hardware slot and the software address table will result in a communication fault that prevents the controller from recognizing the new module.

Power budget verification is a critical step that is frequently overlooked during retrofit planning. The AC800F backplane distributes 24 VDC power across all installed modules, and the total current draw must remain within the rated capacity of the installed power supply unit. Adding or replacing a fieldbus interface module such as the FI820F may alter the aggregate load, particularly if the existing power supply is already operating near its rated limit. Consult the rack power budget worksheet and compare the combined current draw of all modules before proceeding.

Terminal wiring adaptation is another key consideration. The FI820F connects to the fieldbus segment via a dedicated connector on the module front panel. Verify that the existing PROFIBUS cable — including shield grounding, bus termination resistors, and connector pin assignment — is compatible with the replacement module. In older installations, fieldbus cables may use non-standard connector housings or may lack proper shielding, both of which can introduce signal integrity issues after the module swap. If the installation includes an SA811F signal adapter or TB820 termination board, confirm that the wiring harness remains compatible with the new module’s connector pinout.

Before powering up the retrofitted system, restore the Control Builder F project backup to the PM803F or PM802F processor and perform a full hardware scan to confirm that the FI820F is recognized at the correct slot address. Verify that all fieldbus device addresses on the PROFIBUS segment are correctly mapped and that the GSD files for connected field devices are loaded in the project. If the system includes an 800xA or Freelance HMI, confirm that the OPC server tag list reflects the updated hardware configuration and that all process graphics display live data without alarm suppression.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern for any retrofit involving a live production system. When replacing the FI820F 3BDH000031R1 in an operational AC800F installation, the recommended approach is to perform a controlled shutdown of the affected fieldbus segment rather than a full system power-off. This preserves the program logic in the PM803F processor’s non-volatile memory and allows the remaining I/O modules and communication interfaces to continue operating on unaffected segments.

Prior to the physical module swap, export a full project backup from Control Builder F and store it on an offline engineering workstation. This backup serves as the recovery baseline if the replacement module requires firmware alignment or if the hardware scan returns unexpected configuration errors. In systems where the FI820F supports a hot-standby or redundant fieldbus configuration, coordinate the switchover sequence with the control room operator to ensure that the redundant path assumes control before the primary module is removed.

After installing the replacement FI820F 3BDH000031R1, perform a staged restart: power up the rack, allow the PM803F to complete its self-test sequence, and then initiate a controlled download of the project configuration. Monitor the fieldbus diagnostic counters in Control Builder F to confirm that all PROFIBUS devices are communicating without error. Check the 800xA or Freelance alarm summary for any residual hardware fault messages and clear them only after confirming that the underlying communication links are stable. Document the as-built configuration, including the new module serial number and firmware version, in the plant maintenance record to support future spare parts planning and warranty claims.

Retrofit Support FAQ

Q: Is the FI820F 3BDH000031R1 a direct drop-in replacement for the original ABB FI820F installed in my AC800F rack?
A: Yes, the FI820F 3BDH000031R1 is designed as a form-fit-function replacement for the original FI820F module within the AC800F platform. No mechanical modification to the rack or backplane is required. However, you should verify that the firmware version on your PM803F or PM802F processor is compatible with the replacement module before installation.

Q: What pre-shipment testing is performed on each FI820F 3BDH000031R1 unit?
A: Every unit undergoes functional verification prior to shipment, including power-on self-test, backplane communication check, and fieldbus port continuity verification. Units are supplied with a test report and are covered by a 12-month warranty from the date of shipment.

Q: Can the FI820F 3BDH000031R1 be used in a system that has already been partially migrated to a newer ABB control platform?
A: The FI820F is specific to the AC800F architecture and is not directly interchangeable with modules from the AC800M or System 800xA hardware families. In hybrid migration scenarios where AC800F racks coexist with newer hardware, the FI820F can continue to serve its original role within the legacy rack while the migration is completed in phases.

Q: What is the lead time and stock availability for the FI820F 3BDH000031R1?
A: We maintain inventory of the FI820F 3BDH000031R1 to support urgent retrofit and breakdown replacement requirements. Standard orders are processed and shipped within 1–3 business days. For large-quantity or project-based orders, please contact our sales team to confirm availability and arrange dedicated stock reservation.

—
