ABB DSQC679 3HAC028357-001 Safety-Reliable Teach Pendant

ABB DSQC679 3HAC028357-001 Safety-Reliable Teach Pendant for Critical Industrial Control

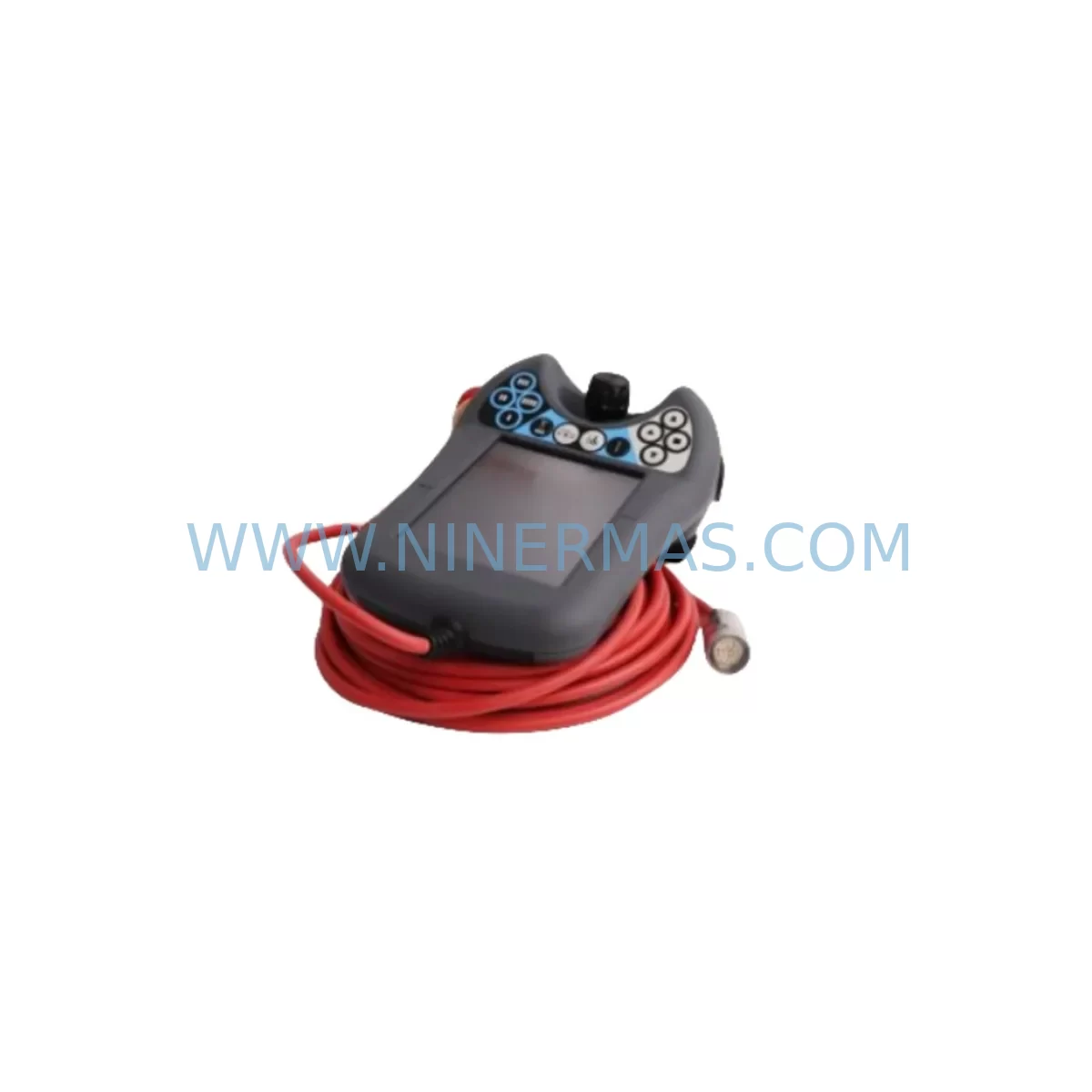

The ABB DSQC679 (3HAC028357-001) is a ruggedized teach pendant engineered for safety-critical robot programming and manual control in demanding industrial environments. Designed for use with ABB IRC5 robot controllers, this unit delivers reliable human-machine interaction in continuous production lines, hazardous process areas, and high-vibration manufacturing cells where control interruption is simply not an option.

In industries such as petrochemical processing, automotive body welding, metal casting, port logistics, and heavy-duty palletizing, the teach pendant serves as the primary interface between the operator and the robot system. Any failure at this interface — whether from electromagnetic interference, mechanical shock, moisture ingress, or connector degradation — can trigger unplanned downtime, safety interlocks, or worse, uncontrolled robot motion. The DSQC679 is built to eliminate these risks through its ruggedized housing, sealed keypad, and robust communication architecture.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In a well-engineered robot control cabinet, the DSQC679 teach pendant does not operate in isolation — it is one node in a tightly integrated safety and control architecture. The IRC5 controller’s main computer board, typically the ABB DSQC1000 or DSQC639 axis computer, processes all motion commands issued through the pendant. Any signal degradation between the pendant and the controller — caused by a damaged cable, a faulty M12 connector, or EMI from adjacent variable frequency drives — can result in motion errors or safety circuit trips.

To protect the integrity of the control loop, the DSQC679 is paired with a robust power supply unit such as the ABB DSQC661 or DSQC662, which conditions incoming 24VDC and shields sensitive logic circuits from voltage spikes and surge events common in heavy industrial environments. In facilities running multiple robot cells, the ABB DSQC688 fieldbus adapter or DSQC378B DeviceNet board is often installed to maintain deterministic communication between the IRC5 and plant-level SCADA or PLC systems — ensuring that pendant-issued commands are synchronized with the broader production control network.

For safety circuit integrity, the teach pendant’s dual-channel E-Stop output feeds directly into the IRC5 safety board — often the ABB DSQC400 or DSQC643 — which monitors all safety inputs including door interlocks, light curtains, and area scanners. A failure in any of these channels triggers a controlled stop (Category 0 or Category 1 per IEC 60204-1), preventing uncontrolled robot motion. The 3-position enabling device on the DSQC679 further enforces safe manual operation: releasing or fully pressing the enabling switch immediately removes drive power from the robot axes, a critical safeguard during programming and maintenance tasks.

In high-EMI environments — such as welding cells where the ABB DSQC406 weld controller or third-party welding power sources generate significant electromagnetic noise — the shielded pendant cable and the IRC5’s internal EMC filtering work together to prevent signal drift and communication timeouts. Facilities that have experienced intermittent pendant disconnections in welding environments often resolve the issue by replacing the pendant cable assembly alongside the DSQC679 unit, ensuring the entire signal path is restored to factory specification.

For preventive maintenance programs, stocking a spare DSQC679 alongside critical IRC5 components such as the ABB DSQC609 power supply unit and the DSQC679 cable harness ensures that any pendant failure can be resolved within minutes rather than hours, keeping mean time to repair (MTTR) at an absolute minimum and protecting production throughput.

Critical Industrial Safety Applications

Petrochemical and Refinery Automation: In ATEX-adjacent robot cells used for drum handling, valve actuation, and hazardous material transfer, the DSQC679 provides the operator with a safe, remote interface to jog and program robot positions without entering the hazard zone. Its IP54 rating and sealed keypad resist the chemical vapors and humidity common in refinery environments.

Electric Power and Substation Construction: Robots used in transformer assembly, busbar bending, and cable routing require precise manual teaching of complex spatial paths. The DSQC679’s high-resolution touchscreen and responsive joystick allow technicians to define intricate motion sequences with millimeter-level accuracy, reducing the risk of insulation damage or short-circuit events during assembly.

Mining and Mineral Processing: In underground or surface mining operations where robots handle ore sampling, explosive loading, or conveyor maintenance, the ruggedized housing of the DSQC679 withstands the dust, vibration, and mechanical shock inherent to these environments. Its reliable E-Stop circuit ensures that robot motion can be halted instantly if personnel enter the work envelope.

Water and Wastewater Treatment: Robots deployed for pipe inspection, chemical dosing, and sludge handling operate in high-humidity, corrosive atmospheres. The DSQC679’s sealed construction prevents moisture ingress that could cause touchscreen failure or keypad short circuits, maintaining reliable operator control throughout the facility’s continuous operation cycle.

Metallurgy and Foundry Operations: In die casting, forging, and heat treatment cells, robots operate near furnaces and molten metal — environments characterized by extreme radiant heat, metal splash, and heavy vibration. The DSQC679’s thermal tolerance and shock-resistant housing allow operators to safely program and adjust robot trajectories even in close proximity to these hazards.

Port and Logistics Automation: Automated container handling and palletizing systems in port terminals require frequent robot reprogramming as cargo configurations change. The DSQC679 enables rapid, safe reprogramming of pick-and-place sequences, reducing changeover time and maintaining throughput targets in 24/7 logistics operations.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the DSQC679?
The 12-month warranty covers all manufacturing defects, functional failures, and component-level faults identified under normal operating conditions. If the unit fails to communicate with the IRC5 controller, exhibits touchscreen unresponsiveness, or shows E-Stop circuit faults within the warranty period, NINERMAS will arrange replacement or repair at no additional cost. The warranty period begins from the date of shipment.

Q2: What pre-shipment testing is performed on each DSQC679 unit?
Every DSQC679 unit undergoes functional verification prior to dispatch, including power-on self-test, touchscreen calibration check, keypad response verification, E-Stop circuit continuity test, and communication interface validation. Units that do not pass all test criteria are quarantined and not shipped. A test record is available upon request for quality-critical procurement processes.

Q3: Is the DSQC679 compatible with all IRC5 controller variants?
The DSQC679 (3HAC028357-001) is compatible with the full IRC5 family, including the IRC5 Single Cabinet, IRC5 Dual Cabinet, IRC5 Compact, and IRC5 Panel Mounted Controller. It is not forward-compatible with the OmniCore controller platform, which uses a different pendant architecture. If you are unsure of your controller variant, please provide the controller serial number and NINERMAS will confirm compatibility before shipment.

Q4: Can NINERMAS support long-term or repeat supply of the DSQC679?
Yes. NINERMAS maintains standing inventory of the DSQC679 and other critical IRC5 spare parts to support ongoing maintenance programs, planned shutdowns, and emergency replacement requirements. For customers operating multiple robot cells or managing a fleet of IRC5 controllers, we recommend establishing a blanket order or preferred supplier agreement to guarantee priority allocation and consistent lead times. Contact sale@ninermas.com to discuss volume pricing and supply continuity arrangements.
