ABB DSQC400E 3HAC058424-001 Spare Part for Industrial Maintenance

ABB DSQC400E 3HAC058424-001 Spare Part for Industrial Maintenance

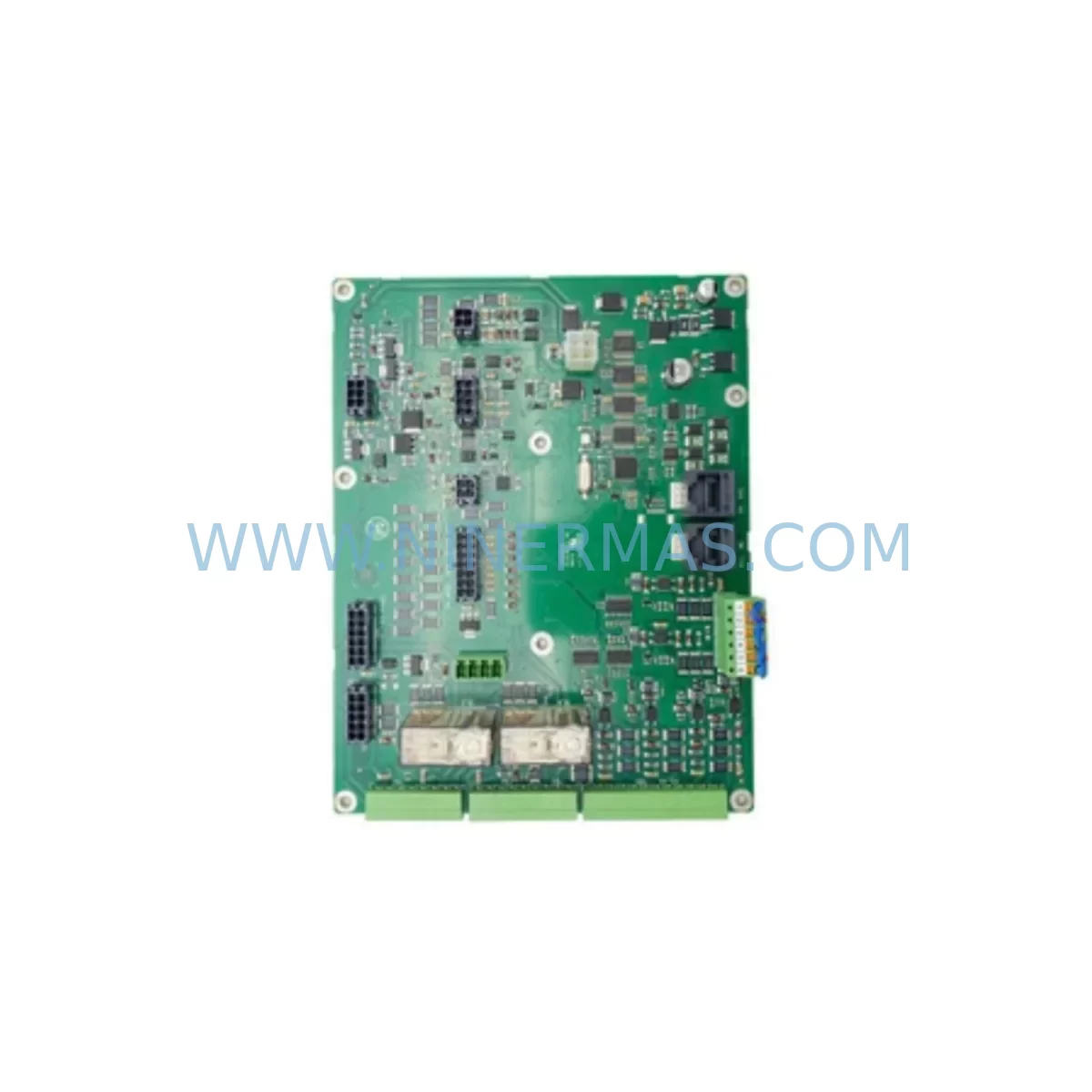

The ABB DSQC400E (part number 3HAC058424-001) is an original safety board designed for ABB IRC5 robot controller cabinets. As a critical safety-chain component, this module governs emergency stop circuits, safeguard monitoring, and enabling device logic within the IRC5 control architecture. When this board fails or degrades, the entire robot cell is rendered inoperable — making rapid, like-for-like replacement with a verified original spare the only path to restoring production continuity.

At NINERMAS, every DSQC400E 3HAC058424-001 unit is sourced from authorized supply channels, individually bench-tested against ABB electrical specifications, and shipped with full documentation. Our 12-month warranty covers functional defects under normal industrial operating conditions, giving maintenance engineers and procurement teams the confidence to stock this part as a critical line-down spare.

Whether you are managing a single IRC5 M2004 cabinet or a multi-robot production cell running IRC5 Compact or IRC5 Panel Mounted Controller variants, the DSQC400E is a non-negotiable safety-chain element. Procurement teams sourcing for annual maintenance budgets or emergency replacement scenarios will find our stock levels, lead times, and export documentation aligned with industrial procurement standards.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A safety board failure in an IRC5 cabinet rarely occurs in isolation. Maintenance engineers conducting root-cause analysis after a DSQC400E fault should systematically inspect the surrounding electrical environment before commissioning the replacement board. The IRC5 internal 24 VDC power supply module — typically a DSQC661 or DSQC662 — should be load-tested to confirm it is delivering stable voltage to the safety chain; an under-voltage condition is a common upstream cause of safety board faults.

The axis computer board (DSQC668 or DSQC679, depending on IRC5 generation) shares the same backplane and should be inspected for fault logs via RobotStudio or the FlexPendant teach pendant before the cabinet is returned to AUTO mode. If the emergency stop circuit was involved in the fault event, the external E-stop relay module and all associated wiring terminals on the X1 and X2 connector blocks of the safety board should be continuity-checked and re-torqued to specification.

For cells running DeviceNet or PROFIBUS fieldbus communication, the DSQC378B or DSQC352A communication board should be verified for active fault codes, as safety-chain interruptions can cascade into fieldbus timeout errors that persist after the safety board is replaced. Similarly, if the robot cell uses a DSQC643 I/O module for digital safety signals, its input channel status should be confirmed in the controller’s I/O configuration before sign-off.

Annual maintenance schedules for IRC5 cabinets should include inspection of the DSQC400E alongside the main computer fan assembly, the drive unit cooling fans, and the capacitor bank on the rectifier unit. Thermal stress is the primary aging mechanism for safety electronics in enclosed cabinets, and proactive replacement of the DSQC400E at the 8–10 year mark — or at the first sign of intermittent E-stop faults — is strongly recommended for high-utilization robot cells. Stocking a spare DSQC400E 3HAC058424-001 alongside a DSQC661 power supply and a set of FlexPendant interface cables ensures that the most common IRC5 line-down scenarios can be resolved within a single maintenance shift.

Site Replacement Workflow

Step 1 — Isolation: Place the IRC5 cabinet in MANUAL mode and engage the main isolator. Confirm zero-energy state using a calibrated voltage tester on the 24 VDC bus before opening the cabinet door.

Step 2 — Fault Documentation: Record all active and historical fault codes from the FlexPendant event log. Photograph the existing DSQC400E connector positions and cable routing before disconnection.

Step 3 — Board Removal: Disconnect the X1, X2, and X3 safety connectors in sequence. Release the DIN-rail locking tab and slide the board clear of the backplane. Handle by edges only — ESD precautions apply.

Step 4 — Replacement Installation: Seat the new DSQC400E 3HAC058424-001 onto the backplane, engage the DIN-rail lock, and reconnect all safety connectors in reverse order. Verify connector seating and torque terminal screws to 0.5 Nm.

Step 5 — System Verification: Power up the cabinet and allow the IRC5 to complete its boot sequence. Confirm no safety-chain fault codes are present. Perform a full E-stop function test from all external E-stop devices before returning the cell to AUTO mode.

Step 6 — Documentation: Update the maintenance log with the replaced part number, serial number, date, and technician ID. Retain the NINERMAS test report and warranty certificate with the equipment file.

This workflow is compatible with ABB IRC5 M2004 and later generations. For IRC5 Compact installations, verify cabinet layout against the relevant ABB product manual before proceeding. Replacing the DSQC400E with an original 3HAC058424-001 spare — rather than a non-OEM substitute — ensures that the safety-rated circuit integrity required by IEC 62061 and ISO 13849 is maintained without requiring a full safety re-validation.

Spare Parts Support FAQ

Q1: Is the DSQC400E 3HAC058424-001 compatible with all IRC5 controller variants?
The DSQC400E is designed for the ABB IRC5 M2004 platform, including the standard cabinet, IRC5 Compact, and IRC5 Panel Mounted Controller. Compatibility with specific software versions (RobotWare 5.x / 6.x) should be confirmed against the controller’s installed RobotWare revision. Contact our technical team with your controller serial number for pre-order compatibility verification.

Q2: What testing is performed before shipment?
Every DSQC400E 3HAC058424-001 unit dispatched by NINERMAS undergoes functional bench testing against ABB electrical parameters, including safety I/O channel verification and supply voltage tolerance checks. A test report is available upon request and accompanies all orders where the customer requires it for incoming inspection records.

Q3: What does the 12-month warranty cover?
The 12-month warranty covers functional failure of the DSQC400E under normal industrial operating conditions — defined as operation within the specified voltage, temperature, and environmental ratings. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. Warranty claims are processed with return of the defective unit and submission of the original purchase documentation.

Q4: Can NINERMAS support long-term or repeat procurement of this part?
Yes. NINERMAS maintains ongoing sourcing relationships for ABB IRC5 spare parts, including the DSQC400E 3HAC058424-001, to support customers managing aging robot fleets where OEM supply has been discontinued or lead times are extended. We recommend that facilities operating more than three IRC5 cabinets maintain at least one DSQC400E as a critical on-site spare. Contact our procurement team to discuss blanket order arrangements, consignment stock options, or multi-unit pricing.
