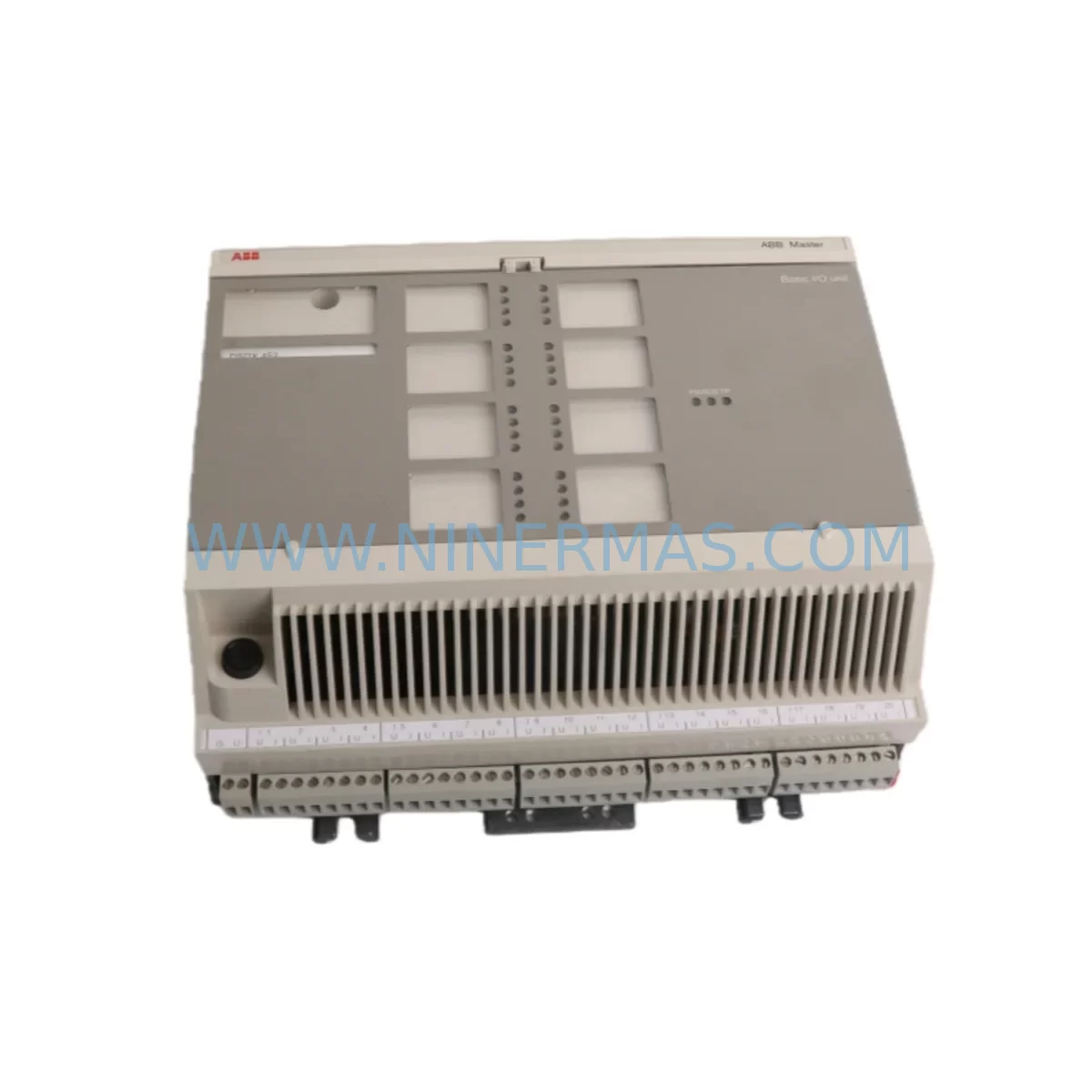

ABB DSDX452 5716075-P Retrofit-Compatible Safety I/O Module

ABB DSDX452 5716075-P Retrofit-Compatible Safety I/O Module: Legacy System Compatibility & Smooth Upgrade

The ABB DSDX452 5716075-P is a ruggedized safety digital I/O module originally designed for ABB’s Advant Controller and MOD 300 distributed control system platforms. As these platforms approach or have passed end-of-life, the DSDX452 5716075-P has become a critical retrofit and replacement component for industrial facilities operating legacy control architectures in power generation, oil & gas, chemical processing, and heavy manufacturing environments. NINERMAS maintains verified in-stock inventory of the DSDX452 5716075-P to support emergency replacements, planned shutdowns, and long-term spare parts lifecycle programs — all backed by a 12-month warranty.

When integrating the DSDX452 5716075-P into an existing or upgraded control cabinet, engineers must confirm several key parameters before installation. Power supply capacity is the first checkpoint: the module draws from the 24 VDC backplane rail, and the existing DSPU or DSTA power supply units must have sufficient headroom to support the additional I/O load without triggering undervoltage faults. Terminal wiring compatibility is equally critical — field wiring connected to the legacy module must be verified against the DSDX452 terminal block pinout to avoid signal inversion or ground loop issues during hot-swap or cold-swap replacement procedures.

Backplane interface alignment is another essential step. The DSDX452 5716075-P is designed for the S100 I/O bus backplane used across the Advant and MOD 300 families. If the target rack uses a different backplane revision or a third-party compatible rack, slot keying and bus connector alignment must be physically verified before seating the module. Module addressing — configured via DIP switches or rotary encoders on the module face — must match the address map defined in the original system configuration to avoid address conflicts with adjacent DSDI, DSDO, or DSAX modules sharing the same rack.

Program compatibility is a frequent concern during retrofit projects. The DSDX452 5716075-P retains the same I/O signal mapping as its predecessor modules in the DSDX series, which means existing application logic in the AC 450 or AC 410 controller does not require modification in most direct replacement scenarios. However, if the retrofit involves migrating from an older DSDX400-series module to the DSDX452, engineers should audit the function block library version in the programming environment to confirm that the I/O driver blocks reference the correct module type identifier.

HMI screen updates are often overlooked during I/O module replacements. If the facility uses ABB Operate IT or a third-party SCADA system with hardcoded tag references tied to the original module’s channel assignments, those tag bindings must be reviewed and updated to reflect any channel remapping introduced during the retrofit. Communication link integrity between the I/O station and the controller node — typically over the MasterBus 300 or PROFIBUS DP network — should be verified using the system’s diagnostic tools before returning the loop to automatic control.

Installation space confirmation is mandatory in dense control cabinet environments. The DSDX452 5716075-P occupies a standard single-width slot in the S100 rack. If the retrofit involves replacing a double-width legacy module or consolidating multiple older I/O cards into a single DSDX452, rack space planning and cable management must be addressed during the shutdown window to avoid extending downtime. Field commissioning typically includes a channel-by-channel I/O loop check, force test of each digital output, and verification of safety interlock response times before the system is released for production.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful DSDX452 5716075-P retrofit begins with a complete audit of the existing I/O station. In a typical Advant or MOD 300 control cabinet, the DSDX452 shares rack space with a range of companion modules: DSDI110 and DSDI115 digital input modules handle field contact signals, while DSDO110 digital output modules drive actuators and solenoid valves. Analog signal conditioning is typically handled by DSAX110 or DSAX130 analog I/O modules mounted in adjacent slots. The DSTA150 or DSTA131 power supply module provides the 24 VDC rail that feeds the entire rack — its capacity must be confirmed before adding or replacing any I/O module.

Communication between the I/O rack and the controller is routed through the DSMB or DSMC MasterBus 300 communication module, which must remain operational throughout the retrofit to avoid losing supervisory control of other I/O points in the same station. If the retrofit scope includes a protocol migration — for example, moving from MasterBus 300 to PROFIBUS DP or Modbus TCP — a DSCB or third-party protocol gateway module must be introduced into the rack architecture, and the controller’s communication configuration must be updated accordingly.

For facilities upgrading from legacy AC 410 controllers to modern AC 800M or AC 800PEC platforms, the DSDX452 5716075-P can serve as a bridging I/O module during the transition period, maintaining field wiring continuity while the new controller platform is commissioned in parallel. The DSPC452 or DSPC454 processor module in the existing rack may also require a firmware update to recognize the DSDX452’s module type identifier if the original firmware predates the module’s release. Programming cables such as the DSPB110 or a compatible USB-to-serial adapter are required for on-site firmware updates and configuration downloads.

Where I/O expansion is part of the retrofit scope, additional S100 racks can be daisy-chained via the MasterBus 300 trunk, allowing the DSDX452 to coexist with new-generation I/O modules without requiring a full system replacement. Signal isolators — particularly for thermocouple or 4–20 mA loops feeding into the DSAX analog modules — should be inspected and replaced if they show signs of drift, as degraded isolation can introduce noise into the digital I/O channels of the DSDX452 during high-load switching events.

Downtime Control During System Migration

Minimizing downtime during a DSDX452 5716075-P replacement requires a structured pre-shutdown preparation protocol. Before the maintenance window opens, the existing module’s I/O channel states should be captured and documented — either through the engineering workstation’s online diagnostic view or by manually recording field signal states. This snapshot serves as the baseline for post-replacement verification and ensures that any discrepancy in channel behavior after the swap is immediately identifiable.

The original application program logic should be backed up to a secure offline location before any hardware change is made. In AC 450 and MOD 300 environments, this means exporting the current controller configuration and function block program from the programming environment and storing it on an isolated engineering laptop or network share. If the DSDX452 replacement is part of a broader controller migration, the legacy program should be preserved in its original format even after the new platform is commissioned, as it serves as the reference for I/O mapping validation.

During the physical swap, field wiring should be labeled and photographed before disconnection. The DSDX452 5716075-P’s terminal block accepts the same wire gauge and termination style as the predecessor modules in the DSDX series, which eliminates the need for wiring harness modifications in most direct replacement scenarios. After seating the new module and restoring power, the controller’s I/O diagnostic page should confirm that the module is recognized at the correct address before any field signals are re-enabled.

Post-replacement commissioning should follow a structured loop-check sequence: digital inputs are verified by actuating field devices and confirming state changes in the controller’s I/O table; digital outputs are force-tested in a safe state to confirm actuator response. Safety interlock response times must be measured and compared against the original baseline to confirm that the replacement module meets the system’s safety integrity requirements. Once all channels are verified, the system can be returned to automatic control and the maintenance record updated with the module serial number, installation date, and test results.

Retrofit Support FAQ

Q1: Is the DSDX452 5716075-P a direct drop-in replacement for DSDX400-series modules?
In most cases, yes. The DSDX452 uses the same S100 backplane interface and terminal block layout as the DSDX400 series. Address configuration via DIP switch must be set to match the original module’s address before installation. If the original module used a non-standard address map, the system configuration file should be consulted before setting the replacement module’s address switches.

Q2: What commissioning steps are required after installing the DSDX452 5716075-P?
After physical installation, confirm module recognition in the controller’s I/O diagnostic view, perform a channel-by-channel loop check for all digital inputs and outputs, force-test each output channel in a safe state, and verify safety interlock response times. Communication link status on the MasterBus 300 or PROFIBUS DP segment should also be confirmed before returning the system to automatic control.

Q3: Does NINERMAS provide pre-shipment testing for the DSDX452 5716075-P?
Yes. All DSDX452 5716075-P units shipped by NINERMAS undergo functional verification testing prior to dispatch. Each unit is inspected for physical integrity, backplane connector condition, and basic I/O channel functionality. A 12-month warranty is included with every unit, covering manufacturing defects and functional failures under normal operating conditions.

Q4: What is the typical lead time and inventory availability for the DSDX452 5716075-P?
NINERMAS maintains in-stock inventory of the DSDX452 5716075-P to support both emergency replacement and planned maintenance programs. Standard orders are processed and dispatched within 1–3 business days. For bulk procurement or long-term spare parts supply agreements covering 12-month or multi-year horizons, contact the NINERMAS sales team directly to discuss pricing, reservation, and delivery scheduling.
