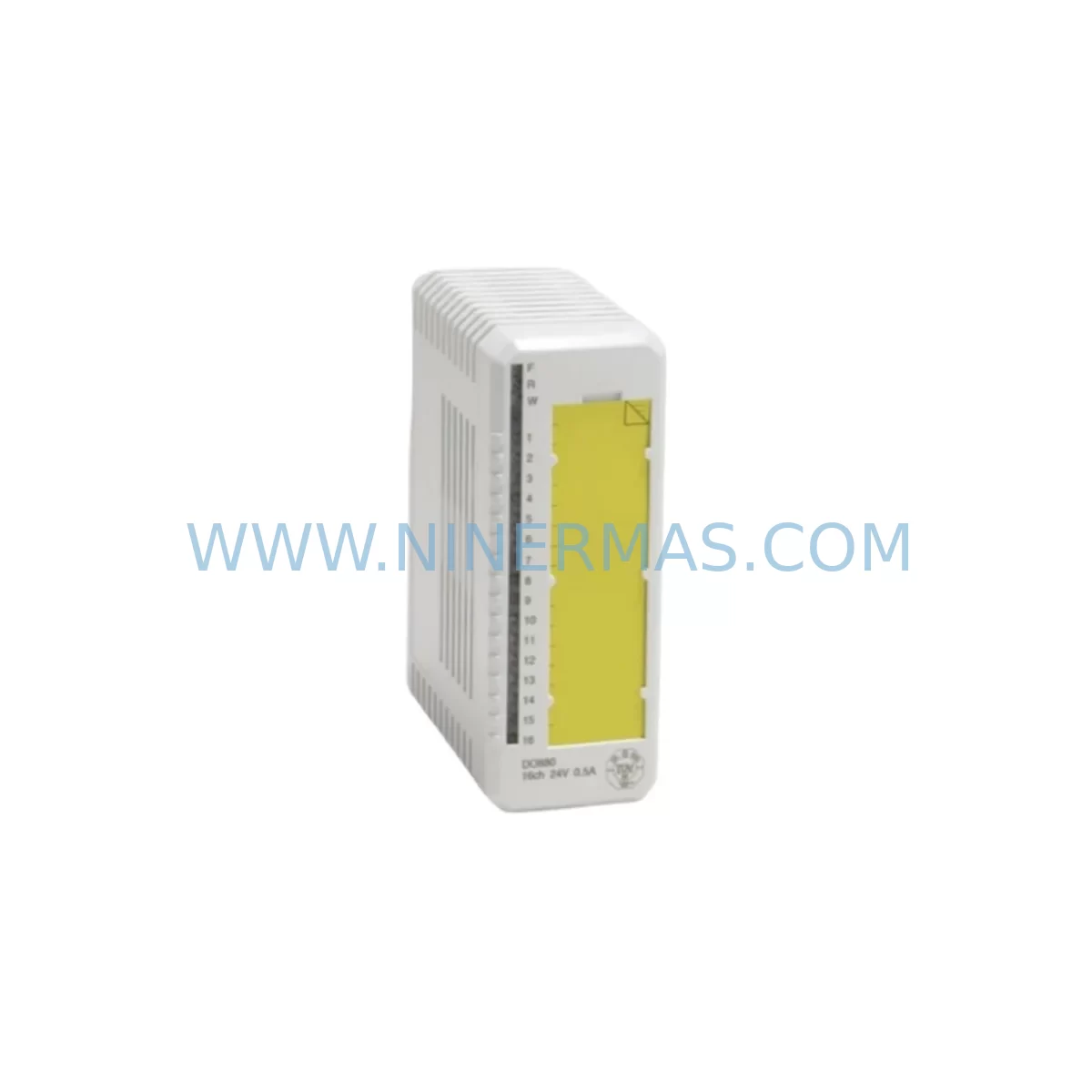

ABB DO880-2 3BSE028603R1 Safety-Reliable Digital Output Module

ABB DO880-2 3BSE028603R1 Safety-Reliable Digital Output Module for Critical Control Sites

The ABB DO880-2 (Part No. 3BSE028603R1) is a high-reliability digital output module engineered for the ABB S800 I/O series, widely deployed in distributed control systems (DCS) across petrochemical, power generation, mining, water treatment, metallurgy, port logistics, and continuous manufacturing facilities. Designed to operate within ABB’s AC800M controller architecture, this module delivers deterministic, fault-tolerant digital output switching that is critical for maintaining safe and uninterrupted process control in demanding industrial environments.

In critical control cabinets where uptime is non-negotiable, the DO880-2 3BSE028603R1 provides stable 24 VDC digital output channels capable of driving solenoid valves, motor starters, relay coils, and safety interlock actuators. Its robust signal integrity under high electromagnetic interference (EMI) conditions — common in heavy-load switchgear rooms, variable frequency drive (VFD) enclosures, and high-voltage substations — makes it a preferred choice for engineers managing safety instrumented systems (SIS) and emergency shutdown (ESD) loops.

Every unit supplied by NINERMAS undergoes pre-shipment functional testing to verify channel-by-channel output switching, load current capacity, and communication handshake with the S800 I/O bus coupler. This ensures that replacement modules arrive site-ready, minimizing commissioning time and reducing the risk of control interruption during planned or emergency maintenance windows.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In a well-engineered safety control cabinet, the DO880-2 3BSE028603R1 does not operate in isolation. Its reliable performance depends on — and contributes to — a coordinated ecosystem of protective and communicative components. When integrated with the ABB TB820V2 ModuleBus Optical Port and the ABB CI854A PROFIBUS DP Interface Module, the DO880-2 benefits from galvanically isolated, noise-immune communication paths that prevent signal corruption in environments with heavy motor loads or arc flash events.

On the power supply side, pairing the DO880-2 with a redundant ABB SD821 or SD822 Power Supply Unit ensures that output channel voltage remains stable even during grid fluctuations or momentary brownouts — a common cause of spurious output trips in process plants. For applications requiring safety-rated output switching, the DO880-2 is frequently deployed alongside the ABB DI810 Digital Input Module and ABB AI810 Analog Input Module to form a complete I/O cluster that monitors and actuates safety interlock sequences without introducing latency or signal drift.

In high-vibration environments such as compressor stations or offshore platforms, the ABB TU810V1 Termination Unit provides a mechanically stable field wiring interface that absorbs connector stress and prevents intermittent contact failures — a leading cause of unplanned output channel faults. Similarly, the ABB DO810 Digital Output Module serves as a compatible parallel unit in expanded I/O racks, allowing engineers to distribute output load across multiple modules and avoid single-point-of-failure scenarios in critical actuator circuits.

For facilities managing hazardous area control panels, the DO880-2 is often specified alongside ABB AI820 HART Analog Input Modules and Zener barrier or galvanic isolator assemblies to maintain intrinsic safety compliance while preserving full digital output functionality. This layered approach to cabinet design — combining the DO880-2 with complementary S800 I/O modules, redundant power, and isolated communication interfaces — forms the backbone of a risk-reduction strategy that addresses surge, EMI, vibration, moisture ingress, and communication anomaly simultaneously.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: The DO880-2 3BSE028603R1 is widely used to drive emergency shutdown (ESD) solenoid valves, blowdown actuators, and burner management system (BMS) outputs in refinery DCS architectures. Its per-channel short-circuit protection prevents a single field wiring fault from cascading into a full module failure — a critical safety requirement in ATEX-classified zones.

Power Generation & Substation Control: In coal-fired, gas turbine, and hydroelectric power plants, the DO880-2 controls turbine trip relays, excitation system outputs, and auxiliary equipment start/stop commands. Its compatibility with the AC800M controller platform ensures seamless integration into existing ABB Symphony Plus or 800xA SCADA environments without requiring hardware redesign.

Mining & Mineral Processing: Conveyor belt interlocks, crusher motor starters, and ventilation fan controls in underground and open-pit mining operations rely on digital output modules that can withstand dust, humidity, and mechanical vibration. The DO880-2’s IEC 60068-2-6 vibration compliance and wide operating temperature range make it suitable for surface and underground control rooms alike.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities use the DO880-2 to control pump station outputs, chemical dosing actuators, and UV disinfection system relays. Its stable 24 VDC output under varying load conditions ensures consistent actuator response even in facilities with aging electrical infrastructure.

Metallurgy & Steel Production: In electric arc furnace (EAF) and continuous casting control systems, the DO880-2 manages cooling water valve outputs, ladle transfer commands, and rolling mill interlock signals. The module’s EMI tolerance is particularly valuable in steelworks environments where high-current bus bars and induction heating equipment generate significant electromagnetic noise.

Port Logistics & Ship-to-Shore Cranes: Port automation systems and ship-to-shore (STS) crane control panels use the DO880-2 to manage hoist brake release outputs, spreader locking commands, and anti-collision interlock signals. Its compact S800 form factor allows dense I/O packing in space-constrained crane control cabinets.

Safety and Quality FAQ

Q1: Does the DO880-2 3BSE028603R1 come with a warranty?
Yes. Every DO880-2 3BSE028603R1 unit supplied by NINERMAS carries a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Warranty support includes technical consultation, failure analysis, and replacement coordination to minimize site downtime.

Q2: What pre-shipment testing is performed on each unit?
Each module undergoes channel-by-channel output switching verification, bus communication handshake testing with an S800 I/O coupler, load current measurement, and visual inspection for connector integrity and PCB condition. Units that do not meet ABB’s original functional specifications are quarantined and not shipped.

Q3: Is the DO880-2 3BSE028603R1 compatible with my existing AC800M system?
The DO880-2 is designed for the ABB S800 I/O ModuleBus and is compatible with AC800M and AC800F controller platforms running ABB 800xA or Symphony Plus. It is a direct form-fit-function replacement for existing DO880-2 installations and does not require firmware changes or hardware reconfiguration in standard deployments.

Q4: Can NINERMAS support long-term spare parts supply for the DO880-2?
Yes. NINERMAS maintains standing inventory of the DO880-2 3BSE028603R1 and related S800 I/O modules to support lifecycle extension programs for plants operating legacy ABB DCS platforms. Long-term supply agreements and priority allocation for critical spare parts are available upon request.
