ABB DO820 3BSE008514R1 Retrofit-Compatible Digital Output

ABB DO820 3BSE008514R1 Retrofit-Compatible Digital Output Module for Legacy S800 I/O Systems

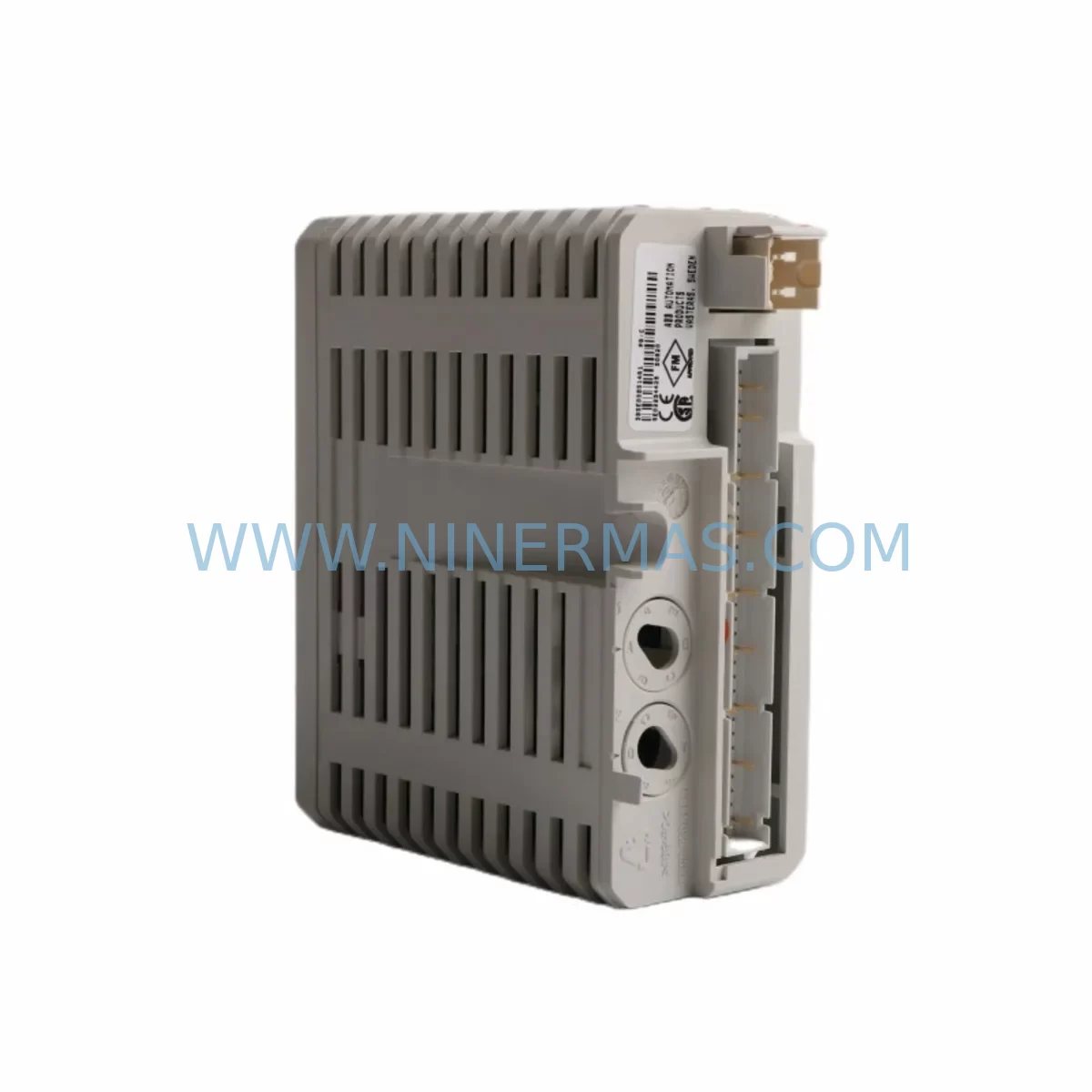

The ABB DO820 (part number 3BSE008514R1) is a 16-channel digital output module designed for the ABB S800 I/O platform, widely deployed in process automation, power generation, oil & gas, and chemical plant environments. As ABB continues to evolve its control architecture, many facilities running legacy AC800M controllers and S800 I/O racks are now facing the challenge of sourcing discontinued spare parts or planning a structured migration to newer platforms. The DO820 3BSE008514R1 remains a critical component in these retrofit and upgrade projects, offering a direct drop-in replacement path for aging digital output infrastructure without requiring full system redesign.

Whether your facility is replacing a failed output module on an emergency basis, executing a planned control cabinet upgrade, or migrating from an older Advant OCS or MOD 300 architecture to the AC800M platform, the DO820 provides the output density, signal compatibility, and backplane interface required to maintain operational continuity. Each unit supplied by NINERMAS undergoes pre-shipment functional testing and is backed by a 12-month warranty, ensuring confidence in both quality and availability.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the DO820 3BSE008514R1 into an existing control system begins well before the module arrives on site. Engineers responsible for retrofit planning should start by auditing the current S800 I/O rack configuration, confirming the number of occupied slots, the type of terminal units installed (TU830 or TU831), and the current load on the SD821 or SD822 power supply modules. In many aging installations, the power supply is already operating near its rated capacity, and adding or replacing output modules without a load calculation can introduce instability into the entire I/O bus segment.

The DO820 communicates with the AC800M controller via the S800 ModuleBus, which is managed through a CI830 or CI840 communication interface module mounted in the S800 I/O rack. Before swapping the output module, confirm that the communication interface firmware is current and that the ModuleBus optical or electrical link is functioning correctly. A degraded CI840 link can cause the replacement DO820 to appear offline even when the module itself is fully operational, leading to unnecessary troubleshooting delays during a planned maintenance window.

For facilities migrating from older Advant OCS or MOD 300 platforms, the DO820 is frequently part of a broader I/O migration strategy that also involves replacing analog input modules such as the AI810 or AI820, digital input modules like the DI810 or DI820, and updating the controller hardware from older MP200 or PM150 processor modules to the current AC800M PM860 or PM866 series. In these multi-phase migrations, the DO820 is typically installed in the final phase, after the controller, communication interfaces, and analog I/O have been validated, ensuring that the digital output signals to field devices — valves, motor starters, solenoids — are only activated once the control logic has been fully verified in the new environment.

Terminal wiring is another critical checkpoint. The DO820 uses the TU830 or TU831 terminal unit for field connections, and in most legacy installations these terminal units remain in place during a module swap, preserving the existing field wiring. However, engineers should inspect terminal blocks for corrosion, loose connections, or insulation degradation, particularly in installations that have been in service for more than ten years. A clean terminal unit ensures reliable signal transmission and reduces the risk of nuisance trips after the new module is commissioned.

Module address configuration is handled automatically by the S800 I/O system based on the physical slot position in the rack, but the Control Builder M project must reflect the correct module type and channel assignments. Before going live, download the updated project to the AC800M controller and perform a channel-by-channel verification against the field device list. For HMI systems connected via OPC or ABB’s own 800xA platform, confirm that the DO820 channel tags are correctly mapped to the HMI graphics and alarm pages, so operators have accurate visibility of output states from the first moment the system is returned to service.

Downtime Control During System Migration

Minimizing downtime during a DO820 replacement or S800 I/O retrofit requires a structured approach that protects the existing control logic, maintains field device safety states, and allows for rapid rollback if unexpected issues arise. The first step is to place the affected control loop in manual mode at the DCS level, ensuring that field devices connected to the DO820 outputs are held in their last known safe state before the module is physically removed. For critical outputs — such as emergency shutdown solenoids or motor starter contactors — coordinate with the operations team to confirm that manual overrides or bypass switches are in place before beginning the swap.

The DO820 hot-swap capability within the S800 I/O architecture allows the module to be replaced without powering down the entire rack, significantly reducing the impact on adjacent I/O channels that remain in service. Once the new module is seated and the terminal unit is reconnected, the AC800M controller will automatically detect the module and restore communication within seconds. At this point, perform a forced output test on each channel to confirm that field devices respond correctly before returning the loop to automatic control.

For larger migration projects involving multiple racks, a phased approach — replacing one rack segment at a time while keeping the remainder of the system in automatic — is strongly recommended. This strategy, combined with pre-tested spare modules and a validated Control Builder M project backup, allows engineering teams to complete a full S800 I/O refresh with minimal production impact. NINERMAS maintains ready stock of the DO820 3BSE008514R1 and related S800 I/O components, enabling rapid dispatch to support both emergency replacements and scheduled maintenance outages.

Retrofit Support FAQ

Q: Is the DO820 3BSE008514R1 a direct replacement for an existing DO820 in my S800 I/O rack?
A: Yes. The DO820 3BSE008514R1 is a like-for-like replacement for any DO820 module installed in an S800 I/O rack. The existing TU830 or TU831 terminal unit and field wiring remain unchanged. The AC800M controller will automatically recognize the new module in the same slot position without requiring any project modification.

Q: What pre-shipment testing does NINERMAS perform on the DO820 3BSE008514R1?
A: Every DO820 unit is functionally tested prior to shipment, including power-up verification, output channel activation testing, and ModuleBus communication checks. Units are supplied with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions.

Q: Can the DO820 be used with both optical and electrical ModuleBus configurations?
A: The DO820 3BSE008514R1 supports the standard S800 I/O ModuleBus interface. Compatibility with optical (CI830) or electrical (CI840) communication interfaces depends on the rack and communication module configuration. Confirm your existing CI module type before ordering to ensure seamless integration.

Q: How quickly can NINERMAS supply the DO820 3BSE008514R1 for an emergency replacement?
A: NINERMAS maintains inventory of the DO820 3BSE008514R1 and can arrange expedited shipping for emergency requirements. Contact our team at sale@ninermas.com or +0086 187 5021 5667 to confirm current stock availability and lead time for your location.
