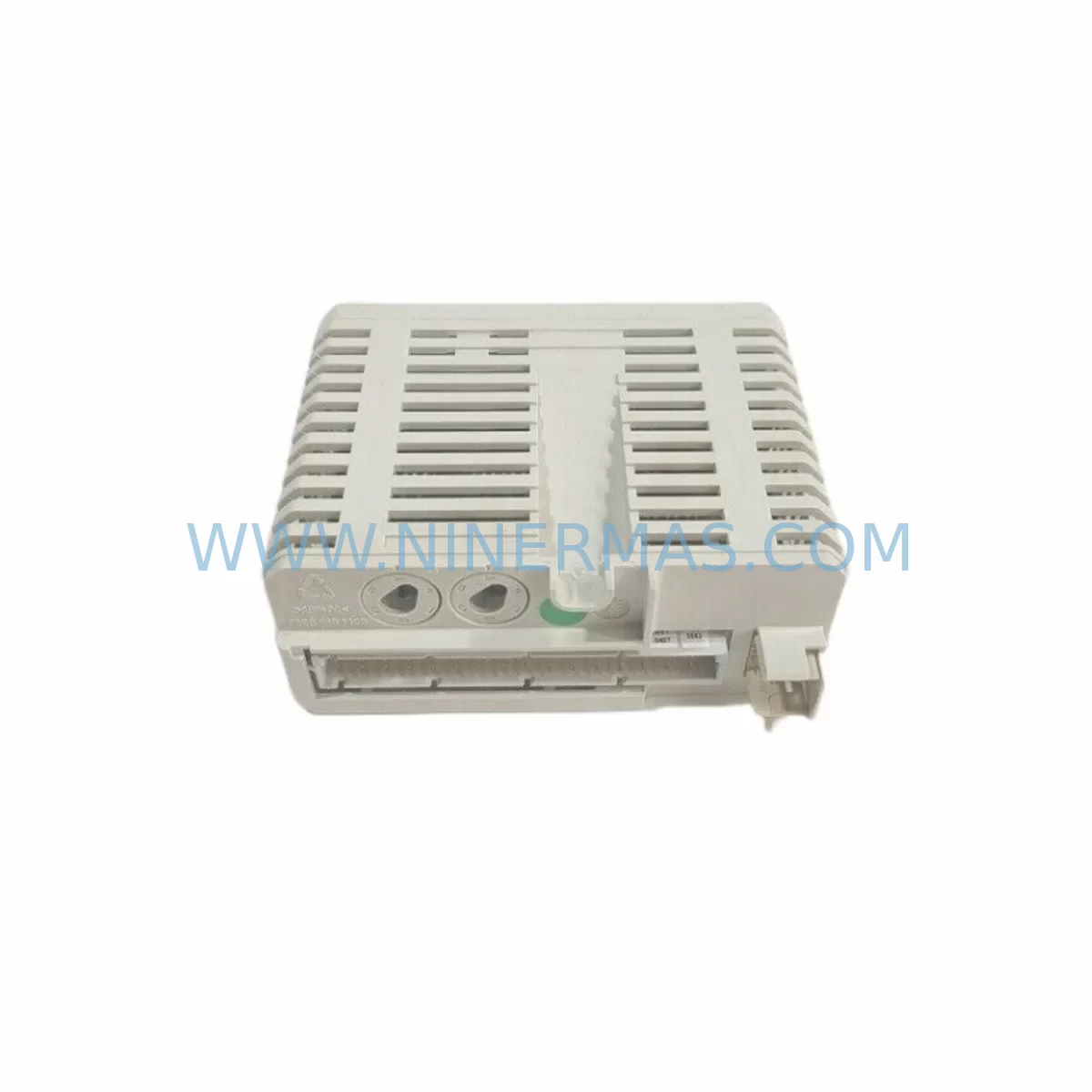

The ABB DO810 (3BSE008510R1) is a ruggedized digital output module engineered for demanding industrial automation environments. Designed as a core I/O component within ABB’s AC500 PLC platform, this module delivers reliable 24 VDC digital output switching for process control, machine safety interlocking, and discrete output signaling across a wide range of manufacturing and infrastructure applications. Whether you are managing a scheduled annual overhaul, responding to an unplanned line stoppage, or building a proactive spare parts inventory for your control cabinet, the DO810 3BSE008510R1 is a critical service-ready component that maintenance and procurement engineers should keep on hand.

At NINERMAS, every DO810 3BSE008510R1 unit is sourced as an original ABB spare part, individually inspected, and shipped with a 12-month warranty. Our stock is maintained to support both emergency replacement orders and long-term procurement programs, ensuring your facility can restore operations quickly and plan ahead with confidence.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance engineer identifies a fault or degradation in the DO810 3BSE008510R1 digital output module, the replacement workflow rarely ends with the module itself. A thorough site inspection and root-cause analysis should accompany every DO810 swap to prevent repeat failures and ensure the control cabinet is returned to full operational integrity.

Begin by verifying the 24 VDC power supply rail feeding the I/O backplane — a sagging or noisy supply is a common upstream cause of digital output module failures. ABB’s CP-E 24/10.0 and similar panel power supply units should be checked for output voltage stability and ripple before the new DO810 is commissioned. Alongside the power supply, inspect the AC500 backplane (such as the TB511 or TB521 terminal base) for signs of oxidation, loose seating, or damaged bus connectors, as backplane contact issues can cause intermittent output faults that are misdiagnosed as module failures.

On the output wiring side, review the terminal blocks and field wiring connected to the DO810’s output channels. Loose terminations, corroded contacts, or undersized conductors can cause channel-level faults even after a module replacement. If the DO810 is driving inductive loads such as solenoid valves or relay coils, confirm that flyback diodes or surge suppressors are correctly installed on each output circuit — missing suppression is a leading cause of premature output transistor failure.

For facilities running safety interlock circuits through the DO810, cross-check the associated safety relay modules (such as ABB’s Jokab Safety series or equivalent third-party safety relays) to confirm that the interlock logic remains intact after the module swap. If the DO810 is part of a larger AC500 PLC rack, also inspect adjacent I/O modules — particularly digital input modules such as the DI810 (3BSE008508R1) and analog output modules such as the AO810 (3BSE008522R1) — for any signs of shared-fault conditions or communication errors on the I/O bus.

Communication health should be verified at the CPU level. AC500 CPU modules (PM571, PM581, PM591, PM595) log I/O bus diagnostics that can reveal whether the DO810 fault was isolated or part of a broader rack communication issue. If the site uses PROFIBUS, Modbus, or EtherNet/IP communication modules (such as the CI854 or CI801 series) to integrate the AC500 into a wider DCS or SCADA system, confirm that the fieldbus communication is stable after the module replacement and that no address conflicts have been introduced.

For facilities managing aging AC500 installations, a proactive spare parts kit should include: the DO810 3BSE008510R1 digital output module, the DI810 digital input module, at least one AC500-compatible power supply unit, a spare terminal base (TB511 or TB521), a set of fuse holders and 2A blade fuses for output circuit protection, and a communication module appropriate to the site’s fieldbus topology. Maintaining this kit on-site reduces mean time to repair (MTTR) from days to hours and eliminates the risk of extended downtime caused by single-component lead times.

Site Replacement Workflow

Step 1 — Isolation and Safety: Before removing the DO810 3BSE008510R1, follow your site’s lockout/tagout (LOTO) procedure. De-energize the 24 VDC supply to the I/O rack and confirm zero-energy state with a calibrated voltage tester. Document the current output channel assignments and any active fault codes displayed on the AC500 CPU.

Step 2 — Module Removal: Release the DO810 from its terminal base (TB511/TB521) by pressing the module release latch and sliding the module upward. Inspect the terminal base bus connector for damage or contamination before installing the replacement unit. Do not force the module — damaged bus pins will cause immediate communication faults.

Step 3 — Replacement Installation: Align the new DO810 3BSE008510R1 with the terminal base guide rails and press firmly until the latch clicks. The module address is set by the terminal base position in the rack — no manual address configuration is required for standard AC500 I/O expansion. Verify the module LED status indicators after power-up: a steady green RUN LED confirms successful initialization.

Step 4 — Functional Verification: Using the AC500 programming environment (Automation Builder or PS501 Control Builder), force each output channel individually and confirm field device response. Check the CPU diagnostic log for any residual I/O bus errors. If the site uses a SCADA or DCS system, confirm that all output tags are reading correctly at the supervisory level before returning the line to production.

Step 5 — Documentation and Stock Replenishment: Record the replacement in your maintenance management system (CMMS) with the module serial number, date, and technician ID. Immediately initiate a purchase order to replenish your DO810 3BSE008510R1 spare stock — a single-unit spare inventory is a single point of failure. NINERMAS supports standing purchase orders and long-term supply agreements to ensure your critical spare parts are always available.
