ABB CMA123 3DDE300403 Safety-Reliable AVR for Critical Control Sites

ABB CMA123 3DDE300403 Safety-Reliable AVR for Critical Control Sites

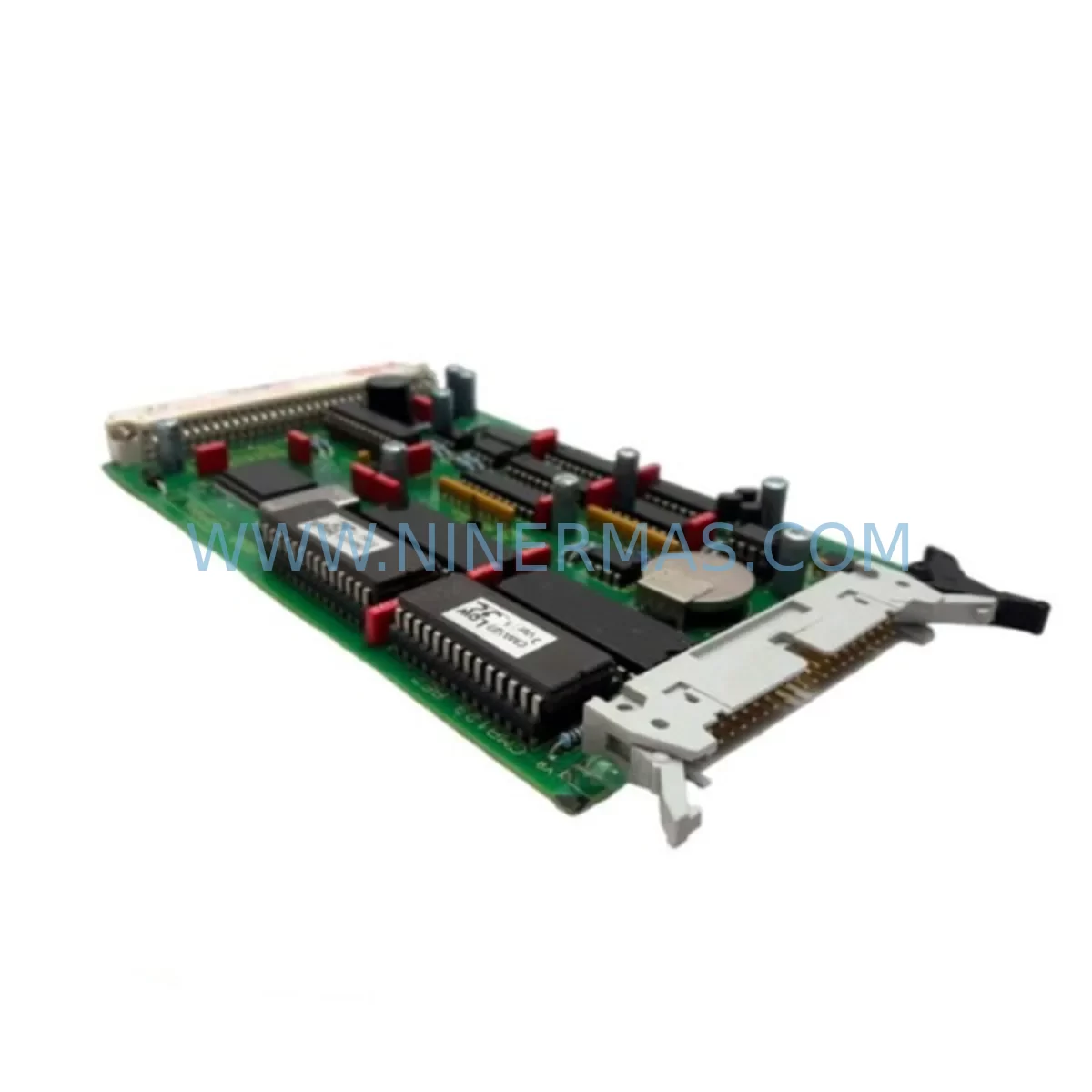

The ABB CMA123 3DDE300403 is an Automatic Voltage Regulator (AVR) module designed for the ABB UNITROL excitation control series, widely deployed in power generation, heavy industrial facilities, and safety-critical control environments. As a core component of generator excitation systems, the CMA123 3DDE300403 governs voltage stability, reactive power balance, and field current regulation — functions that are directly tied to the continuity and safety of electrical supply in demanding industrial sites.

In applications where unplanned shutdowns carry significant operational or safety consequences — including petrochemical plants, thermal power stations, mining operations, water treatment facilities, and continuous manufacturing lines — the reliability of the excitation control module is non-negotiable. The ABB CMA123 3DDE300403 is engineered to maintain stable output under conditions of high electromagnetic interference, supply voltage fluctuation, thermal stress, and mechanical vibration, reducing the risk of control loop interruption, signal drift, and nuisance tripping that can cascade into broader system failures.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

Maintaining safety and operational continuity in a generator control cabinet requires more than a single reliable module — it demands a coordinated approach across the entire excitation and protection chain. When deploying or replacing the ABB CMA123 3DDE300403, engineers should evaluate the condition and compatibility of all adjacent components within the UNITROL excitation panel.

The CMA123 3DDE300403 typically operates alongside the CMT001 3DDE300100 transformer interface module, which conditions the generator terminal voltage signal fed into the AVR loop. A degraded or mismatched CMT001 can introduce measurement error that causes the CMA123 to regulate against an incorrect reference, leading to reactive power instability. Similarly, the CMK001 3DDE300200 field current feedback module must be verified for calibration accuracy, as field current measurement directly influences the AVR’s closed-loop response.

On the power supply side, the UNITROL excitation panel relies on a stable auxiliary DC supply — often sourced from a dedicated 24 VDC or 48 VDC power supply module such as the ABB PSTX or equivalent DIN-rail PSU. Voltage ripple or dropout on the auxiliary rail can cause the CMA123 to reset or produce erratic field forcing, particularly during generator start-up sequences or fault recovery. Installing a surge protection device (SPD) on the auxiliary supply input is strongly recommended in sites with frequent lightning activity or heavy motor switching loads.

The excitation control output connects to the field thyristor bridge or IGBT converter — components such as the ABB UNITROL thyristor firing board or the CMR001 3DDE300300 rectifier control card. These must be inspected for gate drive integrity and thermal performance before commissioning a replacement CMA123, as a faulty firing stage can stress the new AVR module and shorten its service life. In systems using digital communication for supervisory control, the CMC001 communication interface card should be confirmed operational, as loss of communication link between the AVR and the plant DCS or SCADA can trigger protective shutdowns or prevent remote voltage setpoint adjustment.

For sites operating in high-dust, high-humidity, or chemically aggressive environments — such as cement plants, coastal power stations, or chemical processing facilities — the control cabinet should be equipped with appropriate IP-rated enclosures, anti-condensation heaters, and filtered ventilation. The CMA123 3DDE300403 itself should be inspected for contamination on connector pins and PCB surfaces prior to installation, and conformal coating should be considered for long-term deployments in harsh conditions. Signal isolation relays or galvanic isolators on analog I/O lines further reduce the risk of ground loop interference corrupting the voltage reference or feedback signals.

Critical Industrial Safety Applications

The ABB CMA123 3DDE300403 serves as a safety-critical component across a broad range of heavy industrial and power generation environments where generator excitation reliability directly affects plant safety and production continuity.

In petrochemical and refinery facilities, emergency diesel generators and captive power plant generators rely on stable excitation control to maintain bus voltage during grid disturbances or black-start sequences. A failed AVR module in this context can prevent generator synchronization, leaving critical safety systems — including fire suppression pumps, emergency lighting, and process shutdown interlocks — without reliable power. The CMA123 3DDE300403 provides the voltage regulation precision required to support safe islanded operation and seamless grid reconnection.

In thermal and hydroelectric power stations, the UNITROL excitation system governs reactive power contribution to the grid. Accurate AVR performance is essential for power factor correction, voltage support during load swings, and compliance with grid code requirements. Replacement of a degraded CMA123 with a tested, verified unit minimizes the risk of excitation loss trips, which can result in generator disconnection and significant revenue loss.

In mining and mineral processing operations, large synchronous motors driving crushers, mills, and hoists are often controlled through excitation systems that share design principles with generator AVR platforms. The CMA123 3DDE300403’s robustness against vibration and EMI makes it suitable for deployment in these mechanically demanding environments, where control cabinet integrity is challenged by continuous heavy machinery operation.

In water and wastewater treatment plants, standby generators must start reliably and reach stable voltage within seconds of a mains failure. The CMA123 3DDE300403 supports fast field forcing and voltage build-up, ensuring that pump motors and treatment process controls receive stable power without delay. In metallurgical and port facilities, where large crane drives and arc furnaces create severe harmonic and transient disturbances on the local network, the CMA123’s interference rejection capability helps maintain excitation stability under conditions that would compromise less robust AVR designs.

Safety and Quality FAQ

Q1: What warranty is provided with the ABB CMA123 3DDE300403?
All units supplied by NINERMAS carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Warranty support includes technical consultation, replacement dispatch, and failure analysis documentation upon request.

Q2: How is each unit tested before shipment?
Every CMA123 3DDE300403 unit undergoes pre-shipment functional verification, including power-on testing, output signal integrity checks, and visual inspection of PCB, connectors, and component condition. Units sourced as tested surplus are additionally verified against known-good reference parameters before dispatch.

Q3: Is the CMA123 3DDE300403 compatible with all UNITROL platform variants?
The CMA123 3DDE300403 is designed for the ABB UNITROL excitation control family. Compatibility should be confirmed against the specific UNITROL variant installed (e.g., UNITROL 1000, 5000, or 6000) and the associated system firmware version. NINERMAS technical support can assist with compatibility verification prior to order confirmation.

Q4: Can long-term supply be arranged for ongoing maintenance programs?
Yes. NINERMAS maintains inventory of the CMA123 3DDE300403 and related UNITROL excitation components to support planned maintenance schedules, annual outage programs, and emergency spare requirements. Framework supply agreements and reserved stock arrangements are available for customers with recurring demand.
