ABB CM592-DP 1SAP173200R0001 Safety-Reliable PROFIBUS DP Master

ABB CM592-DP 1SAP173200R0001 Safety-Reliable PROFIBUS DP Master for Critical Control Sites

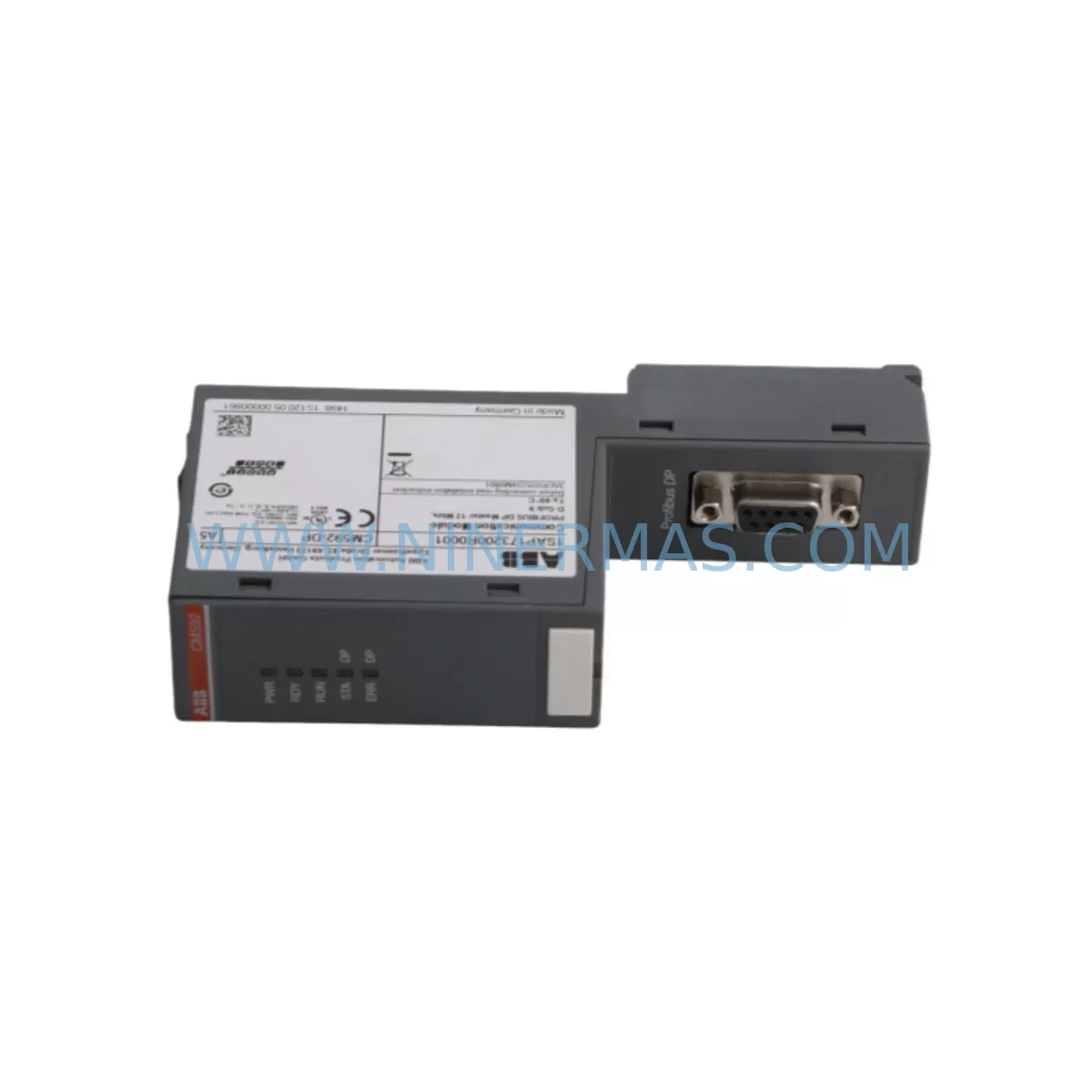

The ABB CM592-DP (1SAP173200R0001) is a PROFIBUS DP master communication module engineered for the ABB AC500 PLC platform, purpose-built to deliver uninterrupted fieldbus communication in the most demanding industrial environments. Designed for integration into safety-critical control cabinets, continuous process plants, and high-availability automation architectures, the CM592-DP provides deterministic, low-latency PROFIBUS DP master functionality that directly reduces the risk of control loop interruption, signal drift, and unplanned production downtime.

In sectors where a single communication fault can cascade into a full process shutdown — petrochemical reactors, power generation switchgear rooms, mining hoists, water treatment SCADA networks, metallurgical furnace controls, and port crane automation — the CM592-DP delivers the fieldbus backbone reliability that safety engineers and maintenance teams depend on. Its robust hardware design, combined with ABB’s proven AC500 firmware stack, ensures stable PROFIBUS DP master operation even under sustained electromagnetic interference, supply voltage fluctuation, and mechanical vibration.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In a well-engineered industrial control cabinet, the CM592-DP does not operate in isolation. Its safety value is amplified when deployed alongside a coordinated set of protection, power, and communication components. The ABB AC500 PM564-ETH CPU, for example, serves as the central processing unit that hosts the CM592-DP’s master configuration, providing the deterministic scan cycle that PROFIBUS DP slaves depend on for synchronized I/O updates. When the CPU and communication module share a stable, filtered 24 V DC rail — typically supplied by an ABB CP-E 24/10.0 or equivalent DIN-rail power supply with active power factor correction — the risk of brownout-induced communication resets is substantially reduced.

Surge and transient protection is equally critical. In heavy industrial environments with large motor starters, variable frequency drives, or arc furnace loads sharing the same electrical infrastructure, transient overvoltages on the PROFIBUS cable shield or the 24 V supply can corrupt DP telegram frames and trigger slave diagnostics. Installing ABB OVR T2 surge protective devices on the incoming supply, combined with proper PROFIBUS cable termination resistors at both ends of the segment, eliminates the majority of transient-induced communication faults.

For applications requiring safety-rated fieldbus communication — such as emergency shutdown (ESD) systems or safety instrumented systems (SIS) — the CM592-DP is often paired with ABB AC500-S Safety PLC modules (e.g., SM560-S) that handle the safety-rated I/O processing, while the CM592-DP manages the standard PROFIBUS DP network for non-safety field devices. This architecture keeps safety and standard control traffic separated, reducing diagnostic complexity and simplifying IEC 61511 compliance audits.

On the field device side, the CM592-DP master communicates with a wide range of PROFIBUS DP slaves: ABB ACS880 variable speed drives with RPBA-01 PROFIBUS adapters, ABB TZID-C positioners for control valve automation, and ABB EL5000 series electromagnetic flowmeters with PROFIBUS DP interfaces. Each of these devices relies on the CM592-DP’s stable master timing to maintain accurate process variable reporting and actuator positioning — any master communication interruption directly translates to process deviation or safety interlock activation.

Distributed I/O expansion within the same PROFIBUS segment is commonly handled by ABB S900 remote I/O modules or third-party DP slaves such as Siemens ET 200S or Phoenix Contact Inline stations, all of which operate reliably under the CM592-DP’s master supervision. For cabinet-level diagnostics and remote monitoring, the ABB AC500 CM589-PNIO PROFINET module can be installed alongside the CM592-DP on the same CPU, enabling dual-network architectures where PROFIBUS DP handles field I/O while PROFINET connects to the plant DCS or SCADA layer.

Proper grounding of the PROFIBUS cable shield at the CM592-DP end — using dedicated shield clamps mounted on the DIN rail — is a non-negotiable installation requirement in high-EMI environments such as motor control centers (MCCs) or near medium-voltage switchgear. Combined with the module’s built-in galvanic isolation on the PROFIBUS interface, this grounding practice ensures that common-mode noise from large inductive loads does not corrupt the RS-485 differential signal, maintaining data integrity at baud rates up to 12 Mbps.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In continuous process units — crude distillation columns, catalytic crackers, or compressor trains — the CM592-DP provides the PROFIBUS DP master backbone connecting field transmitters, control valves, and motor protection relays to the AC500 PLC. Its ability to maintain communication integrity in high-temperature, high-humidity, and chemically aggressive atmospheres makes it a preferred choice for DCS migration projects where legacy PROFIBUS networks are being modernized without full rewiring.

Power Generation and Substation Automation: In coal-fired, gas turbine, or hydroelectric power plants, the CM592-DP integrates with protection relays, excitation systems, and turbine governor I/O over PROFIBUS DP. Its EMC-hardened design withstands the intense electromagnetic fields generated by high-voltage busbars and transformer rooms, ensuring that generator control commands and protection trip signals are transmitted without delay or corruption.

Mining and Mineral Processing: Underground conveyor systems, hoist drives, and crusher control panels in mining operations demand communication modules that tolerate dust ingress, mechanical shock, and wide temperature swings. The CM592-DP, mounted in sealed control enclosures with appropriate IP-rated housings, maintains PROFIBUS DP master operation across extended cable runs to remote field junction boxes, reducing the need for costly fiber optic repeaters in shorter segment applications.

Water and Wastewater Treatment: Municipal and industrial water treatment SCADA systems rely on PROFIBUS DP to connect pump VFDs, level transmitters, chlorination dosing systems, and UV disinfection units. The CM592-DP’s reliable master operation ensures that SCADA polling cycles remain consistent, preventing false alarms from communication timeouts that could trigger unnecessary pump shutdowns or chemical dosing errors.

Metallurgy and Steel Production: Electric arc furnaces, rolling mills, and continuous casting lines generate extreme electromagnetic interference and mechanical vibration. The CM592-DP’s compliance with IEC 60068-2-6 vibration and IEC 61000-4 EMC standards ensures that PROFIBUS DP communication to pyrometers, position encoders, and hydraulic valve controllers remains stable throughout the production cycle, supporting both product quality and personnel safety.

Port and Marine Automation: Ship-to-shore cranes, automated stacking cranes, and vessel loading arms use PROFIBUS DP networks to coordinate drive systems, load cells, and safety limit switches. The CM592-DP’s wide operating temperature range and vibration tolerance make it suitable for outdoor crane control cabinets exposed to salt air, wind, and thermal cycling.

Safety and Quality FAQ

Q1: Does the CM592-DP 1SAP173200R0001 come with a warranty?
Yes. Every CM592-DP unit supplied by NINERMAS COMPANY LIMITED carries a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Warranty claims are supported with direct technical assistance and replacement coordination.

Q2: Is the module tested before shipment?
Yes. Each CM592-DP unit undergoes pre-shipment functional testing to verify PROFIBUS DP master initialization, slave communication handshake, and power-on self-diagnostics before dispatch. This ensures that the module arrives ready for installation without requiring additional bench testing on-site.

Q3: Is the CM592-DP compatible with all ABB AC500 CPU variants?
The CM592-DP is designed for use with ABB AC500 PM5xx series CPUs, including PM554, PM564, PM573, PM583, and PM592 variants. Compatibility with specific firmware versions should be confirmed against the ABB AC500 system manual (document 1KNA001000R0001) or the ABB Library automation builder configuration tool prior to installation.

Q4: Can long-term supply and spare part availability be guaranteed?
NINERMAS maintains stock of CM592-DP and related AC500 communication modules to support ongoing maintenance, planned shutdowns, and emergency replacement requirements. For critical sites requiring guaranteed spare part availability, we recommend confirming stock levels and lead times at the time of inquiry to align with your plant maintenance schedule.
