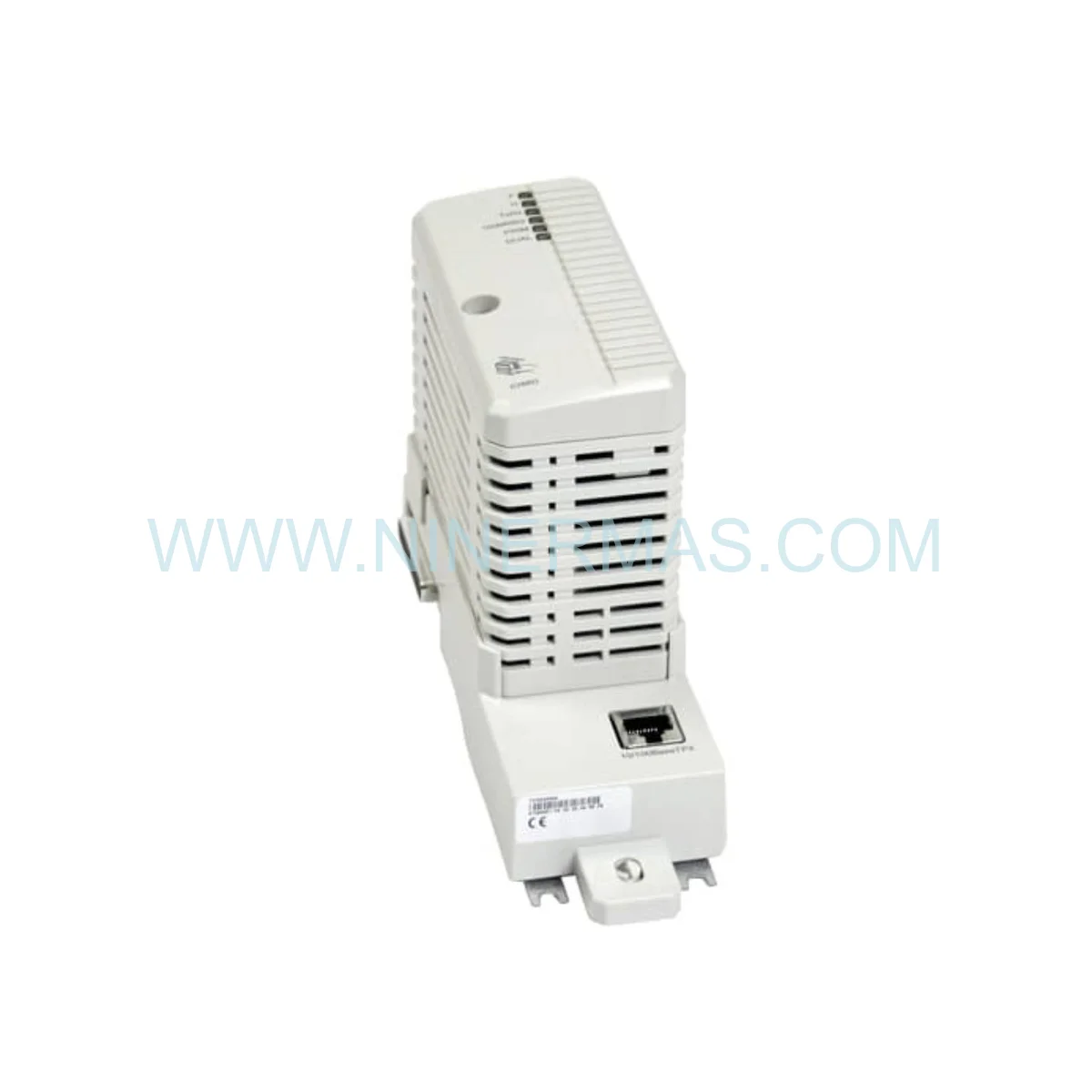

ABB CI860K01 (3BSE032444R1) | Certified HSE Fieldbus Interface Module

ABB CI860K01 (3BSE032444R1) – Lifecycle Excellence & Technical Performance

Operational Integrity & System Analysis

From the perspective of an Industrial Compliance Consultant, the ABB CI860K01 (3BSE032444R1) occupies a foundational role in preserving the operational integrity of process automation infrastructures. As a FOUNDATION Fieldbus High-Speed Ethernet (HSE) interface module engineered for ABB’s AC 800M controller platform, the ABB CI860K01 (3BSE032444R1) serves as the deterministic communication backbone between HSE Ethernet networks and H1 field device segments — a function that is indispensable in safety-critical environments where signal fidelity and protocol compliance are non-negotiable. Its certified architecture ensures that every data transaction adheres to IEC 61158 Type 1 standards, directly supporting system-wide Safety Integrity and Compliance Standards.

Within the evolving paradigm of Industrial 4.0 architectures, long-term compatibility is a primary asset optimization criterion. The CI860K01 module is designed with forward-compatible firmware structures and dual HSE port redundancy, enabling sustained System Performance across multi-decade operational lifecycles. Its integration into distributed control systems (DCS) supports seamless scalability — from compact skid-mounted installations to enterprise-wide process networks — without compromising Original Documentation traceability or certification validity.

As a factory-sealed, certified original component, the CI860K01 delivers measurable value to asset managers seeking to minimize unplanned downtime. Its provenance as an ABB-manufactured module guarantees adherence to the manufacturer’s quality control protocols, providing the Original Documentation and compliance audit trails required by regulatory bodies in high-consequence industries.

Compliance & Safety Benchmarks

✅ IEC 61158 Type 1 Certified: Full FOUNDATION Fieldbus protocol compliance ensures interoperability across certified field devices and host systems without deviation from international standards.

✅ CE & UL508 Marked: Dual-market certification confirms electromagnetic compatibility and electrical safety for deployment in both European and North American regulated facilities.

ATEX Zone 2 & IECEx Approved: Validated for use in potentially explosive atmospheres, enabling safe deployment in petrochemical, oil & gas, and chemical processing environments where Standard Adherence is legally mandated.

✅ Redundant Architecture Support: Dual HSE ports enable fault-tolerant network topologies, directly contributing to Safety Integrity Level (SIL) compliance in critical control loops.

Extended Temperature Durability: Rated from -40°C to +70°C with 5-95% RH (non-condensing), the module sustains Compliance Standards across extreme industrial environments without performance degradation.

✅ Backplane Power Integration: Drawing only 5W from the AC 800M backplane, the CI860K01 minimizes thermal load while maintaining deterministic communication — a key factor in long-term Durability assessments.

Vertical Industry Integration & Optimization

Oil & Gas Refining: In upstream and downstream refinery operations, the CI860K01 enables coordinated control of hundreds of FOUNDATION Fieldbus-compatible transmitters, control valves, and analyzers across multiple H1 segments. Its HSE backbone architecture reduces wiring complexity and supports Asset Optimization by consolidating field device management under a unified DCS platform, minimizing the risk of communication bottlenecks during peak throughput periods.

Pharmaceutical Manufacturing: GMP-regulated pharmaceutical facilities demand rigorous process traceability and validated control systems. The CI860K01’s certified communication architecture supports 21 CFR Part 11 compliance frameworks by providing deterministic, auditable data pathways between field instruments and supervisory systems — a critical requirement for batch record integrity and regulatory inspection readiness.

Chemical Processing: In continuous chemical production environments, process stability is directly linked to communication reliability. The CI860K01’s redundant HSE ports and automatic failover capability ensure uninterrupted control loop execution, protecting against the costly consequences of communication-induced process upsets. Its ATEX Zone 2 certification further qualifies it for deployment in classified hazardous areas common to chemical plant layouts.

Semiconductor Fabrication: Precision process control in semiconductor fabs requires sub-millisecond response times and zero-tolerance for data corruption. The CI860K01’s 100 Mbps HSE backbone delivers the bandwidth and latency performance necessary to support high-density field device networks in cleanroom environments, where Lifecycle Management of control infrastructure directly impacts yield optimization and equipment uptime.

Pulp & Paper Industry: Large-scale pulp and paper mills benefit from the CI860K01’s ability to integrate distributed field devices across geographically dispersed process areas. Its scalable linking device architecture supports plant-wide FOUNDATION Fieldbus networks, enabling centralized monitoring and control that reduces operational labor costs and supports Operational Excellence initiatives.

Comprehensive Engineering Specifications

Fulfillment Strategy & Technical Support

Factory Sealed Condition: Every ABB CI860K01 (3BSE032444R1) unit is supplied in its original factory-sealed packaging, preserving the electrostatic discharge (ESD) protection and physical integrity established at the point of manufacture. Tamper-evident seals and original labeling provide immediate visual confirmation of authenticity — a prerequisite for compliance audits in regulated industries.

Rapid Global Logistics: Our fulfillment infrastructure supports expedited international shipping to major industrial hubs across Asia-Pacific, Europe, the Middle East, and the Americas. Priority dispatch protocols ensure that critical replacement components reach operational sites within the shortest possible lead times, minimizing the duration of unplanned maintenance windows and supporting Asset Optimization objectives.

12-Month Quality Guarantee for Legacy Systems: We provide a 12-Month Quality Guarantee covering manufacturing defects and performance non-conformance for all CI860K01 units supplied. This extended warranty framework is specifically structured to support legacy DCS environments where component sourcing timelines are extended and the cost of repeat procurement is disproportionately high. Technical support is available throughout the warranty period, including firmware compatibility consultation and installation compliance guidance.

Original Documentation Package: Each shipment includes access to the full Original Documentation set — datasheet, installation manual, compliance certificates, and firmware release notes — ensuring that your engineering and compliance teams have the reference materials required for system validation and regulatory submission.

Expert Technical FAQ

Q1: What installation compliance requirements apply to the ABB CI860K01 (3BSE032444R1) in ATEX-classified zones?
The CI860K01 carries ATEX Zone 2 and IECEx certification, permitting installation in areas where explosive atmospheres may occur occasionally under normal operating conditions. Installation must comply with IEC 60079-14 (electrical installations in explosive atmospheres) and local regulatory requirements. The module must be mounted within a suitably rated enclosure when deployed in Zone 2 environments, and all cable entries must use certified Ex-rated glands. Commissioning personnel should hold relevant CompEx or equivalent qualifications.

Q2: How does the CI860K01 perform in high-humidity or thermally variable industrial environments?
The module is rated for operation across a -40°C to +70°C temperature range with 5-95% relative humidity (non-condensing), making it suitable for deployment in outdoor substations, coastal facilities, and tropical process plants. Conformal coating on internal PCBs provides additional protection against moisture ingress and corrosive atmospheres. For environments exceeding these parameters, consult ABB’s environmental derating guidelines prior to installation.

Q3: Which firmware versions of the ABB CI860K01 (3BSE032444R1) are compatible with current AC 800M controller releases?
Firmware compatibility is managed through ABB Control Builder M software, which provides version-specific compatibility matrices for all AC 800M peripheral modules. The CI860K01 supports firmware updates via the backplane interface without requiring physical removal from the rack. It is strongly recommended to verify firmware alignment with the target AC 800M controller version prior to deployment, particularly in systems running AC 800M firmware 6.0 or later, where enhanced HSE diagnostic features are available.

Q4: Can the CI860K01 support redundant HSE network configurations, and what failover behavior should be expected?
Yes. The CI860K01 provides two independent RJ45 HSE ports that can be configured for network redundancy in accordance with FOUNDATION Fieldbus HSE redundancy specifications. In the event of a primary network path failure, the module executes automatic failover to the secondary port within the HSE-defined switchover time, maintaining continuous communication with linking devices and H1 field segments. Failover events are logged in the AC 800M event journal for post-incident compliance review.

Q5: What documentation is required to validate the CI860K01 as an original ABB component for regulatory audit purposes?
Original Documentation for compliance validation includes: the ABB factory certificate of conformity, CE Declaration of Conformity, ATEX/IECEx certificates (available from ABB’s certification database), the product datasheet (3BSE032444R1), and the installation and commissioning manual. All documents are traceable to the module’s serial number and manufacturing batch, supporting full lifecycle traceability as required by ISO 9001 and IEC 61511 quality management frameworks.

Q6: Is the ABB CI860K01 (3BSE032444R1) compatible with third-party FOUNDATION Fieldbus linking devices?
The CI860K01 is designed to comply with the FOUNDATION Fieldbus HSE specification, which mandates interoperability between certified HSE hosts and linking devices from any FF-certified manufacturer. Compatibility has been validated with major linking device suppliers including Pepperl+Fuchs, Turck, and R. Stahl. However, it is recommended to verify specific firmware and configuration compatibility through ABB’s interoperability testing documentation or by consulting the linking device manufacturer’s compatibility list prior to system commissioning.
