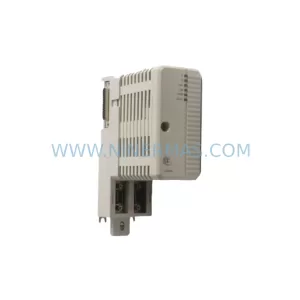

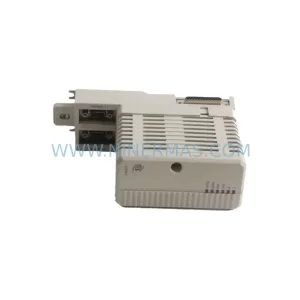

The ABB CI773F is a communication interface module designed for the ABB AC800M series of process automation controllers — one of the most widely deployed DCS/PLC platforms in power generation, oil & gas, chemical processing, and heavy manufacturing environments. When a CI773F fails or reaches end-of-service life, unplanned downtime can cascade across entire control loops. NINERMAS maintains verified stock of the CI773F as a service-ready original spare part, pre-tested and ready for immediate dispatch to support your maintenance team’s rapid recovery objectives.

Whether you are managing a scheduled annual shutdown, responding to an emergency fault, or building a strategic spare parts inventory for your AC800M-based control system, the CI773F is a critical line item. Its role as a fieldbus communication bridge — typically handling PROFIBUS DP or Ethernet-based I/O communication between the AC800M controller and distributed field devices — means that a failed unit can isolate entire I/O segments, triggering process trips and production losses that far exceed the cost of maintaining a spare on the shelf.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Experienced maintenance engineers know that replacing a CI773F in isolation rarely tells the full story of a control system fault. When a communication interface module fails, the root cause is often upstream or downstream of the module itself. A comprehensive site inspection should accompany any CI773F replacement to prevent repeat failures and ensure the restored system operates reliably through the next maintenance window.

Begin by auditing the AC800M controller backplane for signs of corrosion, loose module seating, or backplane bus faults — a degraded backplane can cause intermittent communication errors that mimic a failed CI773F. Inspect the PM864 or PM866 processor module for firmware currency; outdated firmware versions are a known source of communication instability with CI773F in multi-module configurations.

On the power side, verify the SD802F or SD803F power supply module output voltage under load. Voltage sag or ripple on the 24VDC rail is a common but overlooked cause of communication module resets. If the control cabinet houses multiple AC800M racks, check the TB820V2 or TB840A I/O interface modules for address conflicts or wiring faults that may have contributed to the CI773F fault condition.

For PROFIBUS DP networks, inspect the PROFIBUS cable termination resistors at both ends of the segment — missing or double termination is a frequent cause of communication degradation that stresses the CI773F. Measure bus impedance and check for ground loops across the DP/PA segment coupler if the network bridges to PROFIBUS PA field instruments.

In cabinets where the CI773F interfaces with S800 I/O modules (such as AI810, AO810, DI810, or DO810), verify that all I/O module addresses are correctly set and that the S800 fieldbus interface is not reporting segment errors. A single misconfigured I/O module can generate bus traffic that overwhelms the CI773F’s communication buffer.

Additionally, inspect the AF100 or INSUM communication modules if the AC800M system is integrated into a broader plant network. Confirm that the OPC server or 800xA Information Management layer is correctly mapped to the restored CI773F node address to avoid alarm floods on system restart. For sites running ABB Symphony Plus or legacy Advant OCS architectures, verify cross-compatibility of the CI773F firmware revision with the installed base controller software version before powering up.

Finally, check the UPS or battery backup system supplying the control cabinet. A weak UPS that fails to hold voltage during a grid transient is a leading cause of unexpected module resets and communication faults across the entire AC800M rack — replacing the CI773F without addressing UPS health is a short-term fix at best.

Site Replacement Workflow

Step 1 — Fault Isolation: Use the AC800M diagnostic tools within ABB 800xA or Control Builder M to confirm the CI773F as the failed node. Log the existing module configuration, node address, and PROFIBUS segment parameters before removal.

Step 2 — Safe Removal: Follow your site’s LOTO (Lockout/Tagout) procedure. The CI773F can typically be hot-swapped in AC800M systems with redundancy configured, but confirm your system’s redundancy status before proceeding. Remove the module by releasing the front latch and sliding it clear of the backplane connector.

Step 3 — Incoming Inspection: Inspect the replacement CI773F for physical damage. Verify the firmware label matches or is compatible with your installed AC800M software version. NINERMAS ships all units with a pre-dispatch functional test report.

Step 4 — Installation & Configuration: Insert the replacement CI773F into the correct backplane slot. Restore the node address and PROFIBUS segment configuration using Control Builder M. For non-redundant systems, a controller restart may be required to re-initialize the communication interface.

Step 5 — Commissioning Verification: Confirm all downstream I/O modules and field devices are communicating correctly. Check the 800xA alarm list for residual faults. Perform a 30-minute soak test under normal process load before returning the loop to automatic control.

Step 6 — Documentation: Update your CMMS (Computerized Maintenance Management System) with the replacement date, new module serial number, and any configuration changes. Initiate a purchase order for a replacement spare to restore your buffer stock — NINERMAS offers long-term supply agreements for AC800M spare parts to support ongoing maintenance programs.
