ABB CCU-23-S 3AXD50000034658 Safety-Reliable Drive Control Unit

ABB CCU-23-S 3AXD50000034658 Safety-Reliable Drive Control Unit for Critical Control Sites

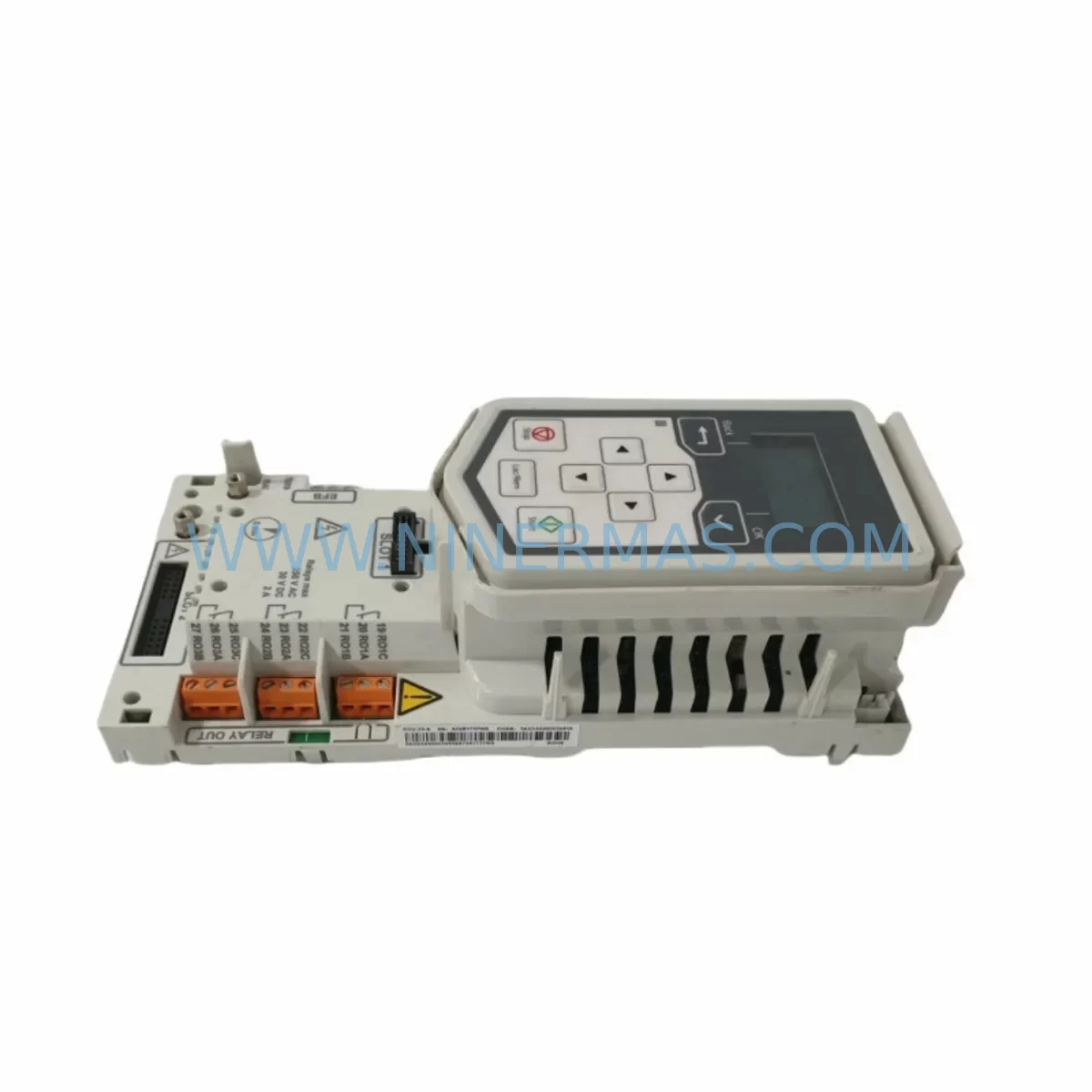

The ABB CCU-23-S (Part No. 3AXD50000034658) is a ruggedized drive control unit engineered for continuous, safety-critical industrial operations. Designed as the central control and communication backbone of ABB ACS880 and ACS800 series variable speed drives, this module governs motor control logic, fieldbus communication, and protective interlock functions in demanding process environments. Its robust hardware architecture ensures stable, uninterrupted drive operation even under high electromagnetic interference, voltage transients, mechanical vibration, and extreme ambient temperature conditions — making it the preferred replacement component for maintenance engineers managing critical control cabinets in petrochemical, power generation, mining, water treatment, metallurgical, and continuous manufacturing facilities.

In safety-critical installations, an unplanned drive control unit failure can cascade into full process shutdown, equipment damage, or personnel hazard. The CCU-23-S is built to eliminate this risk. Its onboard diagnostics continuously monitor drive health parameters, enabling predictive fault detection before a trip event occurs. The module’s isolated signal architecture prevents ground loops and cross-talk between control and power circuits, directly reducing the probability of nuisance trips and spurious interlock activations in safety instrumented systems (SIS). For plants operating under IEC 61511 or IEC 62061 functional safety frameworks, maintaining a verified spare CCU-23-S in the control room inventory is a recognized risk mitigation practice.

Every ABB CCU-23-S 3AXD50000034658 unit supplied by NINERMAS undergoes pre-shipment functional verification, including communication interface testing, firmware version confirmation, and visual inspection for transport damage. Units are shipped in anti-static, moisture-barrier packaging with full traceability documentation. A 12-month warranty is provided on all units, covering manufacturing defects and functional failures under normal operating conditions.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In a well-engineered ACS880 drive control cabinet, the CCU-23-S does not operate in isolation — it is the nerve center of a tightly integrated protection and control architecture. Upstream, the drive receives clean, conditioned power through an ABB ACH580 input choke or du/dt filter, which suppresses voltage spikes and reduces motor cable stress that could otherwise corrupt the CCU’s analog reference signals. The DC bus is stabilized by a brake chopper unit (BCU) and associated braking resistor, preventing overvoltage faults during regenerative braking that would otherwise force the CCU-23-S into a protective shutdown.

On the I/O side, the CCU-23-S interfaces with ABB RDIO-01 digital I/O extension modules and RAIO-01 analog I/O modules to expand field signal capacity for complex process interlocks. In high-vibration environments such as mining conveyors or offshore pump stations, these I/O modules are mounted with vibration-damping hardware to prevent connector fatigue — a common root cause of intermittent signal faults that are misdiagnosed as CCU failures. The fieldbus communication layer is protected by an ABB FPBA-01 PROFIBUS adapter module or FENA-21 EtherNet/IP adapter, which isolates the CCU’s communication processor from network-induced transients and ground potential differences between control room and field junction boxes.

For safety loop integrity, the CCU-23-S STO (Safe Torque Off) input is wired in series with a safety relay module — typically an ABB SR series or equivalent IEC 62061-compliant device — ensuring that emergency stop commands from the field are executed within the required response time without relying on software logic. The 24 VDC control supply to the CCU-23-S is sourced from a dedicated ABB CP-S 24/5.0 SMPS power supply with redundant output capability, isolating the control circuit from main power fluctuations and preventing brownout-induced resets during motor starting transients. In facilities with high lightning exposure or long cable runs, a surge protection device (SPD) on the 24 VDC rail provides the final layer of protection against conducted transients reaching the CCU’s logic circuits.

Maintaining a verified inventory of the CCU-23-S alongside companion spares — including the ABB AINT-02 auxiliary interface board, APBU-44C branching unit, and RDCU-12C drive control unit for legacy ACS800 installations — ensures that maintenance teams can execute a complete drive control section replacement within a single planned maintenance window, minimizing mean time to repair (MTTR) and protecting production continuity.

Critical Industrial Safety Applications

The ABB CCU-23-S 3AXD50000034658 is deployed across the most demanding industrial sectors where drive control reliability is directly linked to process safety and regulatory compliance:

Petrochemical & Refining: In crude distillation units, compressor trains, and boiler feed pump drives, the CCU-23-S manages motor speed and torque with the precision required to maintain stable process conditions. A control unit failure in these applications can trigger emergency shutdown systems (ESD), resulting in production losses measured in tens of thousands of dollars per hour. Verified spare units held on-site reduce recovery time from days to hours.

Power Generation: Coal, gas, and hydroelectric plants rely on ACS880 drives equipped with CCU-23-S modules to control induced draft fans, cooling water pumps, and fuel feed systems. The module’s ability to maintain communication integrity during grid disturbances — including voltage sags and frequency excursions — is critical for plant auxiliary system stability.

Mining & Mineral Processing: Conveyor drives, ball mill drives, and slurry pump stations in underground and open-pit mining operations subject drive control hardware to continuous vibration, coal dust ingress, and wide ambient temperature swings. The CCU-23-S ruggedized design and conformal-coated PCB options provide the environmental resilience required for reliable operation in these conditions.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities use ACS880 drives to control high-duty-cycle pump and blower applications. The CCU-23-S supports the precise flow control algorithms required for energy-efficient operation while maintaining the interlock logic that prevents dry-running and overpressure conditions.

Metallurgy & Steel: Rolling mill drives, ladle transfer cars, and fume extraction systems in steel plants demand drive control units capable of withstanding intense electromagnetic interference from arc furnaces and induction heating equipment. The CCU-23-S shielded architecture and robust noise immunity make it the specified replacement component for these high-EMI environments.

Port & Marine: Ship-to-shore crane drives, thruster control systems, and cargo pump drives on vessels and offshore platforms require drive control hardware certified for marine environmental conditions. The CCU-23-S operating temperature range and vibration tolerance align with the requirements of these mobile and offshore applications.

Safety and Quality FAQ

Q1: What warranty is provided with the ABB CCU-23-S 3AXD50000034658?
All units supplied by NINERMAS carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Warranty claims are supported with full traceability documentation provided at the time of shipment.

Q2: What pre-shipment testing is performed on each unit?
Each CCU-23-S undergoes a structured pre-shipment verification process including communication interface functional testing, firmware version confirmation against ABB release documentation, and physical inspection for connector integrity and transport damage. Units failing any test criterion are quarantined and not shipped.

Q3: Is the CCU-23-S 3AXD50000034658 compatible with both ACS880 and ACS800 drive platforms?
The CCU-23-S is primarily designed for the ACS880 drive series. Compatibility with ACS800 platforms depends on the specific drive variant and firmware version. NINERMAS technical support can confirm compatibility for your specific drive nameplate data before order confirmation — contact sale@ninermas.com with your drive serial number and existing control unit part number.

Q4: Can NINERMAS guarantee long-term supply of the CCU-23-S for multi-year maintenance contracts?
Yes. NINERMAS maintains strategic inventory of ABB ACS880 and ACS800 series control components, including the CCU-23-S 3AXD50000034658, to support long-term spare parts programs for industrial facilities. We work with plant maintenance teams to establish consignment stock arrangements and scheduled replenishment programs that eliminate the risk of critical spare shortages during planned and unplanned maintenance events.
