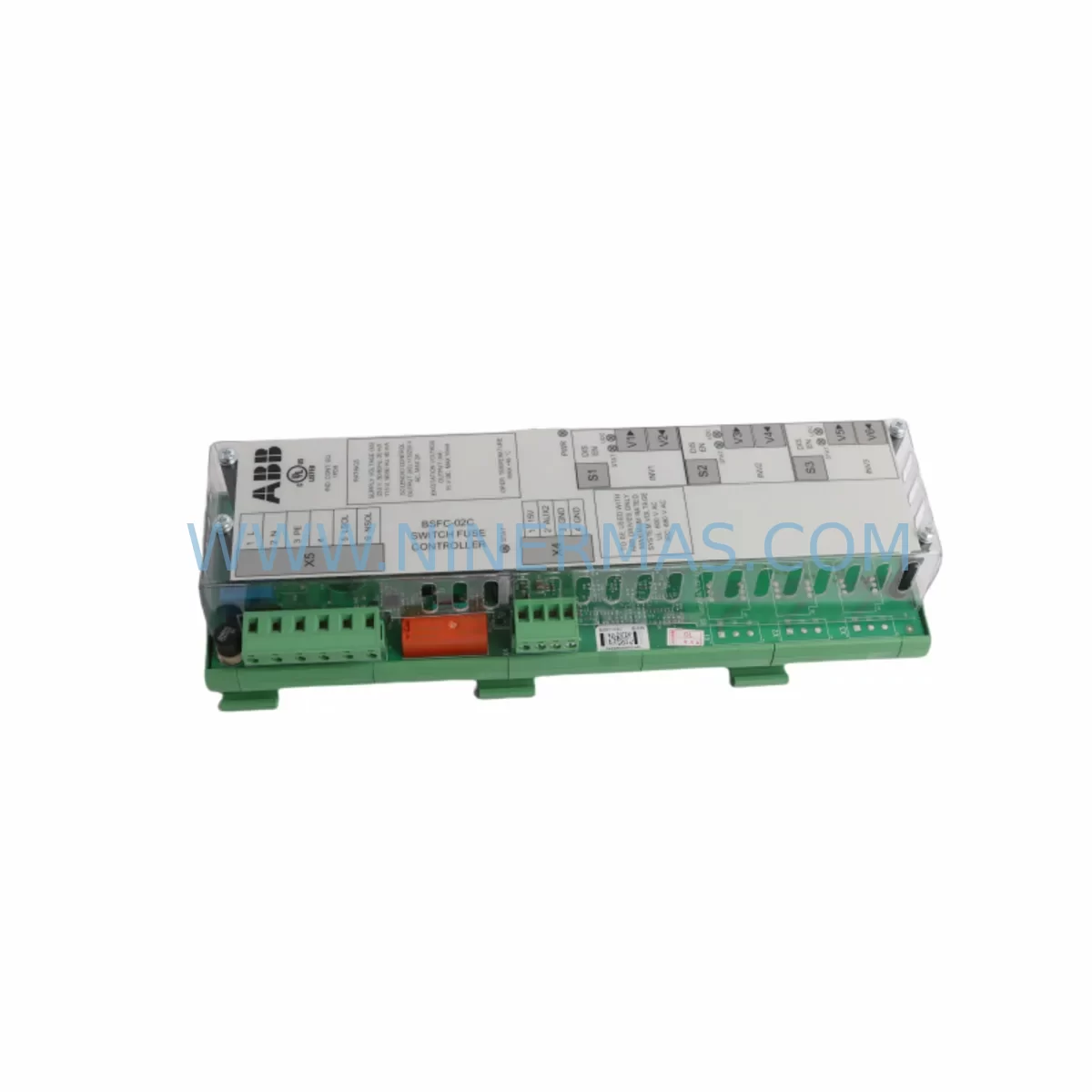

The ABB BSFC-02C (Part No. 3AXD50000011461) is a dedicated Brake and Safe Function Control module engineered for the ACS880 series of industrial AC drives. As legacy drive systems age and original safety modules reach end-of-life, the BSFC-02C has become a critical retrofit component for maintenance engineers and system integrators tasked with extending the operational life of existing ACS880 drive cabinets without full drive replacement. This module delivers IEC 61800-5-2 compliant Safe Torque Off (STO) functionality, enabling controlled motor coast-to-stop under fault or emergency conditions while preserving the integrity of the surrounding control architecture.

In retrofit and upgrade scenarios, the BSFC-02C is typically installed as a direct replacement for failed or end-of-life safety function boards within the ACS880 drive frame. Engineers sourcing this module for legacy line modernization must confirm compatibility with the host drive’s firmware revision, as certain ACS880 firmware versions require a minimum BSFC-02C hardware revision to support the full STO channel diagnostic cycle. Pre-shipment functional testing against the STO activation sequence is standard practice and is included with every unit shipped by NINERMAS.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

When planning a retrofit around the BSFC-02C, the scope of work extends well beyond the module swap itself. A structured pre-retrofit assessment should cover the following areas to ensure a smooth transition with minimal disruption to production continuity.

Power Supply and Cabinet Audit: Confirm that the existing 24 VDC auxiliary power supply feeding the ACS880 control unit — often an ABB CP-D 24/1.0 or equivalent DIN-rail PSU — can sustain the additional diagnostic load introduced by the BSFC-02C’s dual-channel monitoring circuitry. Undersized power supplies are a common root cause of intermittent STO faults after module replacement in older cabinets.

Terminal Wiring and STO Circuit Verification: The STO input wiring (STO1 and STO2 channels) must be traced back to the safety relay or safety PLC output — frequently an ABB JOKAB PLUTO safety controller or a Pilz PNOZ series relay — to confirm that the wiring gauge, cable routing, and terminal torque values meet the BSFC-02C installation requirements. Any shared STO wiring with adjacent drives on the same safety bus must be re-evaluated for channel independence.

Backplane and Control Unit Interface: The BSFC-02C connects directly to the ACS880 control unit’s dedicated safety module slot. In multidrive configurations using the ACS880-104 inverter module or ACS880-107 regenerative drive, the control unit type (ZCU-12 or ZCU-14) must be confirmed, as the BSFC slot pinout and mechanical retention differ between control unit generations. Attempting to install a BSFC-02C into an incompatible ZCU variant will result in a hardware fault at power-up.

Module Address and Parameter Backup: Before removing the failed BSFC module, use ABB Drive Composer Pro to perform a full parameter backup of the ACS880 drive. Pay particular attention to parameter group 31 (Fault Functions) and group 46 (Speed Monitoring), which contain STO-related configuration values that may be lost if the control unit memory is cleared during the swap. After installing the BSFC-02C, restore the parameter set and verify that the STO response time and fault reaction settings match the original safety validation documentation.

HMI and SCADA Screen Updates: In plants where the ACS880 is monitored via an ABB CP600 HMI or a third-party SCADA system connected through the FENA-21 Ethernet/IP adapter, the STO status word mapping should be verified post-replacement. Some older HMI configurations reference drive status bits that are remapped in newer BSFC-02C firmware, which can cause false STO alarm indications on the operator panel if not updated.

Communication Link Integrity: If the ACS880 is integrated into a PROFIBUS-DP network via the FPBA-01 adapter or into an EtherNet/IP topology via the FENA-21, confirm that the drive’s GSD file or EDS file version is compatible with the BSFC-02C hardware revision. Communication parameter mismatches between the fieldbus adapter and the updated safety module have been observed to cause cyclic data interruptions during the first power cycle after retrofit.

I/O Expansion and Signal Isolation: In applications where the ACS880 interfaces with legacy analog I/O — for example, 4–20 mA speed reference signals routed through an ABB AI-01 analog input extension or a third-party signal isolator — verify that the STO activation does not inadvertently interrupt the analog reference path. Some older wiring schemes route the analog reference through the same terminal block as the STO circuit, creating a dependency that must be resolved before commissioning the replacement module.

Rack and Frame Space Confirmation: For installations in compact ACS880 frames (R1–R3), confirm that the BSFC-02C module body clears adjacent option modules such as the FDIO-01 digital I/O extension or the FIO-11 I/O extension module. In densely populated option slots, mechanical interference has been reported when multiple extension modules are installed simultaneously.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational concern when replacing a safety function module in a live production environment. The following approach is recommended for BSFC-02C retrofit projects:

Pre-Staging and Bench Verification: Before scheduling the maintenance window, bench-test the replacement BSFC-02C using a spare ACS880 drive or a dedicated test rig. Verify STO channel activation, fault response, and Drive Composer communication before the module enters the field. NINERMAS performs this pre-shipment test on every unit, but a site-level bench verification adds a second layer of confidence and eliminates the risk of discovering a configuration issue during the live swap.

Parameter Backup and Program Protection: A full Drive Composer parameter backup — saved to both a local PC and a USB memory stick — must be completed before the maintenance window opens. If the ACS880 is running an application program (e.g., a crane or winder application macro), export the application program file separately. This ensures that the control logic can be restored within minutes if the parameter restore encounters an error.

Controlled Shutdown Sequence: Coordinate the STO circuit de-energization with the safety PLC or safety relay controlling the STO inputs. Do not simply remove power from the drive cabinet without first confirming that the upstream process is in a safe hold state. In conveyor or pump applications, an uncontrolled coast-to-stop can cause product loss or mechanical shock to coupled equipment.

Post-Installation Commissioning Checklist: After installing the BSFC-02C and restoring parameters, perform the following in sequence: (1) power-up the drive without enabling the motor; (2) verify no active faults in Drive Composer; (3) activate and deactivate each STO channel independently and confirm the correct status word response; (4) perform a supervised test run at reduced speed before returning the drive to full production load. Document the commissioning results and retain them as part of the safety validation record for the installation.

Spare Module Inventory: For critical production lines with multiple ACS880 drives, maintaining at least one BSFC-02C as a cold spare reduces the mean time to repair (MTTR) for future STO module failures. NINERMAS supports long-term supply agreements and stock-commitment programs for customers requiring guaranteed availability of the BSFC-02C and related ACS880 option modules over a 3–5 year horizon.

Retrofit Support FAQ

Q1: Is the BSFC-02C a direct drop-in replacement for the BSFC-01 in ACS880 drives?
The BSFC-02C is mechanically and electrically compatible with the BSFC slot on ACS880 control units that previously housed the BSFC-01. However, a firmware update to the ACS880 primary control program may be required to fully utilize the enhanced diagnostic features of the BSFC-02C. Customers should verify the current firmware revision using Drive Composer before installation and consult the ACS880 firmware release notes for BSFC compatibility information.

Q2: What pre-shipment testing does NINERMAS perform on the BSFC-02C?
Every BSFC-02C unit shipped by NINERMAS undergoes a full functional test that includes STO channel activation and deactivation verification, fault response confirmation, and visual inspection for connector and PCB integrity. A test record is available upon request. All units are covered by a 12-month warranty from the date of shipment.

Q3: Can the BSFC-02C be used in ACS880 multidrive configurations?
Yes. The BSFC-02C is compatible with ACS880 multidrive inverter modules (ACS880-104 and ACS880-107) using ZCU-12 and ZCU-14 control units. In multidrive applications, each inverter module requires its own BSFC-02C; the STO function is not shared across inverter modules in a common DC bus configuration. Confirm the control unit type and firmware revision for each inverter module before ordering.

Q4: What is the lead time and stock availability for the BSFC-02C (3AXD50000011461)?
NINERMAS maintains stock inventory of the BSFC-02C to support urgent retrofit and breakdown replacement requirements. Standard lead time for in-stock units is 3–5 business days for international shipment. For customers with planned maintenance schedules, NINERMAS offers stock-commitment programs to reserve units against future demand, ensuring availability for multi-site or multi-drive retrofit projects. Contact sale@ninermas.com for current stock status and volume pricing.
