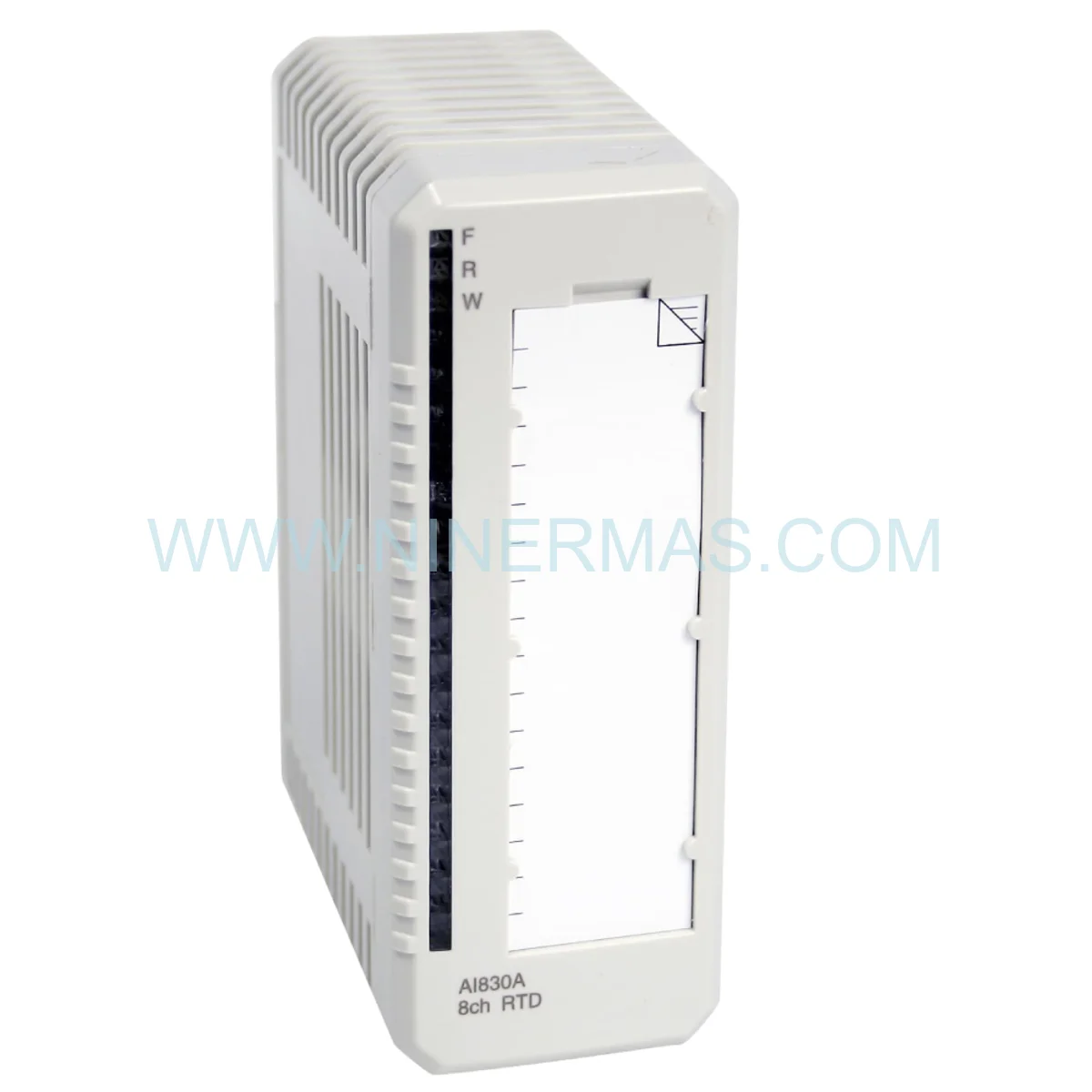

ABB AI830A | 8-Ch RTD Analog Input Module 3BSE040662R1

ABB AI830A (3BSE040662R1) – Lifecycle Excellence & Technical Performance

Operational Integrity & System Analysis

From the perspective of an Industrial Compliance Consultant, the ABB AI830A (3BSE040662R1) represents a cornerstone component in maintaining the operational integrity of mission-critical process control architectures. As an 8-channel RTD analog input module certified for deployment within ABB’s 800xA Distributed Control System, the ABB AI830A (3BSE040662R1) fulfills a decisive role in ensuring that temperature signal acquisition adheres to the rigorous safety integrity levels demanded by global industrial standards ncluding IEC 61511 and IEC 62443. Its Original Documentation package, encompassing factory calibration certificates and RoHS compliance declarations, provides the evidentiary foundation required for regulatory audits and asset lifecycle records.

Within the framework of Industry 4.0 and digital plant transformation, this module demonstrates long-term compatibility with ABB AC800M controllers and the full S800 I/O ecosystem, ensuring that existing infrastructure investments are protected across extended operational horizons. Its 16-bit A/D conversion architecture and channel-to-channel galvanic isolation are not merely performance attributes hey are engineering commitments to System Performance consistency over multi-decade asset lifecycles. The module’s software-configurable input types (Pt100, Ni100, Ni120, Cu10) further reduce obsolescence risk by accommodating evolving sensor standards without hardware replacement.

As a certified original component sourced through verified supply chains, the AI830A delivers the system safety assurance that counterfeit or refurbished alternatives fundamentally cannot provide. Asset Optimization begins with component authenticity nd this module’s traceable provenance ensures that safety-critical loops remain within validated performance envelopes throughout their operational service life.

Compliance & Safety Benchmarks

✅ IEC 61131-2 Conformance: Electrical and mechanical characteristics fully compliant with programmable controller input module standards, ensuring interoperability within certified control panel assemblies.

✅ RoHS EU 2011/65/EU Certification: Hazardous substance restrictions verified, supporting environmental compliance obligations in EU-regulated manufacturing facilities.

Channel Isolation Architecture: Independent channel-to-channel and channel-to-bus isolation prevents fault propagation between measurement loops critical Standard Adherence requirement in SIL-rated safety instrumented systems.

✅ Factory Calibration Traceability: Each unit ships with a calibration certificate traceable to national metrology standards, satisfying ISO 9001 quality management and FDA 21 CFR Part 11 audit requirements.

EMC Durability: Designed to withstand industrial electromagnetic environments per IEC 61000 series, maintaining signal integrity in high-noise process plant installations.

✅ Hot-Swap MTU Compatibility: Supports TU810, TU812, TU814, TU830, and TU833 termination units with live-swap capability, enabling maintenance without process interruption Durability benchmark for continuous operations.

Vertical Industry Integration & Optimization

Semiconductor & Electronics Manufacturing: Precision diffusion furnace and CVD reactor temperature control demands sub-0.5°C measurement accuracy across multiple zones. The AI830A’s ±0.1°C typical accuracy (Pt100, 4-wire) and 16-bit resolution enable the tight thermal uniformity required for wafer yield optimization, directly reducing scrap rates and improving process capability indices (Cpk) in ISO Class 5-7 cleanroom environments.

Pharmaceutical & Biotech Processing: GMP-regulated sterilization, lyophilization, and bioreactor temperature monitoring requires validated instrumentation with complete audit trails. The AI830A’s factory calibration documentation and Original Documentation package satisfy FDA 21 CFR Part 11 and EU GMP Annex 11 validation protocols, reducing IQ/OQ/PQ documentation burden and accelerating regulatory submission timelines.

Chemical & Petrochemical Operations: Exothermic reactor management, distillation column profiling, and heat exchanger monitoring in ATEX/IECEx-classified zones demand instrumentation with proven Safety Integrity. The module’s robust isolation architecture and multi-wire RTD compensation maintain measurement fidelity across 100-meter cable runs in large-scale process plants, supporting Lifecycle Management of assets operating under continuous 24/7 duty cycles.

Power Generation & Energy Infrastructure: Turbine bearing temperature surveillance, steam header monitoring, and transformer thermal management in utility-scale power plants (50-1000 MW) rely on instrumentation with demonstrated long-term Compliance Standards adherence. The AI830A’s compatibility with ABB 800xA’s unified asset management platform enables predictive maintenance workflows that extend equipment service intervals and reduce unplanned outage costs.

Comprehensive Engineering Specifications

Fulfillment Strategy & Technical Support

Factory Sealed Condition: Every ABB AI830A (3BSE040662R1) unit is dispatched in its original manufacturer packaging with tamper-evident seals intact, preserving the component’s certified condition and ensuring that warranty obligations remain uncompromised upon receipt. Packaging integrity is verified at each logistics handoff point.

Rapid Global Logistics: Leveraging established freight partnerships across Asia-Pacific, Europe, and the Americas, standard shipments are processed within 3-5 business days. Expedited air freight options are available for emergency maintenance scenarios where process downtime costs exceed routine logistics premiums. All shipments include full export documentation and customs classification support.

12-Month Quality Guarantee for Legacy Systems: A comprehensive 12-month quality assurance period covers manufacturing defects and performance deviations from published specifications. This guarantee is specifically structured to support legacy 800xA and AC800M installations where component availability from primary distribution channels may be constrained, providing continuity assurance for long-lifecycle industrial assets.

Technical Support & Documentation: Pre-sales application engineering consultation is available to verify module compatibility with existing MTU configurations, firmware revisions, and Control Builder software versions. Post-installation support includes wiring verification guidance and diagnostic interpretation assistance.

Expert Technical FAQ

Q1: What installation compliance requirements apply when integrating the ABB AI830A (3BSE040662R1) into an existing 800xA system?
A: Installation must follow ABB System 800xA Hardware Installation and Maintenance guidelines (document 3BSE041434). The module requires assignment to a compatible MTU (TU810/812/814/830/833) and configuration via Control Builder software. For SIL-rated loops, the installation must be validated against the module’s Safety Manual and the applicable IEC 61511 functional safety assessment. All wiring must comply with local electrical codes and the plant’s hazardous area classification documentation.

Q2: How does the AI830A maintain measurement accuracy in high-EMI industrial environments?
A: The module incorporates EMC-hardened input circuitry designed to IEC 61000-4 series immunity standards, including surge, EFT/burst, and conducted RF immunity. The galvanic channel isolation architecture prevents ground loop interference primary source of measurement drift in multi-sensor RTD installations. For installations in extreme EMI environments (variable frequency drives, high-power switchgear), ABB recommends shielded twisted-pair cable with shield grounded at a single point per IEC 61000-5-2.

Q3: What firmware and Control Builder software versions are compatible with the 3BSE040662R1?
A: The AI830A (3BSE040662R1) is compatible with AC800M firmware versions 5.1 and above, and Control Builder M Professional versions 5.1+. For 800xA system versions 5.0-6.1, no additional device type manager (DTM) installation is required as the module is natively supported. Customers operating on earlier firmware should consult ABB’s compatibility matrix (document 3BSE041435) prior to integration to ensure System Performance compliance.

Q4: Can the AI830A be used in applications requiring SIL 2 certification?
A: The AI830A is designed for use in safety-related applications in accordance with IEC 61511. For SIL 2 loop certification, the module must be applied within the constraints defined in its Safety Manual, including proof test intervals, diagnostic coverage calculations, and architectural constraints (HFT). The complete Safety Integrity assessment must be performed by a qualified functional safety engineer, incorporating the module’s PFDavg and λDU values from the published safety data sheet.

Q5: How should the AI830A be handled and stored to preserve its certified condition prior to installation?
A: The module must be stored in its original ESD-protective packaging in a controlled environment: temperature 0°C to +70°C, relative humidity 5-95% non-condensing. Electrostatic discharge precautions (IEC 61340-5-1) must be observed during handling. Modules should not be removed from ESD packaging until immediately prior to installation. Long-term storage beyond 24 months should be followed by a functional verification test against published specifications before deployment in safety-critical applications.

Q6: What documentation is provided to support regulatory audits and asset lifecycle records?
A: Each unit is supplied with a factory calibration certificate traceable to national metrology standards, RoHS compliance declaration (EU 2011/65/EU), and product datasheet. This Original Documentation package supports ISO 9001 quality management records, FDA 21 CFR Part 11 validation documentation, and IEC 62443 cybersecurity asset inventory requirements. Additional documentation, including country-of-origin certificates and material declarations, is available upon request for import compliance and environmental reporting obligations.
