ABB 3BSE028588R1 DO880-1 Retrofit Digital Output Module

ABB 3BSE028588R1 DO880-1 Retrofit Digital Output Module: Legacy System Compatible Upgrade

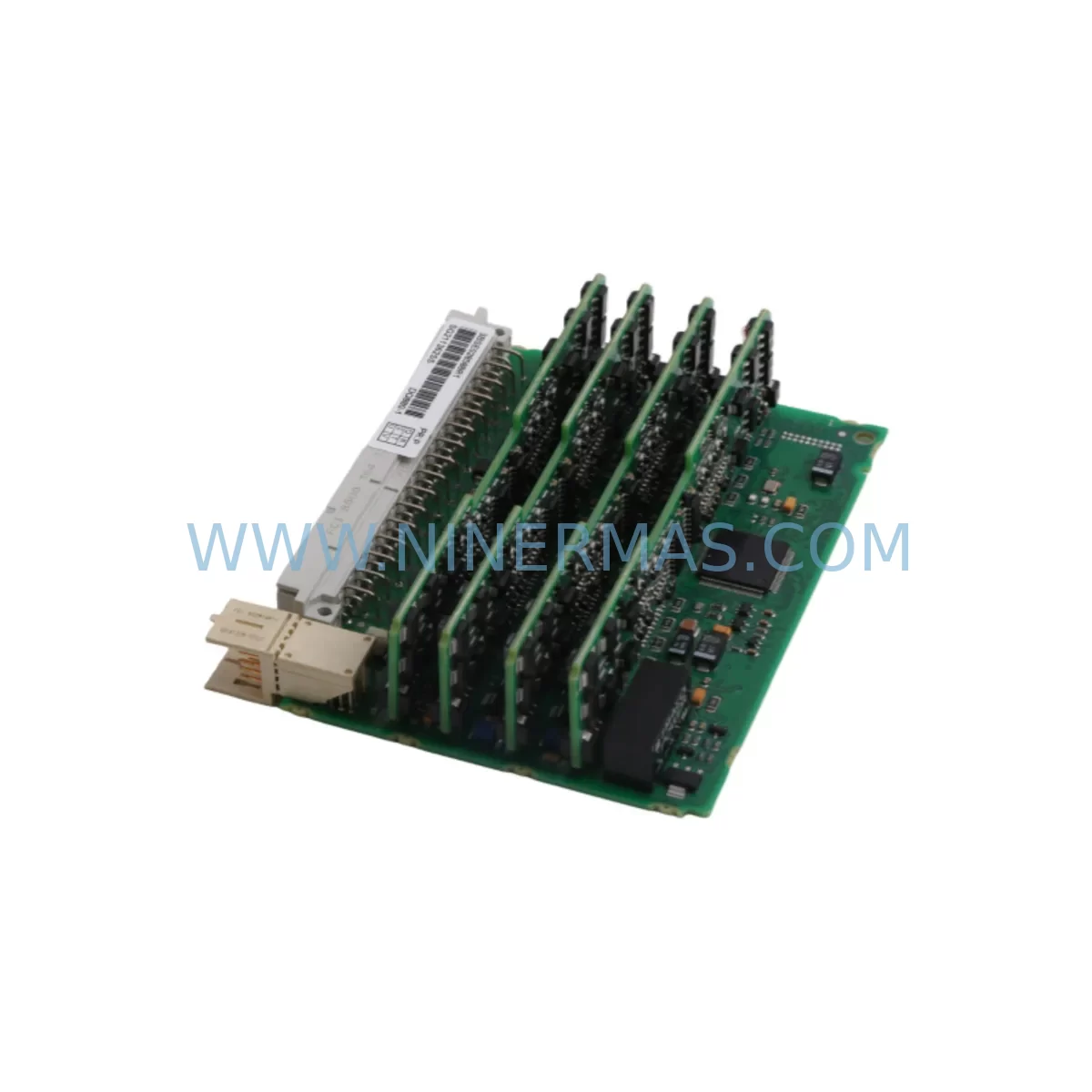

The ABB 3BSE028588R1 DO880-1 is a ruggedized digital output module designed for the S800 I/O distributed I/O platform, widely deployed in AC 800M and Freelance DCS control architectures across process industries including oil & gas, power generation, pulp & paper, and chemical manufacturing. As ABB progressively phases out legacy S800 hardware, the DO880-1 has become a critical retrofit and replacement component for facilities seeking to extend the operational life of existing control systems without committing to a full DCS migration.

The DO880-1 provides 8 channels of digital output with ruggedized construction rated for harsh industrial environments — including high-vibration, high-humidity, and wide-temperature-range installations. Its direct compatibility with the S800 I/O ModuleBus backplane means it can be installed as a drop-in replacement for failed or end-of-life output modules without requiring changes to the controller configuration, I/O addressing, or existing field wiring terminations. This makes it an ideal solution for brownfield retrofit projects where minimizing downtime and preserving existing program logic are the primary engineering constraints.

Before installing the DO880-1 as a replacement unit, engineers should verify several key compatibility parameters. First, confirm that the TB820 ModuleBus Optical Port Unit or equivalent cluster controller in the rack is running firmware that supports the DO880-1 module type. Second, check the CI854 or CI858 communication interface module for available ModuleBus addresses — the DO880-1 must be assigned a unique node address that does not conflict with existing modules such as the DI810, DI885, or AO810V2 already installed in the same cluster. Third, review the terminal block wiring against the DO880-1 datasheet to confirm output voltage range, load current capacity, and common return configuration match the field device requirements.

Power budget verification is essential during retrofit planning. The DO880-1 draws supply current from the S800 I/O power supply rail, typically provided by an SD821 or SD822 power supply module. When adding or replacing output modules in an existing rack, the total current draw across all installed modules — including AI810 analog input modules, DO810 standard digital output modules, and any DP820 PROFIBUS interface modules — must remain within the rated output capacity of the installed power supply. Exceeding this budget can cause intermittent module faults or unexpected output behavior that is difficult to diagnose in the field.

For installations where the control system communicates via PROFIBUS DP or FOUNDATION Fieldbus, the DO880-1 integrates transparently within the existing I/O tree as seen by the AC 800M controller running Control Builder M software. No changes to the application program are required provided the module type and channel count match the original configuration. If the original module was a different variant — for example, a DO880 without the ruggedized suffix — engineers should compare the hardware revision notes to confirm signal compatibility and output drive characteristics before commissioning.

HMI integration should also be reviewed as part of the retrofit process. Facilities running ABB System 800xA or third-party SCADA systems connected via OPC DA/UA will typically not require HMI reconfiguration if the I/O tag mapping is preserved. However, if the replacement involves a module address change or a rack reorganization, the corresponding faceplate objects and alarm limits in the HMI should be verified against the new physical configuration before returning the system to automatic control.

Installation space confirmation is straightforward for the DO880-1 — it occupies a standard S800 I/O module slot and does not require additional mounting hardware. However, in densely populated control cabinets, engineers should confirm adequate clearance for the module locking mechanism and verify that adjacent modules such as the TB840A termination unit or FI830F fieldbus interface are not obstructed during module insertion or removal.

All units supplied by NINERMAS undergo pre-shipment functional testing to verify output channel integrity, backplane communication, and module self-diagnostics prior to dispatch. Each DO880-1 is covered by a 12-month warranty from the date of shipment, providing assurance for both planned retrofit projects and emergency spare part replacements.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the DO880-1 into an existing control system begins with a structured retrofit assessment. The first step is to audit the current S800 I/O rack population — documenting each installed module type, slot position, ModuleBus node address, and termination unit assignment. This baseline inventory allows the retrofit engineer to confirm that the DO880-1 replacement will not displace any active module or create address conflicts with neighboring units such as the DI885 ruggedized digital input module, AI895 HART-enabled analog input module, or AO890 analog output module.

Terminal wiring adaptation is the most time-sensitive task during a live system retrofit. The DO880-1 uses the same standard S800 termination unit footprint, so existing field cables connected to a TB820V2 or TB840A termination unit can typically be retained without re-termination. Engineers should photograph the existing wiring before removal and cross-reference against the DO880-1 terminal assignment diagram to confirm signal polarity, common return grouping, and any surge protection requirements for inductive loads such as solenoid valves or motor contactors.

Where the retrofit involves upgrading from an older DO810 standard digital output module to the ruggedized DO880-1, the primary engineering consideration is output current capacity. The DO880-1 is rated for higher load currents per channel, which is beneficial for driving larger field devices but requires verification that the existing field wiring gauge and fuse ratings are appropriate. In parallel, the SD822 power supply module feeding the rack should be checked to confirm it can sustain the increased load without triggering overcurrent protection.

For systems where the CI854 PROFIBUS DP communication interface or CI858 Fieldbus communication interface manages the I/O cluster, the DO880-1 will appear automatically in the Control Builder M hardware configuration once the module is physically installed and powered. The engineer should perform a hardware scan in Control Builder M to confirm the module is recognized at the correct address, then download the updated configuration to the AC 800M controller during the next available maintenance window. If the system is running in redundant controller mode, the configuration download should be sequenced to avoid simultaneous controller restarts.

Signal isolation requirements should also be evaluated during retrofit planning. In applications where field devices operate at voltages or in environments that could introduce ground loops or common-mode noise, the addition of a signal isolator or relay output module between the DO880-1 output and the field device may be appropriate. This is particularly relevant in retrofit scenarios where the original system design predates modern EMC standards or where new field devices have been added to an aging control loop.

Downtime Control During System Migration

Minimizing production downtime is the primary operational constraint in any brownfield retrofit involving the DO880-1. The recommended approach is to pre-stage the replacement module by verifying its hardware revision, performing a bench-level power-on test, and confirming that the module self-diagnostics report no faults before bringing it to the field. This pre-commissioning step eliminates the risk of discovering a defective replacement unit after the original module has already been removed from service.

Where the process permits, the preferred retrofit sequence is to place the affected control loop in manual mode at the AC 800M controller or at the System 800xA operator station, remove the failed DO880-1, install the replacement, restore power, confirm module recognition in Control Builder M, and return the loop to automatic control — a sequence that can typically be completed in under 30 minutes by an experienced automation technician. For critical loops where even brief manual operation is unacceptable, a hot-standby output relay or hardwired bypass should be pre-installed before the module swap begins.

Program logic preservation is automatic in this scenario because the DO880-1 replacement does not require any changes to the application program running in the AC 800M controller. The controller continues executing the control strategy throughout the module swap, with the affected output channels simply reporting a module fault until the replacement is recognized. Once the new module is online, the controller resumes normal output driving without requiring a program download or controller restart — a significant advantage over retrofit scenarios involving controller or communication interface replacements.

Post-replacement verification should include a channel-by-channel output test using Control Builder M’s online diagnostic tools, confirmation that all field devices respond correctly to commanded output states, and a review of the system event log to confirm no residual fault conditions. The DO880-1’s built-in channel diagnostics will report any open-circuit or short-circuit conditions on individual output channels, allowing rapid identification of any field wiring issues that may have been masked by the original module fault.

Retrofit Support FAQ

Q1: Is the DO880-1 (3BSE028588R1) a direct replacement for the DO880 and DO810?
The DO880-1 is the ruggedized variant of the DO880 and is physically and electrically compatible with the same S800 I/O slot and termination unit. It can replace a standard DO810 in most applications, but engineers should verify output current ratings and confirm that the termination unit type (TB820 vs TB840A) matches the DO880-1 wiring diagram before installation.

Q2: Does replacing the DO880-1 require a program download to the AC 800M controller?
No. Provided the replacement module is installed in the same slot with the same ModuleBus node address, the AC 800M controller will recognize it automatically without requiring a program download or controller restart. The control application continues running throughout the module swap.

Q3: What pre-shipment testing is performed on DO880-1 units?
Each unit undergoes functional output channel testing, backplane communication verification, and module self-diagnostic confirmation prior to dispatch. Units that fail any test stage are quarantined and not shipped. All shipped units are covered by a 12-month warranty from the date of shipment.

Q4: What is the typical lead time and stock availability for the 3BSE028588R1?
Stock availability is maintained for immediate dispatch in most cases. For large-quantity orders or scheduled maintenance programs requiring multiple units, please contact our sales team to confirm current inventory levels and arrange priority allocation. Emergency orders can typically be processed and dispatched within 24–48 hours.
