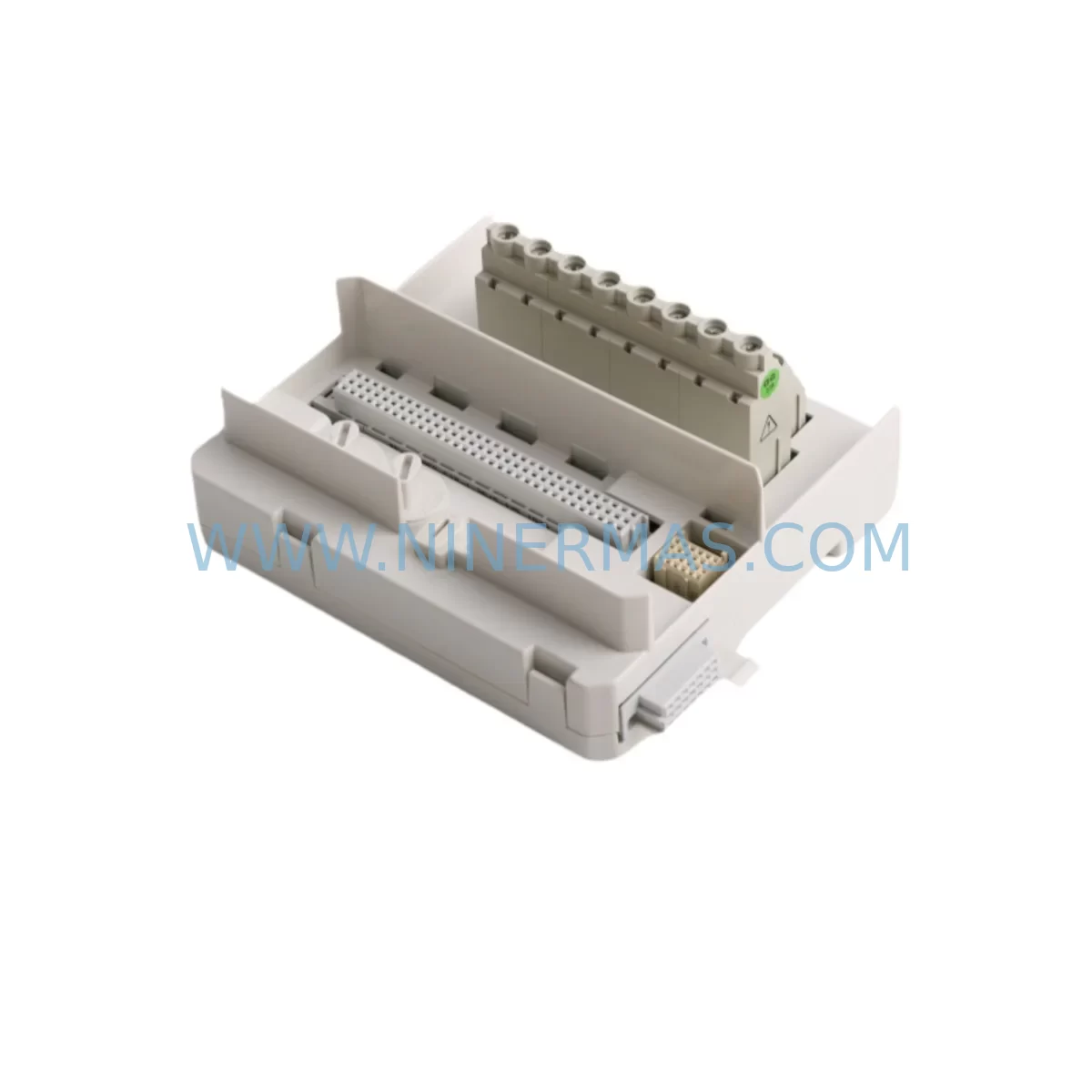

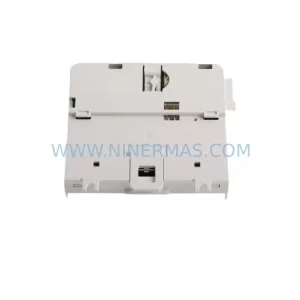

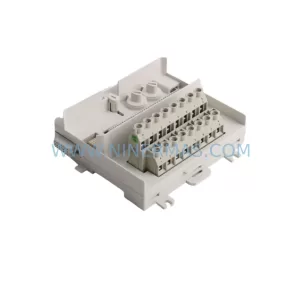

ABB 3BSE013235R1 TU831V1 Retrofit-Compatible Termination Module

ABB 3BSE013235R1 TU831V1 Retrofit-Compatible Termination Module: Legacy System Compatibility & Smooth Upgrade

The ABB 3BSE013235R1 TU831V1 is a ruggedized termination module engineered for the ABB S800 I/O series, widely deployed across AC800M-based distributed control systems in power generation, oil & gas, chemical processing, and heavy manufacturing. As legacy automation infrastructure ages and OEM support windows close, the TU831V1 has become a critical retrofit component — enabling engineers to extend the operational life of existing control architectures without committing to a full platform migration.

Whether you are replacing a failed unit on a live production line, rebuilding a control cabinet after a surge event, or executing a phased modernization of a 15-year-old DCS installation, the 3BSE013235R1 provides a verified drop-in interface between field wiring and the S800 I/O modules mounted on the local bus. Its ruggedized design tolerates the vibration, humidity, and temperature extremes common in harsh industrial environments — making it equally suitable for offshore platforms, smelting facilities, and outdoor substations.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit using the 3BSE013235R1 TU831V1 begins well before the module arrives on site. Engineers must audit the existing S800 I/O station to confirm the number of occupied slots, the current power budget drawn by modules such as the AI810 analog input module and DI810 digital input module, and whether the installed TB820V2 power supply unit can absorb the load of the replacement termination base without triggering an overload alarm on the AC800M controller.

Field wiring documentation is equally critical. The TU831V1 uses a defined terminal assignment that must be cross-referenced against the original loop drawings. In many legacy installations, the wiring was landed on an earlier-revision termination unit with a slightly different terminal numbering scheme. Before cutting any wires, verify the terminal-to-channel mapping against the current AI830A or AO810V2 module datasheet to avoid transposing signal pairs during reconnection.

Backplane integrity should be inspected at the same time. The MB510 Modulebus Modem and its associated rack must be free of corrosion on the bus connector fingers. If the existing rack shows mechanical wear or bent guide pins, replacing the termination module alone will not resolve intermittent communication faults — the rack itself may need to be swapped alongside the TU831V1. In multi-rack configurations, also confirm that the MB520 remote Modulebus modem is correctly addressed and that the optical fiber link to the AC800M CPU module is intact.

For sites migrating from a legacy PROFIBUS DP segment to a newer PROFINET or Ethernet-based I/O topology, the TU831V1 can serve as a stable interim termination point while the communication layer is upgraded in stages. The CI854AK01 PROFIBUS DP communication interface module remains compatible with the S800 I/O station during this transition, allowing engineers to maintain field I/O continuity while the upper-layer network is reconfigured. Signal isolators — particularly for 4–20 mA loops running through the AI835A HART analog input module — should be tested for ground loop issues before the new termination base is energized.

Programming compatibility is another key checkpoint. The I/O channel assignments defined in Control Builder M are tied to the physical slot address of each module. When the TU831V1 is installed in the same slot as its predecessor, the software configuration typically requires no changes beyond a forced download to confirm hardware recognition. However, if the slot address has shifted due to rack reconfiguration, all affected function block connections in the application program must be remapped before the system is returned to automatic control. HMI faceplates built in ABB 800xA or a third-party SCADA system should be validated against the updated I/O list to ensure that analog scaling, alarm limits, and interlock logic remain correctly bound to the physical channels.

Downtime Control During System Migration

Minimizing unplanned downtime during a termination module replacement requires a structured hot-swap or cold-swap strategy depending on the process criticality. For non-critical I/O stations, a cold-swap during a scheduled maintenance window is the safest approach: isolate the affected S800 rack, photograph the existing wiring, remove the old termination base, install the 3BSE013235R1, reconnect field cables terminal by terminal using the verified loop drawings, and perform a channel-by-channel functional test before returning the rack to service.

For critical loops — such as those feeding safety instrumented system inputs or primary process control variables — a parallel wiring strategy is recommended. Temporary signal jumpers can be used to maintain field signal continuity on a spare I/O channel while the primary termination base is replaced. This approach keeps the AC800M controller in automatic mode throughout the swap, eliminating the need to transfer control to a backup system or manual station.

Before the replacement module is powered up, confirm that the DIP switch address on the TU831V1 matches the address previously assigned to the failed unit. An address mismatch will cause the Modulebus to report a hardware fault, and the AC800M will place the affected I/O station in a degraded state. Once the module is recognized, perform a live I/O test by forcing individual channels in Control Builder M and verifying the corresponding field signals at the terminal strip. Document the as-found and as-left readings for the maintenance record.

All units supplied by NINERMAS are pre-tested prior to shipment. Each 3BSE013235R1 TU831V1 undergoes functional verification to confirm terminal continuity, bus connector integrity, and correct mechanical fit before dispatch. This pre-shipment testing step significantly reduces the risk of receiving a non-functional unit and helps keep the on-site replacement window as short as possible. Stock is maintained to support urgent orders, and the 12-month warranty covers any functional failure that occurs under normal operating conditions after installation.

Retrofit Support FAQ

Q1: Is the 3BSE013235R1 TU831V1 a direct replacement for earlier TU831 revisions?
Yes. The TU831V1 (3BSE013235R1) is backward-compatible with earlier TU831 revisions in the same S800 I/O station. The terminal assignment and bus connector interface are unchanged. Verify the DIP switch address setting matches the original unit before powering up. No software changes are required if the module occupies the same physical slot.

Q2: What should I check regarding power supply capacity before installing this module?
Confirm the total current draw of all modules in the affected S800 rack against the rated output of the installed TB820V2 or TB840A power supply. The TU831V1 itself draws minimal bus power, but if the rack is already near its power budget limit due to high-density AI810 or DI810 modules, a power supply upgrade may be required before the replacement is completed.

Q3: Can this module be used during a phased migration from PROFIBUS DP to PROFINET?
Yes. The TU831V1 operates on the S800 Modulebus local bus and is independent of the upper-layer communication protocol. During a phased migration where the CI854AK01 PROFIBUS interface is being replaced with a PROFINET-capable communication module, the TU831V1 termination base continues to serve as the field wiring interface without modification. This allows the communication layer to be upgraded without disturbing field wiring or I/O channel assignments.

Q4: What does the 12-month warranty cover, and how does NINERMAS handle warranty claims?
The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions from the date of shipment. If a unit fails within the warranty period, contact NINERMAS with the order reference and a description of the fault. Replacement units are dispatched from stock to minimize process downtime. Units that have been subjected to overvoltage, incorrect wiring, or physical damage are evaluated on a case-by-case basis.
