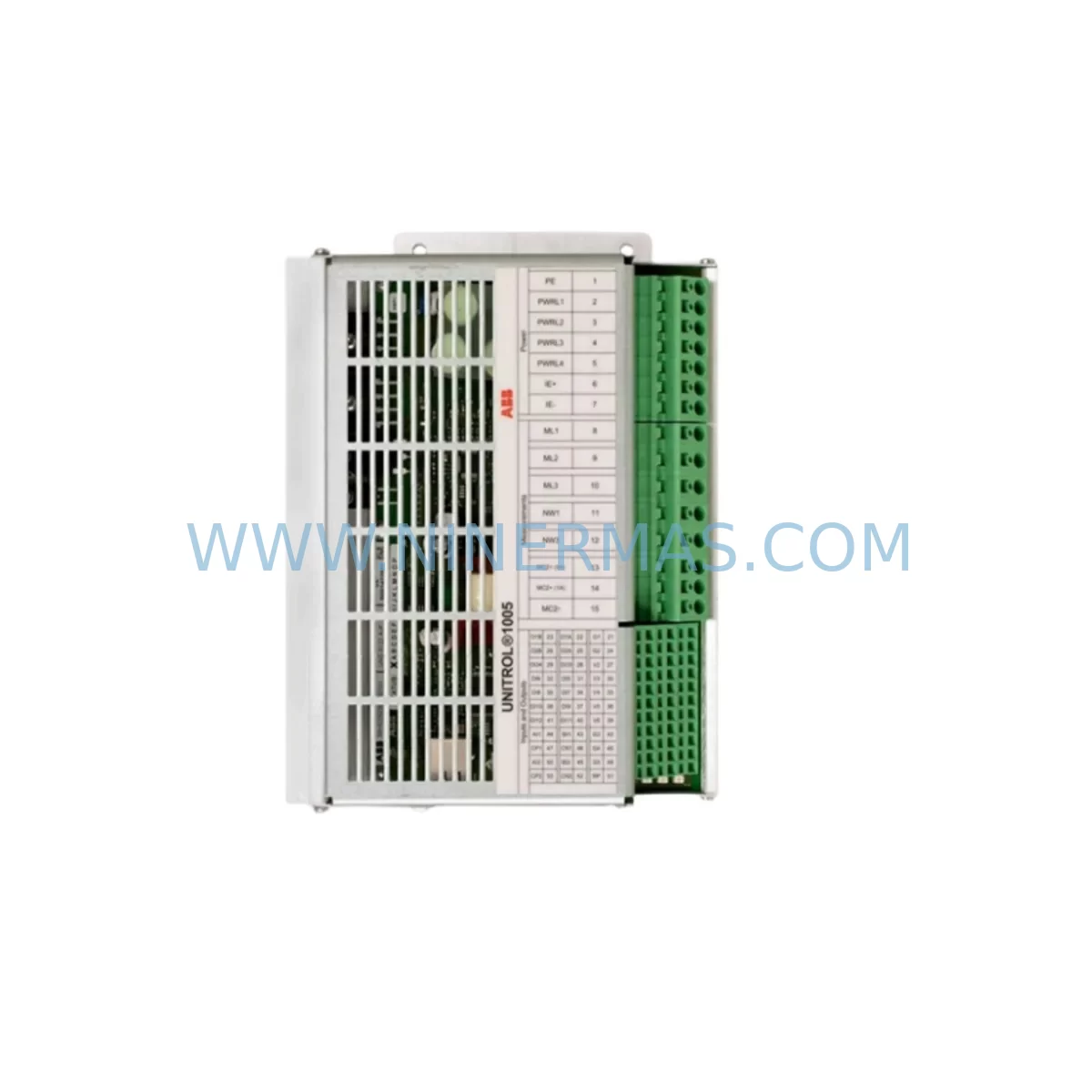

The ABB 3BHE043576R0011 is a safety-rated Automatic Voltage Regulator (AVR) module belonging to the ABB Unitrol 1005 excitation control series. Designed for continuous operation in demanding industrial environments, this module governs generator field excitation, maintains terminal voltage stability, and provides protective shutdown logic under fault conditions. For maintenance engineers managing generator sets, turbine-driven alternators, or large synchronous motors, the 3BHE043576R0011 represents a critical control node — its failure directly translates to unplanned downtime, production loss, and potential damage to downstream electrical infrastructure.

At NINERMAS, every 3BHE043576R0011 unit is sourced from verified supply channels, subjected to pre-shipment functional testing, and dispatched with a 12-month warranty. Our service-ready inventory model means you receive a module that is ready for immediate installation — not a refurbished unit requiring additional bench calibration. Whether you are responding to an emergency shutdown, executing a planned annual overhaul, or building a strategic spare parts buffer, this module ships with full traceability documentation to support your maintenance records.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 3BHE043576R0011 in isolation is rarely sufficient for a robust maintenance outcome. The Unitrol 1005 excitation system is an integrated architecture, and a fault in the AVR safety module is frequently accompanied by stress or degradation in adjacent components. Experienced maintenance engineers treat a module replacement as an opportunity to audit the entire excitation cabinet.

Begin with the power supply chain. The 3BHE003855R0001 power supply unit feeds regulated DC to the control electronics; a failing or marginal power supply can cause intermittent AVR faults that are misdiagnosed as module failures. Verify output voltage stability under load before commissioning the replacement 3BHE043576R0011. Similarly, inspect the 3BHE041462R0101 measurement module, which provides the voltage and current feedback signals that the AVR uses for closed-loop regulation — a drifted measurement channel will cause the new module to regulate incorrectly from day one.

On the signal and communication side, the 3BHB002483R0001 fiber optic interface board handles high-speed data exchange between the AVR module and the excitation power bridge. Fiber connectors degrade over time due to contamination and mechanical stress; clean and inspect all fiber terminations during the replacement window. The 3BHE024855R0101 communication module, if present in your cabinet configuration, manages supervisory SCADA or DCS integration — confirm that its firmware version is compatible with the replacement AVR module before closing the cabinet.

The excitation power stage deserves equal attention. The 3BHE021889R0101 IGBT gate driver board translates AVR control signals into firing pulses for the thyristor or IGBT bridge. Gate driver faults can produce erratic excitation behavior that damages the AVR module over time. Inspect for signs of thermal stress, cracked solder joints, or discolored PCB areas. The 3BHB003230R0101 pulse amplifier board, which buffers and amplifies gate signals, should also be checked for output symmetry across all firing channels.

For I/O integrity, review the 3BHE022291R0101 I/O module, which interfaces digital and analog signals between the AVR and the plant control system. Verify that all analog input channels are within calibration tolerance and that digital outputs are switching cleanly. The 3BHE009319R0001 terminal board provides the physical wiring interface for field connections; inspect all terminal screws for correct torque and signs of overheating or corrosion, particularly on the field current feedback and voltage sensing circuits.

Finally, if your installation includes a redundant excitation channel, verify that the 3BHE024577R0101 power module in the standby channel is also in serviceable condition. A redundant system with a degraded standby module provides no real protection during a primary channel fault. Procurement engineers building annual spare parts budgets should consider stocking at least one unit of each of these critical components to support a complete excitation cabinet restoration within a single maintenance window.

Site Replacement Workflow

The 3BHE043576R0011 is a direct replacement for earlier Unitrol 1005 safety AVR revisions. Before beginning the replacement, confirm the firmware version of the existing module using the ABB Unitrol commissioning tool or the local HMI panel. Document the current parameter set — voltage setpoint, reactive power droop, ceiling voltage limit, and protection thresholds — so that these values can be restored after the new module is initialized.

Power down the excitation cabinet following your site’s lockout/tagout procedure. Discharge any residual energy in the DC bus capacitors before handling the module. The 3BHE043576R0011 is typically secured by a front-panel locking mechanism and connects via a rear backplane connector. Inspect the backplane connector pins for damage or contamination before inserting the replacement module. After seating the module, restore power and allow the system to complete its self-test sequence before enabling the automatic voltage regulation function.

Perform a no-load voltage build-up test to confirm that the AVR is regulating correctly before connecting the generator to the bus. Verify that all protection functions — overvoltage, undervoltage, loss of excitation, and field overcurrent — are responding correctly to simulated fault conditions. Log the commissioning results and retain them as part of the maintenance record for this asset. This workflow minimizes the risk of a repeat fault and provides the documentation trail required for warranty claims and regulatory compliance.

Spare Parts Support FAQ

Q1: Is the 3BHE043576R0011 compatible with all Unitrol 1005 cabinet configurations?
The 3BHE043576R0011 is designed for the ABB Unitrol 1005 platform and is generally compatible with Unitrol 1010 and Unitrol 1020 systems that share the same backplane architecture. However, firmware compatibility must be verified against your specific cabinet revision. Contact our technical team with your cabinet serial number and we will confirm compatibility before shipment.

Q2: What pre-shipment testing does NINERMAS perform on this module?
Every 3BHE043576R0011 unit undergoes functional power-on testing, communication interface verification, and visual inspection for component condition and PCB integrity before dispatch. Units that do not pass all test criteria are not shipped. A test report is available upon request and is included with orders for critical infrastructure applications.

Q3: What is the recommended inventory strategy for this module?
For sites operating a single generator set, we recommend maintaining one spare 3BHE043576R0011 on-site at all times. For multi-unit installations or sites where generator availability is critical to production continuity, a minimum of two units is advisable. Modules stored in original packaging in a climate-controlled environment retain their service-ready condition for a minimum of five years.

Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or operation outside the specified environmental limits. Warranty claims are processed with a replacement-first policy — we ship a replacement unit before requiring return of the failed module, minimizing your downtime exposure.
