ABB 3BHE005774R0002 Safety-Reliable AVR Module for Critical Sites

ABB 3BHE005774R0002 Safety-Reliable AVR Module for Critical Sites

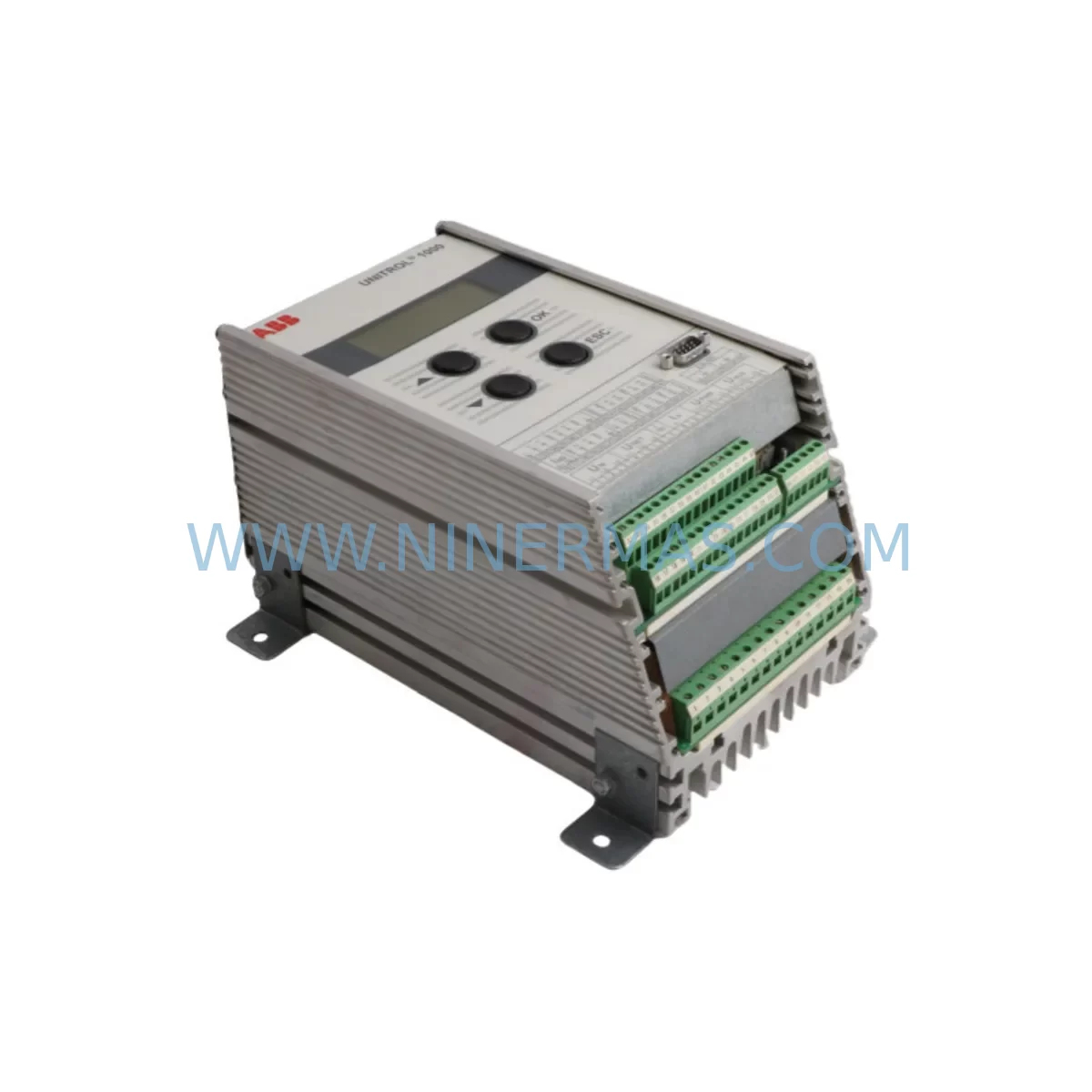

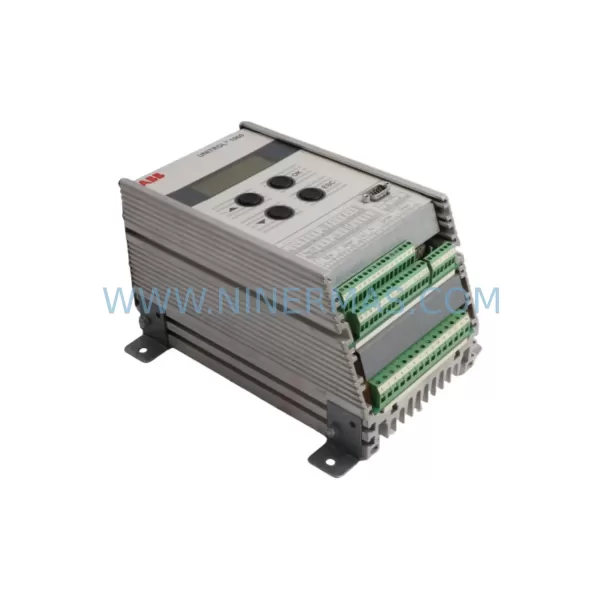

The ABB 3BHE005774R0002, designated UN1000A-Z V1, is a core excitation control module within ABB’s renowned Unitrol 1000 automatic voltage regulator (AVR) platform. Engineered for synchronous generators operating in continuous production environments, this module delivers precise voltage regulation, robust control loop protection, and exceptional resistance to electrical disturbances — making it a trusted component in critical power generation and industrial control sites worldwide.

In high-stakes industrial environments where unplanned downtime carries severe operational and financial consequences, the 3BHE005774R0002 provides the stability backbone that keeps generator excitation systems performing within safe operating parameters. Its architecture is designed to suppress signal drift, absorb surge impulses, and maintain communication integrity even under conditions of high electromagnetic interference (EMI), voltage fluctuation, and thermal stress. For maintenance engineers and system integrators managing aging or end-of-life generator control systems, this module represents a direct, safety-validated replacement that eliminates the risk of control interruption during critical production cycles.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

Reliable excitation control does not exist in isolation — it depends on a carefully coordinated ecosystem of protection, power, and communication components within the generator control cabinet. The 3BHE005774R0002 UN1000A-Z V1 is designed to operate in close coordination with other Unitrol 1000 platform modules, and its performance is directly influenced by the health of surrounding components.

In many critical installations, the excitation control chain begins with a stable DC power supply. The ABB 3BHB002916R0001 power supply board provides the regulated DC rail that the UN1000A-Z V1 relies on for consistent operation. Any instability in this supply — caused by aging capacitors, loose connections, or surge events — can propagate directly into voltage regulation errors. Pairing the 3BHE005774R0002 with a verified 3BHB002916R0001 eliminates this upstream risk.

Gate pulse generation is another critical link in the excitation chain. The ABB 3BHE024577R0101 gate pulse generator board works in tandem with the UN1000A-Z V1 to convert control signals into precise thyristor firing commands. Degradation in this board — often caused by thermal cycling or capacitor aging — can introduce firing angle errors that destabilize generator output voltage. Maintaining a spare 3BHE024577R0101 alongside the 3BHE005774R0002 is a recognized best practice in continuous production facilities.

Thyristor interface integrity is equally important. The HIEE300661R0001 thyristor firing interface board, commonly found in Unitrol 1000 and related ABB excitation systems, bridges the digital control domain and the high-power thyristor bridge. In environments with heavy motor loads, arc furnaces, or frequent load switching, this interface is exposed to significant electrical stress. A proactive replacement strategy for the HIEE300661R0001 reduces the risk of misfiring events that can trip the generator offline.

For facilities that rely on remote monitoring or SCADA integration, the ABB 3BHE022291R0101 communication module provides the fieldbus connectivity layer for the Unitrol 1000 platform. Communication anomalies — often the first symptom of a failing module — can mask underlying excitation faults and delay corrective action. Ensuring this module is in verified condition is essential for maintaining real-time visibility into generator health.

Measurement accuracy is foundational to safe AVR operation. The ABB 3BHB003154R0101 measurement board captures generator terminal voltage and current signals that feed directly into the 3BHE005774R0002 control algorithm. Signal drift or noise on this board translates directly into regulation errors. In dusty, humid, or high-vibration environments, periodic inspection and replacement of the 3BHB003154R0101 is a key element of a proactive maintenance strategy.

For broader generator protection, the ABB 3BHE004573R0141 UN0300A module provides field current limiting and protection functions that complement the voltage regulation role of the UN1000A-Z V1. Together, these two modules form the core of a complete excitation protection strategy. Additionally, the ABB SDCS-PIN-4 interface board, widely used in ABB DC drive and excitation systems, provides the analog and digital I/O interface that connects the control system to field instrumentation — a component whose failure can cause loss of feedback and uncontrolled excitation response.

Finally, the ABB 3BSE008516R1 analog input module, part of the S800 I/O family, is frequently deployed in the same control cabinet to handle process variable inputs from the generator protection relay system. Its reliable operation ensures that trip signals and load-shedding commands reach the excitation controller without delay, preventing dangerous overvoltage conditions during fault events.

Critical Industrial Safety Applications

The ABB 3BHE005774R0002 UN1000A-Z V1 is deployed across a wide range of critical industrial sectors where generator excitation reliability is non-negotiable.

In petrochemical and refinery facilities, captive power generation units must maintain stable voltage under rapidly varying load conditions driven by large compressor motors and process heaters. The Unitrol 1000 platform, anchored by the 3BHE005774R0002, provides the fast voltage response needed to prevent voltage collapse during motor starting events.

In thermal and hydroelectric power plants, the excitation system is a primary safety barrier against generator instability. Utilities operating aging generator fleets rely on verified replacement modules like the 3BHE005774R0002 to extend the operational life of their excitation systems without the cost and risk of full system replacement.

In mining and mineral processing operations, where continuous operation of grinding mills, conveyors, and ventilation systems is critical to safety, generator excitation failures can trigger cascading shutdowns. The 3BHE005774R0002 provides the control stability needed to maintain power quality in these demanding environments.

In water treatment and pumping stations, where backup generator reliability is a regulatory requirement, the Unitrol 1000 platform’s proven track record makes the 3BHE005774R0002 a preferred replacement choice for facility engineers managing long-term asset integrity.

In metallurgical plants and steel mills, where arc furnaces and rolling mill drives create severe voltage disturbances, the robust EMI resistance and surge suppression of the 3BHE005774R0002 ensures that the excitation control loop remains stable even under the most challenging power quality conditions.

Port and marine applications also benefit from this module’s reliability. Shipboard power generation systems and shore power installations operating in salt-air, high-humidity environments depend on the Unitrol 1000 platform’s environmental tolerance to maintain continuous power availability for critical navigation and cargo handling systems.

Safety and Quality FAQ

Q1: What warranty coverage is provided for the ABB 3BHE005774R0002?
Every 3BHE005774R0002 supplied by NINERMAS COMPANY LIMITED carries a 12-month warranty from the date of shipment. This warranty covers functional defects identified under normal operating conditions and is backed by our pre-shipment testing protocol, which verifies module functionality before dispatch.

Q2: What pre-shipment testing is performed on this module?
Each unit undergoes a multi-point functional inspection prior to shipment, including power-on verification, communication interface check, and visual inspection for component integrity. This process ensures that the module arrives at your facility in verified working condition, reducing the risk of installation failures in critical control environments.

Q3: Is the 3BHE005774R0002 compatible with all Unitrol 1000 series configurations?
The UN1000A-Z V1 designation indicates compatibility with the Unitrol 1000 platform’s standard hardware architecture. For site-specific configurations involving customized firmware versions or non-standard I/O assignments, we recommend consulting your existing system documentation or contacting our technical team to confirm compatibility before installation.

Q4: Can NINERMAS support long-term supply for this end-of-life ABB module?
Yes. NINERMAS maintains a dedicated inventory of critical ABB excitation system components, including the 3BHE005774R0002, as part of our long-term spare parts supply commitment. We work with procurement teams and maintenance planners to establish reserved inventory agreements that ensure availability for planned maintenance shutdowns and emergency replacement scenarios.
